Parts for G8297 - 2 HP Hot Dog Air Compressor

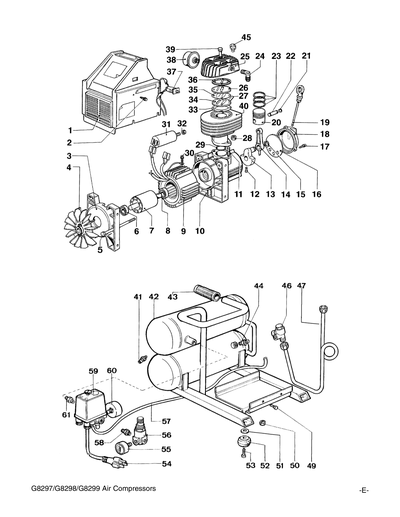

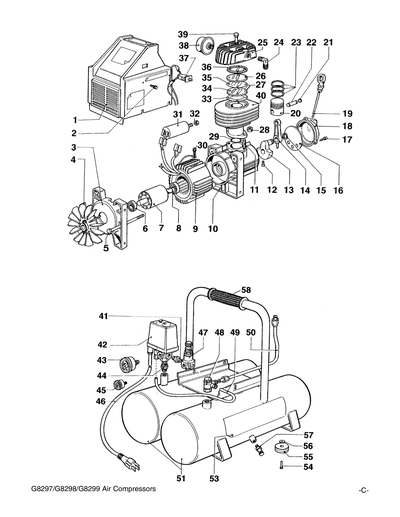

Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297
Part Diagram for G8297

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

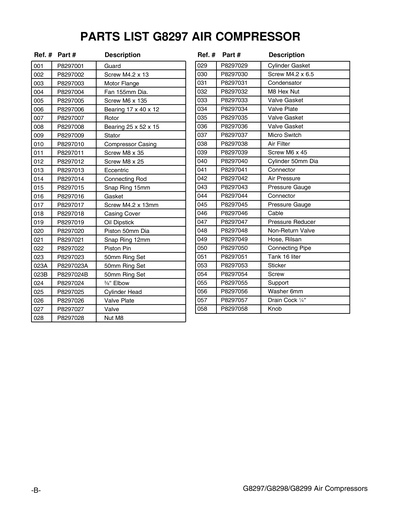

Ref #
Part #
Description
1
*DISCD*GUARD
Item is no longer available
Price
N/A
2
*DISCD*SCREW M4.2 X 13
Item is no longer available
Price
N/A
3
*DISCD*MOTOR FLANGE
Item is no longer available
Price
N/A
4
*DISCD*FAN 155MM DIA.
Item is no longer available
Price
N/A
5
*DISCD*SCREW M6 X 135
Item is no longer available
Price
N/A
6
*DISCD*BEARING 17 X 40 X 12
Item is no longer available
Price
N/A
7
*DISCD*ROTOR
Item is no longer available
Price
N/A
8
*DISCD*BEARING 25 X 52 X 15
Item is no longer available
Price
N/A
9
*DISCD*STATOR
Item is no longer available
Price
N/A
10
*DISCD*COMPRESSOR CASING
Item is no longer available
Price
N/A
11
*DISCD*SCREW M8 X 35
Item is no longer available
Price
N/A
12
*DISCD*SCREW M8 X 25
Item is no longer available
Price
N/A
13
Price
$8.35
14
Price
$6.65
15
*DISCD*SNAP RING 15MM
Item is no longer available
Price
N/A
16
*DISCD*GASKET
Item is no longer available
Price
N/A
17
*DISCD*SCREW M4.2 X 13MM
Item is no longer available
Price
N/A
18
Price
$57.80
19
*DISCD*OIL DIP STICK
Item is no longer available
Price
N/A
20
*DISCD*PISTON 50MM DIA
Item is no longer available
Price
N/A
21
*DISCD*SNAP RING 12MM
Item is no longer available
Price
N/A
22
*DISCD*PISTON PIN
Item is no longer available
Price
N/A
23
*DISCD*50MM RING SET
Item is no longer available
Price
N/A
23A
*DISCD*50MM RING SET
Item is no longer available
Price
N/A
23B
*DISCD*50MM RING SET
Item is no longer available
Price
N/A
24
*DISCD*3/8" ELBOW
Item is no longer available
Price
N/A
25
*DISCD*CYLINDER HEAD
Item is no longer available
Price
N/A
26
*DISCD*VALVE PLATE
Item is no longer available
Price
N/A
27
*DISCD*VALVE
Item is no longer available
Price
N/A
28
HEX NUT M8-1.25
Price
N/A
29
*DISCD*CYLINDER GASKET
Item is no longer available
Price
N/A
30
*DISCD*SCREW M4.2 X 6.5
Item is no longer available
Price
N/A
31
*DISCD*CAPACITOR 30UF
Item is no longer available
Price
N/A
32
HEX NUT M8-1.25
Price
N/A
33
*DISCD*VALVE GASKET
Item is no longer available
Price
N/A
34
*DISCD*VALVE PLATE
Item is no longer available
Price
N/A
35
*DISCD*VALVE GASKET
Item is no longer available
Price
N/A
36
*DISCD*VALVE GASKET HEAD
Price
$12.65
37
*DISCD*MICRO SWITCH
Item is no longer available
Price
N/A
38
*DISCD*AIR FILTER
Price
N/A
39
*DISCD*SCREW M6 X 45
Item is no longer available
Price
N/A
40
*DISCD*CYLINDER 50MM DIA
Item is no longer available
Price
N/A
41
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
42
*DISCD*AIR PRESSURE REGULATOR
Price
$66.15
43
*DISCD*PRESSURE GAUGE
Price
N/A
44
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
45
*DISCD*PRESSURE GAUGE
Item is no longer available
Price
N/A
46
*DISCD*CABLE
Item is no longer available
Price
N/A
47
*DISCD*PRESSURE REDUCER
Price
$132.25
48
*DISCD*NO-RETURN VALVE
Item is no longer available
Price
N/A
49
Price
$8.35
50
*DISCD*CONNECTING PIPE
Item is no longer available
Price
N/A
51
*DISCD*TANK 16 LITER
Item is no longer available
Price
N/A
53
*DISCD*STICKER
Item is no longer available
Price
N/A
54
*DISCD*SCREW
Item is no longer available
Price
N/A
55
Price
$16.40
56
FLAT WASHER 6MM
Price
N/A
57
*DISCD*DRAIN COCK 1/4"
Item is no longer available
Price
N/A
58
*DISCD*KNOB
Item is no longer available
Price
N/A
