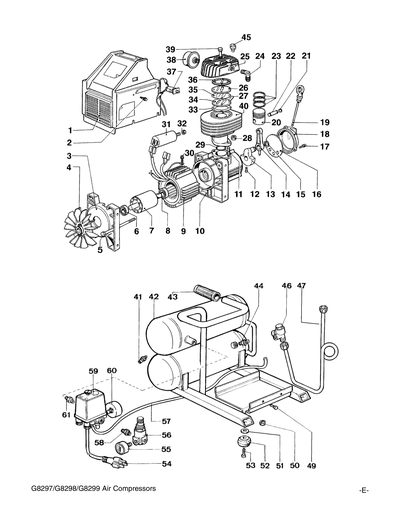

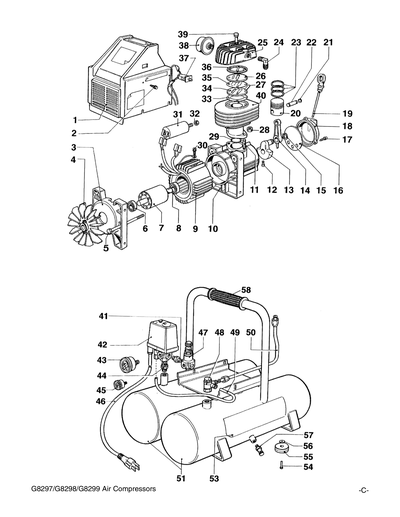

Parts for G8298 2.5 HP Hot Dog Air Compressor

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*GUARD
Item is no longer available
Price
N/A
2
*DISCD*SCREW M4.2 X 13
Item is no longer available
Price
N/A
3
*DISCD*MOTOR FLANGE
Item is no longer available
Price
N/A
4
*DISCD*FAN 155MM DIA.
Item is no longer available
Price
N/A
5
*DISCD*SCREW M6 X 135
Item is no longer available
Price
N/A
6
*DISCD*BEARING 17 X 40 X 12
Item is no longer available
Price
N/A
7
*DISCD*ROTOR
Item is no longer available
Price
N/A
8
*DISCD*BEARING 25 X 52 X 15
Item is no longer available
Price
N/A
9
*DISCD*STATOR
Item is no longer available
Price
N/A
10
*DISCD*COMPRESSOR CASING
Item is no longer available
Price
N/A
11
*DISCD*SCREW M8 X 35
Item is no longer available
Price
N/A
12
*DISCD*SCREW M8 X 25
Item is no longer available
Price
N/A
13
*DISCD*ECCENTRIC
Item is no longer available
Price
N/A
14
*DISCD*CONNECTING ROD
Item is no longer available
Price
N/A
15
*DISCD*SNAP RING 15MM
Item is no longer available
Price
N/A
16
*DISCD*GASKET
Item is no longer available
Price
N/A
17
*DISCD*SCREW M4.2 X 13MM
Item is no longer available
Price
N/A
18
*DISCD*CASING COVER
Item is no longer available
Price
N/A
19
*DISCD*OIL DIP STICK
Item is no longer available
Price
N/A
20
*DISCD*PISTON
Item is no longer available
Price
N/A
21
*DISCD*SNAP RING 12MM
Item is no longer available
Price
N/A
22
*DISCD*PISTON PIN
Item is no longer available
Price
N/A
23
*DISCD*RING SET
23A
*DISCD*RING SET
23B
*DISCD*RING SET
24
*DISCD*3/8" ELBOW
Item is no longer available
Price
N/A
25
*DISCD*CYLINDER HEAD
25A
*DISCD*CYLINDER HEAD ASSY
Item is no longer available
Price
N/A
26
*DISCD*VALVE PLATE
Item is no longer available
Price
N/A
27
*DISCD*VALVE
Item is no longer available
Price
N/A
28
Now: PN03M
HEX NUT M8-1.25
Price
N/A
29
*DISCD*CYLINDER GASKET
Item is no longer available
Price
N/A
30
*DISCD*SCREW M4.2 X 6.5
Item is no longer available
Price
N/A
31
*DISCD*CAPACITOR 60UF
Item is no longer available
Price
N/A
32
Now: PN03M
HEX NUT M8-1.25
Price
N/A
33
*DISCD*VALVE GASKET
Item is no longer available
Price
N/A
34
*DISCD*VALVE PLATE
35
*DISCD*VALVE GASKET
36
*DISCD*VALVE GASKET
Item is no longer available
Price
N/A
37
*DISCD*MICRO SWITCH
Item is no longer available
Price
N/A
38
*DISCD*AIR FILTER
Item is no longer available
Price
N/A
39
Now: PB71M
HEX BOLT M6-1 X 45
Price
N/A
40
*DISCD*CYLINDER
Item is no longer available
Price
N/A
41
*DISCD*DRAIN COCK 1/4"
Price
N/A
42
*DISCD*TANK
Item is no longer available
Price
N/A
43
*DISCD*KNOB
Item is no longer available
Price
N/A
44
*DISCD*CONNECTOR
45
*DISCD*VALVE 1/4"
Item is no longer available
Price
N/A
46
*DISCD*NON-RETURN VALVE
Item is no longer available
Price
N/A
47
*DISCD*CONNECTING PIPE
Item is no longer available
Price
N/A
49
*DISCD*SCREW
Item is no longer available
Price
N/A
50
Now: PN01M
HEX NUT M6-1
Price
N/A
51
*DISCD*WASHER 6MM
Item is no longer available
Price
N/A
52
*DISCD*SUPPORT
Item is no longer available
Price
N/A
53
*DISCD*SCREW M6 X 30
Item is no longer available
Price
N/A
54
*DISCD*CABLE
Item is no longer available
Price
N/A
55
*DISCD*PRESSURE GAUGE
56
*DISCD*PRESSURE REDUCER
Price
N/A
57
*DISCD*HOSE, RILSAN
58
*DISCD*CONNECTOR
59
*DISCD*AIR PRESSURE REGULATOR
Price
N/A
60
*DISCD*PRESSURE GAUGE
Item is no longer available
Price
N/A
61
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR THE G8298
Item is no longer available
Price
N/A
