Parts for G8689 - 4" x 16" Mini Milling Machine

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

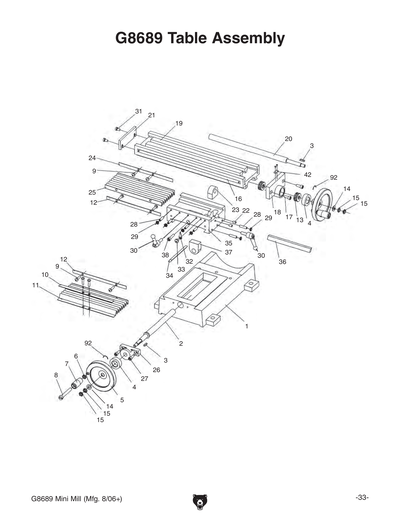

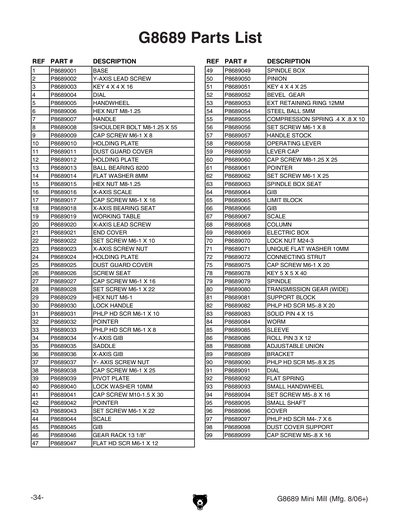

Ref # Part # Description Price Qty
001 P8689001 BASE $42.00
002 P8689002 Y-AXIS LEAD SCREW $10.31
002-1 P8689002-1
KEY 4 X 4 X 16
Item is no longer available
P8689002-1 Replaced By PK37M 		N/A View Replacement
003 P8689003
KEY 4 X 4 X 16
Item is no longer available
P8689003 Replaced By PK37M 		N/A View Replacement
004 P8689004 DIAL $6.50
005 P8689005 HANDWHEEL $9.75
006 P8689006
HEX NUT M8-1.25
Item is no longer available
P8689006 Replaced By PN03M 		N/A View Replacement
007 P8689007 KNOB $2.25
008 P8689008
HANDWHEEL HANDLE SCREW M8-1.25 X 55
Item is no longer available
P8689008 Replaced By P9729937 		N/A View Replacement
009 P8689009
CAP SCREW M6-1 X 8
Item is no longer available
P8689009 Replaced By PCAP68M 		N/A View Replacement
010 P8689010 HOLDING PLATE $1.25
011 P8689011 DUST GUARD COVER $4.50
012 P8689012 HOLDING PLATE $1.56
013 P8689013 BALL BEARING 8200 $6.50
014 P8689014
FLAT WASHER 8MM
Item is no longer available
P8689014 Replaced By PW01M 		N/A View Replacement
015 P8689015
HEX NUT M8-1.25
Item is no longer available
P8689015 Replaced By PN03M 		N/A View Replacement
016 P8689016 X-AXIS SCALE $2.19
017 P8689017
CAP SCREW M6-1 X 16
Item is no longer available
P8689017 Replaced By PCAP01M 		N/A View Replacement
017-1 P8689017-1
*DISCD*SCREW M6 X 10
Item is no longer available
 N/A
018 P8689018 X-AXIS BEARING SEAT $5.00
019 P8689019 WORKING TABLE $55.00
020 P8689020 X-AXIS LEAD SCREW $8.12
021 P8689021 END COVER $2.19
022 P8689022
CAP SCREW M6-1 X 10
Item is no longer available
P8689022 Replaced By PCAP04M 		N/A View Replacement
023 P8689023 X-AXIS SCREW NUT $15.62
024 P8689024 HOLDING PLATE $1.56
025 P8689025 DUST GUARD COVER $3.25
026 P8689026 SCREW SEAT $14.38
027 P8689027
CAP SCREW M6-1 X 16
Item is no longer available
P8689027 Replaced By PCAP01M 		N/A View Replacement
028 P8689028
SET SCREW M6-1 X 22
Item is no longer available
P8689028 Replaced By PSS46M 		N/A View Replacement
029 P8689029
HEX NUT M6-1
Item is no longer available
P8689029 Replaced By PN01M 		N/A View Replacement
030 P8689030
HANDLE
Item is no longer available
P8689030 Replaced By P05161030 		N/A View Replacement
031 P8689031
PHLP HD SCR M6-1 X 10
Item is no longer available
P8689031 Replaced By PS68M 		N/A View Replacement
032 P8689032 POINTER $1.00
033 P8689033
PHLP HD SCR M6-1 X 8
Item is no longer available
P8689033 Replaced By PS03M 		N/A View Replacement
034 P8689034 Y-AXIS GIB $1.75
035 P8689035 SADDLE $26.50
036 P8689036 X-AXIS GIB $1.88
037 P8689037 Y-AXIS SCREW NUT $14.38
038 P8689038
CAP SCREW M6-1 X 25
Item is no longer available
P8689038 Replaced By PCAP06M 		N/A View Replacement
039 P8689039 PIVOT PLATE $14.69
039-1 P8689039-1 SHAFT $1.25
039-2 P8689039-2
KEY 8 X 8 X 12
Item is no longer available
P8689039-2 Replaced By PK70M 		N/A View Replacement
040 P8689040
FLAT WASHER 10MM
Item is no longer available
P8689040 Replaced By PW04M 		N/A View Replacement
040-1 P8689040-1
FLAT WASHER 10MM
Item is no longer available
P8689040-1 Replaced By PW04M 		N/A View Replacement
041 P8689041
CAP SCREW M10-1.5 X 30
Item is no longer available
P8689041 Replaced By PCAP72M 		N/A View Replacement
042 P8689042 POINTER $1.00
043 P8689043 DOG PT SET SCR M6-1 X 22 $1.00
044 P8689044 SCALE $1.56
045 P8689045
GIB
 N/A
046 P8689046 GEAR RACK 13-1/8" $10.31
047 P8689047
CAP SCREW M6-1 X 16
Item is no longer available
P8689047 Replaced By PCAP01M 		N/A View Replacement
048 P8689048
NAME PLATE
 N/A

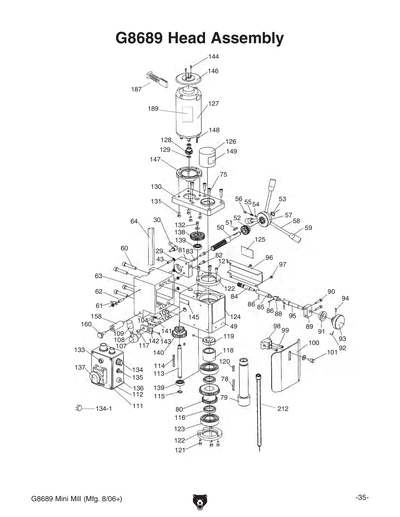

049 P8689049 SPINDLE BOX $29.00
049A P8689049A COMPLETE HEAD ASSY $110.25
050 P8689050 PINION $5.50
051 P8689051
KEY 4 X 4 X 25
Item is no longer available
P8689051 Replaced By PK30M 		N/A View Replacement
052 P8689052 BEVEL GEAR $6.50
053 P8689053
EXT RETAINING RING 12MM
Item is no longer available
P8689053 Replaced By PR03M 		N/A View Replacement
054 P8689054
STEEL BALL 5MM
Item is no longer available
P8689054 Replaced By PSTB004M 		N/A View Replacement
055 P8689055 SPRING .4 X .8 X 10 $1.00
056 P8689056
SET SCREW M6-1 X 8
Item is no longer available
P8689056 Replaced By PSS03M 		N/A View Replacement
057 P8689057 HANDLE STOCK $10.50
058 P8689058
OPERATING LEVER
Item is no longer available
P8689058 Replaced By P05161058 		N/A View Replacement
059 P8689059
LEVER CAP
Item is no longer available
P8689059 Replaced By P05161059 		N/A View Replacement
060 P8689060
CAP SCREW M8-1.25 X 25
Item is no longer available
P8689060 Replaced By PCAP31M 		N/A View Replacement
061 P8689061
POINTER
 N/A
062 P8689062
CAP SCREW M8-1.25 X 25
Item is no longer available
P8689062 Replaced By PCAP31M 		N/A View Replacement
063 P8689063 SPINDLE BOX SEAT $30.31
064 P8689064 GIB $1.25
065 P8689065 LIMIT BLOCK $6.50
066 P8689066 GIB $1.25
067 P8689067 SCALE $2.19

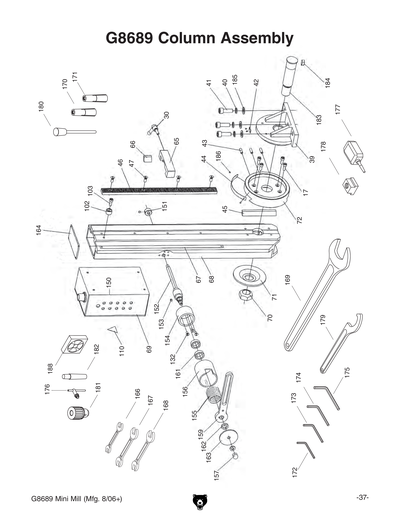

068 P8689068 COLUMN $59.25
069 P8689069 ELECTRIC BOX $8.25
069-1 P8689069-1 ELECTRICAL BOX ASSY $186.50
070 P8689070 LOCK NUT M24-3 $1.25
071 P8689071 FLAT WASHER M10 $2.25
072 P8689072 CONNECTING STRUT $10.25
073 P8689073
*DISCD*CONNECTING BOARD
Item is no longer available
 N/A
074 P8689074 PITMAN SHAFT $1.75
075 P8689075
CAP SCREW M6-1 X 20
Item is no longer available
P8689075 Replaced By PCAP02M 		N/A View Replacement
076 P8689076 CONNECTING BLOCK $1.75
077 P8689077 CUSHIONING CYLINDER $59.25
078 P8689078
KEY 5 X 5 X 40
Item is no longer available
P8689078 Replaced By PK02M 		N/A View Replacement
079 P8689079 SPINDLE $21.50
080 P8689080 TRANSMISSION GEAR WIDE $5.50
081 P8689081
SUPPORT BLOCK
 N/A
082 P8689082
PHLP HD SCR M5-.8 X 20
Item is no longer available
P8689082 Replaced By PS06M 		N/A View Replacement
083 P8689083
ROLL PIN 4 X 14
Item is no longer available
P8689083 Replaced By PRP19M 		N/A View Replacement
084 P8689084 WORM $3.50
085 P8689085 SLEEVE $4.00
086 P8689086 STEEL PIN 3 X 11 $1.00
087 P8689087 STEEL PIN 3 X 14 $1.00
088 P8689088 ADJUSTABLE UNION $2.75
089 P8689089 BRACKET $1.75
090 P8689090
CAP SCREW M5-.8 X 25
Item is no longer available
P8689090 Replaced By PCAP38M 		N/A View Replacement
091 P8689091 DIAL $4.00
092 P8689092 FLAT SPRING $1.00
093 P8689093 SMALL HANDWHEEL $7.00
094 P8689094 CONE SET SCREW M5-.8 X 16 $1.00
095 P8689095 SMALL SHAFT $4.50
096 P8689096 COVER $1.00
097 P8689097
PHLP HD SCR M4-.7 X 6
Item is no longer available
P8689097 Replaced By PS17M 		N/A View Replacement
098 P8689098 DUST COVER SUPPORT $1.00
099 P8689099
CAP SCREW M5-.8 X 16
Item is no longer available
P8689099 Replaced By PCAP24M 		N/A View Replacement

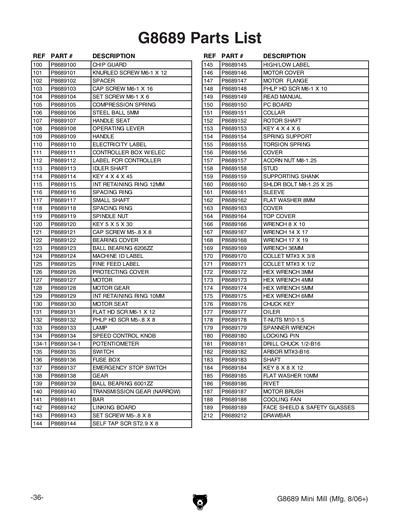

100 P8689100 CHIP GUARD $5.50
101 P8689101 KNURLED SCREW M6-1 X 12 $2.75
102 P8689102
SPACER
 N/A
103 P8689103
CAP SCREW M6-1 X 16
Item is no longer available
P8689103 Replaced By PCAP01M 		N/A View Replacement
104 P8689104
SET SCREW M6-1 X 6
Item is no longer available
P8689104 Replaced By PSS02M 		N/A View Replacement
105 P8689105 COMPRESSION SPRING $1.10
106 P8689106
STEEL BALL 5MM
Item is no longer available
P8689106 Replaced By PSTB004M 		N/A View Replacement
107 P8689107 HANDLE SEAT $3.25
108 P8689108 OPERATING LEVER $1.25
109 P8689109 HANDLE $1.00
110 P8689110
ELECTRICITY 1.4W X 1.2H
Item is no longer available
P8689110 Replaced By PLABEL-14 		N/A View Replacement
111 P8689111 CONTROLLER BOX W/ELECTRICAL $40.00
111-1 P8689111-1 CONTROL BOX GROMET $1.00
111-2 P8689111-2 CONTROLLER BOX COVER $3.75
111-3 P8689111-3 EMPTY CONTROLLER BOX $9.00
112 P8689112 CONTROLLER BOX LABEL $1.50
113 P8689113 IDLER SHAFT $5.00
114 P8689114
KEY 3 X 3 X 45
Item is no longer available
P8689114 Replaced By PK53M 		N/A View Replacement
115 P8689115
EXT RETAINING RING 12MM
Item is no longer available
P8689115 Replaced By PR03M 		N/A View Replacement
116 P8689116 SPACING RING $1.00
117 P8689117
BAR
Item is no longer available
P8689117 Replaced By P8689141 		N/A View Replacement
118 P8689118 SPACING RING $4.00
119 P8689119 SPINDLE NUT $2.25
120 P8689120
KEY 5 X 5 X 20
Item is no longer available
P8689120 Replaced By PK34M 		N/A View Replacement
121 P8689121
CAP SCREW M5-.8 X 8
Item is no longer available
P8689121 Replaced By PCAP03M 		N/A View Replacement
122 P8689122 BEARING COVER $1.00
123 P8689123
BALL BEARING 6206-OPEN
Item is no longer available
P8689123 Replaced By P6206-OPEN 		N/A View Replacement
124 P8689124 MACHINE ID LABEL $9.50
125 P8689125 FINE FEED LABEL $1.00
126 P8689126 PROTECTING COVER $1.50
127 P8689127 MOTOR 3/4HP 110V 1-PH $149.00
127-1 P8689127-1 COOLING FAN $20.50
127-2 P8689127-2 MOTOR BRUSH CAP $1.75
127-3 P8689127-3 MOTOR BRUSHES $4.75
127A P8689127A *DISCD*MOTOR BRUSH $4.50
127B P8689127B
*DISCD*MOTOR BRUSH CAP
Item is no longer available
 N/A
128 P8689128 MOTOR GEAR $1.75
129 P8689129
EXT RETAINING RING 9MM
Item is no longer available
P8689129 Replaced By PR16M 		N/A View Replacement
130 P8689130 MOTOR SEAT $10.31
131 P8689131
FLAT HD SCR M6-1 X 12
Item is no longer available
P8689131 Replaced By PFH02M 		N/A View Replacement
132 P8689132
PHLP HD SCR M5-.8 X 10
Item is no longer available
P8689132 Replaced By PS09M 		N/A View Replacement
133 P8689133 LAMP $1.75
134 P8689134 SPEED CONTROL KNOB $1.00
134-1 P8689134-1 POTENTIOMETER $4.50
135 P8689135 SWITCH $12.81
136 P8689136 FUSE BOX $1.75
137 P8689137
E-STOP BUTTON KEDU 02A1131
Item is no longer available
P8689137 Replaced By P05161137 		N/A View Replacement
138 P8689138
GEAR 30T
Item is no longer available
P8689138 Replaced By P05161138 		N/A View Replacement
138A P8689138A
KEY 4 X 4 X 8
Item is no longer available
P8689138A Replaced By PK65M 		N/A View Replacement
139 P8689139
BALL BEARING 6001-OPEN
Item is no longer available
P8689139 Replaced By P6001-OPEN 		N/A View Replacement
140 P8689140 TRANSMISSION GEAR NARROW $4.50
141 P8689141 BAR $1.75
142 P8689142 LINKING BOARD $3.58
143 P8689143
SET SCREW M5-.8 X 8
Item is no longer available
P8689143 Replaced By PSS31M 		N/A View Replacement
144 P8689144 SELF TAP SCR ST2.9 X 8 $1.00
145 P8689145 HIGH/LOW LABEL $1.10
146 P8689146 MOTOR COVER $1.25
146-1 P8689146-1
*DISCD*SCREW
Item is no longer available
 N/A
147 P8689147 MOTOR FLANGE $5.00
148 P8689148
PHLP HD SCR M6-1 X 10
Item is no longer available
P8689148 Replaced By PS68M 		N/A View Replacement
149 P8689149 SAFETY GLASSES LABEL $1.10
150 P8689150 PC BOARD $119.75
150-1 P8689150-1 YELLOW LAMP $1.50
151 P8689151 COLLAR $5.50
152 P8689152 ROTOR SHAFT $8.25
153 P8689153
KEY 4 X 4 X 6
Item is no longer available
P8689153 Replaced By PK72M 		N/A View Replacement
154 P8689154 SPRING SUPPORT $6.00
155 P8689155 TORSION SPRING $2.75
156 P8689156
COVER
 N/A
157 P8689157
ACORN NUT M8-1.25
Item is no longer available
P8689157 Replaced By PN18M 		N/A View Replacement
158 P8689158 STANDOFF-HEX MF $4.06
159 P8689159 SUPPORTING SHANK $6.25
160 P8689160 SHLDR BOLT M8-1.25 X 25 $3.03
161 P8689161 SLEEVE $4.69
162 P8689162
INT RETAINING RING 12MM
Item is no longer available
P8689162 Replaced By PR49M 		N/A View Replacement
163 P8689163 COVER $1.00
164 P8689164 TOP COVER $1.25
165 P8689165
PHLP HD SCR M3-.5 X 6
Item is no longer available
P8689165 Replaced By PS12M 		N/A View Replacement
166 P8689166
WRENCH 8 X 10MM OPEN-ENDS
Item is no longer available
P8689166 Replaced By PWR810 		N/A View Replacement
167 P8689167
WRENCH 14 X 17MM OPEN-ENDS
Item is no longer available
P8689167 Replaced By PWR1417 		N/A View Replacement
168 P8689168
WRENCH 17 X 19MM OPEN-ENDS
Item is no longer available
P8689168 Replaced By PWR1719 		N/A View Replacement
169 P8689169 WRENCH 36MM $10.73
170 P8689170 COLLET MT#3 X 3/8 $25.94
171 P8689171 COLLET MT#3 X 1/2 $20.75
172 P8689172
HEX WRENCH 3MM
Item is no longer available
P8689172 Replaced By PAW03M 		N/A View Replacement
173 P8689173
HEX WRENCH 4MM
Item is no longer available
P8689173 Replaced By PAW04M 		N/A View Replacement
174 P8689174
HEX WRENCH 5MM
Item is no longer available
P8689174 Replaced By PAW05M 		N/A View Replacement
175 P8689175
HEX WRENCH 6MM
Item is no longer available
P8689175 Replaced By PAW06M 		N/A View Replacement
176 P8689176 DRL CHK KEY 7.92MM TH 11T SD-16.2MM $2.25
177 P8689177 OILER $1.50
178 P8689178 T-NUTS M10-1.5 $3.25
179 P8689179 SPANNER WRENCH $7.15
180 P8689180 LOCK PIN $2.20
181 P8689181 DRILL CHUCK 1/2-B16 $53.75
182 P8689182 DRILL CHUCK ARBOR MT3 X JT33, 110MM L $6.25
183 P8689183 SHAFT $15.75
184 P8689184
KEY 8 X 8 X 12
Item is no longer available
P8689184 Replaced By PK70M 		N/A View Replacement
185 P8689185
FLAT WASHER 10MM
Item is no longer available
P8689185 Replaced By PW04M 		N/A View Replacement
186 P8689186
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Item is no longer available
P8689186 Replaced By PRIV19M 		N/A View Replacement
187 P8689187 MOTOR BRUSH 2 PIECE SET $4.25
188 P8689188 COOLING FAN $8.00
189 P8689189
***USE PLABEL-88C***
Item is no longer available
P8689189 Replaced By PLABEL-88C 		N/A View Replacement
200 P8689200
PC BOARD
Item is no longer available
P8689200 Replaced By P8689150 		N/A View Replacement
201 P8689201 GREAT WRENCH 36 $9.75
202 P8689202 DRILL CHUCK W/SHANK $43.00
202A P8689202A DRILL CHUCK W/O SHANK $43.00
203 P8689203
OIL CAN
 N/A
204 P8689204 FIXING PIN $2.00
205 P8689205 HEX WRENCH $2.00
206 P8689206 SOCKET HEAD WRENCH $2.00
207 P8689207 DOUBLE END WRENCH $6.50
208 P8689208 DRILL CHUCK KEY $8.00
209 P8689209 HANDLE $1.00
210 P8689210 T-NUT 3/8-16 $3.25
210A P8689210A T-NUT M8-1.25 $1.00
211 P8689211 FUSE $1.25
212 P8689212 DRAWBAR $15.75
213 P8689213
COLLET MT#3 X 3/8
Item is no longer available
P8689213 Replaced By P8689170 		N/A View Replacement
214 P8689214
COLLET MT#3 X 1/2
Item is no longer available
P8689214 Replaced By P8689171 		N/A View Replacement
215 P8689215
*DISCD*COOLING FAN
Item is no longer available
 N/A
216 P8689216
POWER INDICATOR LIGHT NHC 220V ORG
 N/A
217 P8689217
PLUG W/LINE
 N/A
218 P8689218 GREY WIRE CONDUIT $2.25
219 P8689219
CONTROL BOX GROMMET
Item is no longer available
 N/A
220 P8689220 TRANSFORMER BOARD $8.25
221 P8689221
KNURLED SCREW M6-1 X 12
Item is no longer available
P8689221 Replaced By P8689101 		N/A View Replacement
MANUAL P8689MANUAL MANUAL FOR G8689 05/05 $11.50
PART P8689PART
MISCELLANEOUS G8689 PARTS
 N/A
