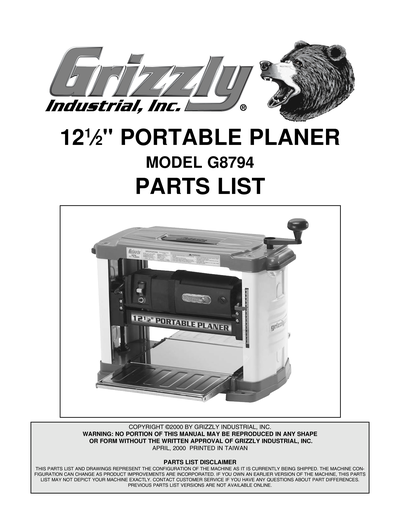

Parts for G8794 - 12-1/2" Portable Planer

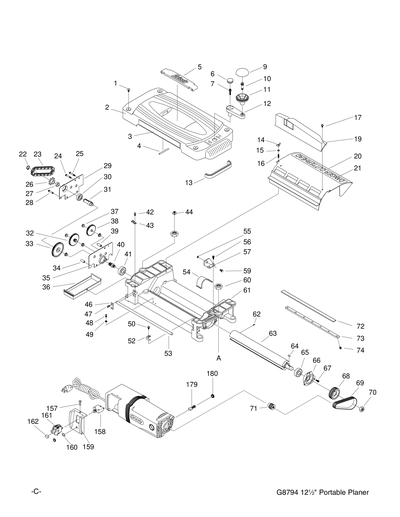

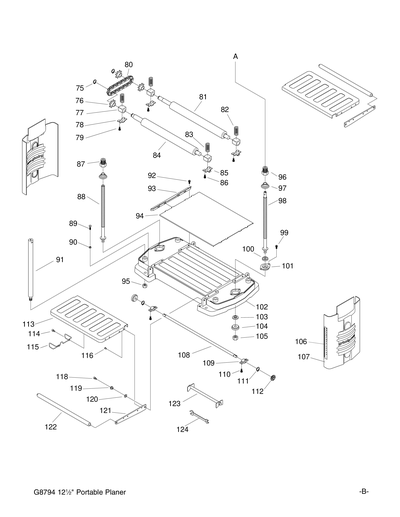

Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794
Part Diagram for G8794

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

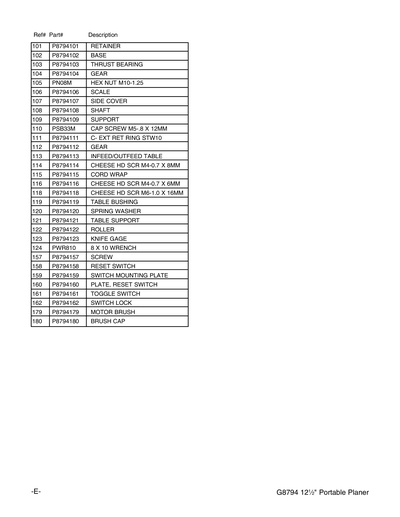

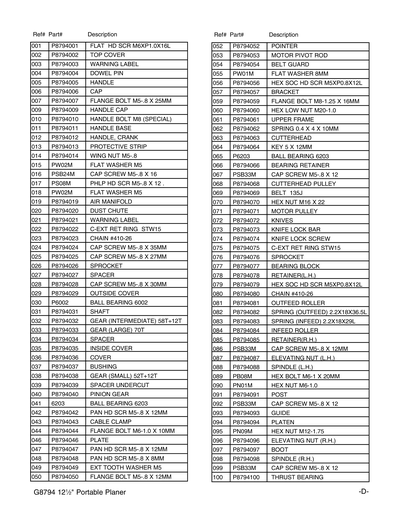

Ref #
Part #
Description
1
FLAT HD SCR M6-1 X 16
Price
N/A
2
*DISCD*TOP COVER
Item is no longer available
Price
N/A
3
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
4
*DISCD*DOWEL PIN
Item is no longer available
Price
N/A
5
*DISCD*HANDLE
Price
$4.90
6
*DISCD*CAP
Item is no longer available
Price
N/A
7
CAP SCREW M5-.8 X 25
Price
N/A
9
*DISCD*HANDLE CAP
Price
$1.49
10
*DISCD*HANDLE BOLT M8-SPECIAL
Item is no longer available
Price
N/A
11
*DISCD*HANDLE BASE
Price
$1.49
12
*DISCD*HANDLE, CRANK
Item is no longer available
Price
N/A
12A
*DISCD*HANDLE ASSY.
Price
$10.10
13
*DISCD*PROTECTIVE STRIP
Item is no longer available
Price
N/A
14
*DISCD*WING NUT M5-.8
Item is no longer available
Price
N/A
15
FLAT WASHER 5MM
Price
N/A
16
CAP SCREW M5-.8 X 16
Price
N/A
17
PHLP HD SCR M5-.8 X 12
Price
N/A
18
FLAT WASHER 5MM
Price
N/A
19
*DISCD*AIR MANIFOLD
Item is no longer available
Price
N/A
20
*DISCD*DUST CHUTE
Item is no longer available
Price
N/A
21
*DISCD*WARNING LABEL
Price
$3.00
22
EXT RETAINING RING 15MM
Price
N/A
23
*DISCD*CHAIN 410-26
Item is no longer available
Price
N/A
24
CAP SCREW M5-.8 X 35
Price
N/A
25
CAP SCREW M5-.8 X 27
Price
N/A
26
*DISCD*SPROCKET
Item is no longer available
Price
N/A
27
*DISCD*SPACER
Item is no longer available
Price
N/A
28
CAP SCREW M5-.8 X 30
Price
N/A
29
*DISCD*OUTSIDE COVER
Item is no longer available
Price
N/A
30
BALL BEARING 6002ZZ
Price
N/A
31
*DISCD*SHAFT
Item is no longer available
Price
N/A
32
*DISCD*INTERMEDIATE GEAR 58T/12T
Item is no longer available
Price
N/A
32A
*DISCD*COMPLETE GEAR BOX
Item is no longer available
Price
N/A
33
*DISCD*LARGE GEAR 70T
Price
$46.30
34
*DISCD*SPACER
Item is no longer available
Price
N/A
35
*DISCD*INSIDE COVER
Price
$33.10
36
*DISCD*COVER
Price
$24.75
37
*DISCD*BUSHING
Item is no longer available
Price
N/A
38
*DISCD*SMALL GEAR 52T/12T
Item is no longer available
Price
N/A
39
*DISCD*SPACER UNDERCUT
Item is no longer available
Price
N/A
40
*DISCD*PINION GEAR
Price
$41.40
41
BALL BEARING 6203ZZ
Price
N/A
42
PHLP HD SCR M5-.8 X 12
Price
N/A
43
*DISCD*CABLE CLAMP
Item is no longer available
Price
N/A
44
*DISCD*FLANGE BOLT M6-1.0 X 10MM
Item is no longer available
Price
N/A
46
*DISCD*PLATE
Item is no longer available
Price
N/A
47
PHLP HD SCR M5-.8 X 12
Price
N/A
48
PHLP HD SCR M5-.8 X 8
Price
N/A
49
*DISCD*EXT TOOTH WASHER M5
Item is no longer available
Price
N/A
50
*DISCD*FLANGE BOLT M5-0.8 X 12MM
Item is no longer available
Price
N/A
52
*DISCD*POINTER
Item is no longer available
Price
N/A
53
*DISCD*MOTOR PIVOT ROD
Item is no longer available
Price
N/A
54
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
55
FLAT WASHER 8MM
Price
N/A
56
CAP SCREW M5-.8 X 12
Price
N/A
57
*DISCD*BRACKET
Price
$2.60
59
HEX BOLT M8-1.25 X 16
Price
N/A
60
*DISCD*HEX LOW NUT M20-1.0
Item is no longer available
Price
N/A
61
*DISCD*UPPER FRAME
Item is no longer available
Price
N/A
62
*DISCD*SPRING 0.4 X 4 X 10MM
Item is no longer available
Price
N/A
63
*DISCD*CUTTERHEAD
Price
$49.75
64
KEY 5 X 5 X 12
Price
N/A
65
BALL BEARING 6203ZZ
Price
N/A
66
*DISCD*BEARING RETAINER
Item is no longer available
Price
N/A
67
CAP SCREW M5-.8 X 12
Price
N/A
68
*DISCD*CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
69
POLY RIBBED BELT
Price
N/A
70
*DISCD*HEX NUT M16 X 22
Item is no longer available
Price
N/A
71
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
72
12-1/2" x 3/4" x 5/64" HSS Double Edged Planer Blades for G8794, Set of 2
Price
N/A
73
*DISCD*GIB
Item is no longer available
Price
N/A
74
*DISCD*GIB BOLT 1/4"-20 X 7MM
Item is no longer available
Price
N/A
75
EXT RETAINING RING 15MM
Price
N/A
76
*DISCD*SPROCKET
Item is no longer available
Price
N/A
77
*DISCD*BEARING BLOCK
Price
$2.60
78
*DISCD*RETAINER L.H.
Item is no longer available
Price
N/A
79
CAP SCREW M5-.8 X 12
Price
N/A
80
*DISCD*CHAIN
Item is no longer available
Price
N/A
81
*DISCD*OUTFEED ROLLER
Item is no longer available
Price
N/A
82
*DISCD*OUTFEED SPRING 2.2 X 18 X 36.5L
Item is no longer available
Price
N/A
83
*DISCD*INFEED SPRING 2.2 X 18 X 29L
Item is no longer available
Price
N/A
84
*DISCD*INFEED ROLLER
Item is no longer available
Price
N/A
85
*DISCD*RETAINER R.H.
Price
$17.55
86
CAP SCREW M5-.8 X 12
Price
N/A
87
*DISCD*ELEVATING NUT L.H.
Item is no longer available
Price
N/A
88
*DISCD*SPINDLE L.H.
Item is no longer available
Price
N/A
89
HEX BOLT M6-1 X 20
Price
N/A
90
HEX NUT M6-1
Price
N/A
91
*DISCD*POST
Price
$7.50
92
CAP SCREW M5-.8 X 12
Price
N/A
93
*DISCD*GUIDE
Price
$2.60
94
*DISCD*PLATEN
Item is no longer available
Price
N/A
95
HEX NUT M12-1.75
Price
N/A
96
*DISCD*ELEVATING NUT R.H.
Price
$2.60
97
*DISCD*BOOT
Item is no longer available
Price
N/A
98
*DISCD*SPINDLE R.H.
Price
$7.50
99
CAP SCREW M5-.8 X 12
Price
N/A
100
*DISCD*THRUST BEARING
Price
$8.35
101
*DISCD*RETAINER
Item is no longer available
Price
N/A
102
*DISCD*BASE
Price
$74.50
103
*DISCD*THRUST BUSHING
Price
$2.60
104
*DISCD*GEAR
Price
$1.49
105
HEX NUT M10-1.25
Price
N/A
106
*DISCD*SCALE
Item is no longer available
Price
N/A
107
*DISCD*SIDE COVER
Price
$12.65
108
*DISCD*SHAFT
Item is no longer available
Price
N/A
109
*DISCD*SUPPORT
Item is no longer available
Price
N/A
110
CAP SCREW M5-.8 X 12
Price
N/A
111
EXT RETAINING RING 10MM
Price
N/A
112
*DISCD*GEAR
Item is no longer available
Price
N/A
113
*DISCD*INFEED/OUTFEED TABLE
Item is no longer available
Price
N/A
114
PHLP HD SCR M4-.7 X 8
Price
N/A
115
*DISCD*CORD WRAP
Item is no longer available
Price
N/A
116
PHLP HD SCR M4-.7 X 6
Price
N/A
118
PHLP HD SCR M6-1 X 16
Price
N/A
119
*DISCD*TABLE BUSHING
Item is no longer available
Price
N/A
120
*DISCD*SPRING WASHER
Item is no longer available
Price
N/A
121
*DISCD*TABLE SUPPORT
Item is no longer available
Price
N/A
122
*DISCD*ROLLER
Item is no longer available
Price
N/A
123
*DISCD*KNIFE GAUGE
Item is no longer available
Price
N/A
124
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
157
*DISCD*SCREW
Item is no longer available
Price
N/A
158
CIRCUIT BREAKER 15A ZING EAR ZE-700-15 1
Price
N/A
162
*DISCD*SWITCH LOCK
Item is no longer available
Price
N/A
179
*DISCD*MOTOR BRUSH
Item is no longer available
Price
N/A
180
*DISCD*BRUSH CAP
Item is no longer available
Price
N/A
181
*DISCD*MOTOR
Price
$193.50
MANUAL
*DISCD*MANUAL FOR G8794
Item is no longer available
Price
N/A
