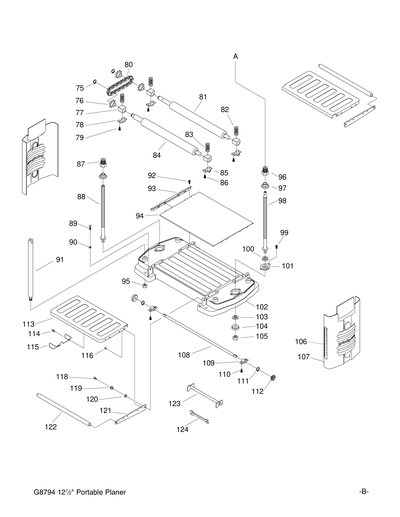

Parts for G8794 12-1/2" Portable Planer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FLAT HD SCR M6-1 X 16
Price
N/A
2
*DISCD*TOP COVER
Item is no longer available
Price
N/A
3
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A
4
*DISCD*DOWEL PIN
Item is no longer available
Price
N/A
5
*DISCD*HANDLE
6
*DISCD*CAP
Item is no longer available
Price
N/A
7
CAP SCREW M5-.8 X 25
Price
N/A
9
*DISCD*HANDLE CAP
10
*DISCD*HANDLE BOLT M8-SPECIAL
Item is no longer available
Price
N/A
11
*DISCD*HANDLE BASE
12
*DISCD*HANDLE, CRANK
Item is no longer available
Price
N/A
12A
*DISCD*HANDLE ASSY.
13
*DISCD*PROTECTIVE STRIP
Item is no longer available
Price
N/A
14
*DISCD*WING NUT M5-.8
Item is no longer available
Price
N/A
15
Now: PW02M
FLAT WASHER 5MM
Price
N/A
16
CAP SCREW M5-.8 X 16
Price
N/A
17
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
18
Now: PW02M
FLAT WASHER 5MM
Price
N/A
19
*DISCD*AIR MANIFOLD
Item is no longer available
Price
N/A
20
*DISCD*DUST CHUTE
Item is no longer available
Price
N/A
21
*DISCD*WARNING LABEL
22
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
23
*DISCD*CHAIN 410-26
Item is no longer available
Price
N/A
24
CAP SCREW M5-.8 X 35
Price
N/A
25
CAP SCREW M5-.8 X 27
Price
N/A
26
*DISCD*SPROCKET
Item is no longer available
Price
N/A
27
*DISCD*SPACER
Item is no longer available
Price
N/A
28
***USE PCAP95M***
29
*DISCD*OUTSIDE COVER
Item is no longer available
Price
N/A
30
***use P6002zz***
31
*DISCD*SHAFT
Item is no longer available
Price
N/A
32
*DISCD*INTERMEDIATE GEAR 58T/12T
Item is no longer available
Price
N/A
32A
*DISCD*COMPLETE GEAR BOX
Item is no longer available
Price
N/A
33
*DISCD*LARGE GEAR 70T
34
*DISCD*SPACER
Item is no longer available
Price
N/A
35
*DISCD*INSIDE COVER
36
*DISCD*COVER
37
*DISCD*BUSHING
Item is no longer available
Price
N/A
38
*DISCD*SMALL GEAR 52T/12T
Item is no longer available
Price
N/A
39
*DISCD*SPACER UNDERCUT
Item is no longer available
Price
N/A
40
*DISCD*PINION GEAR
41
***use P6203zz***
42
***USE PS08M***
43
*DISCD*CABLE CLAMP
Item is no longer available
Price
N/A
44
*DISCD*FLANGE BOLT M6-1.0 X 10MM
Item is no longer available
Price
N/A
46
*DISCD*PLATE
Item is no longer available
Price
N/A
47
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
48
***USE PS05M***
49
*DISCD*EXT TOOTH WASHER M5
Item is no longer available
Price
N/A
50
*DISCD*FLANGE BOLT M5-0.8 X 12MM
Item is no longer available
Price
N/A
52
*DISCD*POINTER
Item is no longer available
Price
N/A
53
*DISCD*MOTOR PIVOT ROD
Item is no longer available
Price
N/A
54
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
55
Now: PW01M
FLAT WASHER 8MM
Price
N/A
56
CAP SCREW M5-.8 X 12
Price
N/A
57
*DISCD*BRACKET
59
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
60
*DISCD*HEX LOW NUT M20-1.0
Item is no longer available
Price
N/A
61
*DISCD*UPPER FRAME
Item is no longer available
Price
N/A
62
*DISCD*SPRING 0.4 X 4 X 10MM
Item is no longer available
Price
N/A
63
*DISCD*CUTTERHEAD
64
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
65
BALL BEARING 6203ZZ
Price
N/A
66
*DISCD*BEARING RETAINER
Item is no longer available
Price
N/A
67
***USE PCAP33M***
68
*DISCD*CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
69
POLY RIBBED BELT
Price
N/A
70
*DISCD*HEX NUT M16 X 22
Item is no longer available
Price
N/A
71
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
72
Now: G9024
12-1/2" x 3/4" x 5/64" HSS Double Edged Planer Blades for G8794, Set of 2
Price
N/A
73
*DISCD*GIB
Item is no longer available
Price
N/A
74
*DISCD*GIB BOLT 1/4"-20 X 7MM
Item is no longer available
Price
N/A
75
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
76
*DISCD*SPROCKET
Item is no longer available
Price
N/A
77
*DISCD*BEARING BLOCK
78
*DISCD*RETAINER L.H.
Item is no longer available
Price
N/A
79
CAP SCREW M5-.8 X 12
Price
N/A
80
*DISCD*CHAIN
Item is no longer available
Price
N/A
81
*DISCD*OUTFEED ROLLER
Item is no longer available
Price
N/A
82
*DISCD*OUTFEED SPRING 2.2 X 18 X 36.5L
Item is no longer available
Price
N/A
83
*DISCD*INFEED SPRING 2.2 X 18 X 29L
Item is no longer available
Price
N/A
84
*DISCD*INFEED ROLLER
Item is no longer available
Price
N/A
85
*DISCD*RETAINER R.H.
86
CAP SCREW M5-.8 X 12
Price
N/A
87
*DISCD*ELEVATING NUT L.H.
Item is no longer available
Price
N/A
88
*DISCD*SPINDLE L.H.
Item is no longer available
Price
N/A
89
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
90
Now: PN01M
HEX NUT M6-1
Price
N/A
91
*DISCD*POST
92
CAP SCREW M5-.8 X 12
Price
N/A
93
*DISCD*GUIDE
94
*DISCD*PLATEN
Item is no longer available
Price
N/A
95
***USE PN09M***
96
*DISCD*ELEVATING NUT R.H.
97
*DISCD*BOOT
Item is no longer available
Price
N/A
98
*DISCD*SPINDLE R.H.
99
CAP SCREW M5-.8 X 12
Price
N/A
100
*DISCD*THRUST BEARING
101
*DISCD*RETAINER
Item is no longer available
Price
N/A
102
*DISCD*BASE
103
*DISCD*THRUST BUSHING
104
*DISCD*GEAR
105
Now: PN08M
HEX NUT M10-1.25
Price
N/A
106
*DISCD*SCALE
Item is no longer available
Price
N/A
107
*DISCD*SIDE COVER
108
*DISCD*SHAFT
Item is no longer available
Price
N/A
109
*DISCD*SUPPORT
Item is no longer available
Price
N/A
110
CAP SCREW M5-.8 X 12
Price
N/A
111
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
112
*DISCD*GEAR
Item is no longer available
Price
N/A
113
*DISCD*INFEED/OUTFEED TABLE
114
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
115
*DISCD*CORD WRAP
Item is no longer available
Price
N/A
116
***USE PS17M***
118
***USE PS11M***
119
*DISCD*TABLE BUSHING
Item is no longer available
Price
N/A
120
*DISCD*SPRING WASHER
Item is no longer available
Price
N/A
121
*DISCD*TABLE SUPPORT
122
*DISCD*ROLLER
Item is no longer available
Price
N/A
123
*DISCD*KNIFE GAUGE
Item is no longer available
Price
N/A
124
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
157
*DISCD*SCREW
Item is no longer available
Price
N/A
158
CIRCUIT BREAKER 15A ZING EAR ZE-700-15 1
Price
N/A
162
*DISCD*SWITCH LOCK
Item is no longer available
Price
N/A
179
*DISCD*MOTOR BRUSH
Item is no longer available
Price
N/A
180
*DISCD*BRUSH CAP
Item is no longer available
Price
N/A
181
*DISCD*MOTOR
MANUAL
*DISCD*MANUAL FOR G8794
Item is no longer available
Price
N/A
