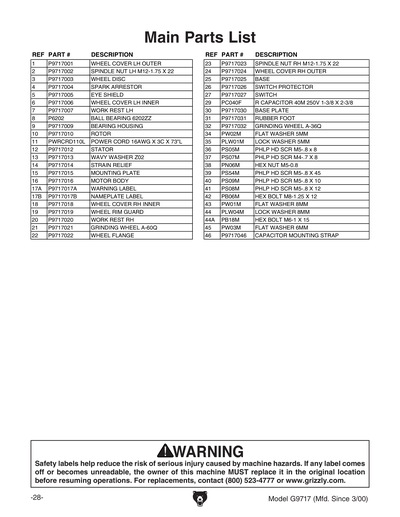

Parts for G9717 6" Bench Grinder w/ 1/2" Arbor

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
WHEEL COVER LH OUTER
2
WHEEL NUT LH M12-1.75 X 22 & M14-
3
WHEEL DISC
4
SPARK BREAKER
5
EYESHIELD
6
WHEEL COVER LH INNER
7
TOOL REST LH
8
BALL BEARING 6202ZZ
Price
N/A
9
BEARING HOUSING
10
ROTOR
11
POWER CORD 16G X 3W 73"L
Price
N/A
12
STATOR
13
WAVY WASHER Z02
14
STRAIN RELIEF
15
MOUNTING PLATE
16
MOTOR BODY
17A
WARNING LABEL
17B
NAMEPLATE LABEL
18
WHEEL COVER RH INNER
19
WHEEL RIM GUARD
20
TOOL REST RH
21
GRINDING WHEEL 60 GRIT
22
WHEEL FLANGE
23
WHEEL NUT RH M12-1.75 X 22 & M14-
24
WHEEL COVER RH OUTER
25
BASE
26
SWITCH PROTECTOR
27
SWITCH
29
CAPACITOR 10MFD 450VAC
30
BASE PLATE
31
RUBBER FOOT
32
GRINDING WHEEL 36 GRIT
34
Now: PW02M
FLAT WASHER 5MM
Price
N/A
35
LOCK WASHER 5MM
Price
N/A
36
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
37
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
38
Now: PN06M
HEX NUT M5-.8
Price
N/A
39
Now: PS54M
PHLP HD SCR M5-.8 X 45
Price
N/A
40
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
41
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
42
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
43
Now: PW01M
FLAT WASHER 8MM
Price
N/A
44
LOCK WASHER 8MM
Price
N/A
44A
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
45
Now: PW03M
FLAT WASHER 6MM
Price
N/A
MANUAL
*DISCD*MANUAL FOR G9717
Item is no longer available
Price
N/A
