Parts for G9740Z - 20" 7-1/2 HP 3-Phase Planer w/ Spiral Cutterhead

Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z
Part Diagram for G9740Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
99
TENSIONER REPAIR KIT
Item is no longer available
Price
N/A

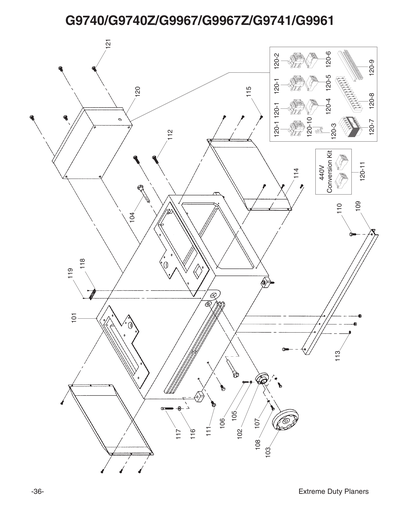

101
CABINET 20" MODEL
Price
N/A
102
SPEED CHANGE NUT 1 3/8"-16
Price
N/A
103
HANDWHEEL
Price
N/A
104
SLIP BOLT M20 - 2.5 X 20
Price
N/A
105
FLAT WASHER 1/4
Price
N/A
106
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
107
LOCK WASHER 8MM
Price
N/A
108
HEX BOLT M8-1.25 X 25
Price
N/A
109
MOTOR MOUNT
Price
N/A
110
HEX BOLT M10-1.5 X 30
Price
N/A
111
HEX BOLT M12-1.75 X 25
Price
N/A
112
HEX BOLT M12-1.75 X 45
Price
N/A
113
HEX NUT M10-1.5
Price
N/A
114
CABINET DOOR
Price
N/A
115
PHLP HD SCR M6-1 X 20
Price
N/A
116
FLAT WASHER 3/8
Price
N/A
117
HEX BOLT 3/8-16 X 3
Price
N/A
118
SPEED CHANGE LEVER
Price
N/A
119
RIVET 3 X 40
Price
N/A
120
ELECTRIC BOX V1
Price
N/A
120-1
*DISCD*CONTACTOR TECO CN-11 V1
Price
N/A
120-10
FUSE 3A
Price
N/A
120-11
CONVERSION KIT 440V RHN-10 V2.07.07
Price
N/A
120-11A
CONVERSION KIT 440V RHN-10 V2.07.07
Price
N/A
120-11V2
440V CONVERSION KIT V2.07.12
Price
N/A
120-12
*DISCD*CONTACTOR TECO CN-11 V1
Price
N/A
120-12V2
CONTACTOR TECO CU-11 3A1A V2.05.08
Price
N/A
120-13
CONTACTOR TECO CU-16 3A1B
Price
N/A
120-14
STAR-DELTA TIMER TRD-N
Price
N/A
120-1V2
CONTACTOR TECO CU-11 3A1B V2.05.08
Price
N/A
120-2
CONTACTOR 110V CN-18 TECO
Price
N/A
120-2V2
CONTACTOR TECO CU-16 3A1A V2.07.12
Price
N/A
120-3
FUSE HOLDER
Price
N/A
120-4
*DISCD*OL RELAY TECO RHN-10 1.8-2.7A V2.
Price
N/A
120-4A
*DISCD*OL RELAY TECO RHN-10 1.8-2.7A V2.
Price
N/A
120-4V3
OL RELAY RHU-10 1.8-2.5A V3.01.11
Price
N/A
120-5
OL RELAY TECO RHN-10 2.4-4A V2.06.07
Price
N/A
120-5A
OL RELAY TECO RHN-10 2.4-4A V2.06.07
Price
N/A
120-5V3
OL RELAY TECO RHU-10 2.9-4.0A V3.01.11
Price
N/A
120-6
RELAY 7.5HP 5/25A EOCR-SP-20-220 TECO
Price
N/A
120-6V2
OL RELAY TECO RHU-10 11.3-16A V2.07.12
Price
N/A
120-7
TRANSFORMER 110VA 220V-110V
Price
N/A
120-8
TERMINAL STRIP 26 CIRCUIT
Price
N/A
120-8V2
TERMINAL BAR 29-POST V2.07.12
Price
N/A
120-9
WIRING DUCT WITH COVER
Price
N/A
120-9V2
WIRING DUCT W/COVER V2.07.12
Price
N/A
121
HEX BOLT M12-1.75 X 20
Price
N/A

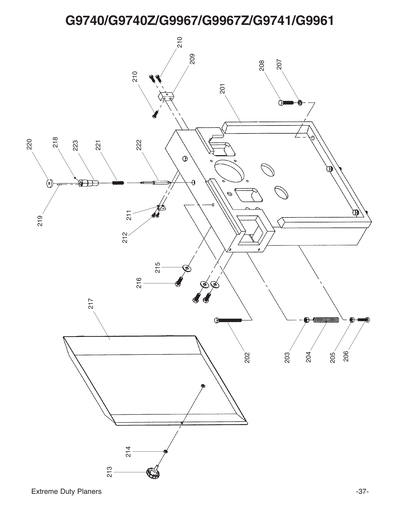

201
WALL LEFT
Price
N/A
202
HEX BOLT M12-1.75 X 110
Price
N/A
203
HEX NUT M12-1.75
Price
N/A
204
HELICAL ROLLER SPRING 19.5 X 109MM
Price
N/A
205
HEX NUT M10-1.5
Price
N/A
206
HEX BOLT M10-1.5 X 40
Price
N/A
207
LOCK WASHER 12MM
Price
N/A
208
HEX BOLT M12-1.75 X 50
Price
N/A
209
COVER SUPPORT 7/2 X 52
Price
N/A
210
CAP SCREW M8-1.25 X 25
Price
N/A
211
CATCH PLATE
Price
N/A
212
PHLP HD SCR M6-1 X 10
Price
N/A
213
KNOB BOLT M10-1.5 X 20
Price
N/A
214
HEX NUT M8-1.25
Price
N/A
215
FLAT WASHER 12MM
Price
N/A
216
HEX BOLT M12-1.75 X 30
Price
N/A
217
WALL DOOR LEFT
Price
N/A
218
SET SCREW M6-1 X 6
Price
N/A
219
ROLL PIN 3 X 18
Price
N/A
220
HANDLE ASSEMBLY
Price
N/A
221
HELICAL PULLEY SPRING 11 X 46MM
Price
N/A
222
BRAKE ROD
Price
N/A
223
BRAKE CASING
Price
N/A

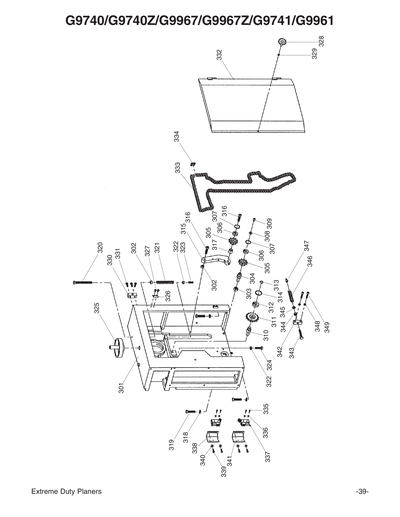

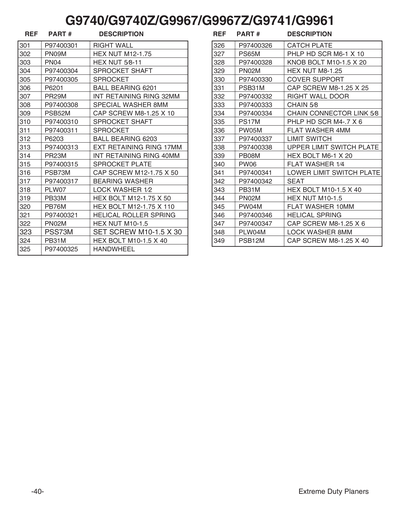

301
WALL RIGHT
Price
N/A
302
HEX NUT M12-1.75
Price
N/A
303
HEX NUT 5/8-11
Price
N/A
304
SPROCKET SHAFT
Price
N/A
305
SPROCKET
Price
N/A
306
BALL BEARING 6201ZZ
Price
N/A
307
INT RETAINING RING 32MM
Price
N/A
308
FLAT WASHER 8MM
Price
N/A
309
CAP SCREW M8-1.25 X 10
Price
N/A
310
SPROCKET SHAFT
Price
N/A
311
SPROCKET
Price
N/A
312
BALL BEARING 6203ZZ
Price
N/A
313
EXT RETAINING RING 17MM
Price
N/A
314
INT RETAINING RING 40MM
Price
N/A
315
SPROCKET PLATE
Price
N/A
316
CAP SCREW M12-1.75 X 50
Price
N/A
317
BEARING WASHER 12.7X23MM
Price
N/A
318
LOCK WASHER 1/2
Price
N/A
319
HEX BOLT M12-1.75 X 50
Price
N/A
320
HEX BOLT M12-1.75 X 110
Price
N/A
321
HELICAL ROLLER SPRING 19.5 X 109MM
Price
N/A
322
HEX NUT M10-1.5
Price
N/A
323
SET SCREW M10-1.5 X 23
Price
N/A
324
HEX BOLT M10-1.5 X 40
Price
N/A
325
*DISCD*HANDWHEEL V1.09.03
Price
N/A
326
CATCH PLATE
Price
N/A
327
PHLP HD SCR M6-1 X 10
Price
N/A
328
KNOB BOLT M8-1.25 X 20
Price
N/A
329
HEX NUT M10-1.5
Price
N/A
330
COVER SUPPORT
Price
N/A
331
CAP SCREW M8-1.25 X 25
Price
N/A
332
WALL DOOR RIGHT
Price
N/A
333
ROLLER CHAIN 5/8 X 3/8" X 106LINK
Price
N/A
334
CHAIN CONNECTOR LINK 5/8
Price
N/A
335
PHLP HD SCR M4-.7 X 6
Price
N/A
336
FLAT WASHER 4MM
Price
N/A
337
LIMIT SWITCH
Price
N/A
338
UPPER LIMIT SWITCH PLATE
Price
N/A
339
HEX BOLT M6-1 X 20
Price
N/A
340
FLAT WASHER 1/4
Price
N/A
341
LIMIT SWITCH PLATE LOWER
Price
N/A
342
SEAT
Price
N/A
343
HEX BOLT M10-1.5 X 40
Price
N/A
344
HEX NUT M10-1.5
Price
N/A
345
FLAT WASHER 10MM
Price
N/A
346
HELICAL SPRING 19 X 110MM
Price
N/A
347
CAP SCREW M8-1.25 X 16
Price
N/A
348
LOCK WASHER 8MM
Price
N/A
349
CAP SCREW M8-1.25 X 40
Price
N/A

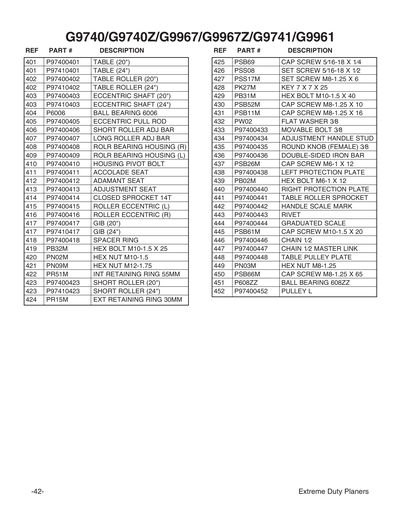

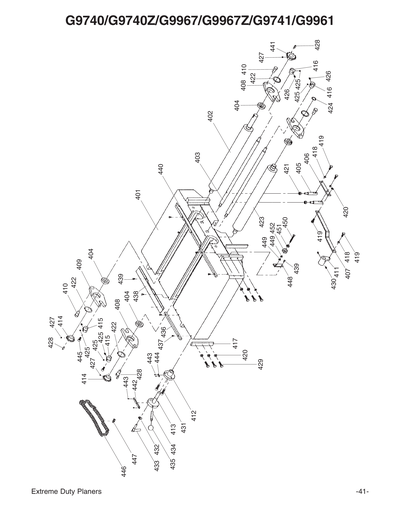

401
TABLE
Price
N/A
402
TABLE ROLLER
Price
N/A
403
ECCENTRIC SHAFT 20" MODEL 7/8 X 600MM
Price
N/A
404
BALL BEARING 6006ZZ
Price
N/A
405
ECCENTRIC PULL ROD
Price
N/A
406
SHORT ROLLER ADJ BAR 6X25X148MM
Price
N/A
407
ROLLER ADJ BAR LONG 6 X 25 X 400MM
Price
N/A
408
ROLLER BEARING HOUSING R
Price
N/A
409
ROLLER BEARING HOUSING L
Price
N/A
410
HOUSING PIVOT BOLT M16-2 X 17MM
Price
N/A
411
ACCOLADE SEAT
Price
N/A
412
ADAMANT SEAT
Price
N/A
413
ADJUSTMENT SEAT
Price
N/A
414
CLOSED SPROCKET 1/2 X 14T
Price
N/A
415
ROLLER ECCENTRIC L
Price
N/A
416
ROLLER ECCENTRIC R
Price
N/A
417
GIB 12 X 32 X 160MM
Price
N/A
418
SPACER RING
Price
N/A
419
HEX BOLT M10-1.5 X 25
Price
N/A
420
HEX NUT M10-1.5
Price
N/A
421
HEX NUT M12-1.75
Price
N/A
422
INT RETAINING RING 55MM
Price
N/A
423
SHORT ROLLER
Price
N/A
424
EXT RETAINING RING 30MM
Price
N/A
425
CAP SCREW 5/16-18 X 1/4
Price
N/A
426
SET SCREW 5/16-18 X 1/2
Price
N/A
427
SET SCREW M8-1.25 X 6
Price
N/A
428
KEY 7 X 7 X 25
Price
N/A
429
HEX BOLT M10-1.5 X 40
Price
N/A
430
CAP SCREW M8-1.25 X 10
Price
N/A
431
CAP SCREW M8-1.25 X 16
Price
N/A
432
FLAT WASHER 3/8
Price
N/A
433
MOVABLE BOLT 3/8-16 X 40MM
Price
N/A
434
ADJUSTMENT HANDLE STUD
Price
N/A
435
ROUND KNOB FEMALE 3/8 X 34
Price
N/A
436
DOUBLE SIDED IRON BAR
Price
N/A
437
CAP SCREW M6-1 X 12
Price
N/A
438
PROTECTION PLATE 1/2 X 1/2 X 375MM LEFT
Price
N/A
439
HEX BOLT M6-1 X 12
Price
N/A
440
PROTECTION PLATE RIGHT
Price
N/A
441
TABLE ROLLER SPROCKET 5/8-13 X 25 X 30
Price
N/A
442
HANDLE SCALE MARK
Price
N/A
443
RIVET 2.2 X 6
Price
N/A
444
GRADUATED SCALE
Price
N/A
445
CAP SCREW M10-1.5 X 20
Price
N/A
446
CHAIN 1/2 X 425 X 120MM
Price
N/A
447
CHAIN 1/2 MASTER LINK
Price
N/A
448
TABLE PULLEY PLATE M8-1.25
Price
N/A
449
HEX NUT M8-1.25
Price
N/A
450
CAP SCREW M8-1.25 X 65
Price
N/A
451
Bearing - 22mm x 8mm
Price
N/A
452
PULLEY W/HEX NUT M8 X 12
Price
N/A

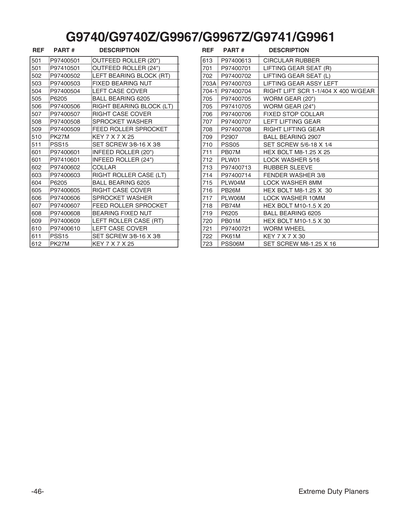

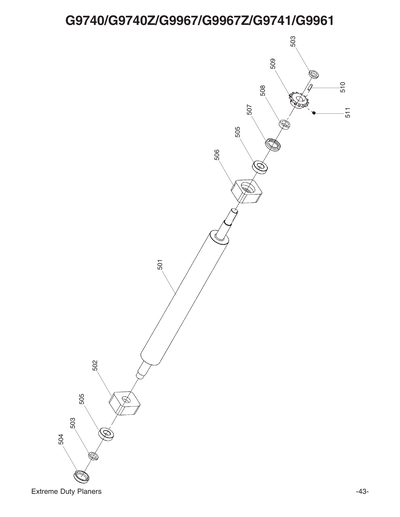

501
OUTFEED ROLLER
Price
N/A
502
BEARING BLOCK LEFT
Price
N/A
503
FIXED BEARING NUT M25-16
Price
N/A
504
CASE COVER LEFT
Price
N/A
505
BALL BEARING 6205ZZ
Price
N/A
506
BEARING BLOCK LT RIGHT
Price
N/A
507
CASE COVER RIGHT
Price
N/A
508
SPROCKET WASHER 25.5X11.5MM
Price
N/A
509
FEED ROLLER SPROCKET
Price
N/A
510
KEY 7 X 7 X 25
Price
N/A
511
SET SCREW 3/8-16 X 3/8
Price
N/A

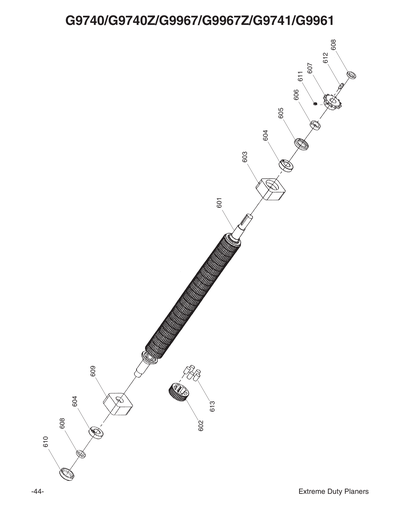

601
INFEED ROLLER 42 X 732MM
Price
N/A
602
COLLAR
Price
N/A
603
FOLLER CASE LT RIGHT
Price
N/A
604
BALL BEARING 6205ZZ
Price
N/A
605
CASE COVER RIGHT
Price
N/A
606
SPROCKET WASHER 25.5X11.5MM
Price
N/A
607
FEED ROLLER SPROCKET
Price
N/A
608
BEARING FIXED NUT M25-16
Price
N/A
609
ROLLER CASE LEFT
Price
N/A
610
CASE COVER LEFT
Price
N/A
611
SET SCREW 3/8-16 X 3/8
Price
N/A
612
KEY 7 X 7 X 25
Price
N/A
613
CIRCULAR RUBBER
Price
N/A

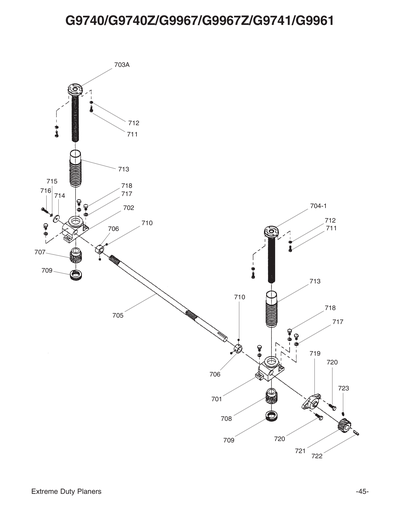

701
LIFTING GEAR SEAT RIGHT
Price
N/A
702
LIFTING GEAR SEAT LEFT
Price
N/A
703
LIFTING GEAR ASSY LEFT
Price
N/A
704
LIFT SCREW LONG 1-1/4 - 4 X 400
Price
N/A
705
WORM GEAR
Price
N/A
706
FIXED STOP COLLAR
Price
N/A
707
LIFTING GEAR ASSY LEFT
Price
N/A
708
RIGHT LIFT SCR 1-1/4-4 X 400 W/ GEAR
Price
N/A
709
THRUST BEARING 2907
Price
N/A
710
SET SCREW 5/16-18 X 1/4
Price
N/A
711
HEX BOLT M8-1.25 X 25
Price
N/A
712
LOCK WASHER 5/16
Price
N/A
713
RUBBER SLEEVE
Price
N/A
714
FENDER WASHER 8MM
Price
N/A
715
LOCK WASHER 8MM
Price
N/A
716
HEX BOLT M8-1.25 X 30
Price
N/A
717
LOCK WASHER 10MM
Price
N/A
718
HEX BOLT M10-1.5 X 20
Price
N/A
719
BALL BEARING 6205ZZ
Price
N/A
720
HEX BOLT M10-1.5 X 30
Price
N/A
721
WORM WHEEL
Price
N/A
722
KEY 7 X 7 X 29
Price
N/A
723
SET SCREW M8-1.25 X 16
Price
N/A

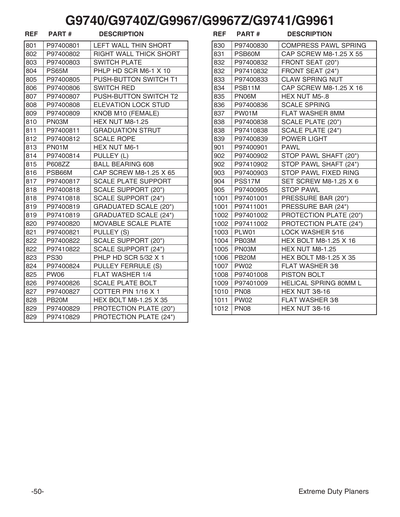

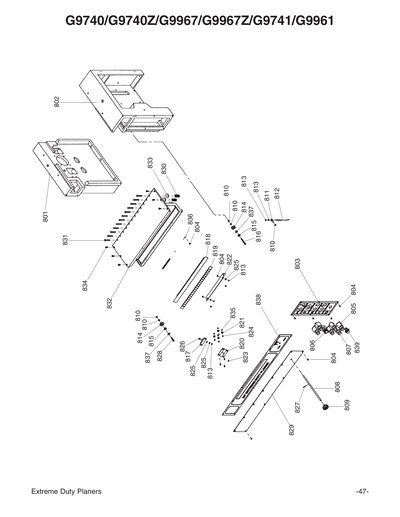

801
WALL LEFT THIN SHORT
Price
N/A
802
WALL THICK SHORT RIGHT
Price
N/A
803
SWITCH PLATE
Price
N/A
804
PHLP HD SCR M6-1 X 10
Price
N/A
805
PUSH BUTTON SWITCH T1 RED
Price
N/A
806
SWITCH RED
Price
N/A
807
PUSH BUTTON SWITCH T2 GREEN
Price
N/A
808
ELEVATION LOCK STUD
Price
N/A
809
KNOB M10 FEMALE
Price
N/A
810
HEX NUT M8-1.25
Price
N/A
811
GRADUATION STRUT
Price
N/A
812
SCALE ROPE
Price
N/A
813
HEX NUT M6-1
Price
N/A
814
PULLEY L
Price
N/A
815
Bearing - 22mm x 8mm
Price
N/A
816
CAP SCREW M8-1.25 X 65
Price
N/A
817
SCALE PLATE SUPPORT
Price
N/A
818
SCALE SUPPORT
Price
N/A
819
GRADUATED SCALE
Price
N/A
820
MOVABLE SCALE PLATE
Price
N/A
821
PULLEY
Price
N/A
822
SCALE SUPPORT
Price
N/A
823
PHLP HD SCR 8-32 X 1
Price
N/A
824
PULLEY FERRULE S
Price
N/A
825
FLAT WASHER 1/4
Price
N/A
826
SCALE PLATE BOLT M16-1 X 16
Price
N/A
827
COTTER PIN 5/32 X 1-1/2"
Price
N/A
828
HEX BOLT M8-1.25 X 35
Price
N/A
829
PROTECTION PLATE
Price
N/A
830
COMPRESS PAWL SPRING 2MM
Price
N/A
831
CAP SCREW M8-1.25 X 55
Price
N/A
832
FRONT SEAT
Price
N/A
833
CLAW SPRING NUT M8-1.25
Price
N/A
834
CAP SCREW M8-1.25 X 16
Price
N/A
835
HEX NUT M5-.8
Price
N/A
836
SCALE SPRING HELICAL D6 X 385MM
Price
N/A
837
FLAT WASHER 8MM
Price
N/A
838
SCALE PLATE
Price
N/A
839
POWER INDICATOR LIGHT 22MM RED
Price
N/A

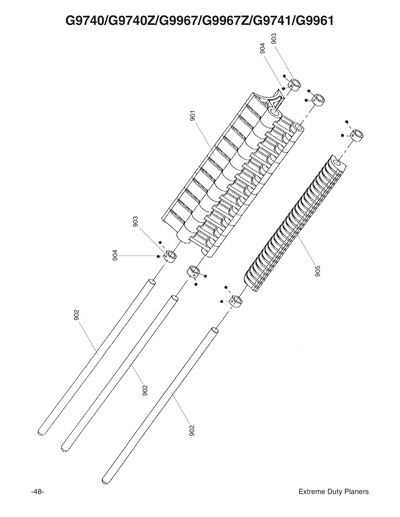

901
PAWL
Price
N/A
902
STOP PAWL SHAFT
Price
N/A
903
STOP PAWL FIXED RING M8X6MM
Price
N/A
904
SET SCREW M8-1.25 X 6
Price
N/A
905
STOP PAWL
Price
N/A

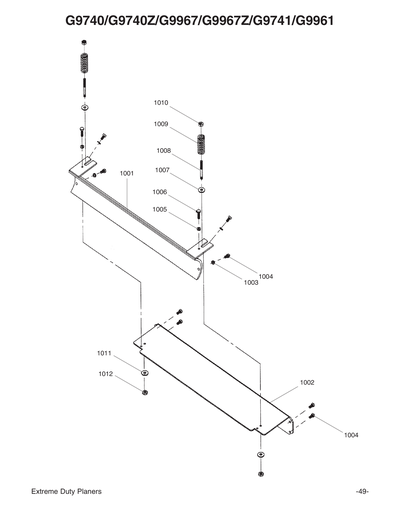

1001
PRESSURE BAR 26-13/16" V1.09.03
Price
$158.45
1001A
PRESSURE BAR 22-7/8" V2.06.07
Price
N/A
1002
PROTECTION PLATE V1
Price
N/A
1002A
PROTECTION PLATE V2.06.07
Price
N/A
1003
LOCK WASHER 5/16
Price
N/A
1003A
FLAT WASHER 10MM
Price
N/A
1004
HEX BOLT M8-1.25 X 16
Price
N/A
1004A
CAP SCREW M10-1.5 X 30
Price
N/A
1005
HEX NUT M8-1.25
Price
N/A
1005A
HEX NUT M12-1.75
Price
N/A
1006
HEX BOLT M8-1.25 X 35
Price
N/A
1006A
CAP SCREW M8-1.25 X 12
Price
N/A
1007
FLAT WASHER 3/8
Price
N/A
1007A
SPRING CAP V2.06.07
Price
N/A
1008
PISTON BOLT M8-1.25 X 90MM V1
Price
N/A
1008A
CAP SCREW M10-1.5 X 12
Price
N/A
1009
HELICAL SPRING 70MML V1
Price
N/A
1009A
COMPRESSION SPRING 51MM V2.06.07
Price
N/A
101
CABINET 20" MODEL
Price
N/A
1010
HEX NUT 3/8-16
Price
N/A
1010A
PRESSURE BAR BRACKET V2.06.07
Price
N/A
1011
FLAT WASHER 3/8
Price
N/A
1011A
CAP SCREW M10-1.5 X 40
Price
N/A
1012
HEX NUT 3/8-16
Price
N/A
1012A
SET SCREW M12-1.75 X 40
Price
N/A
1013
CAP SCREW M10-1.5 X 25
Price
N/A
1014
TRUNNION RIGHT
Price
N/A
1015
TRUNNION LEFT
Price
N/A
1016
AXLE BOLT
Price
N/A
1017
SET SCREW M6-1 X 8
Price
N/A
102
FLAT WASHER 3/8
Price
N/A
103
HEX BOLT 3/8-16 X 3
Price
N/A
104
MOTOR MOUNT
Price
N/A
105
HEX BOLT M12-1.75 X 25
Price
N/A
106
HEX BOLT M10-1.5 X 30
Price
N/A
107
SPEED CHANGE NUT 1 3/8"-16
Price
N/A
108
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
109
LOCK WASHER 8MM
Price
N/A
110
HEX BOLT M8-1.25 X 25
Price
N/A

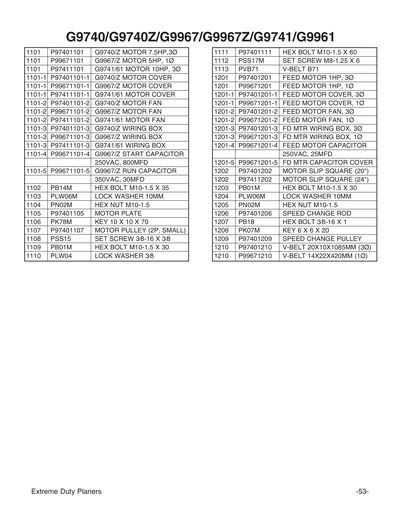

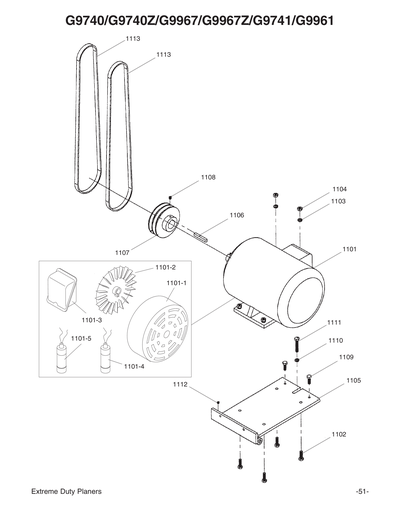

1101
MOTOR 7.5HP 220V/440V 3-PH
Price
N/A
1101-1
MOTOR COVER
Price
N/A
1101-2
MOTOR FAN
Price
N/A
1101-3
WIRING BOX
Price
N/A
1102
HEX BOLT M10-1.5 X 35
Price
N/A
1103
LOCK WASHER 10MM
Price
N/A
1104
LOCK WASHER 10MM
Price
N/A
1105
MOTOR PLATE
Price
N/A
1106
KEY 10 X 8 X 70
Price
N/A
1107
MOTOR PULLEY 1" 2PC SMALL
Price
N/A
1108
SET SCREW 3/8-16 X 3/8
Price
N/A
1109
HEX BOLT M10-1.5 X 30
Price
N/A
111
SLIP BOLT M20 - 2.5 X 20
Price
N/A
1110
LOCK WASHER 3/8
Price
N/A
1111
HEX BOLT M10-1.5 X 60
Price
N/A
1112
SET SCREW M8-1.25 X 6
Price
N/A
1113
V-BELT B71
Price
N/A
112
FLAT WASHER 1/4
Price
N/A
113
HANDWHEEL
Price
N/A
114
HEX NUT M10-1.5
Price
N/A
115
SPEED CHANGE LEVER
Price
N/A
116
RIVET 3 X 40
Price
N/A
117
ELECTRIC BOX V1
Price
N/A
118
HEX BOLT M12-1.75 X 20
Price
N/A
119
CABINET DOOR
Price
N/A
120
PHLP HD SCR M6-1 X 20
Price
N/A

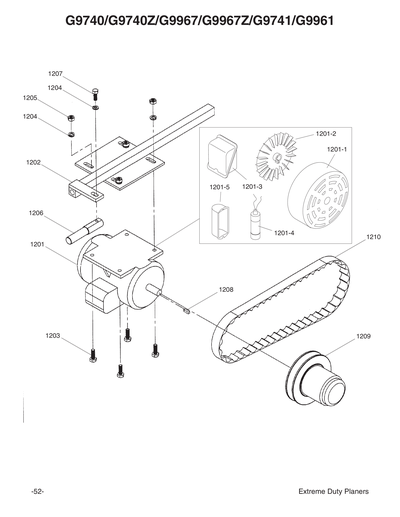

1201
FEED MOTOR 1HP 220V 3-PH
Price
N/A
1201-1
FEED MOTOR COVER 3PH
Price
N/A
1201-2
FEED MOTOR FAN 3PH
Price
N/A
1201-3
FEED MOTOR WIRING BOX 3PH
Price
N/A
1202
MOTOR SLIP SQUARE
Price
N/A
1203
HEX BOLT M10-1.5 X 30
Price
N/A
1204
LOCK WASHER 10MM
Price
N/A
1205
HEX NUT M10-1.5
Price
N/A
1206
SPEED CHANGE ROD
Price
N/A
1207
HEX BOLT 3/8-16 X 1
Price
N/A
1208
KEY 6 X 6 X 20
Price
N/A
1209
*DISCD*SPEED CHANGE PULLEY V1
Price
N/A
121
HEX BOLT M12-1.75 X 45
Price
N/A
1210
*DISCD*V-BELT 20 X 10 X 1085MM V1.09.03
Price
N/A

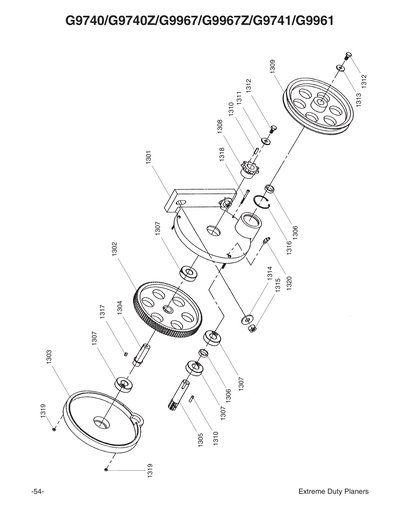

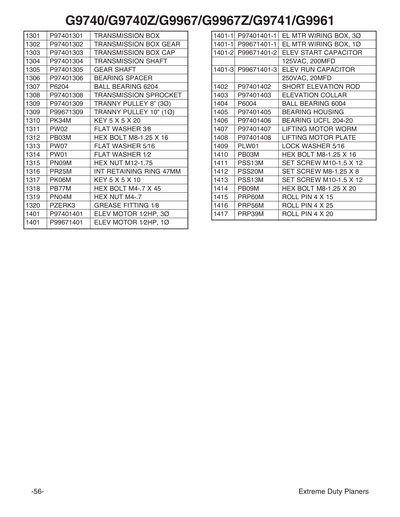

1301
TRANSMISSION BOX
Price
N/A
1302
TRANSMISSION BOX GEAR
Price
N/A
1303
TRANSMISSION BOX CAP
Price
N/A
1304
TRANSMISSION SHAFT
Price
N/A
1305
GEAR SHAFT
Price
N/A
1306
BEARING SPACER
Price
N/A
1307
BALL BEARING 6204ZZ
Price
N/A
1308
TRANSMISSION SPROCKET 5/8X20X30MML 9T
Price
N/A
1309
TRANNY PULLEY 8" 3PH
Price
N/A
1310
KEY 5 X 5 X 20
Price
N/A
1311
FLAT WASHER 3/8
Price
N/A
1312
HEX BOLT M8-1.25 X 16
Price
N/A
1313
FLAT WASHER 5/16
Price
N/A
1314
FLAT WASHER 1/2
Price
N/A
1315
HEX NUT M12-1.75
Price
N/A
1316
INT RETAINING RING 47MM
Price
N/A
1317
KEY 5 X 5 X 10
Price
N/A
1318
HEX BOLT M4-.7 X 45
Price
N/A
1319
HEX NUT M4-.7
Price
N/A
1320
GREASE FITTING 1/8-27
Price
N/A

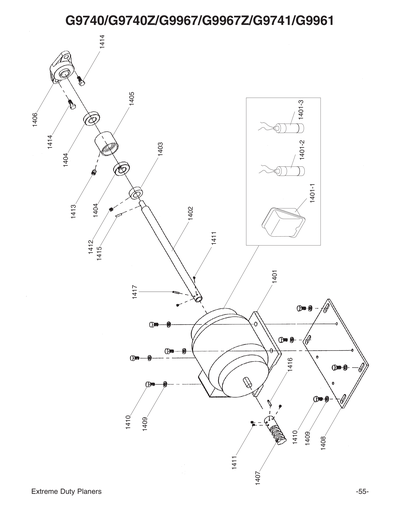

1401
ELEV MOTOR 1/2HP 220V 3-PH
Price
N/A
1401-1
ELEV MOTOR WIRING BOX 3 PHASE
Price
N/A
1402
SHORT ELEVATION ROD
Price
N/A
1403
ELEVATION COLLAR
Price
N/A
1404
BALL BEARING 6004ZZ
Price
N/A
1405
BEARING HOUSING
Price
N/A
1406
PILLON BLOCK BEARING UCLF 204-20
Price
N/A
1407
LIFTING MOTOR WORM
Price
N/A
1408
LIFTING MOTOR PLATE
Price
N/A
1409
LOCK WASHER 5/16
Price
N/A
1410
HEX BOLT M8-1.25 X 16
Price
N/A
1411
SET SCREW M10-1.5 X 12
Price
N/A
1412
SET SCREW M8-1.25 X 8
Price
N/A
1413
SET SCREW M10-1.5 X 12
Price
N/A
1414
HEX BOLT M8-1.25 X 20
Price
N/A
1415
ROLL PIN 4 X 15
Price
N/A
1416
ROLL PIN 4 X 25
Price
N/A
1417
ROLL PIN 4 X 20
Price
N/A
1435
*DISCD*CONVERSION KIT RHN-18A V1.09.03
Price
N/A
1445
PUSH BUTTON SWITCH T2 GREEN
Price
N/A
1447
PUSH BUTTON SWITCH T2 GREEN
Price
N/A
1448
PUSH BUTTON SWITCH T1 RED
Price
N/A
1449
PUSH BUTTON SWITCH T2 GREEN
Price
N/A
1450
PUSH BUTTON SWITCH T1 RED
Price
N/A

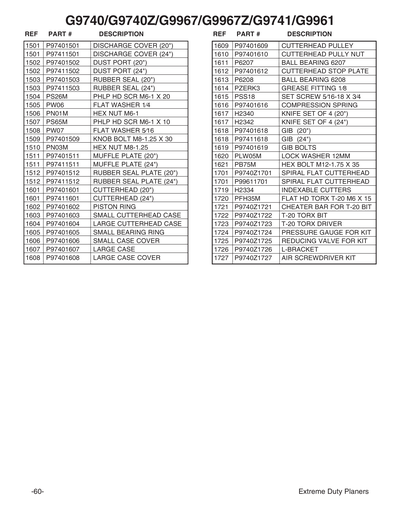

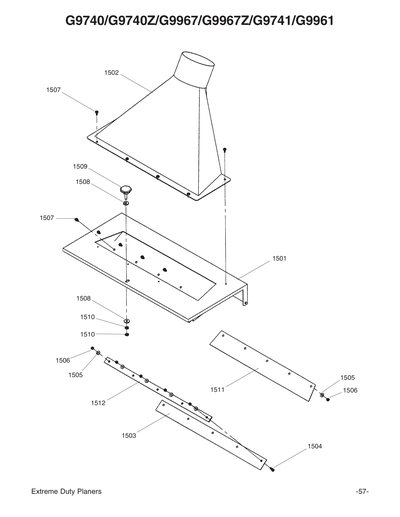

1501
DISCHARGE COVER 20" MODEL
Price
N/A
1502
DUST PORT 20" MODEL
Price
N/A
1503
RUBBER SEAL
Price
N/A
1504
PHLP HD SCR M6-1 X 20
Price
N/A
1505
FLAT WASHER 1/4
Price
N/A
1506
HEX NUT M6-1
Price
N/A
1507
PHLP HD SCR M6-1 X 10
Price
N/A
1508
FLAT WASHER 5/16
Price
N/A
1509
KNOB BOLT M8-1.25 X 30
Price
N/A
1510
HEX NUT M8-1.25
Price
N/A
1511
DISCHARGE COVER 20" MODEL
Price
N/A
1512
DISCHARGE COVER 20" MODEL
Price
N/A
1601
*DISCD*SPIRAL CUTTERHEAD
Item is no longer available
Price
N/A
1602
PISTON RING
Price
N/A
1603
PUSH BUTTON SWITCH T2 GREEN
Price
N/A
1608
KNOB M10 FEMALE
Price
N/A
1622
CAP SCREW M10-1.5 X 30
Price
N/A
1623
LOCK WASHER 10MM
Price
N/A
1624
FENDER WASHER 10MM
Price
N/A
1625
GREASE FITTING 1/8" PT 45-DEG
Price
N/A
1626
KEY 10 X 8 X 45
Price
N/A

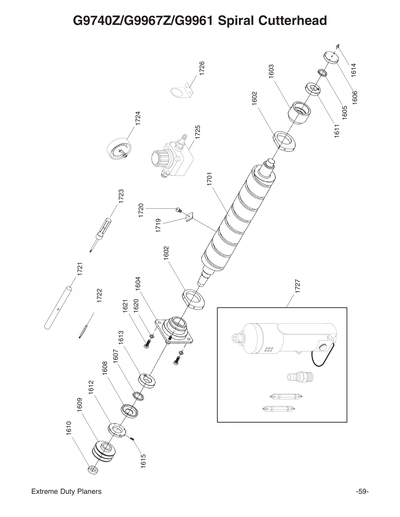

1701
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
1701V2
CUTTERHEAD 20" SPIRAL V2.10.13
Price
$2,843.70
1702
PISTON RING
Price
N/A
1703
SMALL CUTTERHEAD CASE W/COVER
Price
N/A
1703-1
SET SCREW M10-1.5 X 15
Price
N/A
1704
LARGE CUTTERHEAD CASE W/ COVER
Price
N/A
1705
NUT M35-1.5
Price
N/A
1706
SMALL CUTTERHEAD CASE W/COVER
Price
N/A
1707
SPANNER NUT M40-1.5P
Price
N/A
1708
LARGE CUTTERHEAD CASE W/ COVER
Price
N/A
1709
CUTTERHEAD PULLEY V1
Price
N/A
1709V2
CUTTERHEAD PULLEY V2.10.13
Price
N/A
1710
CUTTERHEAD PULLEY NUT M30-1.5
Price
N/A
1711
BALL BEARING 6208ZZ
Price
N/A
1712
CUTTERHEAD STOP PLATE
Price
N/A
1713
BALL BEARING 6208ZZ
Price
N/A
1714
GREASE FITTING 1/8-27
Price
N/A
1715
SET SCREW 5/16-18 X 3/4
Price
N/A
1716
*DISCD*CUTTER KNOB
Item is no longer available
Price
N/A
1717
LOCK WASHER 12MM
Price
N/A
1718
HEX BOLT M12-1.75 X 35
Price
N/A
1719
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
1720
FLAT HD TORX T20 M6-1 X 15
Price
N/A
1721
CHEATER BAR FOR T-20 BIT
Price
$23.90
1722
T-20 TORX BIT
Price
$7.25
1723
T-20 TORX DRIVER
Price
$7.00
1724
PRESSURE GAUGE
Price
$10.35
1725
REDUCING VALVE FOR KIT
Item is no longer available
Price
N/A
1726
L-BRACKET
Item is no longer available
Price
N/A
1727
AIR SCREWDRIVER KIT
Price
$150.05
612
SHAFT 7X7X25MM
Item is no longer available
Price
N/A
613
KNOB
Item is no longer available
Price
N/A
815
RUBBER SLEEVE
Price
N/A
909
TRANNY PULLEY 8" 3PH
Price
N/A
MANUAL
MANUAL FOR G9740/Z/G9741/G9961/G9967/Z 1
Price
N/A
