Parts for G9744Z2 - 10" x 18" 1-1/2 HP Horizontal Metal Cutting Bandsaw

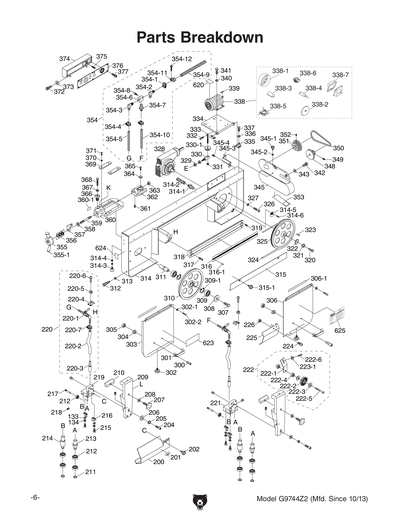

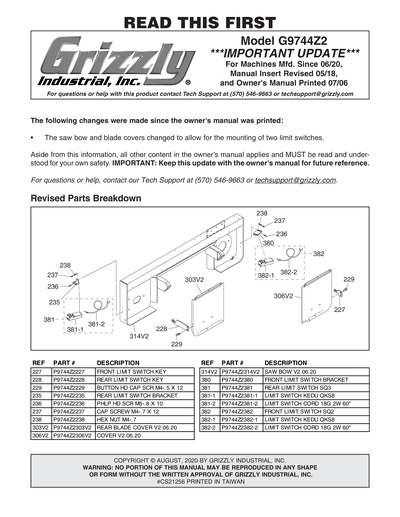

Part Diagram for G9744Z2

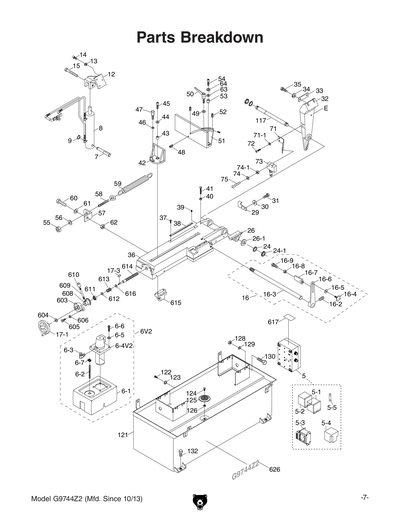

Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2
Part Diagram for G9744Z2

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
POWER CORD 14G 3W 84"
Price
$68.85
2V2
POWER CORD 12G 3W 84" 6-20P V3.02.25
Price
N/A
2V3
POWER CORD 12G 3W 84" 6-20P V3.02.25
Price
$138.00

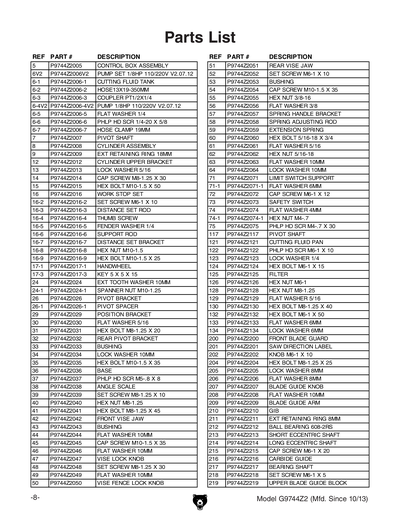

5
CONTROL BOX ASSEMBLY
Price
$430.20
5-1
OL RELAY TECO RHU-10 11.3-16A
Price
$97.85
5-2
CONTACTOR TECO CU-18
Price
$202.90
5-3
CONTACTOR KEDU JD6 230V
Price
$108.70
5-4
FUSE 2A
Price
$1.60
5-5
TRANSFORMER 63VA 110/220V-24V
Price
$115.95
6
*DISCD*PUMP SET 1/8HP 110/220V V1
Item is no longer available
Price
N/A
6-1
COOLANT TANK
Price
N/A
6-2
HOSE 13 X 19 350MM
Price
$42.90
6-3
COUPLER PT1/2X1/4
Price
$6.70
6-4
PUMP 1/8HP 110/220V V1
Price
$406.45
6-4V2
PUMP 1/8HP 110/220V V2.07.12
Price
$425.70
6-5
FLAT WASHER 1/4
Price
N/A
6-6
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
6-7
HOSE CLAMP 19MM
Price
$3.65
6V2
PUMP SET 1/8HP 110/220V V2.07.12
Price
$467.35
6V3
PUMP SET 1/8HP 110/220V V3.09.24
Price
$199.25
7
PIVOT SHAFT
Price
$18.45
8
CYLINDER ASSEMBLY
Price
$840.45
9
EXT RETAINING RING 18MM
Price
N/A
12
CYLINDER UPPER BRACKET
Price
$46.55
13
LOCK WASHER 5/16
Price
N/A
14
CAP SCREW M8-1.25 X 30
Price
N/A
15
HEX BOLT M10-1.5 X 50
Price
N/A
16
WORK STOP SET
Price
$105.10
16-2
SET SCREW M6-1 X 10
Price
N/A
16-3
DISTANCE SET ROD
Price
$48.90
16-4
THUMB SCREW
Price
$1.60
16-5
FENDER WASHER 1/4
Price
N/A
16-6
SUPPORT ROD
Price
$25.10
16-7
DISTANCE SET BRACKET
Price
$19.10
16-8
HEX NUT M10-1.5
Price
N/A
16-9
HEX BOLT M10-1.5 X 25
Price
N/A
17-1
HANDWHEEL
Price
$108.45
17-3
KEY 5 X 5 X 15
Price
N/A
24
EXT TOOTH WASHER 10MM
Price
N/A
24-1
SPANNER NUT M10-1.25
Price
$1.85
26
PIVOT BRACKET
Price
$60.70
26-1
PIVOT SPACER
Price
$50.75
29
POSITION BRACKET
Price
$26.35
30
FLAT WASHER 5/16
Price
N/A
31
HEX BOLT M8-1.25 X 20
Price
N/A
32
REAR PIVOT BRACKET
Price
$143.15
33
BUSHING
Price
$3.65
34
LOCK WASHER 10MM
Price
N/A
35
HEX BOLT M10-1.5 X 35
Price
N/A
36
BASE
Price
$523.80
37
PHLP HD SCR M5-.8 X 8
Price
N/A
38
ANGLE SCALE
Price
$10.90
39
SET SCREW M8-1.25 X 10
Price
N/A
40
HEX NUT M8-1.25
Price
N/A
41
HEX BOLT M8-1.25 X 45
Price
N/A
42
FRONT VISE JAW
Price
$166.65
43
BUSHING
Price
$7.25
44
FLAT WASHER 10MM
Price
N/A
45
CAP SCREW M10-1.5 X 35
Price
N/A
46
FLAT WASHER 10MM
Price
N/A
47
VISE LOCK KNOB
Price
$15.55
48
SET SCREW M8-1.25 X 30
Price
N/A
49
FLAT WASHER 10MM
Price
N/A
50
VISE FENCE LOCK KNOB
Price
$86.95
51
REAR VISE JAW
Price
$180.25
52
SET SCREW M6-1 X 10
Price
N/A
53
BUSHING
Price
$10.90
54
CAP SCREW M10-1.5 X 35
Price
N/A
55
HEX NUT 3/8-16
Price
N/A
56
FLAT WASHER 3/8
Price
N/A
57
SPRING HANDLE BRACKET
Price
$52.60
58
SPRING ADJUSTING ROD
Price
$5.50
59
EXTENSION SPRING
Price
$53.45
60
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
FLAT WASHER 5/16
Price
N/A
62
HEX NUT 5/16-18
Price
N/A
63
FLAT WASHER 10MM
Price
N/A
64
LOCK WASHER 10MM
Price
N/A
71
LIMIT SWITCH SUPPORT
Price
$19.65
71-1
FLAT WASHER 6MM
Price
N/A
72
CAP SCREW M6-1 X 12
Price
N/A
73
SAFETY SWITCH
Price
$48.95
74
FLAT WASHER 4MM
Price
N/A
74-1
HEX NUT M4-.7
Price
N/A
75
PHLP HD SCR M4-.7 X 30
Price
N/A
117
PIVOT SHAFT
Price
$72.45
121
CUTTING FLUID PAN
Price
$931.65
121-1
STAND ACCESS PANEL
Price
$92.75
122
PHLP HD SCR M6-1 X 10
Price
N/A
123
LOCK WASHER 1/4
Price
N/A
124
HEX BOLT M6-1 X 15
Price
N/A
125
FILTER
Price
$11.50
126
HEX NUT M6-1
Price
N/A
128
HEX NUT M8-1.25
Price
N/A
129
FLAT WASHER 5/16
Price
N/A
130
HEX BOLT M8-1.25 X 40
Price
N/A
132
HEX BOLT M12-1.75 X 80
Price
N/A
133
FLAT WASHER 6MM
Price
N/A
134
LOCK WASHER 6MM
Price
N/A
200
FRONT BLADE GUARD
Price
$77.95
201
SAW DIRECTION LABEL
Price
$9.45
202
KNOB M6-1 X 10
Price
$10.35
204
HEX BOLT M8-1.25 X 25
Price
N/A
205
LOCK WASHER 8MM
Price
N/A
206
FLAT WASHER 8MM
Price
N/A
207
BLADE ADJUSTABLE KNOB
Price
N/A
208
FLAT WASHER 10MM
Price
N/A
209
BLADE GUIDE ARM
Price
$114.15
210
GIB
Price
$30.85
211
EXT RETAINING RING 8MM
Price
N/A
212
BALL BEARING 608-2RS
Price
N/A
213
SHORT ECCENTRIC SHAFT
Price
$14.50
214
BLADE GUIDE SHAFT (FRONT)
Price
N/A
215
CAP SCREW M6-1 X 20
Price
N/A
216
CARBIDE GUIDE
Price
N/A
217
***USE P0811117***
Price
$10.35
218
SET SCREW M6-1 X 5
Price
N/A
219
UPPER BLADE GUIDE BLOCK
Price
$58.00

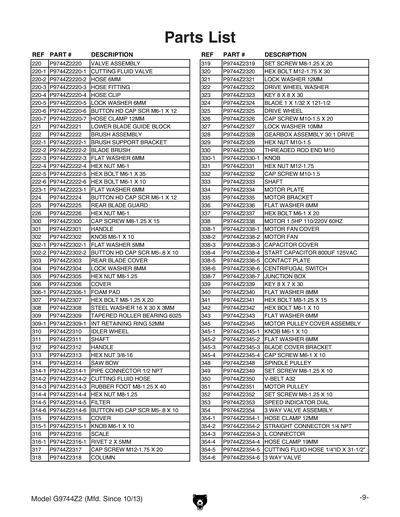

220
VALVE ASSEMBLY
Price
$106.90
220-1
CUTTING FLUID VALVE
Price
$33.55
220-2
HOSE 6MM
Price
$6.00
220-3
HOSE FITTING
Price
$14.90
220-4
HOSE CLIP
Price
$17.55
220-5
LOCK WASHER 6MM
Price
N/A
220-6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
220-7
HOSE CLAMP 12MM
Price
$3.65
221
LOWER BLADE GUIDE BLOCK
Price
$74.30
222
BRUSH ASSEMBLY
Price
$70.70
222-1
BRUSH SUPPORT BRACKET
Price
$26.90
222-2
BRUSH
Price
N/A
222-3
FLAT WASHER 6MM
Price
N/A
222-4
HEX NUT M6-1
Price
N/A
222-5
HEX BOLT M6-1 X 35
Price
N/A
222-6
HEX BOLT M6-1 X 10
Price
N/A
223-1
FLAT WASHER 6MM
Price
N/A
224
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
225
REAR BLADE GUARD
Price
$47.10
226
HEX NUT M6-1
Price
N/A
227
FRONT LIMIT SWITCH KEY
Price
$29.30
228
REAR LIMIT SWITCH KEY
Price
$32.35
229
BUTTON HD CAP SCR M4-.5 X 12
Price
$2.75
235
REAR LIMIT SWITCH BRACKET
Price
$30.55
236
PHLP HD SCR M5-.8 X 10
Price
N/A
237
CAP SCREW M4-.7 X 12
Price
N/A
238
HEX NUT M4-.7
Price
N/A
300
CAP SCREW M8-1.25 X 15
Price
N/A
301
HANDLE
Price
$7.25
302
KNOB M6-1 X 10
Price
$10.90
302-1
FLAT WASHER 5MM
Price
N/A
302-2
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
303
*SEE EXT DESCRIPTION*
Item is no longer available
Price
N/A
303V2
REAR BLADE COVER V2.06.20
Price
$96.95
304
LOCK WASHER 8MM
Price
N/A
305
HEX NUT M8-1.25
Price
N/A
306
COVER
Price
$105.10
306-1
FOAM PAD
Price
$3.65
306V2
COVER V2.06.20
Price
$96.95
307
HEX BOLT M8-1.25 X 20
Price
N/A
308
STEEL WASHER 16 X 30 X 3MM
Price
$6.05
309
BALL BEARING 6205ZZ
Price
N/A
309-1
INT RETAINING RING 52MM
Price
N/A
310
IDLER WHEEL
Price
$224.25
311
SHAFT
Price
$39.85
312
HANDLE
Price
$10.90
313
HEX NUT 3/8-16
Price
N/A
314
*SEE EXT DESCRIPTION*
Item is no longer available
Price
N/A
314-1
PIPE CONNECTOR 1/2 NPT
Price
$8.80
314-2
CUTTING FLUID HOSE
Price
$42.90
314-3
RUBBER FOOT M8-1.25 X 40
Price
$1.60
314-4
HEX NUT M8-1.25
Price
N/A
314-5
FILTER
Price
$47.10
314-6
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
314V2
SAW BOW V2.06.20
Price
$917.45
315
COVER
Price
$81.55
315-1
KNOB BOLT M6-1 X 10
Price
$8.20
316
SCALE
Price
$41.10
316-1
RIVET 2 X 5MM
Price
$1.60
317
CAP SCREW M12-1.75 X 20
Price
N/A
318
COLUMN
Price
$244.55
319
SET SCREW M8-1.25 X 20
Price
N/A
320
HEX BOLT M12-1.75 X 30
Price
N/A
321
LOCK WASHER 12MM
Price
N/A
322
DRIVE WHEEL WASHER
Price
$79.70
323
KEY 8 X 8 X 30
Price
N/A
324
BLADE 1 X 1/32 X 121-1/2
Price
$260.55
325
DRIVE WHEEL
Price
$233.70
326
CAP SCREW M10-1.5 X 20
Price
N/A
327
LOCK WASHER 10MM
Price
N/A
328
GEARBOX ASSY 30:1 DRIVE
Price
$1,017.95
329
HEX NUT M10-1.5
Price
N/A
330
THREADED ROD END M10
Price
$34.45
330-1
KNOB
Price
$15.45
331
HEX NUT M12-1.75
Price
N/A
332
CAP SCREW M10-1.5
Price
$2.20
333
SHAFT
Price
$35.05
334
MOTOR PLATE
Price
$144.65
335
MOTOR BRACKET
Price
$41.70
336
FLAT WASHER 6MM
Price
N/A
337
HEX BOLT M6-1 X 20
Price
N/A
338
MOTOR 1.5HP 110V/220V 60HZ
Price
$809.75
338-1
MOTOR 1.5HP 110V/220V 60HZ
Price
N/A
338-2
MOTOR 1.5HP 110V/220V 60HZ
Price
N/A
338-3
MOTOR 1.5HP 110V/220V 60HZ
Price
N/A
338-4
S CAPACITOR 800M 125V 1-3/4 X 3-3/8
Price
N/A
338-5
MOTOR 1.5HP 110V/220V 60HZ
Price
N/A
338-6
MOTOR 1.5HP 110V/220V 60HZ
Price
N/A
338-7
MOTOR 1.5HP 110V/220V 60HZ
Price
N/A
339
KEY 8 X 7 X 30
Price
N/A
340
FLAT WASHER 8MM
Price
N/A
341
HEX BOLT M8-1.25 X 15
Price
N/A
342
HEX BOLT M6-1 X 10
Price
N/A
343
FLAT WASHER 6MM
Price
N/A
345
MOTOR PULLEY COVER ASSEMBLY
Price
$207.45
345-1
KNOB M6-1 X 10
Price
N/A
345-2
FLAT WASHER 6MM
Price
N/A
345-3
BLADE COVER BRACKET
Price
$40.50
345-4
CAP SCREW M6-1 X 10
Price
N/A
348
SPINDLE PULLEY
Price
$80.95
349
SET SCREW M8-1.25 X 10
Price
N/A
350
V-BELT A32
Price
N/A
351
MOTOR PULLEY
Price
$107.80
352
SET SCREW M8-1.25 X 10
Price
N/A
353
SPEED INDICATOR LABEL
Price
$8.40
354
VALVE 3-WAY ASSEMBLY
Price
$95.15
354-1
HOSE CLAMP 12MM
Price
$3.65

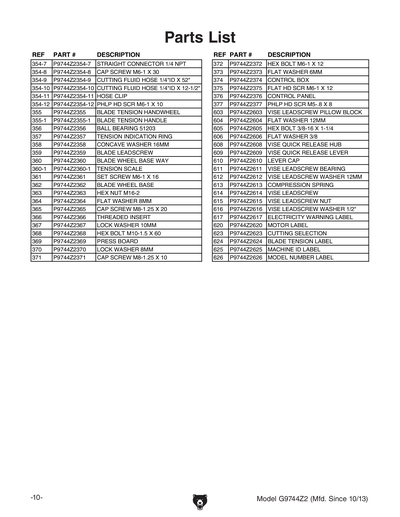

354-10
CUTTING FLUID HOSE 1/4"ID X 12-1/2"
Price
$42.90
354-11
HOSE CLIP
Price
$1.60
354-12
PHLP HD SCR M6-1 X 10
Price
N/A
354-2
STRAIGHT CONNECTOR 1/4 NPT
Price
$7.00
354-3
L CONNECTOR
Price
$15.15
354-4
HOSE CLAMP 19MM
Price
$3.65
354-5
CUTTING FLUID HOSE 1/4"ID X 31-1/2"
Price
$42.90
354-6
VALVE 3-WAY
Price
$32.35
354-7
STRAIGHT CONNECTOR 1/4 NPT
Price
$7.00
354-8
CAP SCREW M6-1 X 30
Price
N/A
354-9
CUTTING FLUID HOSE 1/4"ID X 52"
Price
$42.90
355
BLADE TENSION HANDWHEEL
Price
$52.25
355-1
BLADE TENSION HANDLE
Price
$16.35
356
THRUST BEARING 51203
Price
N/A
357
TENSION INDICATION RING
Price
$29.35
358
WAVY WASHER 16MM
Price
$7.90
359
BLADE LEADSCREW
Price
$47.75
360
BLADE WHEEL BASE WAY
Price
$87.90
360-1
TENSION SCALE
Price
$7.25
361
SET SCREW M6-1 X 16
Price
N/A
362
BLADE WHEEL BASE
Price
$64.95
363
HEX NUT M16-2
Price
N/A
364
FLAT WASHER 8MM
Price
N/A
365
CAP SCREW M8-1.25 X 20
Price
N/A
366
THREADED INSERT
Price
$14.50
367
LOCK WASHER 10MM
Price
N/A
368
HEX BOLT M10-1.5 X 60
Price
N/A
369
PRESS BOARD
Price
$39.85
370
LOCK WASHER 8MM
Price
N/A
371
CAP SCREW M8-1.25 X 10
Price
N/A
372
HEX BOLT M6-1 X 12
Price
N/A
373
FLAT WASHER 6MM
Price
N/A
374
CONTROL BOX
Price
$170.30
375
FLAT HD SCR M6-1 X 12
Price
N/A
376
CONTROL PANEL
Price
$74.90
377
PHLP HD SCR M5-.8 X 8
Price
N/A
380
FRONT LIMIT SWITCH BRACKET
Price
$6.70
381
REAR LIMIT SWITCH SQ3
Price
$86.05
381-1
LIMIT SWITCH KEDU QKS8
Price
$77.95
381-2
LIMIT SWITCH CORD 18G 2W 60"
Price
$29.95
382
FRONT LIMIT SWITCH SQ2
Price
$86.05
382-1
LIMIT SWITCH KEDU QKS8
Price
$67.30
382-2
LIMIT SWITCH CORD 18G 2W 60"
Price
$29.95
603
VISE LEADSCREW PILLOW BLOCK
Price
$48.95
604
FLAT WASHER 12MM
Price
N/A
605
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
606
FLAT WASHER 3/8
Price
N/A
608
VISE QUICK RELEASE HUB
Price
$41.10
609
VISE QUICK RELEASE LEVER
Price
$29.95
610
LEVER CAP
Price
$3.05
611
VISE LEADSCREW BEARING
Price
$17.25
612
VISE LEADSCREW WASHER 12MM
Price
$1.60
613
COMPRESSION SPRING
Price
$3.40
614
VISE LEADSCREW
Price
$54.10
615
VISE LEADSCREW NUT
Price
$58.65
616
VISE LEADSCREW WASHER 1/2"
Price
$1.70
617
ELECTRICITY WARNING LABEL
Price
$1.25
620
MOTOR LABEL
Price
$4.25
622
MODEL NUMBER LABEL
Price
$10.95
623
CUTTING SELECTION
Price
$16.95
624
BLADE TENSION LABEL
Price
$1.35
625
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
625V2
MACHINE ID LABEL V2.09.24
Price
$10.95
626
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
630
GRIZZLY.COM LABEL
Price
$10.95
633
FLUID CAPACITY LABEL
Price
$3.65
MAN
MANUAL G9744Z2 MFD-04.10-09.13 V1.09.10
Price
$21.95
MANV2
MANUAL G9744Z2 MFD-10.13-08.24 V2.05.18
Price
$15.20
MANV3
MANUAL G9744Z2 MFD-09.24-01.25 V3.09.24
Price
$15.20
MANV4
MANUAL G9744Z2 MFD-02.25+ V4.02.25
Price
$21.95
P9744Z329-6
*DISCD*TRANSFORMER 110/220-24V 30W
Item is no longer available
Price
N/A
