Parts for G9860 - The Ultimate 12" Jointer
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|

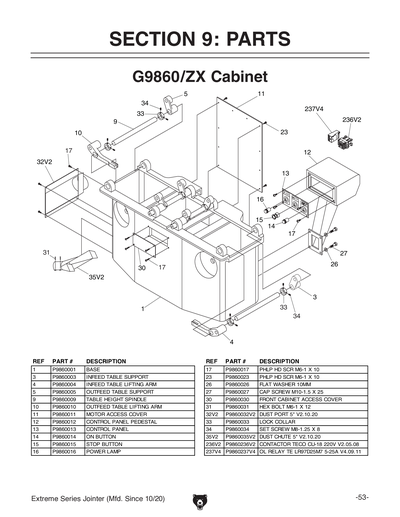

| 001 | P9860001 |
BASE
|
N/A | ||
| 002 | P9860002 | FENCE SEAT | $201.25 | ||
| 003 | P9860003 |
INFEED TABLE SUPPORT
|
N/A | ||
| 004 | P9860004 |
INFEED TABLE LIFTING ARM
|
N/A | ||
| 005 | P9860005 |
OUTFEED TABLE SUPPORT
|
N/A | ||
| 006 | P9860006 | FRONT TABLE COVER | $195.00 | ||
| 007 | P9860007 |
INFEED TABLE REAR COVER
|
N/A | ||
| 008 | P9860008 |
OUTFEED TABLE REAR COVER
|
N/A | ||
| 009 | P9860009 |
TABLE HEIGHT SPINDLE
|
N/A | ||
| 010 | P9860010 |
OUTFEED TABLE LIFTING ARM
|
N/A | ||
| 011 | P9860011 |
MOTOR ACCESS COVER
|
N/A | ||
| 012 | P9860012 |
CONTROL PANEL PEDESTAL
|
N/A | ||
| 013 | P9860013 |
CONTROL PANEL
|
N/A | ||
| 014 | P9860014 | ON BUTTON | $15.00 | ||
| 015 | P9860015 | E-STOP BUTTON RENY R9C01VN | $15.00 | ||
| 016 | P9860016 | POWER INDICATOR LIGHT 22MM RED | $14.75 | ||
| 017 | P9860017 |
***USE PS68M***
Item is no longer available
P9860017 Replaced By PS68M
|
N/A | View Replacement | |
| 018 | P9860018 |
***USE PK63M***
Item is no longer available
P9860018 Replaced By PK63M
|
N/A | View Replacement | |
| 018-1 | P9860018-1 |
***USE PRP49M***
Item is no longer available
P9860018-1 Replaced By PRP49M
|
N/A | View Replacement | |
| 019 | P9860019 |
FENCE LOCK T-NUT 1/2"
|
N/A | ||
| 020 | P9860020 |
***USE PLW10M***
Item is no longer available
P9860020 Replaced By PLW10M
|
N/A | View Replacement | |
| 021 | P9860021 |
***USE PW08M***
Item is no longer available
P9860021 Replaced By PW08M
|
N/A | View Replacement | |
| 022 | P9860022 |
***USE PCAP77M***
Item is no longer available
P9860022 Replaced By PCAP77M
|
N/A | View Replacement | |
| 023 | P9860023 |
***USE PS68M***
Item is no longer available
P9860023 Replaced By PS68M
|
N/A | View Replacement | |
| 024 | P9860024 |
***USE PW01M***
Item is no longer available
P9860024 Replaced By PW01M
|
N/A | View Replacement | |
| 025 | P9860025 |
***USE PB03M***
Item is no longer available
P9860025 Replaced By PB03M
|
N/A | View Replacement | |
| 026 | P9860026 |
***USE PW04M***
Item is no longer available
P9860026 Replaced By PW04M
|
N/A | View Replacement | |
| 027 | P9860027 |
***USE PCAP64M***
Item is no longer available
P9860027 Replaced By PCAP64M
|
N/A | View Replacement | |
| 028 | P9860028 |
***USE PW02***
Item is no longer available
P9860028 Replaced By PW02
|
N/A | View Replacement | |
| 029 | P9860029 | KNOB M10-1.5 X 30 | $4.00 | ||
| 030 | P9860030 |
***USE PB02M***
Item is no longer available
P9860030 Replaced By PB02M
|
N/A | View Replacement | |
| 031 | P9860031 |
***USE PB02M***
Item is no longer available
P9860031 Replaced By PB02M
|
N/A | View Replacement | |
| 032 | P9860032 | DUST PORT 4" | $165.00 | ||
| 033 | P9860033 |
LOCK COLLAR
|
N/A | ||
| 034 | P9860034 |
***USE PSS20M***
Item is no longer available
P9860034 Replaced By PSS20M
|
N/A | View Replacement | |
| 035 | P9860035 |
DUST CHUTE
|
N/A | ||

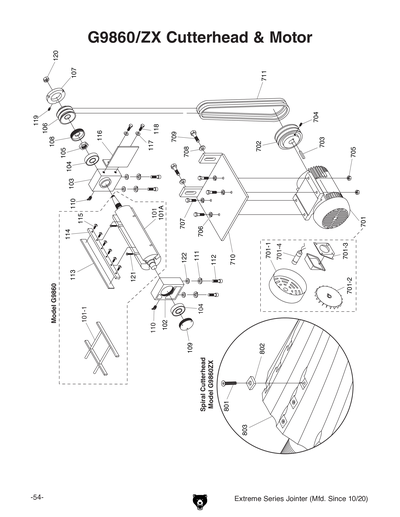

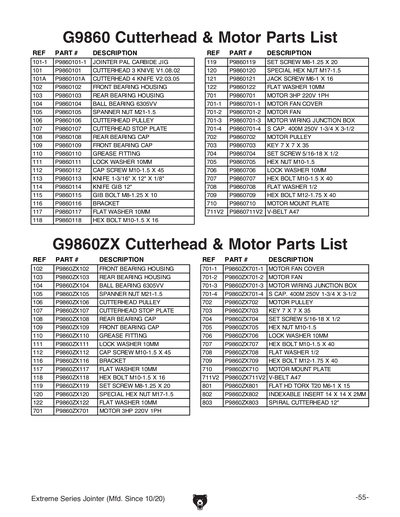

| 101 | P9860101 | CUTTERHEAD 3 KNIFE V1.08.02 | $240.75 | ||
| 101-1 | P9860101-1 | *DISCD*KNIFE SETTING GAUGE V1.08.02 | $109.25 | ||
| 101-1V2 | P9860101-1V2 |
***USE W1227***
Item is no longer available
P9860101-1V2 Replaced By W1227
|
N/A | View Replacement | |
| 101A | P9860101A | CUTTERHEAD 4 KNIFE V2.03.05 | $540.00 | ||
| 102 | P9860102 | FRONT BEARING HOUSING | $75.00 | ||
| 103 | P9860103 | REAR BEARING HOUSING | $54.00 | ||
| 104 | P9860104 | BALL BEARING 6305VV | $30.00 | ||
| 105 | P9860105 | SPANNER NUT M21-1.5 | $6.00 | ||
| 105B | P9860105B | SPANNER NUT M21-1.5 LH | $6.00 | ||
| 106 | P9860106 |
CUTTERHEAD PULLEY
|
N/A | ||
| 107 | P9860107 | CUTTERHEAD STOP PLATE | $24.75 | ||
| 108 | P9860108 | REAR BEARING CAP | $13.50 | ||
| 109 | P9860109 | FRONT BEARING CAP | $15.00 | ||
| 110 | P9860110 | GREASE FITTING 1/8 PT 45-DEG FLUSH | $1.50 | ||
| 111 | P9860111 |
***USE PLW06M***
Item is no longer available
P9860111 Replaced By PLW06M
|
N/A | View Replacement | |
| 112 | P9860112 |
***USE PCAP70M***
Item is no longer available
P9860112 Replaced By PCAP70M
|
N/A | View Replacement | |
| 113 | P9860113 | KNIFE 1-3/16 X 12 X 1/8" | $45.00 | ||
| 114 | P9860114 | KNIFE GIB 12" | $30.00 | ||
| 115 | P9860115 |
***USE P97401619***
Item is no longer available
P9860115 Replaced By P97401619
|
N/A | View Replacement | |
| 116 | P9860116 |
BRACKET
|
N/A | ||
| 117 | P9860117 |
***USE PW04M***
Item is no longer available
P9860117 Replaced By PW04M
|
N/A | View Replacement | |
| 118 | P9860118 |
***USE PB70M***
Item is no longer available
P9860118 Replaced By PB70M
|
N/A | View Replacement | |
| 119 | P9860119 |
***USE PSS09M***
Item is no longer available
P9860119 Replaced By PSS09M
|
N/A | View Replacement | |
| 120 | P9860120 |
***USE PB70M***
Item is no longer available
P9860120 Replaced By PB70M
|
N/A | View Replacement | |
| 121 | P9860121 | JACK SCREW M6-1 X 16 | $1.00 | ||
| 122 | P9860122 |
***USE PW04M***
Item is no longer available
P9860122 Replaced By PW04M
|
N/A | View Replacement | |

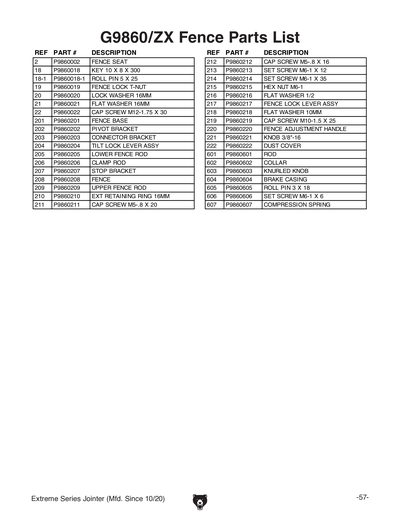

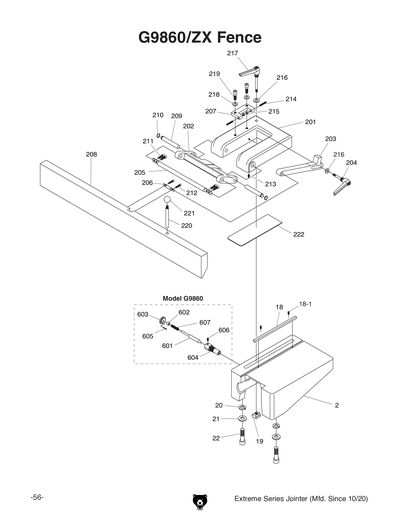

| 201 | P9860201 |
FENCE BASE
|
N/A | ||
| 202 | P9860202 | PIVOT BRACKET | $81.00 | ||
| 203 | P9860203 | CONNECTOR BRACKET | $18.00 | ||
| 204 | P9860204 | TILT LOCK LEVER ASSY | $24.00 | ||
| 205 | P9860205 | FENCE ROD LOWER | $18.00 | ||
| 206 | P9860206 |
CLAMP ROD
|
N/A | ||
| 207 | P9860207 |
STOP BRACKET
|
N/A | ||
| 208 | P9860208 |
FENCE
|
N/A | ||
| 209 | P9860209 | UPPER FENCE ROD | $4.50 | ||
| 210 | P9860210 |
***USE PR06M***
Item is no longer available
P9860210 Replaced By PR06M
|
N/A | View Replacement | |
| 211 | P9860211 |
***USE PCAP15M***
Item is no longer available
P9860211 Replaced By PCAP15M
|
N/A | View Replacement | |
| 212 | P9860212 |
CAP SCREW M5-.8 X 16
Item is no longer available
P9860212 Replaced By PCAP24M
|
N/A | View Replacement | |
| 213 | P9860213 |
***USE PSS04M***
Item is no longer available
P9860213 Replaced By PSS04M
|
N/A | View Replacement | |
| 214 | P9860214 |
***USE PSS29M***
Item is no longer available
P9860214 Replaced By PSS29M
|
N/A | View Replacement | |
| 215 | P9860215 |
***USE PN01M***
Item is no longer available
P9860215 Replaced By PN01M
|
N/A | View Replacement | |
| 216 | P9860216 |
***USE PW01***
Item is no longer available
P9860216 Replaced By PW01
|
N/A | View Replacement | |
| 217 | P9860217 | FENCE LOCK LEVER ASSY | $36.00 | ||
| 218 | P9860218 |
***USE PW04M***
Item is no longer available
P9860218 Replaced By PW04M
|
N/A | View Replacement | |
| 219 | P9860219 |
***USE PCAP64M***
Item is no longer available
P9860219 Replaced By PCAP64M
|
N/A | View Replacement | |
| 220 | P9860220 | FENCE ADJUSTMENT HANDLE | $6.00 | ||
| 221 | P9860221 | KNOB 3/8-16 | $2.50 | ||
| 235 | P9860235 |
***USE P97400120-6***
Item is no longer available
P9860235 Replaced By P97400120-6
|
N/A | View Replacement | |
| 236 | P9860236 |
*DISCD*CONTACTOR TECO CU-18 220V V1
Item is no longer available
|
N/A | ||
| 236V2 | P9860236V2 |
***USE P4668003V2***
Item is no longer available
P9860236V2 Replaced By P4668003V2
|
N/A | View Replacement | |
| 237 | P9860237 |
*DISCD*OL RELAY TECO RHN-18A 16-23A V1
Item is no longer available
|
N/A | ||
| 237V2 | P9860237V2 |
*DISCD*OL RELAY TECO EOCR-SP 2-25A V2.04
Item is no longer available
|
N/A | ||
| 237V3 | P9860237V3 |
*DISCD*OL RELAY TECO EOCR-SP2 5-25A V3.0
Item is no longer available
|
N/A | ||
| 237V4 | P9860237V4 | OL RELAY TE LR97D25M7 5-25A V4.09.11 | $240.00 | ||
| 237ZXV2 | P9860237ZXV2 |
*DISCD*OL RELAY TECO EOCR-SP 2-25A V2.04
Item is no longer available
P9860237ZXV2 Replaced By P9860237V2
|
N/A | View Replacement | |

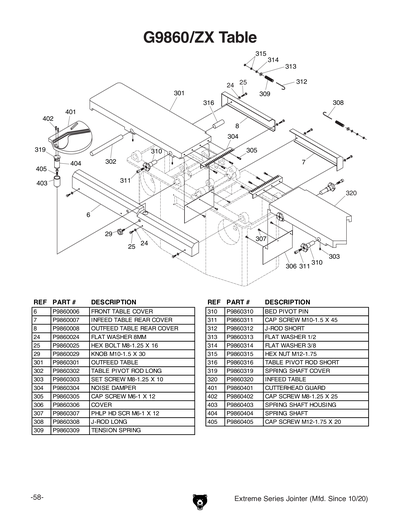

| 301 | P9860301 |
OUTFEED ROLLER
|
N/A | ||
| 302 | P9860302 |
TABLE PIVOT ROD LONG
|
N/A | ||
| 303 | P9860303 |
***USE PSS16M***
Item is no longer available
P9860303 Replaced By PSS16M
|
N/A | View Replacement | |
| 304 | P9860304 | NOISE DAMPER | $60.00 | ||
| 305 | P9860305 |
***USE PCAP31M***
Item is no longer available
P9860305 Replaced By PCAP31M
|
N/A | View Replacement | |
| 306 | P9860306 |
COVER
|
N/A | ||
| 307 | P9860307 |
***USE PS14M***
Item is no longer available
P9860307 Replaced By PS14M
|
N/A | View Replacement | |
| 308 | P9860308 |
J-ROD LONG
|
N/A | ||
| 309 | P9860309 | TENSION SPRING | $10.00 | ||
| 310 | P9860310 | BED PIVOT PIN M12-1.75 X 30 | $11.75 | ||
| 311 | P9860311 |
***USE PCAP70M***
Item is no longer available
P9860311 Replaced By PCAP70M
|
N/A | View Replacement | |
| 312 | P9860312 | J-ROD SHORT | $4.50 | ||
| 313 | P9860313 |
***USE PW01***
Item is no longer available
P9860313 Replaced By PW01
|
N/A | View Replacement | |
| 314 | P9860314 |
***USE PW02***
Item is no longer available
P9860314 Replaced By PW02
|
N/A | View Replacement | |
| 315 | P9860315 |
***USE PN09M***
Item is no longer available
P9860315 Replaced By PN09M
|
N/A | View Replacement | |
| 316 | P9860316 |
TABLE PIVOT ROD SHORT
|
N/A | ||
| 319 | P9860319 |
***USE P9860319A***
Item is no longer available
P9860319 Replaced By P9860319A
|
N/A | View Replacement | |
| 319A | P9860319A | SPRING SHAFT W/COVER | $105.00 | ||
| 320 | P9860320 |
INFEED TABLE
|
N/A | ||
| 401 | P9860401 |
CUTTERHEAD GUARD
|
N/A | ||
| 402 | P9860402 |
***USE PCAP31M***
Item is no longer available
P9860402 Replaced By PCAP31M
|
N/A | View Replacement | |
| 403 | P9860403 | SPRING SHAFT HOUSING | $30.00 | ||
| 404 | P9860404 |
***USE P9860319A***
Item is no longer available
P9860404 Replaced By P9860319A
|
N/A | View Replacement | |
| 405 | P9860405 |
***USE PCAP129M***
Item is no longer available
P9860405 Replaced By PCAP129M
|
N/A | View Replacement | |
| 406 | P9860406 | *DISCD*WASHER | $2.00 | ||
| 407 | P9860407 |
*DISCD*HEX CAP BOLT
Item is no longer available
|
N/A | ||

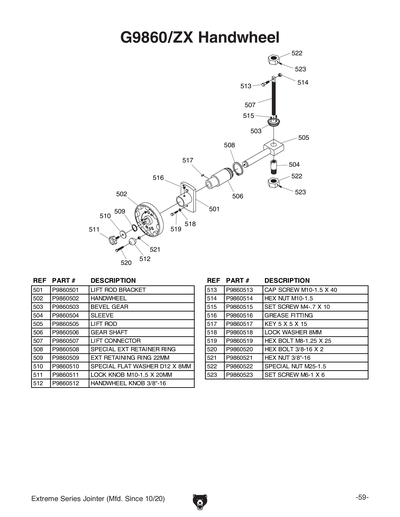

| 501 | P9860501 |
LIFT ROD BRACKET
|
N/A | ||
| 502 | P9860502 | HANDWHEEL | $60.00 | ||
| 503 | P9860503 | BEVEL GEAR M4-0.7 X 2 | $26.00 | ||
| 504 | P9860504 |
SLEEVE
|
N/A | ||
| 505 | P9860505 |
LIFT ROD
|
N/A | ||
| 506 | P9860506 | GEAR SHAFT | $41.00 | ||
| 507 | P9860507 |
LIFT CONNECTOR
|
N/A | ||
| 508 | P9860508 |
GEAR SHAFT EXT RETAINER RING M40
|
N/A | ||
| 509 | P9860509 |
***USE PR10M***
Item is no longer available
P9860509 Replaced By PR10M
|
N/A | View Replacement | |
| 510 | P9860510 |
FENDER WASHER 10MM
Item is no longer available
P9860510 Replaced By P9859510
|
N/A | View Replacement | |
| 511 | P9860511 | LOCK KNOB M10-1.5 X 20 | $3.00 | ||
| 512 | P9860512 | HANDWHEEL KNOB 3/8-16" | $6.00 | ||
| 513 | P9860513 |
***USE PCAP47M***
Item is no longer available
P9860513 Replaced By PCAP47M
|
N/A | View Replacement | |
| 514 | P9860514 |
***USE PN02M***
Item is no longer available
P9860514 Replaced By PN02M
|
N/A | View Replacement | |
| 515 | P9860515 |
***USE PSS23M***
Item is no longer available
P9860515 Replaced By PSS23M
|
N/A | View Replacement | |
| 516 | P9860516 |
GREASE FITTING 3/16"
|
N/A | ||
| 517 | P9860517 |
***USE PK20M***
Item is no longer available
P9860517 Replaced By PK20M
|
N/A | View Replacement | |
| 518 | P9860518 |
***USE PLW04M***
Item is no longer available
P9860518 Replaced By PLW04M
|
N/A | View Replacement | |
| 519 | P9860519 |
***USE PB07M***
Item is no longer available
P9860519 Replaced By PB07M
|
N/A | View Replacement | |
| 520 | P9860520 |
***USE PB58***
Item is no longer available
P9860520 Replaced By PB58
|
N/A | View Replacement | |
| 521 | P9860521 |
***USE PN08***
Item is no longer available
P9860521 Replaced By PN08
|
N/A | View Replacement | |
| 522 | P9860522 |
SLEEVE NUT M25-1.5
|
N/A | ||
| 523 | P9860523 |
***USE PSS02M***
Item is no longer available
P9860523 Replaced By PSS02M
|
N/A | View Replacement | |
| 601 | P9860601 |
ROD
|
N/A | ||
| 602 | P9860602 |
COLLAR
|
N/A | ||
| 603 | P9860603 |
KNURLED KNOB 6MM
|
N/A | ||
| 604 | P9860604 |
BRAKE CASING
|
N/A | ||
| 605 | P9860605 |
***USE PRP64M***
Item is no longer available
P9860605 Replaced By PRP64M
|
N/A | View Replacement | |
| 606 | P9860606 |
***USE PSS02M***
Item is no longer available
P9860606 Replaced By PSS02M
|
N/A | View Replacement | |
| 607 | P9860607 |
COMPRESSION SPRING 1 X 11 X 47 NT17
|
N/A | ||
| 701 | P9860701 | MOTOR 3HP 220V 1-PH | $450.00 | ||
| 701-1 | P9860701-1 |
MOTOR FAN COVER
|
N/A | ||
| 701-2 | P9860701-2 |
MOTOR FAN
|
N/A | ||
| 701-3 | P9860701-3 | MOTOR WIRING JUNCTION BOX | $11.50 | ||
| 701-4 | P9860701-4 |
***USE PC400U***
Item is no longer available
P9860701-4 Replaced By PC400U
|
N/A | View Replacement | |
| 702 | P9860702 |
MOTOR PULLEY
|
N/A | ||
| 703 | P9860703 |
***USE PK109M***
Item is no longer available
P9860703 Replaced By PK109M
|
N/A | View Replacement | |
| 704 | P9860704 |
***USE PSS08***
Item is no longer available
P9860704 Replaced By PSS08
|
N/A | View Replacement | |
| 705 | P9860705 |
***USE PN02M***
Item is no longer available
P9860705 Replaced By PN02M
|
N/A | View Replacement | |
| 706 | P9860706 |
***USE PLW06M***
Item is no longer available
P9860706 Replaced By PLW06M
|
N/A | View Replacement | |
| 707 | P9860707 |
***USE PB31M***
Item is no longer available
P9860707 Replaced By PB31M
|
N/A | View Replacement | |
| 708 | P9860708 |
***USE PW01***
Item is no longer available
P9860708 Replaced By PW01
|
N/A | View Replacement | |
| 709 | P9860709 |
***USE PB35M***
Item is no longer available
P9860709 Replaced By PB35M
|
N/A | View Replacement | |
| 710 | P9860710 |
MOTOR MOUNT PLATE
|
N/A | ||
| 711 | P9860711 |
***USE PVA48***
Item is no longer available
P9860711 Replaced By PVA48
|
N/A | View Replacement | |
| 711V2 | P9860711V2 |
***USE PVA47***
Item is no longer available
P9860711V2 Replaced By PVA47
|
N/A | View Replacement | |
| 712 | P9860712 |
***USE H7942***
Item is no longer available
P9860712 Replaced By H7942
|
N/A | View Replacement | |
| 713 | P9860713 |
***USE PLABEL-11A***
Item is no longer available
P9860713 Replaced By PLABEL-11A
|
N/A | View Replacement | |

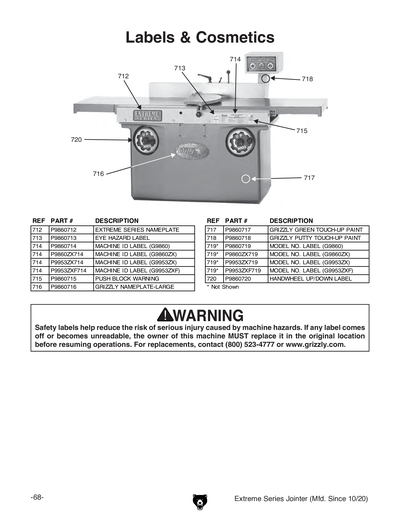

| 714 | P9860714 | MACHINE ID LABEL | $9.50 | ||
| 715 | P9860715 | PUSH BLOCK WARNING | $2.50 | ||
| 716 | P9860716 |
***USE G8589***
Item is no longer available
P9860716 Replaced By G8589
|
N/A | View Replacement | |
| 717 | P9860717 |
***USE PPAINT-1***
Item is no longer available
P9860717 Replaced By PPAINT-1
|
N/A | View Replacement | |
| 718 | P9860718 |
***USE PPAINT-11***
Item is no longer available
P9860718 Replaced By PPAINT-11
|
N/A | View Replacement | |
| 719 | P9860719 | MODEL NUMBER LABEL | $6.50 | ||
| 720 | P9860720 | HANDWHEEL UP/DOWN LABEL | $22.00 | ||
| MANUAL | P9860MANUAL |
***USE P9860MANV1***
Item is no longer available
P9860MANUAL Replaced By P9860MANV1
|
N/A | View Replacement | |
| MANV1 | P9860MANV1 | MANUAL FOR G9860 V1.10.08 | $14.25 | ||
| MANV2 | P9860MANV2 | MANUAL G9860 MFG 04.09 V2.06.09 | $14.00 | ||
| MANV3 | P9860MANV3 |
MANUAL G9860 MFG 04.10 V3.09.10
|
N/A | ||
| MANV4 | P9860MANV4 |
MANUAL G9860 MFG 01.11 V4.02.11
|
N/A | ||
| MANV5 | P9860MANV5 |
MANUAL G9860 MFG 09.11 V5.10.11
|
N/A | ||
| PART | P9860PART |
MISCELLANEOUS PART
|
N/A |
