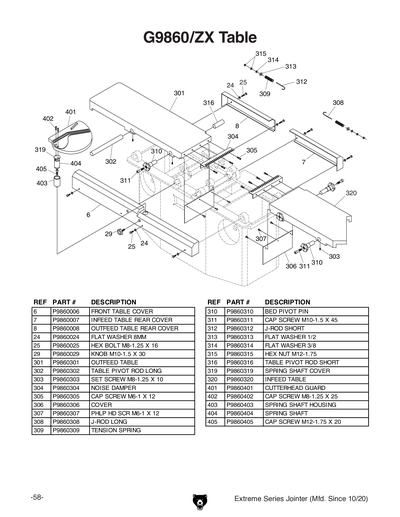

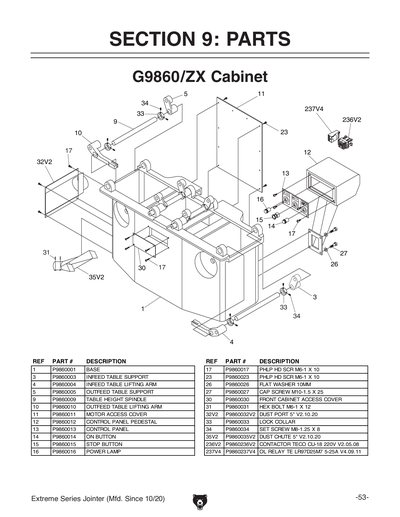

Parts for G9860ZX - 12" x 80" Z Series Jointer w/ Spiral Cutterhead

1/16

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

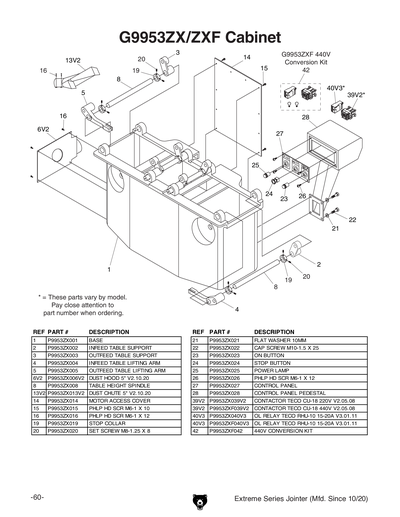

1
BASE
Price
N/A
2
FENCE SEAT
Price
N/A
3
INFEED TABLE SUPPORT
Price
N/A
4
INFEED TABLE LIFTING ARM
Price
N/A
5
OUTFEED TABLE SUPPORT
Price
N/A
6
FRONT TABLE COVER
Price
N/A
7
INFEED TABLE REAR COVER
Price
N/A
8
OUTFEED TABLE REAR COVER
Price
N/A
9
TABLE HEIGHT SPINDLE
Price
N/A
10
OUTFEED TABLE LIFTING ARM
Price
N/A
11
MOTOR ACCESS COVER
Price
N/A
12
CONTROL PANEL PEDESTAL
Price
N/A
13
CONTROL PANEL
Price
N/A
14
ON BUTTON RENY R9C1VN 22MM GRN
Price
N/A
15
E-STOP BUTTON RENY R9C01VN
Price
N/A
16
POWER INDICATOR LIGHT 22MM RED
Price
N/A
17
PHLP HD SCR M6-1 X 10
Price
N/A
18
KEY 10 X 8 X 300
Price
N/A
18-1
ROLL PIN 5 X 25
Price
N/A
19
FENCE LOCK T-NUT 1/2"
Price
N/A
20
LOCK WASHER 16MM
Price
N/A
21
FLAT WASHER 16MM
Price
N/A
22
CAP SCREW M12-1.75 X 30
Price
N/A
23
PHLP HD SCR M6-1 X 10
Price
N/A
24
FLAT WASHER 8MM
Price
N/A
25
HEX BOLT M8-1.25 X 16
Price
N/A
26
FLAT WASHER 10MM
Price
N/A
27
CAP SCREW M10-1.5 X 25
Price
N/A
28
FLAT WASHER 3/8
Price
N/A
29
KNOB M10-1.5 X 30
Price
N/A
30
HEX BOLT M6-1 X 12
Price
N/A
31
HEX BOLT M6-1 X 12
Price
N/A

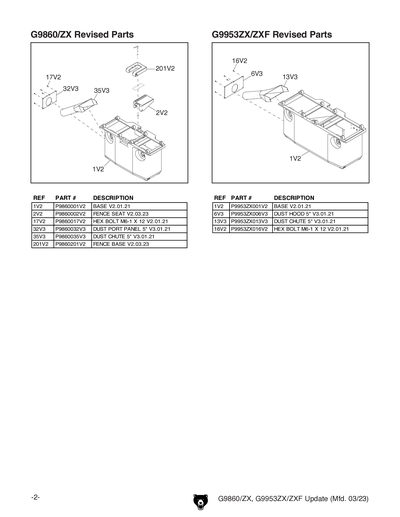

32

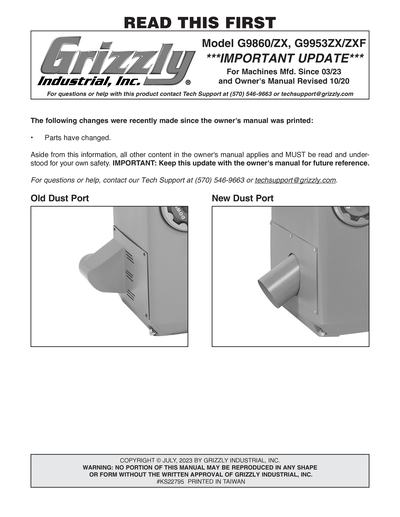

DUST PORT 4" V1
Price
N/A
32V2
DUST PORT 5" V2.10.20
Price
N/A
33
LOCK COLLAR
Price
N/A
34
SET SCREW M8-1.25 X 8
Price
N/A
35
DUST CHUTE 4" V1
Price
N/A
35V2
DUST CHUTE 5" V2.10.20
Price
N/A

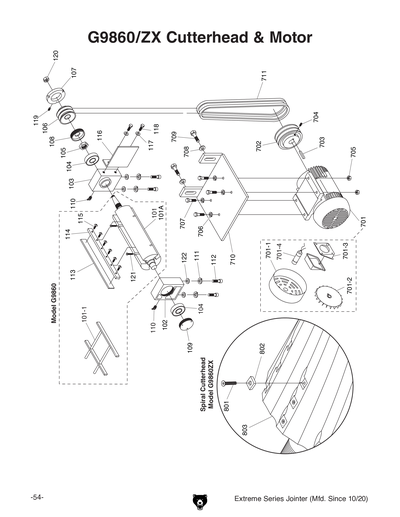

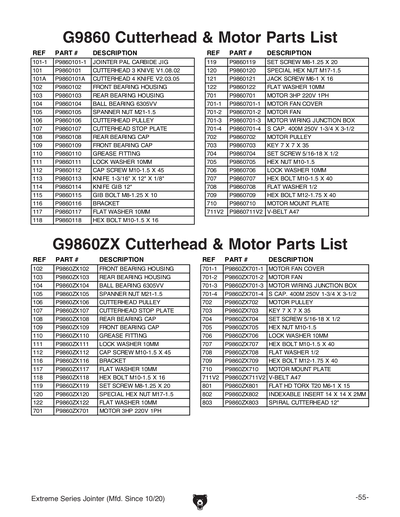

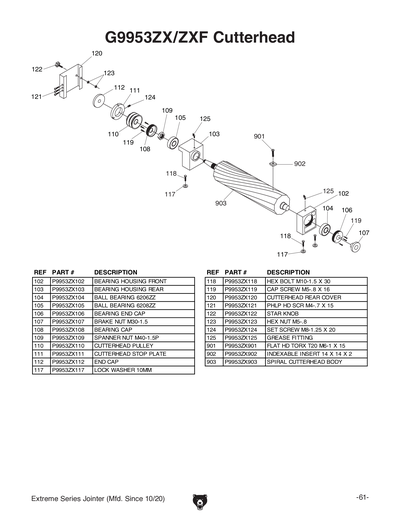

102
FRONT BEARING HOUSING
Price
N/A
103
REAR BEARING HOUSING
Price
N/A
104
BALL BEARING 6305VV
Price
N/A
105
SPANNER NUT M21-1.5
Price
N/A
105B
SPANNER NUT M21-1.5 LH
Price
N/A
106
CUTTERHEAD PULLEY
Price
N/A
107
CUTTERHEAD STOP PLATE
Price
N/A
108
REAR BEARING CAP
Price
N/A
109
FRONT BEARING CAP
Price
N/A
110
GREASE FITTING 1/8 PT 45-DEG FLUSH
Price
N/A
111
LOCK WASHER 10MM
Price
N/A
112
CAP SCREW M10-1.5 X 45
Price
N/A
115
GIB BOLT M8-1.25 X 10
Price
N/A
116
BRACKET
Price
N/A
117
FLAT WASHER 10MM
Price
N/A
118
HEX BOLT M10-1.5 X 16
Price
N/A
119
SET SCREW M8-1.25 X 20
Price
N/A
120
HEX BOLT M10-1.5 X 16
Price
N/A
122
FLAT WASHER 10MM
Price
N/A

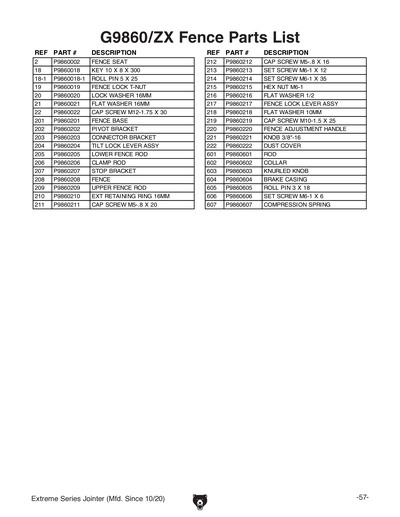

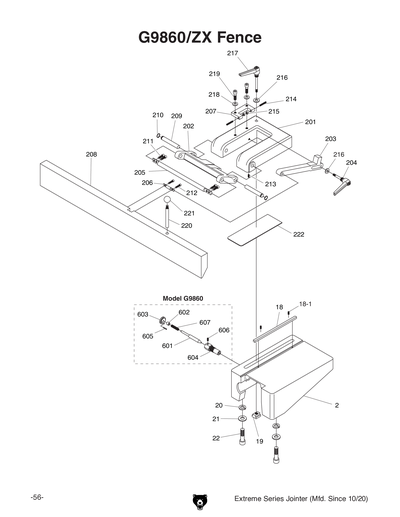

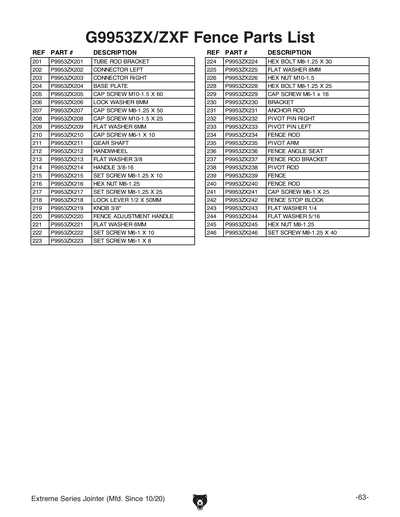

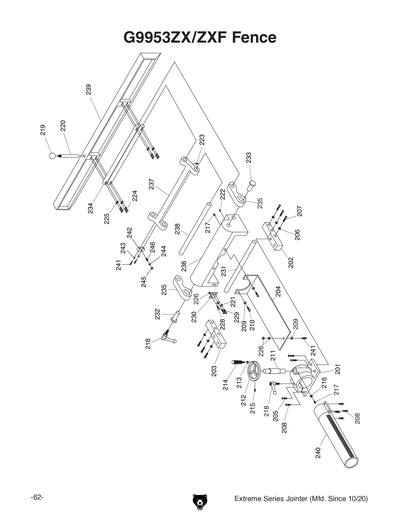

201
FENCE BASE
Price
N/A
202
PIVOT BRACKET
Price
N/A
203
CONNECTOR BRACKET
Price
N/A
204
TILT LOCK LEVER ASSY
Price
N/A
205
FENCE ROD LOWER
Price
N/A
206
CLAMP ROD
Price
N/A
207
STOP BRACKET
Price
N/A
208
FENCE
Price
N/A
209
UPPER FENCE ROD
Price
N/A
210
EXT RETAINING RING 16MM
Price
N/A
211
CAP SCREW M5-.8 X 20
Price
N/A
212
CAP SCREW M5-.8 X 16
Price
N/A
213
SET SCREW M6-1 X 12
Price
N/A
214
SET SCREW M6-1 X 35
Price
N/A
215
HEX NUT M6-1
Price
N/A
216
FLAT WASHER 1/2
Price
N/A
217
FENCE LOCK LEVER ASSY
Price
N/A
218
FLAT WASHER 10MM
Price
N/A
219
CAP SCREW M10-1.5 X 25
Price
N/A
220
FENCE ADJUSTMENT HANDLE
Price
N/A
221
KNOB 3/8-16
Price
N/A
222
DUST COVER
Price
N/A
236
*DISCD*CONTACTOR TECO CU-18 220V V1
Price
N/A
236V2
CONTACTOR TECO CU-18 220V V2.05.08
Price
N/A
237
*DISCD*OL RELAY TECO RHN-18A 16-23A V1
Price
N/A
237V2
*DISCD*OL RELAY TECO EOCR-SP 2-25A V2.04
Price
N/A
237V4
OL RELAY TE LR97D25M7 5-25A V4.09.11
Price
N/A

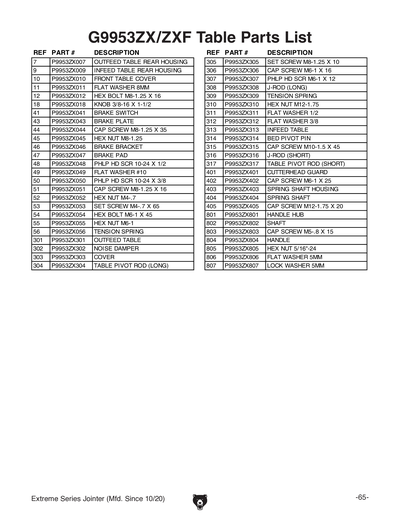

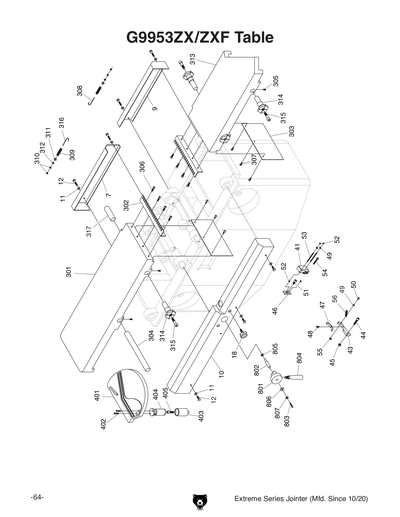

301
OUTFEED ROLLER
Price
N/A
302
TABLE PIVOT ROD LONG
Price
N/A
303
SET SCREW M8-1.25 X 10
Price
N/A
304
NOISE DAMPER
Price
N/A
305
CAP SCREW M6-1 X 12
Price
N/A
306
COVER
Price
N/A
307
PHLP HD SCR M6-1 X 12
Price
N/A
308
J-ROD LONG
Price
N/A
309
TENSION SPRING
Price
N/A
310
BED PIVOT PIN M12-1.75 X 30
Price
N/A
311
CAP SCREW M10-1.5 X 45
Price
N/A
312
J-ROD SHORT
Price
N/A
313
FLAT WASHER 1/2
Price
N/A
314
FLAT WASHER 3/8
Price
N/A
315
HEX NUT M12-1.75
Price
N/A
316
TABLE PIVOT ROD SHORT
Price
N/A
319
SPRING SHAFT W/COVER
Price
N/A
401
CUTTERHEAD GUARD
Price
N/A
402
CAP SCREW M8-1.25 X 25
Price
N/A
403
SPRING SHAFT HOUSING
Price
N/A
404
SPRING SHAFT W/COVER
Price
N/A
405
CAP SCREW M12-1.75 X 20
Price
N/A

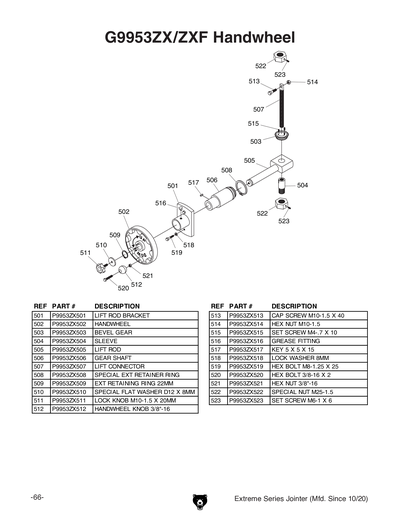

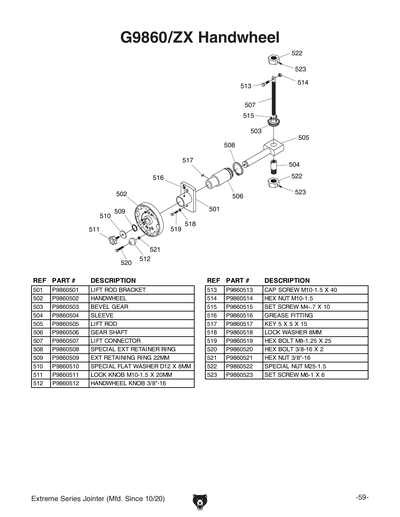

501
LIFT ROD BRACKET
Price
N/A
502
HANDWHEEL
Price
N/A
503
BEVEL GEAR M4-0.7 X 2
Price
N/A
504
SLEEVE
Price
N/A
505
LIFT ROD
Price
N/A
506
GEAR SHAFT
Price
N/A
507
LIFT CONNECTOR
Price
N/A
508
GEAR SHAFT EXT RETAINER RING M40
Price
N/A
509
EXT RETAINING RING 22MM
Price
N/A
510
HANDWHEEL FLAT WASHER 8MM X 12OD
Price
N/A
511
LOCK KNOB M10-1.5 X 20
Price
N/A
512
HANDWHEEL KNOB 3/8-16"
Price
N/A
513
CAP SCREW M10-1.5 X 40
Price
N/A
514
HEX NUT M10-1.5
Price
N/A
515
SET SCREW M4-.7 X 10
Price
N/A
516
GREASE FITTING 3/16"
Price
N/A
517
KEY 5 X 5 X 15
Price
N/A
518
LOCK WASHER 8MM
Price
N/A
519
HEX BOLT M8-1.25 X 25
Price
N/A
520
HEX BOLT 3/8-16 X 2
Price
N/A
521
HEX NUT 3/8-16
Price
N/A
522
SLEEVE NUT M25-1.5
Price
N/A
523
SET SCREW M6-1 X 6
Price
N/A
601
ROD
Price
N/A
602
COLLAR
Price
N/A
603
HANDLE
Price
N/A
604
BRAKE CASING
Price
N/A
605
ROLL PIN 3 X 18
Price
N/A
606
SET SCREW M6-1 X 6
Price
N/A
607
SPRING D0.8 X D11 X 47MML
Price
N/A

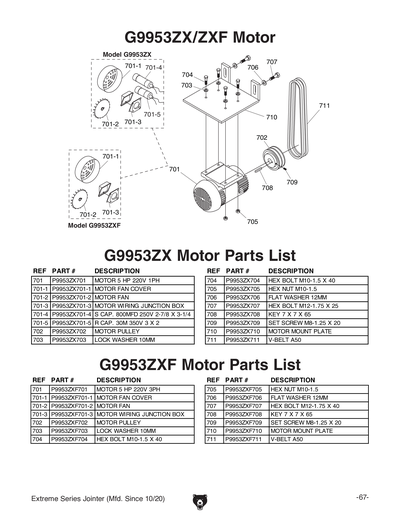

701
MOTOR 3HP 220V 1-PH
Price
N/A
701-1
MOTOR FAN COVER
Price
N/A
701-2
MOTOR FAN
Price
N/A
701-3
MOTOR WIRING JUNCTION BOX
Price
N/A
701-4
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
702
MOTOR PULLEY
Price
N/A
703
KEY 7 X 7 X 35
Price
N/A
704
SET SCREW 5/16-18 X 1/2
Price
N/A
705
HEX NUT M10-1.5
Price
N/A
706
LOCK WASHER 10MM
Price
N/A
707
HEX BOLT M10-1.5 X 40
Price
N/A
708
FLAT WASHER 1/2
Price
N/A
709
HEX BOLT M12-1.75 X 40
Price
N/A
710
MOTOR MOUNT PLATE
Price
N/A
711
V-BELT A48
Price
N/A
711V2
V-BELT A47
Price
N/A

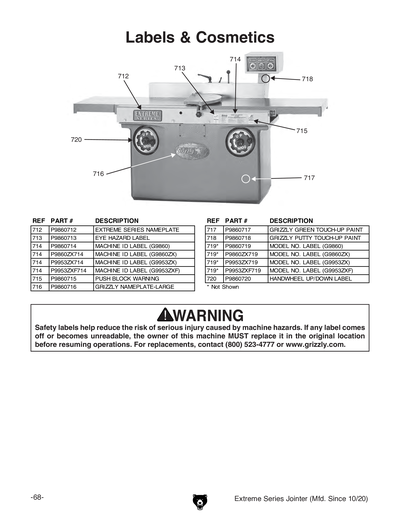

712
Extreme Series Nameplate
Price
N/A
713
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
714
MACHINE ID LABEL
Price
N/A
715
PUSH BLOCK WARNING
Price
N/A
716
Name Plates - Large
Price
N/A
717
N/S GRIZZLY GREEN G1023S
Price
N/A
718
GREY PUTTY REF G0504
Price
N/A
719
MODEL NUMBER LABEL
Price
N/A
720
HANDWHEEL UP/DOWN LABEL
Price
$2.25
801
FLAT HD TORX T20 M6-1 X 15
Price
N/A
802
Indexable Carbide Inserts - 14 x 14 x 2mm, 10 Pack
Price
N/A
803
SPIRAL CUTTERHEAD 12"
Price
$1,844.90
803A
Indexable Carbide Inserts - 14 x 14 x 2mm, 10 Pack
Price
N/A
HWDBAG
*DISCD*COMPLETE HARDWARE BAG
Item is no longer available
Price
N/A
MAN
MANUAL FOR G9860 V1.10.08
Price
N/A
MANV1
MANUAL FOR G9860 V1.10.08
Price
N/A
MANV2
MANUAL G9860 MFG 04.09 V2.06.09
Price
N/A
MANV3
MANUAL G9860 MFG 04.10 V3.09.10
Price
N/A
MANV4
MANUAL G9860 MFG 01.11 V4.02.11
Price
N/A
MANV5
MANUAL G9860 MFD-09.11-09.20 V5.09.11
Price
N/A
MANV6
MANUAL G9860 MFD-10.20+ V6.10.20
Price
N/A
P
KEY 10 X 8 X 300
Price
