Parts for G9903 9" x 49" Vertical Mill w/ Power Feed, 3-Phase VS

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

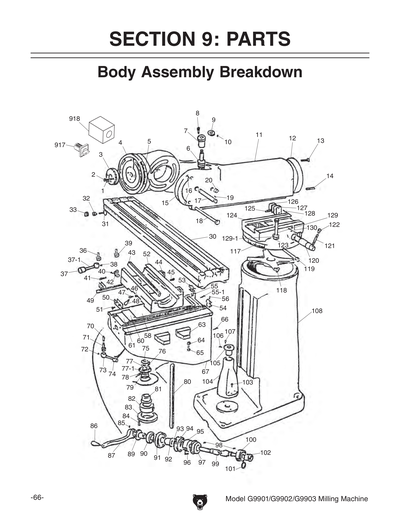

1
*DISCD*TAPERED PIN 8 X 50
Price
N/A
2
***USE PCAP84M***
3
***USE P9901003***
4
*DISCD*RAM ADAPTER
Price
N/A
5
*DISCD*GRADUATED SCALE
Price
N/A
5-1
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
6
*DISCD*WORM
7
*DISCD*FLANGE
Price
N/A
8
CAP SCREW M6-1 X 16
Price
N/A
9
*DISCD*RETAINING RING
Price
N/A
10
*DISCD*TAPERED SET SCREW M5 X 10
Price
N/A
11
*DISCD*RAM
Price
N/A
11-1
*DISCD*EYE BOLT M20-2.5 X 35
Price
N/A
12
*DISCD*TURRET
Price
N/A
13
***USE PCAP14M***
14
*DISCD*TAPERED PIN 8 X 30
Price
N/A
15
*DISCD*GRADUATED SCALE
Price
N/A
16
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
17
*DISCD*SHAFT
Price
N/A
18
*DISCD*HEX BOLT M16-2 X 200
Price
N/A
19
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
20
*DISCD*CLAMPING SLEEVE
Price
N/A
30
*DISCD*TABLE
Item is no longer available
Price
N/A
30-1
***USE P9903030***
31
*DISCD*T-SLOT BOLT M8-1.25 X 35
Price
N/A
32
*DISCD*TABLE STOP
Price
N/A
33
Now: PN03M
HEX NUT M8-1.25
Price
N/A
34
*DISCD*PLUGGER
Item is no longer available
Price
N/A
35
*DISCD*CLAMPING PLATE
Item is no longer available
Price
N/A
36
***USE PCAP129M***
37
*DISCD*HANDLE KNOB W/BOLT
Price
N/A
37-1
***USE P9901037***
38
SET SCREW M6-1 X 8
Price
N/A
39
CAP SCREW M12-1.75 X 18
Price
N/A
40
CAP SCREW M8-1.25 X 16
Price
N/A
41
*DISCD*GIB SCREW M8-1.25 X 27
42
*DISCD*TABLE STOP BRACKET
Price
N/A
43
*DISCD*LONGITUDINAL GIB
Price
N/A
44
*DISCD*WIPER
Price
N/A
45
*DISCD*SADDLE PIN
Price
N/A
46
*DISCD*LOCK PIN
Price
N/A
46-1
*DISCD*LOCK PIN
Item is no longer available
Price
N/A
47
*DISCD*LOCK SCREW M12-1.75 X 15
Price
N/A
48
***USE P9901048***
49
*DISCD*GIB
50
***USE P9901050***
51
***USE PS05M***
52
*DISCD*SADDLE
Price
N/A
53
***USE P9901053***
54
***USE P9901054***
55
*DISCD*BEVEL GIB
55-1
*DISCD*GIB SCREW M8 X 1.25 X 40
Price
N/A
56
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
57
*DISCD*WIPER HOLDER
Item is no longer available
Price
N/A
58
*DISCD*SMALL CHIP GUARD
Price
N/A
59
*DISCD*CHIP GUARD
Item is no longer available
Price
N/A
60
*DISCD*MEDIUM CHIP GUARD
Price
N/A
61
***USE P9901061***
62
*DISCD*GIB
Item is no longer available
Price
N/A
63
***USE P9901063***
64
Now: PN01M
HEX NUT M6-1
Price
N/A
65
SET SCREW M6-1 X 20
Price
N/A
66
***USE PCAP155M***
67
*DISCD*KNEE
Price
N/A
70
*DISCD*LOCK PIN
Price
N/A
71
***USE P9901071***
72
SET SCREW M6-1 X 8
Price
N/A
73
*DISCD*LEVER
Price
N/A
74
*DISCD*LEVER KNOB M8-1.25 X 25
Price
N/A
75
Now: PN09M
HEX NUT M12-1.75
Price
N/A
76
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
77
LOCK WASHER 12MM
Price
N/A
77-1
Now: PW06M
FLAT WASHER 12MM
Price
N/A
78
*DISCD*KNEE BEVEL GEAR
Price
N/A
79
*DISCD*KNEE WASHER
Price
N/A
80
*DISCD*VERTICAL LEAD SCREW
Price
N/A
81
***USE P9901081***
82
BALL BEARING 6206-2RS
Price
N/A
83
*DISCD*BEARING RETAINER RING
Price
N/A
84
***USE PCAP155M***
85
***USE PSS03M***
86
***USE P9901086***
87
*DISCD*HANDLE
Price
N/A
88
*DISCD*CLUTCH
Item is no longer available
Price
N/A
89
*DISCD*CLUTCH
Price
N/A
90
***USE P9901204***
91
***USE P9901091***
92
*DISCD*BUSHING
Price
N/A
93
***USE PR25M***
94
*DISCD*REGULATING RING
Price
N/A
95
BALL BEARING 6204-2RS
Price
N/A
95-1
BALL BEARING 6204-2RS
Price
N/A
96
CAP SCREW M6-1 X 16
Price
N/A
97
*DISCD*BEARING COVER
Price
N/A
98
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
99
*DISCD*SHAFT
Price
N/A
100
BALL BEARING 6204-2RS
Price
N/A
101
*DISCD*HANDLE WASHER
Price
N/A
102
***USE P9901102***

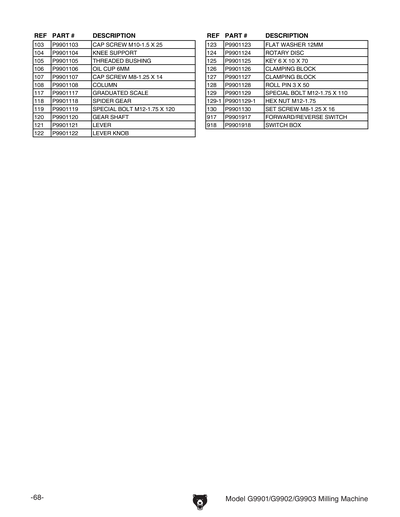

103
CAP SCREW M10-1.5 X 25
Price
N/A
104
*DISCD*KNEE SUPPORT
Price
N/A
105
*DISCD*THREADED BUSHING
Price
N/A
106
*DISCD*OIL CUP 6MM
Price
N/A
107
CAP SCREW M8-1.25 X 14
Price
N/A
108
*DISCD*COLUMN
Price
N/A
117
*DISCD*NAME PLATE
118
*DISCD*SPIDER GEAR
Price
N/A
119
*DISCD*GRADUATED SCALE BOLT M12-1.75 X 1
Price
N/A
120
*DISCD*GEAR SHAFT
Price
N/A
121
*DISCD*LEVER
Price
N/A
122
*DISCD*PLASTIC LEVER HOLDER M10 X 32
Price
N/A
123
Now: PW06M
FLAT WASHER 12MM
Price
N/A
124
*DISCD*ROTARY DISC
Price
N/A
125
*DISCD*KEY 70, 10, 6
Price
N/A
126
*DISCD*CLAMPING BLOCK
Price
N/A
127
*DISCD*CLAMPING BLOCK
Price
N/A
128
ROLL PIN 3 X 50
Price
N/A
129
*DISCD*GRADUATED SCALE BOLT M12-1.75 X 1
Price
N/A
129-1
Now: PN09M
HEX NUT M12-1.75
Price
N/A
130
SET SCREW M8-1.25 X 16
Price
N/A
149
*DISCD*QUILL LOCK HANDLE
152
*DISCD*QUILL LOCK BOLT
Item is no longer available
Price
N/A
153A
*DISCD*LOCK SLEEVE
153B
*DISCD*LOCK SLEEVE TAPPED
201
*DISCD*BALL TYPE NUT M12
201-1
***USE PN46***
202
*DISCD*HANDLE M12 X 100
Price
N/A
203
*DISCD*HANDLE BODY
Price
N/A
204
***USE P9901204***
205
***USE P9901205***
206
*DISCD*BUSHING
Price
N/A
207
***USE PCAP11M***
208
*DISCD*FLANGE
Price
N/A
209
BALL BEARING 6204-2RS
Price
N/A
209-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A

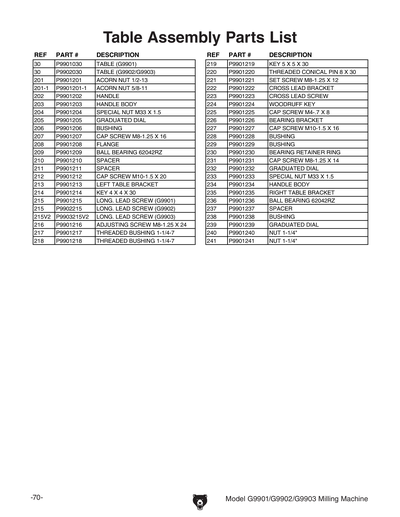

210
*DISCD*SPACER
Price
N/A
211
*DISCD*SPACER
Price
N/A
212
CAP SCREW M10-1.5 X 20
Price
N/A
213
*DISCD*TABLE BRACKET LEFT
Price
N/A
214
Now: PK31M
KEY 4 X 4 X 30
Price
N/A
215
*DISCD*LEADSCREW W/3 KEYWAYS V1
215V2
*DISCD*LEADSCREW W/1 LONG KEYWAY V2
216
*DISCD*REGULATING SCREW M8-1.25 X 24
Price
N/A
217
*DISCD*LONG Y-AXIS LEADSCREW NUT 1-1/4"
Price
N/A
218
*DISCD*SHORT Y-AXIS LEADSCREW NUT 1-1/4"
Price
N/A
219
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
220
*DISCD*THREADED CONICAL PIN 8 X 30
Price
N/A
221
SET SCREW M8-1.25 X 12
Price
N/A
222
***USE P9901222***
223
***USE P9901223***
224
***USE P9901224***
225
***USE PCAP18M***
226
*DISCD*BEARING BRACKET
Price
N/A
227
***USE PCAP130M***
228
*DISCD*BUSHING
Price
N/A
229
*DISCD*BUSHING
Price
N/A
230
*DISCD*BEARING RETAINER RING
Price
N/A
231
***USE PCAP155M***
232
*DISCD*GRADUATED DIAL
Price
N/A
233
***USE P9901204***
234
*DISCD*HANDLE BODY
Price
N/A
235
*DISCD*TABLE BRACKET RIGHT
Price
N/A
236
BALL BEARING 6204-2RS
Price
N/A
237
*DISCD*SPACER
Price
N/A
238
*DISCD*BUSHING
Price
N/A
239
***USE P9901239***
240
*DISCD*NUT
241
***USE P9901241***

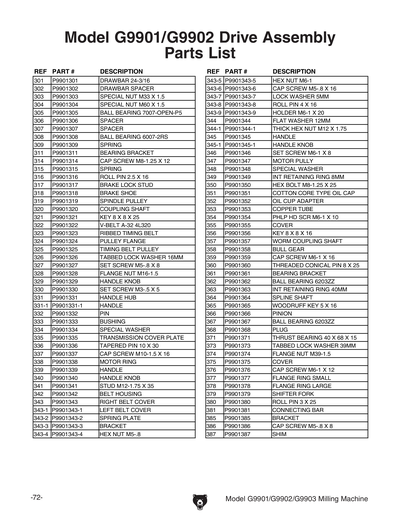

301
***USE P9902301***
302
*DISCD*DRAWBAR WASHER
302-2
*DISCD*OIL SEAL RING 16 X 2
Price
N/A
303
*DISCD*NUT M33-1.5
Price
N/A
304
*DISCD*SPINDLE PULLEY NUT M60-1.5
Price
N/A
305
BALL BEARING 6007ZZ
Price
N/A
305-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
306
*DISCD*ADJUSTABLE SPACER
Item is no longer available
Price
N/A
307
*DISCD*ADJUSTABLE SPACER
Item is no longer available
Price
N/A
308
***USE P7007-OPEN-P5***
308-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
309
*DISCD*SPRING
Price
N/A
311
*DISCD*BEARING BRACKET
Item is no longer available
Price
N/A
314
CAP SCREW M8-1.25 X 12
Price
N/A
314-1
*DISCD*SCREW M8-1.25 X 11
Price
N/A
315
*DISCD*EXTERNAL SPRING
Item is no longer available
Price
N/A
317
*DISCD*BRAKE LOCK STUD
Item is no longer available
Price
N/A
318
*DISCD*BRAKE BLOCK
319
*DISCD*PULLEY
Item is no longer available
Price
N/A
320
*DISCD*COUPLING SHAFT
Item is no longer available
Price
N/A
321
*DISCD*FLAT KEY 8 X 25
Price
N/A
322
*DISCD*V-RUBBER BELT
Item is no longer available
Price
N/A
323
*DISCD*TIMING BELT
324
*DISCD*PULLEY FLANGE
Item is no longer available
Price
N/A
325
*DISCD*TIMING BELT PULLEY
Item is no longer available
Price
N/A
326
*DISCD*THRUST WASHER FOR ROUND NUT 16
Item is no longer available
Price
N/A
327
*DISCD*SUNK SCREW M5X8
Item is no longer available
Price
N/A
328
*DISCD*ROUND NUT M16 X 1.5
Item is no longer available
Price
N/A
329
*DISCD*PLASTIC HANDLE HOLDER M6 X 20
Item is no longer available
Price
N/A
330
*DISCD*SET SCREW M3X5
Item is no longer available
Price
N/A
331
*DISCD*HANDLE HOLDER
Item is no longer available
Price
N/A
331-1
*DISCD*HANDLE
Item is no longer available
Price
N/A
332
*DISCD*PIN
Item is no longer available
Price
N/A
333
*DISCD*SLEEVE
Item is no longer available
Price
N/A
334
*DISCD*WASHER
Item is no longer available
Price
N/A
335
*DISCD*COVER
Item is no longer available
Price
N/A
336
*DISCD*TAPERED PIN 10X30
Item is no longer available
Price
N/A
337
*DISCD*SOCKET HEAD CAP SCREW M10X16
Item is no longer available
Price
N/A
338
*DISCD*MOTOR CAP
Item is no longer available
Price
N/A
339
*DISCD*HANDLE ROD
Item is no longer available
Price
N/A
340
*DISCD*HANDLE HOLDER M6 X 20
Item is no longer available
Price
N/A
341
*DISCD*SHOULDER STUD M12X35
Item is no longer available
Price
N/A
342
*DISCD*BELT HOUSING
Item is no longer available
Price
N/A
343
*DISCD*WINDOW CAP RIGHT
Item is no longer available
Price
N/A
343-1
*DISCD*WINDOW CAP LEFT
Item is no longer available
Price
N/A
343-2
*DISCD*SPRING PLATE
Item is no longer available
Price
N/A
343-3
*DISCD*BRACKET
Item is no longer available
Price
N/A
343-4
*DISCD*HEX NUT M5
Item is no longer available
Price
N/A
343-5
*DISCD*HEX NUT M6
Item is no longer available
Price
N/A
343-6
*DISCD*SOCKET HEAD CAP SCREW M5X16
Item is no longer available
Price
N/A
343-7
*DISCD*SPRING WASHER 5
Item is no longer available
Price
N/A
343-8
*DISCD*ROLL PIN 4GA X 16
Item is no longer available
Price
N/A
343-9
*DISCD*HOLDER M6 X 20
Item is no longer available
Price
N/A
344
*DISCD*WASHER 12
Item is no longer available
Price
N/A
344-1
*DISCD*THICK HEX NUT M12
Item is no longer available
Price
N/A
344-2
*DISCD*THICK HEX NUT
Item is no longer available
Price
N/A
345
*DISCD*HANDLE
Item is no longer available
Price
N/A
346
*DISCD*SET SCREW M6 X 8
Item is no longer available
Price
N/A
347
*DISCD*PULLEY
Item is no longer available
Price
N/A
348
*DISCD*WASHER
Item is no longer available
Price
N/A
349
*DISCD*SPRING WASHER 8
Item is no longer available
Price
N/A
350
*DISCD*HEX HD BOLT M18 X 25
Item is no longer available
Price
N/A
351
*DISCD*COTTON CORE TYPE OIL CAP
Item is no longer available
Price
N/A
352
*DISCD*OIL CUP ADAPTER
Item is no longer available
Price
N/A
353
*DISCD*COTTON COVER TUBE
Item is no longer available
Price
N/A
354
*DISCD*SCREW M6 X 10
Item is no longer available
Price
N/A
355
*DISCD*CAP
Item is no longer available
Price
N/A
356
*DISCD*FLAT KEY 8 X 16
Item is no longer available
Price
N/A
357
*DISCD*WORM COUPLING SHAFT
Item is no longer available
Price
N/A
358
*DISCD*BULL GEAR
Item is no longer available
Price
N/A
359
*DISCD*SOCKET HEAD CAP SCREW M6X16
Item is no longer available
Price
N/A
360
*DISCD*FEMALE THREAD CONICAL PIN 8 X 25
Item is no longer available
Price
N/A
361
*DISCD*BEARING BRACKET
Item is no longer available
Price
N/A
362
BALL BEARING 6203ZZ
Price
N/A
363
*DISCD*ELASTIC RING FOR HOLE 40
Item is no longer available
Price
N/A
364
*DISCD*SPLINE SHAFT
Item is no longer available
Price
N/A
365
*DISCD*WOODRUFF KEY 5X16
Item is no longer available
Price
N/A
366
*DISCD*PINION
Item is no longer available
Price
N/A
367
BALL BEARING 6203ZZ
Price
N/A
368
*DISCD*PLUG
Item is no longer available
Price
N/A
371
*DISCD*SINGLE ROW RAD THRUST BEARING 40X
Item is no longer available
Price
N/A
371-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
373
*DISCD*THRUST WASHER FOR ROUND 39
Item is no longer available
Price
N/A
374
*DISCD*ROUND NUT M39 X 1.5
Item is no longer available
Price
N/A
375
*DISCD*COVER
Item is no longer available
Price
N/A
376
*DISCD*SOCKET HEAD CAP SCREW M6X12
Item is no longer available
Price
N/A
377
*DISCD*REGULATING RING
Item is no longer available
Price
N/A
378
*DISCD*REGULATING RING
Item is no longer available
Price
N/A
379
*DISCD*SHIFTER FORK
Item is no longer available
Price
N/A
380
*DISCD*TAPERED PIN 3X25
Item is no longer available
Price
N/A
381
*DISCD*DRAWBAR
385
*DISCD*PIN
Item is no longer available
Price
N/A
386
*DISCD*SOCKET HEAD CAP SCREW M5X8
Item is no longer available
Price
N/A
387
*DISCD*SHIM
Item is no longer available
Price
N/A
388
*DISCD*SHAFT BRACKET
Item is no longer available
Price
N/A
389
*DISCD*TAPERED PIN 8X25
Item is no longer available
Price
N/A
390
*DISCD*SOCKET HEAD CAP SCREW M8X16
Item is no longer available
Price
N/A
391
*DISCD*HANDLE
Item is no longer available
Price
N/A
392
*DISCD*CONICAL PIN 4X32
Item is no longer available
Price
N/A
393
*DISCD*ECCENTRIC BLOCK
Item is no longer available
Price
N/A
394
*DISCD*CONICAL PIN 4X25
Item is no longer available
Price
N/A
395
*DISCD*PIN
Item is no longer available
Price
N/A
396
*DISCD*TAPERED PIN 4X25
Item is no longer available
Price
N/A
397
*DISCD*SPANNER SHAFT
Item is no longer available
Price
N/A
398
*DISCD*SPRING
Price
N/A
399
*DISCD*HANDLE
Item is no longer available
Price
N/A
400
*DISCD*HANDLE HOLDER M8 X 25
Item is no longer available
Price
N/A
501
Now: PN01M
HEX NUT M6-1
Price
N/A
502
***USE PLW03M***
503
*DISCD*BEVEL GEAR
Price
N/A
504
*DISCD*BUSHING
Price
N/A
505
*DISCD*BUSHING
Price
N/A
506
SET SCREW M5-.8 X 8
Price
N/A
507
*DISCD*WORM GEAR SPACER
Price
N/A
508
*DISCD*WORM GEAR
Price
N/A
509
*DISCD*SHAFT
Price
N/A
510
KEY 3 X 3 X 12
Price
N/A
511
Now: PK98M
KEY 3 X 3 X 16
Price
N/A
512
Now: PN03M
HEX NUT M8-1.25
Price
N/A
513
***USE PW01M***
514
***USE PK103M***
515
*DISCD*BEVEL GEAR
Price
N/A
516
***USE P9901516***
517
*DISCD*WORM GEAR SUPPORT
Price
N/A
518
*DISCD*SHAFT
Price
N/A
518-1
*DISCD*SHAFT
Item is no longer available
Price
N/A
518-2
***USE PSS31M***
519
*DISCD*FLANGE
Price
N/A
520
*DISCD*PLUNGER
Price
N/A
521
***USE P9902521***
522
ROLL PIN 3 X 20
Price
N/A
523
*DISCD*SHIFTER CRANK
Price
N/A
524
*DISCD*TAPERED KNOB M6 X 20
Price
N/A
525
***USE PCAP33M***
526
***USE PSS03M***
527
*DISCD*BUSHING
Price
N/A
528
*DISCD*GEAR
Price
N/A
529
*DISCD*GEAR
Price
N/A
530
*DISCD*GEAR
Price
N/A
530-1
SET SCREW M3-.5 X 10
Price
N/A
531
KEY 3 X 3 X 40
Price
N/A
532
***USE PSS03M***
533
*DISCD*BEVEL GEAR SHAFT
Price
N/A
534
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
535
*DISCD*BUSHING
Price
N/A
536
*DISCD*GEAR
Price
N/A
537
Now: PK96M
KEY 3 X 3 X 20
Price
N/A
538
*DISCD*GEAR SHAFT
Price
N/A
539
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
540
*DISCD*GEAR
Price
N/A
541
*DISCD*BUSHING
Price
N/A
542
*DISCD*BUSHING
Price
N/A
543
*DISCD*WORM GEAR
Price
N/A
544
CAP SCREW M6-1 X 15
Price
N/A
545
***USE PRP02M***
546
*DISCD*BUSHING
Price
N/A
547
*DISCD*WORM GEAR WASHER
Price
N/A
548
*DISCD*SLEEVE
Price
N/A
549
*DISCD*BEVEL GEAR
Price
N/A
550
*DISCD*REVERSE CLUTCH
Price
N/A
551
*DISCD*BEVEL GEAR
Price
N/A
552
*DISCD*BUSHING
Price
N/A
553
SET SCREW M6-1 X 10
Price
N/A
554
SET SCREW M6-1 X 8
Price
N/A
555
*DISCD*SLIDE ROD
Price
N/A
556
ROLL PIN 3 X 22
Price
N/A
557
***USE P9901557***
560
*DISCD*SMALL SHAFT
Price
N/A
561
SET SCREW M5-.8 X 6
Price
N/A
562
*DISCD*PIN
Price
N/A
563
*DISCD*SLIDE
Price
N/A
564
*DISCD*ECCENTRIC WHEEL
Price
N/A
565
*DISCD*CLUSTER GEAR COVER
Price
N/A
566
SET SCREW M8-1.25 X 18
Price
N/A
567
*DISCD*COMPRESSION SPRING
568
STEEL BALL 3/16
Price
N/A
569
***USE PCAP24M***
570
*DISCD*DIAL KNOB
Price
N/A
571
SET SCREW M5-.8 X 6
Price
N/A
572
SET SCREW M5-.8 X 6
Price
N/A
573
***USE PCAP78M***
574
*DISCD*THREAD PIN
Price
N/A
575
*DISCD*SLEEVE
576
SET SCREW M6-1 X 8
Price
N/A
577
*DISCD*PLUG 4 X 2MM
Price
N/A
578
*DISCD*NUT
579
***USE P9904379***
580
*DISCD*CLUTCH
581
*DISCD*COUPLING SHAFT
582
*DISCD*KEY
583
***USE PS56M***
584
***USE PLW02M***
585
***USE PSS04M***
586
***USE PSS04M***
587
*DISCD*ADJUSTING WASHER
Price
N/A
588
*DISCD*SPRING
589
*DISCD*TOP PIN
Price
N/A
590
*DISCD*SLEEVE
Price
N/A
591
*DISCD*SINGLE ROW THRUST BALL BEARING 15
Price
N/A
592
***USE P9901592***
593
*DISCD*CLUTCH
594
ROLL PIN 5 X 16
Price
N/A
595
***USE PRP39M***
596
*DISCD*CONNECTING ROD
597
*DISCD*WASHER
598
***USE PR01M***
599
*DISCD*COVER
600
***USE PSS91M***
601
***USE PN01M***
602
ROLL PIN 5 X 20
Price
N/A
603
*DISCD*LEVER
Price
N/A
604
*DISCD*HANDLE
605
*DISCD*HANDLE SLEEVE M8 X 25
606
*DISCD*BRACKET
Price
N/A
607
CAP SCREW M6-1 X 14
Price
N/A
608
SET SCREW M6-1 X 8
Price
N/A
609
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
610
***USE P9901610***
611
*DISCD*REVERSE KNOB
Price
N/A
612
***USE P9901612***
613
***USE P9901613***
614
STEEL BALL 3/16
Price
N/A
615
***USE P9903567***
616
SET SCREW M8-1.25 X 10
Price
N/A
617
***USE PRP76M***
618
*DISCD*T-ROD
Price
N/A
619
*DISCD*PIN
Item is no longer available
Price
N/A
620
*DISCD*SPRING 1.2 X 10 X 25
Price
N/A
621
*DISCD*SHAFT
Price
N/A
622
*DISCD*BUSHING
Price
N/A
623
***USE P9901623***
624
*DISCD*PLUNGER
Price
N/A
625
*DISCD*HANDWHEEL
Price
N/A
626
*DISCD*HANDWHEEL HANDLE M8 X 65
Price
N/A
627
***USE P9901627***
628
CAP SCREW M5-.8 X 12
Price
N/A
629
*DISCD*LOCK NUT
Price
N/A
630
*DISCD*LOCK NUT 2PC
Price
N/A
631
*DISCD*SINGLE RADIAL BALL BEARING 30X62X
632
*DISCD*QUILL SKIRT
Price
N/A
633
*DISCD*NOSE PIECE
Price
N/A
634
*DISCD*SPINDLE DIRT SHIELD
Price
N/A
635
*DISCD*ANGULAR CONTACT BEARING 7008AC P4
635-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
636
*DISCD*BEARING SLEEVE
Price
N/A
637
*DISCD*BEARING SLEEVE
Price
N/A
638
*DISCD*SINGLE RADIAL THRUST BEARING 40X6
638-1
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
639
*DISCD*ADJUSTING NUT M39 X 1.5
Price
N/A
639-1
*DISCD*LOCATING NUT M39 X 1.5
Price
N/A
640
***USE PSS26M***
641
*DISCD*DOG PT SET SCR M5-.8 X 6
Price
N/A
641-1
SET SCREW M5-.8 X 6
Price
N/A
642
*DISCD*QUILL
Price
N/A
643
***USE P9901643***
644
Now: PN07M
HEX NUT M3-.5
Price
N/A
645
SET SCREW M3-.5 X 14
Price
N/A
646

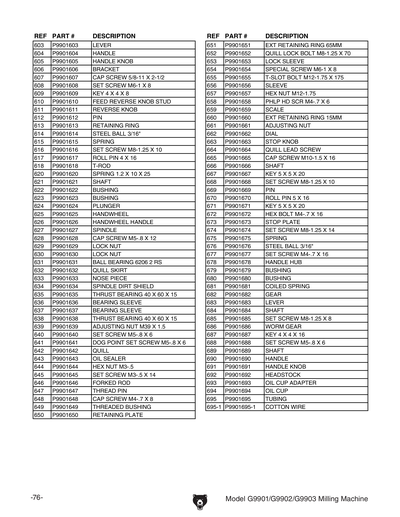

*DISCD*FORKED ROD
Price
N/A
647
*DISCD*THREAD PIN
Price
N/A
648
CAP SCREW M4-.7 X 8
Price
N/A
649
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
649V2
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
650
***USE P9901650***
651
Now: PR13M
EXT RETAINING RING 65MM
Price
N/A
652
***USE P9901652***
652V2
*DISCD*QUILL LOCK HANDLE ASSEMBLY V2.01.
Price
N/A
653
*DISCD*LOCK SLEEVE
Price
N/A
653A
*DISCD*LOCK SLEEVE TAPPED
Item is no longer available
Price
N/A
654
*DISCD*HEADSTOCK SCREW M6-1 X 8
Price
N/A
654-1
*DISCD*INDICATOR ROD
Item is no longer available
Price
N/A
655
*DISCD*T-SLOT BOLT M12-1.75 X 175
Price
N/A
656
*DISCD*SLEEVE, SHORT
Price
N/A
656-1
*DISCD*SLEEVE
Item is no longer available
Price
N/A
657
Now: PN09M
HEX NUT M12-1.75
Price
N/A
658
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
659
***USE P9901659***
660
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
661
*DISCD*ADJUSTING NUT
Price
N/A
662
*DISCD*DIAL
Price
N/A
663
*DISCD*STOP KNOB
Price
N/A
664
*DISCD*QUILL LEAD SCREW
Price
N/A
665
CAP SCREW M10-1.5 X 16
Price
N/A
666
*DISCD*SHAFT
Price
N/A
667
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
668
***USE PSS16M***
669
*DISCD*PIN
Price
N/A
670
ROLL PIN 5 X 16
Price
N/A
671
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
672
HEX BOLT M4-.7 X 16
Price
N/A
673
*DISCD*STOP PLATE
Price
N/A
674
***USE PSS60M***
675
*DISCD*SPRING
Price
N/A
676
STEEL BALL 3/16
Price
N/A
677
SET SCREW M4-.7 X 16
Price
N/A
678
*DISCD*HANDLE HUB
Price
N/A
679
*DISCD*BUSHING
Price
N/A
680
***USE P9901680***
681
*DISCD*SPRING
Price
N/A
682
*DISCD*GEAR
Price
N/A
683
*DISCD*LEVER
Price
N/A
684
*DISCD*SHAFT
Price
N/A
685
SET SCREW M8-1.25 X 8
Price
N/A
686
*DISCD*WORM
687
***USE PK37M***
688
***USE PSS26M***
688-1
SET SCREW M5-.8 X 6
Price
N/A
689
*DISCD*SHAFT
690
***USE P9902690***
691
*DISCD*HANDLE SLEEVE
Price
N/A
692
***USE P9901692***
693
*DISCD*OIL CUP ADAPTER 1/4" NPT X 15MM X
Price
N/A
694
***USE P9901694***
695
***USE P9901695***
696
*DISCD*COMPLETE HEADSTOCK ASSY W/MOTOR
Item is no longer available
Price
N/A

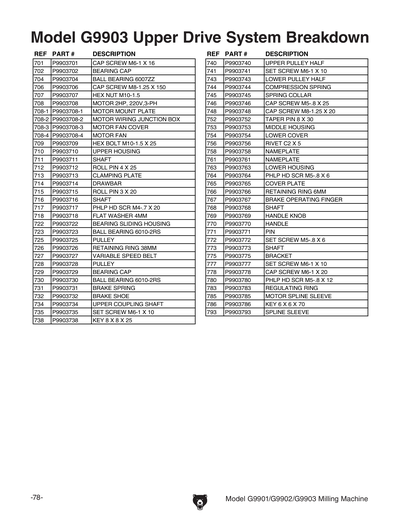

701
CAP SCREW M6-1 X 16
Price
N/A
702
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
704
BALL BEARING 6007ZZ
Price
N/A
706
*DISCD*CAP SCREW M8-1.25 X 150
707
Now: PN02M
HEX NUT M10-1.5
Price
N/A
708
*DISCD*MOTOR 2HP 220V 3-PH V1
Item is no longer available
Price
N/A
708-1
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
708-2
*DISCD*MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
708-3
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
708-4
*DISCD*MOTOR FAN
708V2
*DISCD*MOTOR 2HP 220V 3-PH V2.10.10
709
***USE PB32M***
710
*DISCD*UPPER HOUSING
711
*DISCD*SHAFT
Item is no longer available
Price
N/A
712
ROLL PIN 4 X 25
Price
N/A
713
*DISCD*CLAMPING PLATE
Item is no longer available
Price
N/A
714
*DISCD*DRAWBAR
Item is no longer available
Price
N/A
715
ROLL PIN 3 X 20
Price
N/A
716
*DISCD*SHAFT
717
***USE PS52M***
718
Now: PW05M
FLAT WASHER 4MM
Price
N/A
722
*DISCD*BEARING SLIDING HOUSING
Item is no longer available
Price
N/A
723
*DISCD*BALL BEARING 6010-2RS
725
*DISCD*PULLEY
726
*DISCD*RETAINING RING 38MM
Item is no longer available
Price
N/A
727
*DISCD*VARIABLE SPEED BELT 465MM
728
*DISCD*PULLEY
Item is no longer available
Price
N/A
729
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
730
***USE P9901723***
731
*DISCD*BRAKE SPRING
Price
N/A
734
*DISCD*UPPER COUPLING SHAFT
735
SET SCREW M6-1 X 10
Price
N/A
738
***USE PK149M***
740
*DISCD*UPPER PULLEY HALF
Item is no longer available
Price
N/A
741
***USE PSS01M***
743
*DISCD*PULLEY HALF LOWER
744
*DISCD*COMPRESSION SPRING
745
*DISCD*SPRING COLLAR
Item is no longer available
Price
N/A
746
***USE PCAP38M***
748
***USE PCAP14M***
752
*DISCD*TAPER PIN 8 X 30
Item is no longer available
Price
N/A
753
*DISCD*HOUSING MIDDLE
Item is no longer available
Price
N/A
754
*DISCD*COVER LOWER
Price
N/A
755
*DISCD*SPRING
756
RIVET 2 X 5MM NAMEPLATE, COPPER
Price
N/A
758
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
761
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
763
*DISCD*HOUSING LOWER
Item is no longer available
Price
N/A
764
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
765
*DISCD*COVER PLATE
Item is no longer available
Price
N/A
766
Now: PR04M
EXT RETAINING RING 6MM
Price
N/A
767
*DISCD*BRAKE OPERATING FINGER
Price
N/A
768
*DISCD*SHAFT
Item is no longer available
Price
N/A
769
*DISCD*HANDLE KNOB
Item is no longer available
Price
N/A
770
*DISCD*HANDLE
Item is no longer available
Price
N/A
771
*DISCD*PIN
Item is no longer available
Price
N/A
772
SET SCREW M5-.8 X 6
Price
N/A
773
*DISCD*SHAFT
Item is no longer available
Price
N/A
775
*DISCD*BRACKET
Item is no longer available
Price
N/A
777
SET SCREW M6-1 X 10
Price
N/A
778
CAP SCREW M6-1 X 20
Price
N/A
780
***USE PS08M***
782
CAP SCREW M4-.7 X 10
Price
N/A
782-1
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
782-2
LOCK WASHER 10MM
Price
N/A
783
*DISCD*REGULATING RING
Item is no longer available
Price
N/A
784
*DISCD*WASHER
Item is no longer available
Price
N/A
785
*DISCD*MOTOR SPLINE SLEEVE
Item is no longer available
Price
N/A
786
*DISCD*KEY 6 X 6 X 70
Price
N/A
793
*DISCD*SPLINE SLEEVE 25PC SET
Item is no longer available
Price
N/A
801
Now: PN18M
ACORN NUT M8-1.25
Price
N/A
802
*DISCD*DIAL
Item is no longer available
Price
N/A
804
SET SCREW M6-1 X 12
Price
N/A
805
*DISCD*HOUSING
Item is no longer available
Price
N/A
806
*DISCD*CHIP SHIELD
Item is no longer available
Price
N/A
807
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
808
*DISCD*BUSHING
Item is no longer available
Price
N/A
809
ROLL PIN 3 X 25
Price
N/A
810
*DISCD*SPEED CHANGER CHAIN 1/8" X 1/2"
Item is no longer available
Price
N/A
812
*DISCD*UPPER HOUSING
Item is no longer available
Price
N/A
813
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
814
*DISCD*SOCKET HEAD CAP SCREW M8 X 1.25 X
Price
N/A
816
*DISCD*BUSHING
Item is no longer available
Price
N/A
817
*DISCD*HANDWHEEL
819
*DISCD*HANDWHEEL HANDLE
820
*DISCD*CAUTION PLATE
Item is no longer available
Price
N/A
821
SET SCREW M6-1 X 8
Price
N/A
825
CAP SCREW M6-1 X 35
Price
N/A
828
*DISCD*SOLID PIN 3 X 12
Item is no longer available
Price
N/A
829
*DISCD*SHAFT
Item is no longer available
Price
N/A
830
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
833
*DISCD*BEVEL GEAR
Item is no longer available
Price
N/A
834
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
835
*DISCD*SHAFT
Item is no longer available
Price
N/A
836
*DISCD*RIBBED TIMING BELT
Item is no longer available
Price
N/A
837
*DISCD*UPPER COUPLING SHAFT
Item is no longer available
Price
N/A
839
*DISCD*COUPLING SHAFT LOWER
Item is no longer available
Price
N/A
840
*DISCD*BULL GEAR
841
BALL BEARING 6008ZZ
Price
N/A
842
ROLL PIN 5 X 18
Price
N/A
843
*DISCD*SPACER
Item is no longer available
Price
N/A
844
*DISCD*HOUSING LOWER
Item is no longer available
Price
N/A
845
*DISCD*BOLT FOR T-SLOT
Item is no longer available
Price
N/A
846
***USE PW04M***
847
*DISCD*GEAR SLEEVE BOLT
Item is no longer available
Price
N/A
848
*DISCD*SPRING SHIM
Item is no longer available
Price
N/A
849
*DISCD*FLANGE
850
***USE PSS02M***
851
*DISCD*GUIDE
Item is no longer available
Price
N/A
852
CAP SCREW M4-.7 X 8
Price
N/A
853
*DISCD*DRIP PIPE
Item is no longer available
Price
N/A
854
*DISCD*OIL CUP
Item is no longer available
Price
N/A
854-1
*DISCD*OIL PIPE ADAPTER
Item is no longer available
Price
N/A
855
*DISCD*SPRING
Price
N/A
857
*DISCD*GEAR SLEEVE
Item is no longer available
Price
N/A
859
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
860
*DISCD*DETENT PLATE
Item is no longer available
Price
N/A
861
*DISCD*FLANGE NUT M12-1.75
Item is no longer available
Price
N/A
862
***USE PW06M***
863
*DISCD*THREADED STUD M12-1.75 X 80
Item is no longer available
Price
N/A
864
***USE PSS04M***
865
*DISCD*SET BLOCK
Item is no longer available
Price
N/A
866
*DISCD*SET PIN
Item is no longer available
Price
N/A
867
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
868
***USE PCAP33M***
869
*DISCD*HANDLE KNOB
Item is no longer available
Price
N/A
870
*DISCD*HANDLE SHAFT
Item is no longer available
Price
N/A
871
*DISCD*HANDLE HUB
Item is no longer available
Price
N/A
872
ROLL PIN 3 X 16
Price
N/A
873
***USE PRP02M***
874
CAP SCREW M8-1.25 X 20
Price
N/A
875
***USE PCAP38M***
876
*DISCD*COVER LOWER
Price
N/A
877
Now: PK07M
KEY 6 X 6 X 20
Price
N/A
878
*DISCD*WOODRUFF KEY 5 X 16
Item is no longer available
Price
N/A
879
*DISCD*BALL BEARING
Item is no longer available
Price
N/A
880
*DISCD*PINION SHAFT
Item is no longer available
Price
N/A
881
*DISCD*KEY
Item is no longer available
Price
N/A
883
*DISCD*PINION GEAR
884
*DISCD*BEARING CAP
Item is no longer available
Price
N/A
885
CAP SCREW M5-.8 X 16
Price
N/A
886
*DISCD*TIMING PULLEY
887
Now: PN05M
HEX NUT M16-1.5
Price
N/A
888
*DISCD*FRONT COVER
Item is no longer available
Price
N/A
889
CAP SCREW M4-.7 X 20
Price
N/A

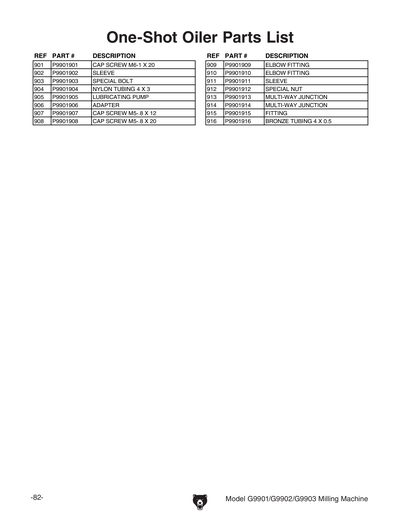

901
CAP SCREW M6-1 X 20
Price
N/A
902
*DISCD*SLEEVE
Price
N/A
903
***USE P9901903***
904
***USE P9901904***
905
*DISCD*LUBRICATING PUMP
Price
N/A
906
*DISCD*ADAPTER
Price
N/A
907
CAP SCREW M5-.8 X 12
Price
N/A
908
***USE PCAP15M***
909
*DISCD*ELBOW FITTING
Price
N/A
910
*DISCD*ELBOW FITTING
Price
N/A
911
*DISCD*SLEEVE
Price
N/A
912
*DISCD*BRONZE TUBING NUT
Price
N/A
913
*DISCD*MULTIWAY JUNCTION
Price
N/A
914
*DISCD*MULTIWAY JUNCTION
Price
N/A
915
***USE P9901915***
916
*DISCD*BRONZE TUBING 4 X 0.5
Price
N/A
918
*DISCD*SWITCH BOX
Price
N/A

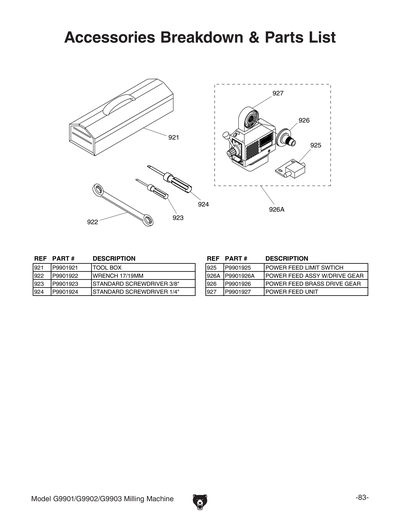

921
*DISCD*TOOL BOX
Price
N/A
922
*DISCD*WRENCH 17/19MM
Price
N/A
923
*DISCD*STANDARD SCREWDRIVER 3/8"
Price
N/A
924
*DISCD*STANDARD SCREWDRIVER 1/4"
Price
N/A
925
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
926
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
926A
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
927
*DISCD*POWER FEED ASSY W/DRIVE GEAR
Price
N/A
935
ELECTRICITY 1.4W X 1.2H
Price
N/A
936
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
937
*DISCD*EYE/FACE INJURY HAZARD LABEL
Price
N/A
938
*DISCD*ENTANGLEMENT HAZARD LABEL
Price
N/A
939
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
940
MACHINE ID LABEL
Item is no longer available
Price
N/A
941
N/S GRIZZLY GREEN G1023S
Price
N/A
942
*DISCD*GRIZZLY LOGO LABEL 2-3/8 X 9"
MANUAL
MANUAL FOR G9903 10/07
Item is no longer available
Price
N/A
