Parts for G9933 3 HP Three-Spindle Shaper

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

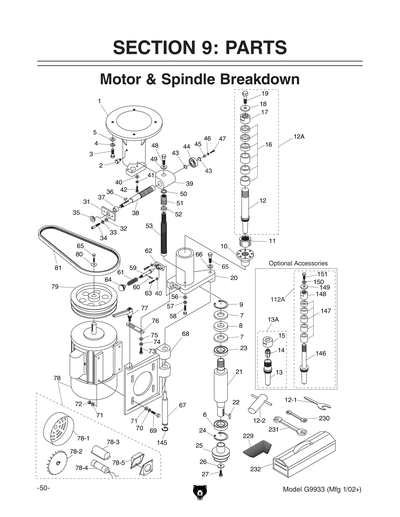

1
OUTER SPINDLE HOUSING
2
GREASE CUP ASSEMBLY
3
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
4
***USE PLW06M***
5
***USE PW04M***
6
BALL BEARING 6205ZZ
Price
N/A
7
SPACER
8
SPACER
9
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
10
SPINDLE HOUSING COVER
11
SPINDLE LOCK NUT 1-1/4"-7
12
CUTTER SPINDLE ASSEMBLY 1-1/4"
Price
N/A
12-1
SPINDLE WRENCH
12-2
SPINDLE KEY
12A
CUTTER SPINDLE ASSEMBLY 1-1/4"
13
ROUTER BIT SPINDLE 1/2"
13A
Now: H0784
1/2" Router Bit Collet for G9933
Price
N/A
14
COLLET 1/2"
Price
N/A
15
ROUTER BIT COLLET NUT 1/2"
16
SPACER KIT 1-1/4"
17
SPINDLE NUT 1-1/4"
18
CUTTER SPINDLE FLAT WASHER 12MM
19
***USE PB25M***
20
INNER SPINDLE HOUSING
21
SPINDLE CARTRIDGE
22
Now: PK28M
KEY 7 X 7 X 29
Price
N/A
23
BALL BEARING 6007ZZ
Price
N/A
24
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
25
SPINDLE PULLEY
26
SPINDLE PULLEY WASHER M8
27
***USE PFH21M***
28
STAR KNOB
29
HANDLE
30
HANDWHEEL
31
SUPPORT
32
Now: PW01M
FLAT WASHER 8MM
Price
N/A
33
LOCK WASHER 8MM
Price
N/A
34
CAP SCREW M8-1.25 X 16
Price
N/A
35
PLASTIC SPACER
36
***USE PK20M***
36A
MITER GAUGE ASSY
37
BUSHING
38
WORM SHAFT
39
GEAR HOUSING
40
***USE PW03M***
41
LOCK WASHER 8MM
Price
N/A
42
***USE PB52M***
43
Now: PR46M
INT RETAINING RING 27MM
Price
N/A
44
***USE P6000ZZ***
45
SPACER
46
Now: PW02M
FLAT WASHER 5MM
Price
N/A
47
CAP SCREW M5-.8 X 15
Price
N/A
48
***USE PB03M***
49
Now: PW01M
FLAT WASHER 8MM
Price
N/A
50
THRUST WASHER
51
WORM GEAR
52
THRUST WASHER
53
WORM SHAFT
54
EMERGENCY STOP BUTTON ASSEMBLY
54-1
EMERGENCY STOP BUTTON ASSEMBLY
Price
N/A
54-2
EMERGENCY STOP BUTTON ASSEMBLY
Price
N/A
54-3
TAP SCREW M4 X 42
55
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
56
Now: PW01M
FLAT WASHER 8MM
Price
N/A
57
LOCK WASHER 8MM
Price
N/A
58
***USE PB20M***
59
LOCK PIN
60
ROLL PIN 5 X 16
Price
N/A
61
TENSION SPRING
62
SUPPORT
63
***USE PCAP28M***
64
KNOB
65
***USE PB09M***
66
***USE PW04M***
67
MOTOR PIVOT SHAFT
68
MOTOR SUPPORT
69
***USE PB20M***
70
LOCK WASHER 8MM
Price
N/A
71
***USE PW01M***
72
Now: PN03M
HEX NUT M8-1.25
Price
N/A
73
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
74
LOCK WASHER 8MM
Price
N/A
75
***USE PW04M***
76
ADJUSTABLE BRACKET
77
LOCK LEVER
78
MOTOR 3HP 220V 1-PH
78-1
MOTOR FAN COVER
78-2
MOTOR FAN
78-3
CAPACITOR COVER
78-4
S CAPACITOR 400M 125V 1-3/4 X 4 V1
78-4V2
S CAPACITOR 500M 125V 1-3/4 X 4 V2.10.23
78-5
MOTOR WIRING JUNCTION BOX
79
MOTOR PULLEY
80
Now: PW01M
FLAT WASHER 8MM
Price
N/A
81
***USE PVM28***
82
E-STOP BUTTON CORD 24G 2W 48"
101
CABINET FRAME V1
101-1
EMERGENCY STOP BUTTON ASSEMBLY
Price
N/A
101V2
CABINET FRAME V2.05.22
102
LARGE DOOR
104
SMALL DOOR
106
Now: PN09M
HEX NUT M12-1.75
Price
N/A
107
Now: PW06M
FLAT WASHER 12MM
Price
N/A
108
STUD-FT M12-1.75 X 70
109
CAP SCREW M8-1.25 X 20
Price
N/A

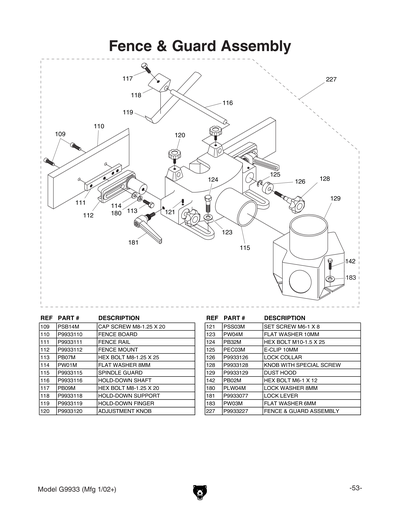

110
FENCE BOARD
111
FENCE RAIL
112
FENCE MOUNT
112A
***USE H0783***
113
***USE PB07M***
114
***USE PW01M***
115
SPINDLE GUARD
116
HOLD DOWN SHAFT
117
***USE PB09M***
118
HOLD DOWN SUPPORT
119
HOLD DOWN FINGER
120
ADJUSTMENT KNOB
121
***USE PSS03M***
122
TABLE INSERT ASSEMBLY
Price
N/A
122-1
TABLE INSERT ASSEMBLY
123
***USE PW04M***
124
***USE PB32M***
125
E-CLIP 10MM
Price
N/A
126
LOCK COLLAR
128
KNOB W/SCREW
129
DUST HOOD
134
KNOB
135
***USE PW01M***
136
MITER GAUGE BODY
137
SLIDE PLATE
138
PIN 6 X 10
139
TERMINAL ASSEMBLY
Price
N/A
140
TERMINAL ASSEMBLY
Price
N/A
141
Now: PW02M
FLAT WASHER 5MM
Price
N/A
142
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
143
***USE PSS31M***
144
TABLE
145
***USE PR11M***
146
CUTTER SPINDLE 3/4"
147
SPACER KIT 3/4"
148
SPINDLE NUT 3/4"
149
CUTTER SPINDLE FLAT WASHER 12MM
150
Now: PLW04
LOCK WASHER 3/8
Price
N/A
151
***USE PB18***
152
TABLE INSERT ASSEMBLY
Price
N/A
153
T-SLOT WASHER OD21.8 X 2.8MML
154
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
155
ANGLE INDICATOR
156
***USE PS05M***
157
HANDWHEEL BOLT M8-1.25 X 80
158
***USE PN02***
159
***USE G9987***
160
***USE PHTEK15M***
161
COMPRESSION SPRING
162
***USE PEC02M***
163
DOOR HINGE PIN
164
*DISCD*FWD/REV SWITCH V1.08.03
Item is no longer available
Price
N/A
164A
FWD/REV SWITCH V2.03.06
165
ON/OFF SWITCH
166
HINGE PIN
167
DOOR HANDLE
Price
N/A
168
DOOR HANDLE
Price
N/A
169
***USE P9933173***
170
***USE P9933173***
171
DOOR HANDLE
Price
N/A
172
DOOR HANDLE
Price
N/A
173
DOOR HANDLE
174
TERMINAL ASSEMBLY
Price
N/A
175
TERMINAL ASSEMBLY
Price
N/A
176
Now: PN07
HEX NUT 10-24
Price
N/A
177
TERMINAL BLOCK 9 POST
177A
TERMINAL ASSEMBLY
178
***USE P0608X160***
179
*DISCD*CONTACTOR GTM-19A 220V V1
Price
N/A
179-1
*DISCD*THERMAL OVERLOAD GTH-20 12/18A V1
Item is no longer available
Price
N/A
179-1V2
OL RELAY NHD TH-12 12/18 V2.01.04
179-2V2
CONTACTOR NHD C-12D10 220V V2.01.04
179A
*DISCD*THERMAL OVERLOAD GTH-20 12/18A V1
Price
N/A
180
***USE PLW04M***
181
ADJUSTABLE HANDLE M8-1.25 X 10
182
MAG SWITCH BOX V1
182V2
MAG SWITCH BOX NHD V2.01.04
183
Now: PW03M
FLAT WASHER 6MM
Price
N/A
225
***USE P9933025***
226
***USE P9933226V2***
226V2
MAG SWITCH ASSY NHD V2.01.04
227
FENCE & GUARD ASSY
228
HARDWARE ASSY
229
TOOL BOX
230
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
231
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
232
TOOLBOX
Price
N/A
233
FRONT GUARD EXTENSION PLATE
234
FRONT GUARD
235
Now: PW03M
FLAT WASHER 6MM
Price
N/A
236
KNOB BOLT M6-1 X 16 6-LOBE

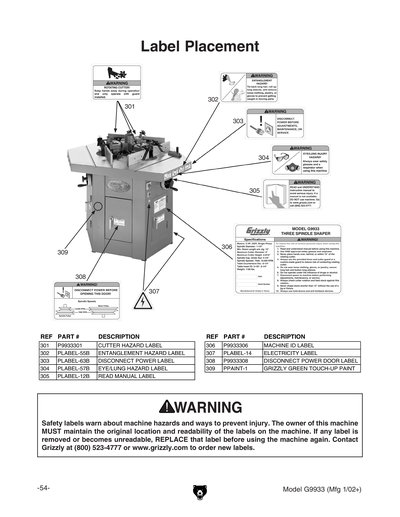

301
CUTTER HAZARD LABEL
302
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
303
DISCONNECT 220V 3.8W X 2H
Price
N/A
304
GLASSES/RESPIRATOR 3.8 X 2H
Price
N/A
305
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
306
MACHINE ID LABEL
307
***USE PLABEL-14***
308
DISCONNECT POWER DOOR LABEL
309
***USE PPAINT-1***
MANUAL
MANUAL FOR G9933 03/09
