Parts for G9953ZXF 16" x 99" 3-Phase Z Series Jointer w/ Spiral Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

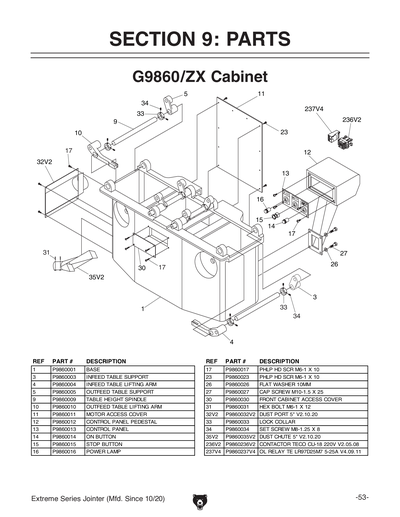

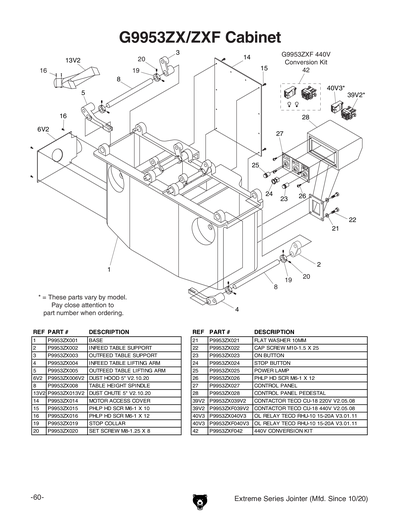

1
BASE
Price
N/A
1V2
*DISCD*BASE V2.01.21
Price
N/A
2
INFEED TABLE SUPPORT
Price
N/A
3
***USE P9860005***
4
***USE P9860004***
5
***USE P9860010***
6
***USE P9953006***
6V2
DUST HOOD 5" V2.10.20
Price
N/A
6V3
DUST HOOD 5" V3.01.21
Price
N/A
7
***USE P9953007***
8
***USE P9953008***
9
INFEED TABLE REAR HOUSING
Price
N/A
10
***USE P9953010***
11
Now: PW01M
FLAT WASHER 8MM
Price
N/A
12
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
13
***USE P9953013***
13V2
DUST CHUTE 5" V2.10.20
Price
N/A
13V3
DUST CHUTE 5" V3.01.21
Price
N/A
14
MOTOR ACCESS COVER
Price
N/A
15
***USE PS68M***
16
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
16V2
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
17
***USE PW02***
18
KNOB M10-1.5 X 30
Price
N/A
19
***USE P9860033***
20
***USE PSS20M***
21
***USE PW04M***
22
CAP SCREW M10-1.5 X 25
Price
N/A
23
ON BUTTON RENY R9C1VN 22MM GRN
Price
N/A
24
E-STOP BUTTON RENY R9C01VN
Price
N/A
25
POWER INDICATOR LIGHT 22MM RED
Price
N/A
26
***USE PS14M***
27
CONTROL PANEL
Price
N/A
28
***USE P9953028***
39
*DISCD*MAGNETIC CONTACTOR CN-18 220V V1
39V2
CONTACTOR TECO CU-18 440V V2.05.08
40
***USE P9953ZXF042V2***
40V2
*DISCD*OL RELAY TECO RHN-18 12.5-18A V2.
40V3
OL RELAY TECO RHU-10 15-20A V3.01.11
41
BRAKE SWITCH
Price
N/A
42
*DISCD*440V CONVERSION KIT
Item is no longer available
Price
N/A
42-1
POWER LAMP 440V
42V2
CONVERSION KIT 440V V2
43
BRAKE PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 35
Price
N/A
45
***USE PN03M***
46
***USE P9953046***
47
BRAKE PAD
Price
N/A
48
***USE PS01***
49
Now: PW03
FLAT WASHER #10
Price
N/A
50
***USE PS06***
51
***USE PCAP11M***
52
***USE PN04M***
53
SET SCREW M4-.7 X 50
Price
N/A
54
***USE PB71M***
55
Now: PN01M
HEX NUT M6-1
Price
N/A
56
TENSION SPRING .9 X 60 X 50 MM
Price
N/A
57
Now: W1400
Safety Push Block - Small
Price
N/A
58
PNEUMATIC TORQUE WRENCH
Price
N/A
59
AIR REGULATOR W/GAUGE
Price
N/A
60
BREAKER BAR BIT HOLDER
Price
N/A
61
TORX DRIVER T-20
Price
N/A
62
TORX BIT T-20
Price
N/A

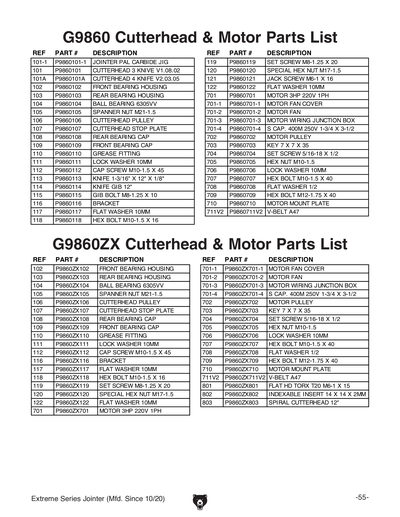

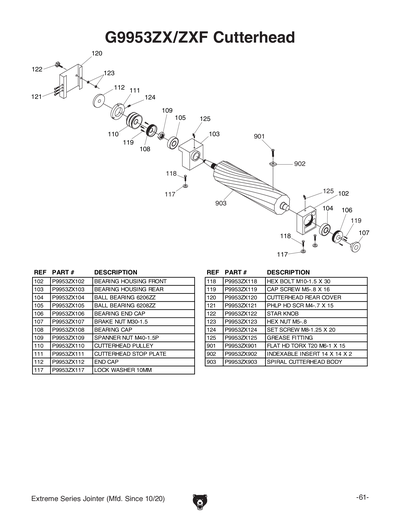

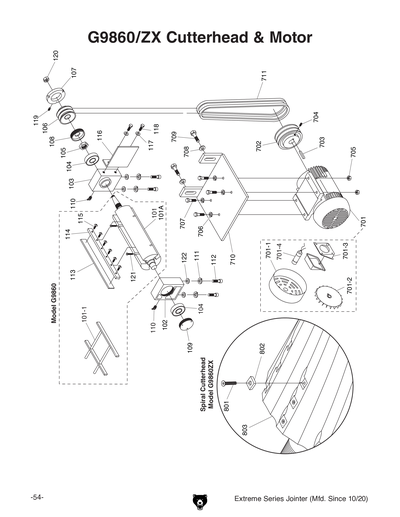

102
BEARING HOUSING FRONT
Price
N/A
103
BEARING HOUSING REAR
Price
N/A
104
BALL BEARING 6206ZZ
Price
N/A
105
***use P6208zz***
106
BEARING END CAP
Price
N/A
107
BRAKE NUT M30-1.5
Price
N/A
108
BEARING CAP
Price
N/A
109
SPANNER NUT M40-1.5P
Price
N/A
110
CUTTERHEAD PULLEY
Price
N/A
111
CUTTERHEAD STOP PLATE
Price
N/A
112
END CAP
Price
N/A
117
***USE PLW06M***
118
***USE PB01M***
119
***USE PCAP24M***
120
***USE P9953120***
121
***USE PS21M***
122
***USE P9953122***
123
***USE PN06M***
124
***USE PSS09M***
125
***USE P0667X0370***

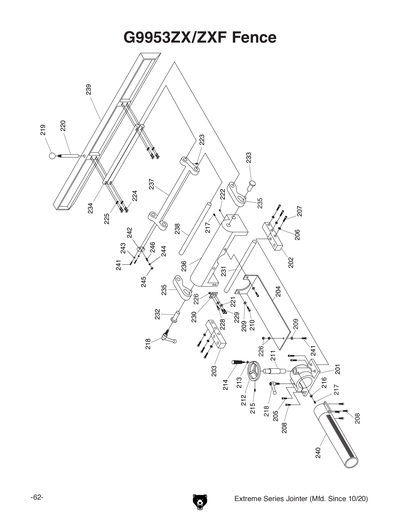

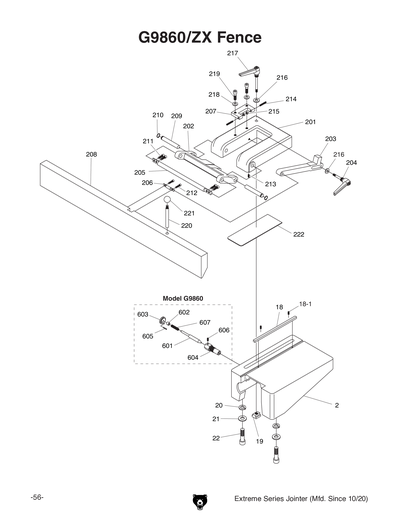

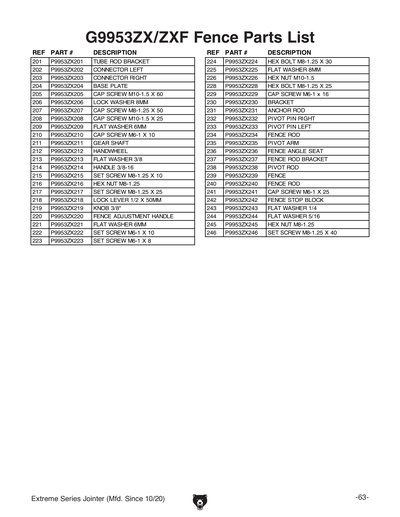

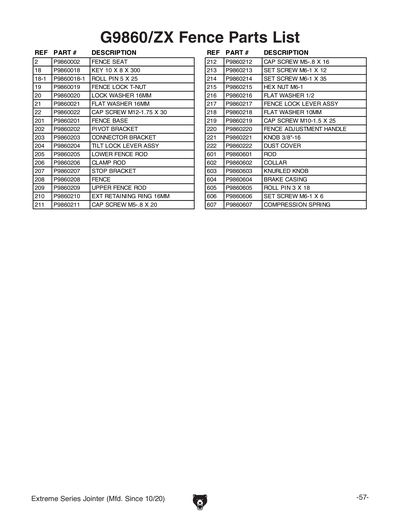

201
TUBE ROD BRACKET
Price
N/A
202
CONNECTOR LEFT
Price
N/A
203
CONNECTOR RIGHT
Price
N/A
204
***USE P9953204***
205
CAP SCREW M10-1.5 X 60
Price
N/A
206
LOCK WASHER 8MM
Price
N/A
207
CAP SCREW M8-1.25 X 50
Price
N/A
208
***USE PCAP64M***
209
***USE PW03M***
210
CAP SCREW M6-1 X 10
Price
N/A
211
***USE P9953211***
212
HANDWHEEL
Price
N/A
213
***USE PW02***
214
***USE P9953214***
215
SET SCREW M8-1.25 X 10
Price
N/A
216
***USE PN03M***
217
***USE PSS21M***
218
***USE P9953218***
219
***USE P9860221***
220
***USE P9860220***
221
Now: PW03M
FLAT WASHER 6MM
Price
N/A
222
SET SCREW M6-1 X 10
Price
N/A
223
SET SCREW M6-1 X 8
Price
N/A
224
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
225
***USE PW01M***
226
Now: PN02M
HEX NUT M10-1.5
Price
N/A
227
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
228
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
229
***USE PCAP01M***
230
BRACKET
Price
N/A
231
ANCHOR ROD
Price
N/A
232
*DISCD*PIVOT PIN RIGHT STANDARD V1
Price
N/A
233
*DISCD*PIVOT PIN LEFT STANDARD V1
Price
N/A
234
FENCE ROD
Price
N/A
235
PIVOT ARM
Price
N/A
236
***USE P9953236***
237
FENCE ROD BRACKET
Price
N/A
238
***USE P9953238***
239
FENCE
Price
N/A
240
FENCE ROD
Price
N/A
241
CAP SCREW M6-1 X 25
Price
N/A
242
FENCE STOP BLOCK
Price
N/A
243
***USE PW06***
244
Now: PW07
FLAT WASHER 5/16
Price
N/A
245
Now: PN03M
HEX NUT M8-1.25
Price
N/A
246
SET SCREW M8-1.25 X 40
Price
N/A

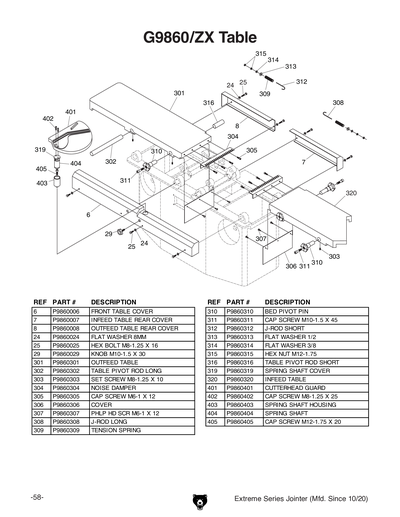

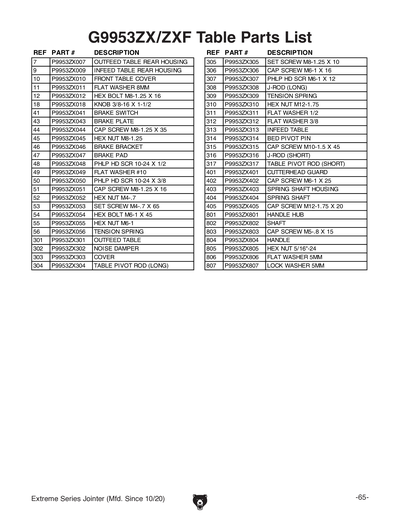

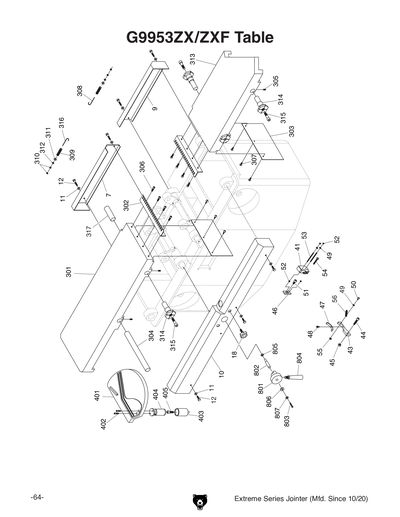

301
OUTFEED TABLE LEFT SHORT
Price
N/A
302
NOISE DAMPER
Price
N/A
303
***USE P9953303***
304
LONG TABLE PIVOT ROD
Price
N/A
305
SET SCREW M8-1.25 X 10
Price
N/A
306
***USE PCAP01M***
307
***USE PS14M***
308
J-ROD LONG
Price
N/A
309
TENSION SPRING
Price
N/A
310
***USE PN09M***
311
***USE PW01***
312
***USE PW02***
313
***USE P9953313***
314
***USE P9860310***
315
***USE PCAP70M***
316
J-ROD SHORT
Price
N/A
317
TABLE PIVOT ROD SHORT
Price
N/A
401
***USE P9953401***
402
***USE PCAP06M***
403
SPRING SHAFT HOUSING
Price
N/A
404
***USE P9860319A***
405
CAP SCREW M12-1.75 X 20
Price
N/A

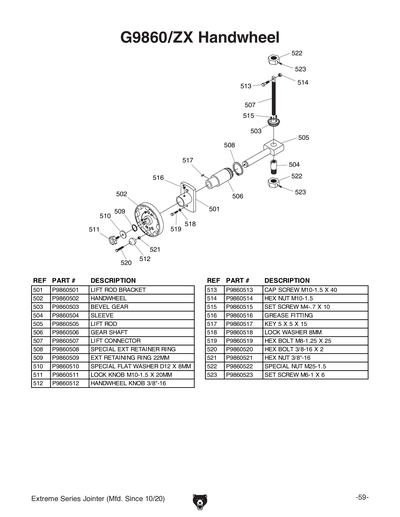

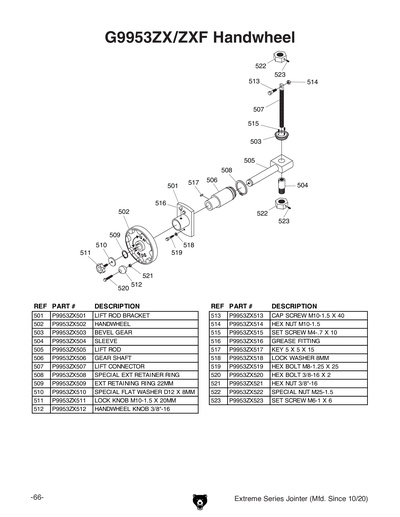

501
LIFT ROD BRACKET
Price
N/A
502
***USE P9860502***
503
BEVEL GEAR M4-0.7 X 2
Price
N/A
504
SLEEVE
Price
N/A
505
LIFT ROD
Price
N/A
506
GEAR SHAFT
Price
N/A
507
***USE P9860507***
508
***USE P9860508***
509
***USE PR10M***
510
HANDWHEEL FLAT WASHER 8MM X 12OD
Price
N/A
511
LOCK KNOB M10-1.5 X 20
Price
N/A
512
***USE P9860512***
513
CAP SCREW M10-1.5 X 40
Price
N/A
514
***USE PN02M***
515
SET SCREW M4-.7 X 10
Price
N/A
516
GREASE FITTING 3/16"
Price
N/A
517
***USE PK20M***
518
***USE PLW04M***
519
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
520
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
521
Now: PN08
HEX NUT 3/8-16
Price
N/A
522
***USE P9860522***
523
***USE PSS02M***
601
***USE P9953601***
602
***USE P9953602***
603
BRAKE CASING
Price
N/A
604
ROLL PIN 3 X 18
Price
N/A
605
SPRING D0.8 X D11 X 47MML
Price
N/A
606
SET SCREW M6-1 X 6
Price
N/A

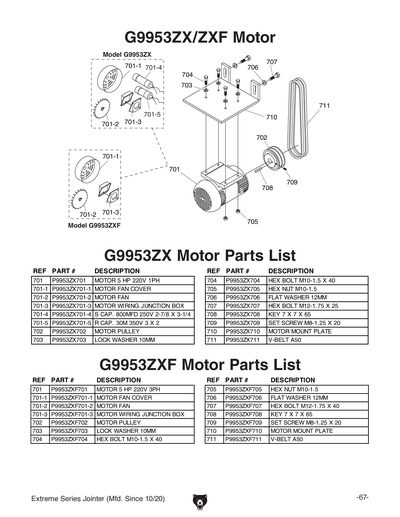

701
MOTOR 5HP 220V/440V 3-PH
701-1
MOTOR FAN COVER
701-2
MOTOR FAN
701-3
MOTOR WIRING JUNCTION BOX
702
***USE P9860702***
703
LOCK WASHER 10MM
Price
N/A
704
***USE PB31M***
705
Now: PN02M
HEX NUT M10-1.5
Price
N/A
706
Now: PW06M
FLAT WASHER 12MM
Price
N/A
707
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
708
***USE PK57M***
709
SET SCREW M8-1.25 X 20
Price
N/A
710
***USE P9953710***
711
Now: PVA50
V-BELT A50
Price
N/A

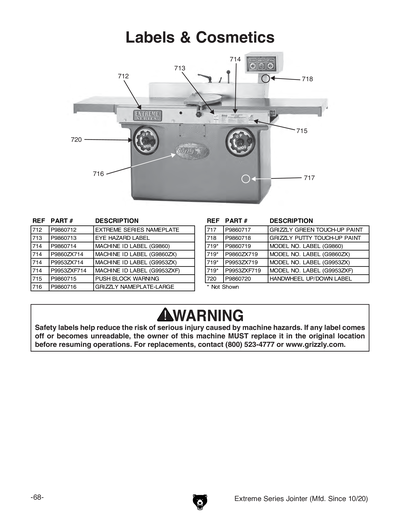

712
Now: H7942
Extreme Series Nameplate
Price
N/A
713
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
714
MACHINE ID LABEL
715
PUSH BLOCK WARNING
Price
N/A
716
***USE G8589***
717
***USE PPAINT-1***
718
***USE PPAINT-11***
719
MODEL NUMBER LABEL
801
***USE P9953801***
802
***USE P9953802***
803
***USE PCAP10M***
804
***USE P9953804***
805
Now: PN20
HEX NUT 5/16-24
Price
N/A
806
Now: PW02M
FLAT WASHER 5MM
Price
N/A
807
LOCK WASHER 5MM
Price
N/A
901
FLAT HD TORX T20 M6-1 X 15
Price
N/A
902
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
903
SPIRAL CUTTERHEAD BODY
Price
N/A
MANUAL
MANUAL FOR G9860 V1.10.08
Price
N/A
MANV2
MANUAL G9860 MFG 04.09 V2.06.09
Price
N/A
MANV3
MANUAL G9860 MFG 04.10 V3.09.10
Price
N/A
MANV4
MANUAL G9860 MFG 01.11 V4.02.11
Price
N/A
MANV5
MANUAL G9860 MFD-09.11-09.20 V5.09.11
Price
N/A
MANV6
MANUAL G9860 MFD-10.20+ V6.10.20
Price
N/A
