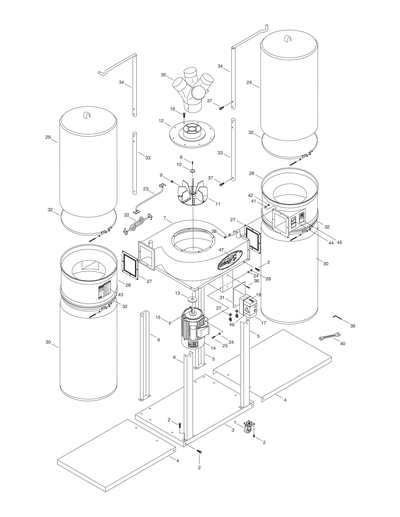

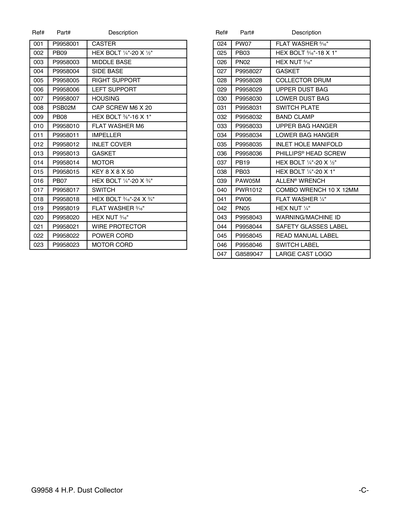

Parts for G9958 4 HP Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*CASTER
2
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
3
*DISCD*BASE MIDDLE
4
*DISCD*SIDE BASE
5
*DISCD*SUPPORT RIGHT
Item is no longer available
Price
N/A
6
*DISCD*SUPPORT LEFT
Item is no longer available
Price
N/A
7
*DISCD*HOUSING
8
CAP SCREW M6-1 X 20
Price
N/A
9
Now: PB08
HEX BOLT 3/8-16 X 5
Price
N/A
10
FLAT WASHER M6
11
*DISCD*IMPELLER 13"
Item is no longer available
Price
N/A
12
*DISCD*INLET COVER
13
*DISCD*GASKET
Item is no longer available
Price
N/A
14
MOTOR 4HP 1PH 220V 26A
Price
N/A
15
*DISCD*KEY 8 X 7 X 5.5MM
16
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
17
MAGNETIC SWITCH ASSY 5HP
Price
N/A
18
Now: PB93
HEX BOLT 10-24 X 1/2
Price
N/A
19
FENDER WASHER 8MM
Price
N/A
20
Now: PN07
HEX NUT 10-24
Price
N/A
21
*DISCD*WIRE PROTECTION
Item is no longer available
Price
N/A
22
*DISCD*POWER CORD
Item is no longer available
Price
N/A
23
*DISCD*MOTOR CORD
Item is no longer available
Price
N/A
24
Now: PW07
FLAT WASHER 5/16
Price
N/A
25
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
26
Now: PN02
HEX NUT 5/16-18
Price
N/A
27
*DISCD*GASKET
28
*DISCD*DRUM
29
*DISCD*DUST UPPER BAG
Item is no longer available
Price
N/A
30
*DISCD*DUST BOTTOM BAG
Item is no longer available
Price
N/A
31
*DISCD*SWITCH PLATE
Item is no longer available
Price
N/A
32
*DISCD*BAND CLAMP
Item is no longer available
Price
N/A
33
*DISCD*DOWN HANGER
34
*DISCD*UPPER BAG HANGER
35
*DISCD*INLET 4-HOLE MANIFOLD
Item is no longer available
Price
N/A
36
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
37
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
38
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
39
HEX WRENCH 5MM
Price
N/A
40
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
41
Now: PW06
FLAT WASHER 1/4
Price
N/A
42
Now: PN03
HEX NUT 3/4-16
Price
N/A
43
WARNING/MACHINE ID LABEL
Item is no longer available
Price
N/A
44
SAFETY GLASSES LABEL
Item is no longer available
Price
N/A
45
READ MANUAL LABEL
Item is no longer available
Price
N/A
46
SWITCH LABEL
Item is no longer available
Price
N/A
47
Now: G8589
Nameplate - Large
Price
N/A
MANUAL

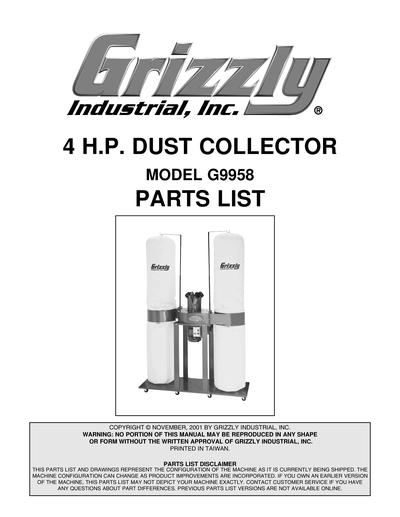

MANUAL FOR G9958 11/01
