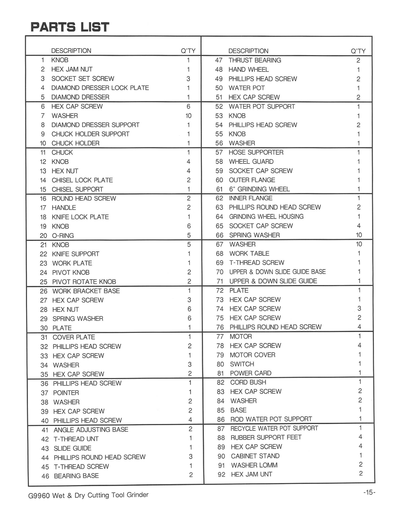

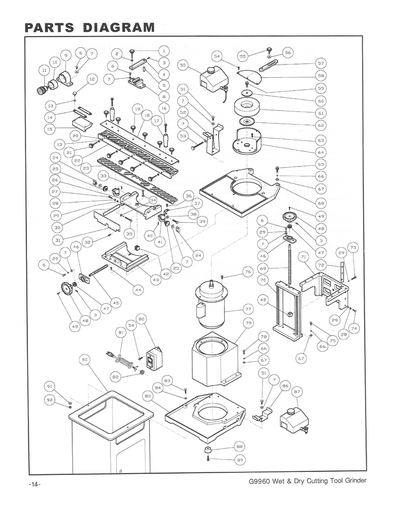

Parts for G9960 24" Knife Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*KNOB
2
Now: PN03M
HEX NUT M8-1.25
Price
N/A
3
SET SCREW M6-1 X 10
Price
N/A
4
*DISCD*DIAMOND DRESSER LOCK PLATE
Item is no longer available
Price
N/A
5
*DISCD*DIAMOND DRESSER
Item is no longer available
Price
N/A
6
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
7
Now: PW03M
FLAT WASHER 6MM
Price
N/A
8
*DISCD*DIAMOND DRESSER SUPPORT
9
*DISCD*CHUCK HOLDER SUPPORT
Item is no longer available
Price
N/A
10
*DISCD*CHUCK HOLDER
Item is no longer available
Price
N/A
11
*DISCD*CHUCK
Item is no longer available
Price
N/A
12
*DISCD*KNOB
Item is no longer available
Price
N/A
13
Now: PN01M
HEX NUT M6-1
Price
N/A
14
*DISCD*CHISEL LOCK PLATE
Item is no longer available
Price
N/A
15
*DISCD*CHISEL SUPPORT
Item is no longer available
Price
N/A
16
*DISCD*ROUND HEAD SCREW 3/8-16 X 3 1/2
17
*DISCD*HANDLE
18
*DISCD*KNIFE LOCK PLATE
Item is no longer available
Price
N/A
19
*DISCD*KNOB
20
*DISCD*O-RING 5.8 X 2.5
Item is no longer available
Price
N/A
21
*DISCD*KNOB
Item is no longer available
Price
N/A
22
*DISCD*KNIFE SUPPORT
Item is no longer available
Price
N/A
23
*DISCD*WORK PLATE
Item is no longer available
Price
N/A
24
*DISCD*PIVOT KNOB
Item is no longer available
Price
N/A
25
*DISCD*PIVOT ROTATE KNOB
Item is no longer available
Price
N/A
26
*DISCD*WORK BRACKET BASE
27
CAP SCREW M6-1 X 25
Price
N/A
28
Now: PN01M
HEX NUT M6-1
Price
N/A
29
LOCK WASHER 6MM
Price
N/A
30
*DISCD*PLATE
Item is no longer available
Price
N/A
31
*DISCD*COVER PLATE
Item is no longer available
Price
N/A
32
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
33
CAP SCREW M5-.8 X 20
Price
N/A
34
Now: PW03M
FLAT WASHER 6MM
Price
N/A
35
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
36
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
37
*DISCD*POINTER
Item is no longer available
Price
N/A
38
Now: PW02
FLAT WASHER 3/8
Price
N/A
39
CAP SCREW 3/8-16 X 1
Price
N/A
40
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
41
*DISCD*ANGLE ADJUSTING BASE
Item is no longer available
Price
N/A
42
*DISCD*T-THREAD NUT 3/8 X 3/4
Item is no longer available
Price
N/A
43
*DISCD*SLIDE GUIDE
44
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
45
*DISCD*T-THREAD SCREW 1/2-10 X 148
46
*DISCD*BEARING BASE
Item is no longer available
Price
N/A
47
THRUST BEARING 51100
Price
N/A
48
*DISCD*HAND WHEEL
Item is no longer available
Price
N/A
49
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
50
*DISCD*WATER POT
Item is no longer available
Price
N/A
51
CAP SCREW M6-1 X 15
Price
N/A
52
*DISCD*WATER POT SUPPORT
Item is no longer available
Price
N/A
53
*DISCD*KNOB
Item is no longer available
Price
N/A
54
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
55
*DISCD*KNOB
Item is no longer available
Price
N/A
56
Now: PW02M
FLAT WASHER 5MM
Price
N/A
57
*DISCD*HOSE SUPPORTER
Item is no longer available
Price
N/A
58
*DISCD*WHEEL GUARD
Item is no longer available
Price
N/A
59
CAP SCREW M6-1 X 16
Price
N/A
60
*DISCD*OUTER FLANGE
Item is no longer available
Price
N/A
61
*DISCD*6" GRINDING WHEEL
Item is no longer available
Price
N/A
62
*DISCD*INNER FLANGE
Item is no longer available
Price
N/A
63
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
64
*DISCD*GRINDING WHEEL HOUSING
Item is no longer available
Price
N/A
65
CAP SCREW M8-1.25 X 45
Price
N/A
66
LOCK WASHER 8MM
Price
N/A
67
Now: PW01M
FLAT WASHER 8MM
Price
N/A
68
*DISCD*WORK TABLE
69
*DISCD*T-THREAD SCREW 1/2-10 X 260
70
*DISCD*UPPER & DOWN SLIDE GUIDE BASE
71
*DISCD*UPPER & DOWN SLIDE GUIDE
72
*DISCD*PLATE
Item is no longer available
Price
N/A
73
CAP SCREW M6-1 X 20
Price
N/A
74
CAP SCREW M6-1 X 35
Price
N/A
75
CAP SCREW M8-1.25 X 35
Price
N/A
76
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
77
*DISCD*MOTOR
Item is no longer available
Price
N/A
77-1
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
78
CAP SCREW M8-1.25 X 30
Price
N/A
79
*DISCD*MOTOR COVER
Item is no longer available
Price
N/A
80
*DISCD*SWITCH
Item is no longer available
Price
N/A
81
POWER CORD 16G X 3W 73"L
Price
N/A
82
*DISCD*CORD BRUSH
Item is no longer available
Price
N/A
83
*DISCD*HEX CAP SCREW 3/8-16 X 3 1/2
84
Now: PW02
FLAT WASHER 3/8
Price
N/A
85
*DISCD*BASE
86
*DISCD*ROD WATER POT SUPPORT
Item is no longer available
Price
N/A
87
*DISCD*RECYCLE WATER POT SUPPORT
Item is no longer available
Price
N/A
88
*DISCD*RUBBER SUPPORT FEET
89
CAP SCREW M8-1.25 X 12
Price
N/A
90
*DISCD*CABINET STAND
Item is no longer available
Price
N/A
91
Now: PLW04
LOCK WASHER 3/8
Price
N/A
92
Now: PN08
HEX NUT 3/8-16
Price
N/A
93
*DISCD*SHELF FOR CABINET
Item is no longer available
Price
N/A
94
*DISCD*DRESSING STICK
96
*DISCD*MACHINE ID/WARNING LABEL
Item is no longer available
Price
N/A
15B
*DISCD*WASHER 1/2
Item is no longer available
Price
N/A
MANUAL
*DISCD*MANUAL FOR G9960
Item is no longer available
Price
N/A
