Parts for G9969 - 45" Radial Drill Press

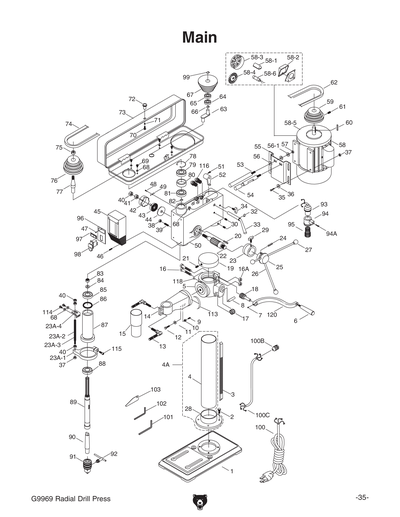

Part Diagram for G9969
Part Diagram for G9969
Part Diagram for G9969
Part Diagram for G9969
Part Diagram for G9969
Part Diagram for G9969

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

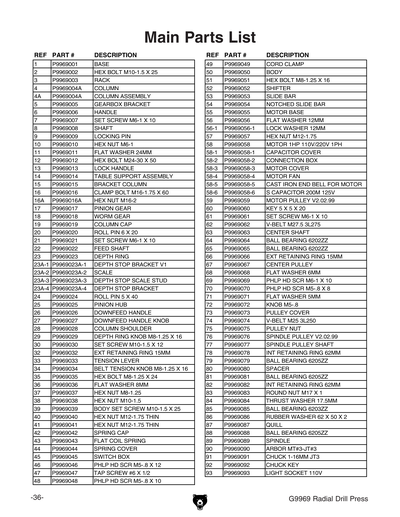

Ref #
Part #
Description
1
BASE
Price
$363.70
2
HEX BOLT M10-1.5 X 25
Price
N/A
3
RACK
Price
$42.10
4
COLUMN ASSEMBLY
Price
N/A
4A
COLUMN ASSEMBLY
Price
$252.70
5
GEARBOX BRACKET
Price
$150.20
6
HANDLE
Price
$6.50
7
SET SCREW M6-1 X 10
Price
N/A
8
SHAFT
Price
$1.90
9
LOCKING PIN
Price
$1.90
10
HEX NUT M6-1
Price
N/A
11
FLAT WASHER 24MM
Price
N/A
12
HEX BOLT M24-30 X 50
Price
$1.90
13
LOCK HANDLE
Price
$7.60
14
TABLE SUPPORT ASSEMBLY
Price
$38.50
15
BRACKET COLUMN
Price
$46.00
15-1
EXT RETAINING RING 75MM
Price
N/A
16
BIG CLAMP BOLT M16 X 60
Price
$5.10
16A
HEX NUT M16-2
Price
N/A
17
PINION GEAR
Price
$8.65
18
WORM GEAR
Price
$17.75
19
COLUMN CAP
Price
$26.70
20
ROLL PIN 6 X 20
Price
N/A
21
SET SCREW M6-1 X 10
Price
N/A
22
FEED SHAFT
Price
$18.65
23
DEPTH RING
Price
$10.45
23A-1
DEPTH STOP BRACKET V1
Price
$17.25
23A-1V2
DEPTH STOP BRACKET V2.12.12
Price
$20.90
23A-2
SCALE
Price
$3.25
23A-3
DEPTH STOP SCALE RACK V2.10.02
Price
N/A
23A-4
DEPTH STOP BRACKET
Price
$4.45
24
ROLL PIN 5 X 40
Price
N/A
25
PINION HUB
Price
$17.85
26
DOWNFEED HANDLE
Price
$1.49
27
DOWNFEED HANDLE KNOB
Price
$2.25
28
COLUMN ASSEMBLY
Price
N/A
29
SLIDE BAR BOLT M8-1.25 X 22
Price
N/A
30
SET SCREW M10-1.5 X 12
Price
N/A
31
*DISCD*KEY HEXAGON SCREW 3
Item is no longer available
Price
N/A
32
EXT RETAINING RING 15MM
Price
N/A
33
SHIFTER BAR
Price
N/A
34
BELT TENSION KNOB M8-1.25 X 16
Price
$2.30
35
HEX BOLT M8-1.25 X 24
Price
N/A
36
FLAT WASHER 8MM
Price
N/A
37
HEX NUT M8-1.25
Price
N/A
38
HEX NUT M10-1.5
Price
N/A
39
BODY SET SCREW M10-1.5 X 25
Price
$1.90
40
HEX NUT M12-1.75 THIN
Price
N/A
41
HEX NUT M12-1.75 THIN
Price
N/A
42
SPRING CAP
Price
N/A
43
SPRING-TORSION
Price
N/A
44
SPRING COVER
Price
N/A
45
SWITCH BOX
Price
N/A
46
PHLP HD SCR M5-.8 X 12
Price
N/A
47
TAP SCREW #6 X 1/2
Price
N/A
48
PHLP HD SCR M5-.8 X 10
Price
N/A
49
CORD CLAMP
Price
$2.90
50
BODY
Price
$142.00
51
HEX BOLT M8-1.25 X 16
Price
N/A
52
SHIFTER
Price
N/A
53
SLIDE BAR
Price
N/A
54
NOTCHED SLIDE BAR
Price
$12.25
55
MOTOR BASE
Price
N/A
56
FLAT WASHER 12MM
Price
N/A
56-1
LOCK WASHER 12MM
Price
N/A
56A
LOCK WASHER 12MM
Price
N/A
57
HEX NUT M12-1.75
Price
N/A
58
MOTOR 1HP 110/220V 1-PH
Price
$319.35
58-1
CAPACITOR COVER
Price
$6.50
58-2
CONNECTION BOX
Price
$7.60
58-3
MOTOR COVER
Price
$8.65
58-4
MOTOR FAN
Price
N/A
58-5
CAST IRON END BELL FOR MOTOR
Price
$19.10
58-6
S CAPACITOR 200M 125V 1-3/4 X 3
Price
N/A
59
MOTOR PULLEY V2.02.99
Price
N/A
60
KEY 5 X 5 X 20
Price
N/A
61
SET SCREW M6-1 X 10
Price
N/A
62
V-BELT M27.5 3L275
Price
N/A
63
CENTER SHAFT
Price
$18.15
64
BALL BEARING 6202ZZ
Price
N/A
65
BALL BEARING 6202ZZ
Price
N/A
66
EXT RETAINING RING 15MM
Price
N/A
67
CENTER PULLEY
Price
$34.25
68
FLAT WASHER 6MM
Price
N/A
69
PHLP HD SCR M6-1 X 10
Price
N/A
70
PHLP HD SCR M5-.8 X 8
Price
N/A
71
FLAT WASHER 5MM
Price
N/A
72
KNOB M5-.8
Price
$5.50
73
PULLEY COVER
Price
$60.75
74
V-BELT M27.5 3L275
Price
N/A
75
PULLEY NUT
Price
$3.75
76
SPINDLE PULLEY V2.02.99
Price
N/A
77
SPINDLE PULLEY SHAFT
Price
$20.60
78
INT RETAINING RING 62MM
Price
N/A
79
BALL BEARING 6205ZZ
Price
N/A
80
SPACER
Price
$2.90
81
BALL BEARING 6205ZZ
Price
N/A
82
INT RETAINING RING 62MM
Price
N/A
83
ROUND NUT M17 X 1
Price
N/A
84
THRUST WASHER 17.5MM
Price
$1.90
85
BALL BEARING 6203ZZ
Price
N/A
86
RUBBER WASHER 62 X 50 X 2
Price
$1.90
87
QUILL
Price
$60.10
88
BALL BEARING 6206-2RS
Price
N/A
89
SPINDLE
Price
$51.40
90
DRILL CHUCK ARBOR MT3 X JT3
Price
N/A
91
DRILL CHUCK JT3 X 3/64-5/8
Price
N/A
92
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
93
*DISCD*LIGHT SOCKET 110V
Item is no longer available
Price
N/A
93A
LIGHT SOCKET 110V ASSY.
Price
$12.25

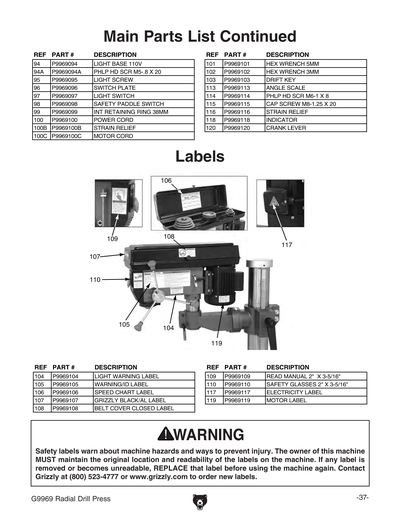

94
LIGHT BASE 110V
Price
$1.49
94A
PHLP HD SCR M5-.8 X 20
Price
N/A
95
LIGHT SOCKET 110V ASSY.
Price
N/A
96
SWITCH PLATE
Price
N/A
97
LIGHT SWITCH
Price
$1.90
98
Safety Paddle Switch
Price
N/A
99
INT RETAINING RING 38MM
Price
N/A
100
POWER CORD
Price
$20.50
100B
STRAIN RELIEF M20
Price
N/A
100C
MOTOR CORD 14G 3C 18"
Price
N/A
101
HEX WRENCH 5MM
Price
N/A
102
HEX WRENCH 3MM
Price
N/A
103
WEDGE SHIFTER
Price
N/A
104
LIGHT WARNING LABEL
Price
$1.25
105
WARNING/ID LABEL
Price
$4.40
106
SPEED CHART LABEL
Price
$1.90
107
GRIZZLY BLACK/AL LABEL
Price
N/A
108
BELT COVER CLOSED LABEL
Price
$1.90
109
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
110
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
113
ANGLE SCALE
Price
$1.90
114
PHLP HD SCR M6-1 X 8
Price
N/A
115
CAP SCREW M8-1.25 X 20
Price
N/A
116
STRAIN RELIEF M20
Price
N/A
117
ELECTRICITY 1.4W X 1.2H
Price
N/A
118
INDICATOR
Price
$1.90
119
MOTOR LABEL
Price
$2.10
120
CRANK LEVER
Price
$30.95
121
CHUCK GUARD ASSEMBLY
Price
$20.40
121-1
PHLP HD SCR M4-.7 X 30
Price
N/A
121-2
HEX NUT M4-.7
Price
N/A
121-3
TAP SCREW M2.2 X 4.5
Price
N/A
121-4
HEX BOLT M5-.8 X 12
Price
N/A
121-5
WING NUT M5-.8
Price
N/A
MANUAL
MANUAL FOR G9969 05/06
Price
$14.65
