Parts for G9972Z 11" x 26" Benchtop Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

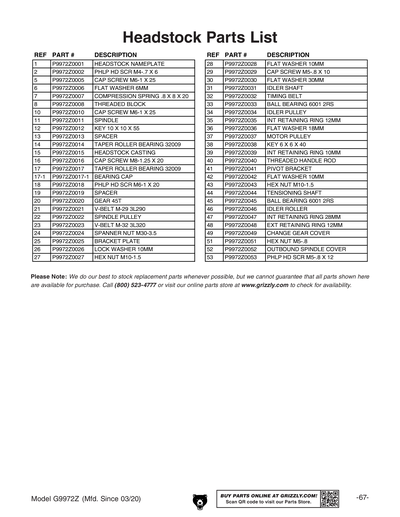

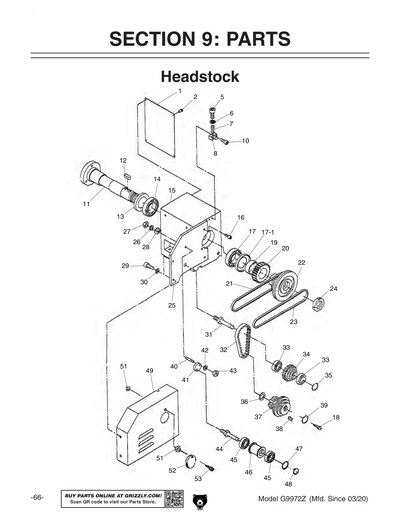

1
HEADSTOCK NAMEPLATE
2
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
4
*DISCD*SCREW
Item is no longer available
Price
N/A
5
CAP SCREW M6-1 X 25
Price
N/A
6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
7
COMPRESSION SPRING .8 X 8 X 20
8
THREADED BLOCK
9
*DISCD*SCREW M6 X 12
Item is no longer available
Price
N/A
10
CAP SCREW M6-1 X 25
Price
N/A
11
SPINDLE
11-1
SPINDLE CLAMP
12
KEY 10 X 10 X 55
Price
N/A
13
SPACER
14
TAPERED ROLLER BEARING 32009
Price
N/A
15
HEADSTOCK CASTING
15A
COMPLETE HEADSTOCK ASSY
16
CAP SCREW M8-1.25 X 20
Price
N/A
17
TAPERED ROLLER BEARING 32009
Price
N/A
17-1
BEARING CAP
18
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
19
SPACER
20
GEAR 45T
21
Now: PVM29
V-BELT M29 3L290
Price
N/A
22
SPINDLE PULLEY
23
Now: PVM32
V-BELT M32 3L320
Price
N/A
24
SPANNER NUT M30-3.5
25
BRACKET PLATE
26
LOCK WASHER 10MM
Price
N/A
27
Now: PN02M
HEX NUT M10-1.5
Price
N/A
28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
29
CAP SCREW M5-.8 X 10
Price
N/A
30
Now: PW23M
FLAT WASHER 30MM
Price
N/A
31
IDLER SHAFT
32
TIMING BELT
33
BALL BEARING 6001-2RS
Price
N/A
34
IDLER PULLEY
35
Now: PR49M
INT RETAINING RING 12MM
Price
N/A
36
FLAT WASHER 18MM
Price
N/A
37
MOTOR PULLEY
38
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
39
Now: PR45M
INT RETAINING RING 10MM
Price
N/A
40
THREADED HANDLE ROD
41
PIVOT BRACKET
42
Now: PW04M
FLAT WASHER 10MM
Price
N/A
43
Now: PN02M
HEX NUT M10-1.5
Price
N/A
44
TENSIONING SHAFT
45
BALL BEARING 6001-2RS
Price
N/A
46
IDLER ROLLER
47
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
48
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
49
CHANGE GEAR COVER
51
Now: PN06M
HEX NUT M5-.8
Price
N/A
52
OUTBOUND SPINDLE COVER
53
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
101
SET SCREW M6-1 X 10
Price
N/A
102
KEYED BUSHING
Price
N/A
103
GEAR 45T
104
GEAR 24T
106
GEAR SHAFT
Price
N/A
107
CLIPPED WASHER 8MM
108
BALL OILER 6MM PRESS-IN
Price
N/A

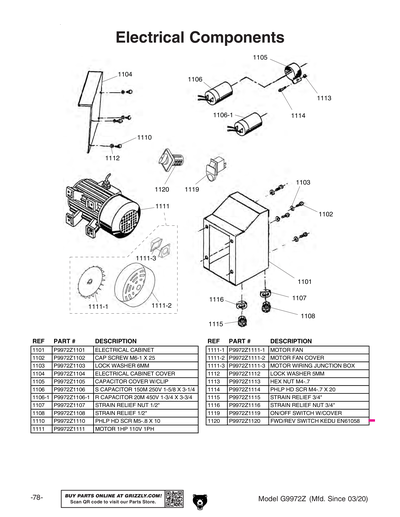

1105
*DISCD*CAPACITOR COVER W/CLIP
Price
N/A
1106
S CAPACITOR 150M 250V 1-5/8 X 3-1/4
Price
N/A
1107
STRAIN RELIEF NUT 1/2"
Price
N/A
1109
ON/OFF SWITCH W/COVER
Price
N/A
1110
FWD/REV SWITCH KEDU EN61058
Price
N/A
1115
STRAIN RELIEF 3/4"
Price
N/A

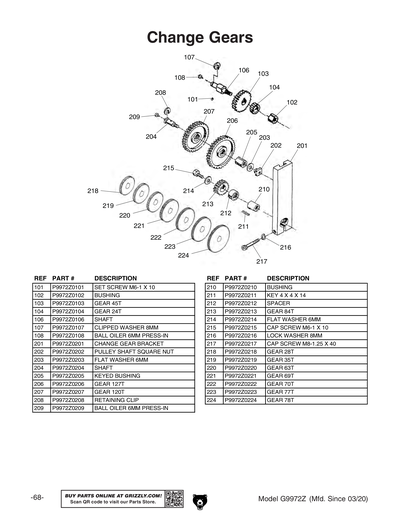

201
CHANGE GEAR BRACKET
202
PULLEY SHAFT SQUARE NUT
203
Now: PW03M
FLAT WASHER 6MM
Price
N/A
204
SHAFT
205
KEYED BUSHING
Price
N/A
206
GEAR 127T
207
GEAR 120T
208
RETAINING CLIP
209
BALL OILER 6MM PRESS-IN
Price
N/A
210
BUSHING
211
Now: PK97M
KEY 4 X 4 X 14
Price
N/A
212
SPACER
213
GEAR 84T
214
Now: PW03M
FLAT WASHER 6MM
Price
N/A
215
CAP SCREW M6-1 X 10
Price
N/A
216
LOCK WASHER 8MM
Price
N/A
217
CAP SCREW M8-1.25 X 40
Price
N/A
218
GEAR 28T
219
GEAR 35T
220
GEAR 63T
221
GEAR 69T
222
GEAR 70T
223
GEAR 77T
224
GEAR 78T

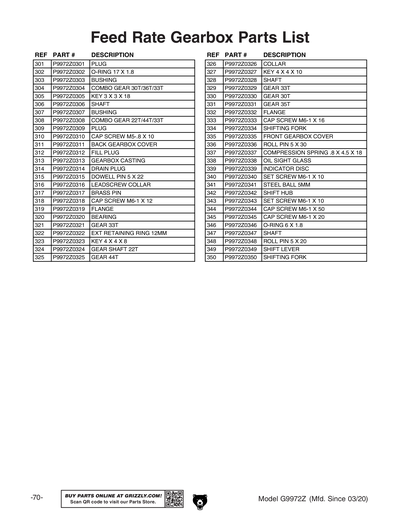

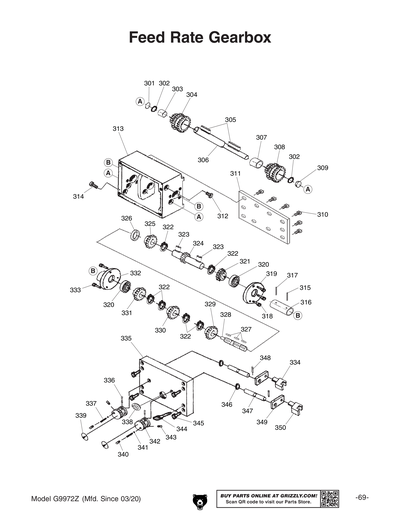

301
PLUG
302
*DISCD*O-RING 17 X 1.8
Price
N/A
303
BUSHING
304
COMBO GEAR 30T/36T/33T
305
KEY 3 X 3 X 18
Price
N/A
306
SHAFT
307
BUSHING
308
COMBO GEAR 22T/44T/33T
309
PLUG
310
CAP SCREW M5-.8 X 10
Price
N/A
311
BACK GEARBOX COVER
312
FILL PLUG
313
GEARBOX CASTING
314
DRAIN PLUG
315
DOWEL PIN 5 X 22
315-1
DOWEL PIN 5 X 22
Price
N/A
316
LEADSCREW COLLAR
317
BRASS PIN
318
CAP SCREW M6-1 X 12
Price
N/A
319
FLANGE
320
BEARING
321
GEAR 33T
322
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
323
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
324
GEAR SHAFT 22T
325
GEAR 44T
326
COLLAR
327
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
328
SHAFT
329
GEAR 33T
330
GEAR 30T
331
GEAR 35T
332
FLANGE
333
CAP SCREW M6-1 X 16
Price
N/A
334
SHIFTING FORK
335
FRONT GEARBOX COVER
336
ROLL PIN 5 X 30
Price
N/A
337
COMPRESSION SPRING .8 X 4.5 X 18
338
OIL SIGHT GLASS
339
INDICATOR DISC
340
SET SCREW M6-1 X 10
Price
N/A
341
STEEL BALL 5MM
Price
N/A
342
SHIFT HUB
343
SET SCREW M6-1 X 10
Price
N/A
344
CAP SCREW M6-1 X 50
Price
N/A
345
CAP SCREW M6-1 X 50
Price
N/A
346
O-RING 6 X 1.8
Price
N/A
347
SHAFT
348
ROLL PIN 5 X 20
Price
N/A
349
SHIFT LEVER
350
SHIFTING FORK

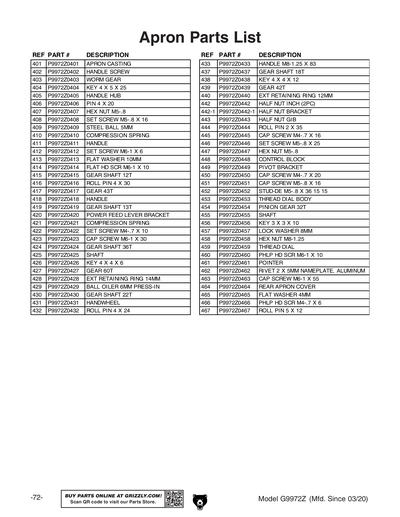

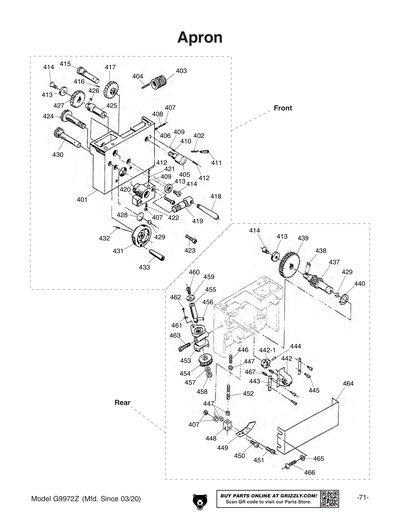

401
APRON CASTING
402
HANDLE SCREW
403
WORM GEAR
404
KEY 4 X 5 X 25
Price
N/A
405
HANDLE HUB
406
PIN 4 X 20
407
Now: PN06M
HEX NUT M5-.8
Price
N/A
408
SET SCREW M5-.8 X 16
Price
N/A
409
STEEL BALL 5MM
Price
N/A
410
COMPRESSION SPRING
411
HANDLE
412
SET SCREW M6-1 X 6
Price
N/A
413
Now: PW04M
FLAT WASHER 10MM
Price
N/A
414
FLAT HD SCR M6-1 X 10
Price
N/A
415
GEAR SHAFT 12T
416
ROLL PIN 4 X 30
Price
N/A
417
GEAR 43T
418
HANDLE
419
GEAR SHAFT 13T
420
POWER FEED LEVER BRACKET
421
COMPRESSION SPRING
422
SET SCREW M4-.7 X 10
Price
N/A
423
CAP SCREW M6-1 X 30
Price
N/A
424
GEAR SHAFT 36T
425
SHAFT
426
Now: PK72M
KEY 4 X 4 X 6
Price
N/A
427
GEAR 60T
428
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
429
BALL OILER 6MM PRESS-IN
Price
N/A
430
GEAR SHAFT 22T
431
HANDWHEEL
432
ROLL PIN 4 X 24
Price
N/A
433
HANDLE M8-1.25 X 83
437
GEAR SHAFT 18T
438
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
439
GEAR 42T
440
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
442
HALF NUT INCH (2PC)
442-1
HALF NUT BRACKET
443
HALF NUT GIB
444
ROLL PIN 2 X 35
445
CAP SCREW M4-.7 X 16
Price
N/A
446
SET SCREW M5-.8 X 25
Price
N/A
447
Now: PN06M
HEX NUT M5-.8
Price
N/A
448
CONTROL BLOCK
449
PIVOT BRACKET
450
CAP SCREW M4-.7 X 20
Price
N/A
451
CAP SCREW M5-.8 X 16
Price
N/A
452
STUD-DE M5-.8 X 36 15 15
453
THREAD DIAL BODY
Price
N/A
454
PINION GEAR 32T
455
SHAFT
456
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
457
LOCK WASHER 8MM
Price
N/A
458
Now: PN03M
HEX NUT M8-1.25
Price
N/A
459
THREAD DIAL
460
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
461
POINTER
462
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
463
CAP SCREW M6-1 X 55
Price
N/A
464
REAR APRON COVER
465
Now: PW05M
FLAT WASHER 4MM
Price
N/A
466
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
467
ROLL PIN 5 X 12
Price
N/A

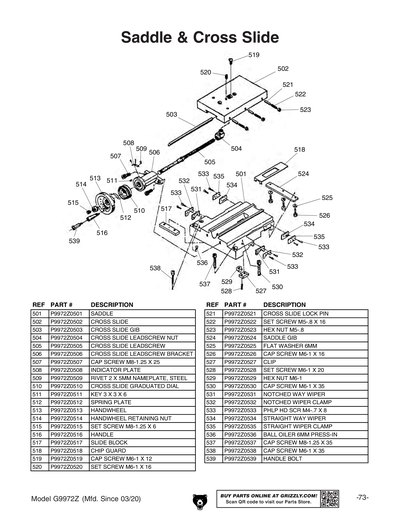

501
SADDLE
502
CROSS SLIDE
503
CROSS SLIDE GIB
504
CROSS SLIDE LEADSCREW NUT
505
CROSS SLIDE LEADSCREW
506
CROSS SLIDE LEADSCREW BRACKET
507
CAP SCREW M8-1.25 X 25
Price
N/A
508
INDICATOR PLATE
509
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
510
CROSS SLIDE GRADUATED DIAL
511
KEY 3 X 3 X 6
Price
N/A
512
SPRING PLATE
513
HANDWHEEL
514
HANDWHEEL RETAINING NUT
515
SET SCREW M8-1.25 X 6
Price
N/A
516
HANDLE
517
SLIDE BLOCK
518
CHIP GUARD
519
CAP SCREW M6-1 X 12
Price
N/A
520
SET SCREW M6-1 X 16
Price
N/A
521
CROSS SLIDE LOCK PIN
522
SET SCREW M5-.8 X 16
Price
N/A
523
Now: PN06M
HEX NUT M5-.8
Price
N/A
524
SADDLE GIB
525
Now: PW03M
FLAT WASHER 6MM
Price
N/A
526
CAP SCREW M6-1 X 16
Price
N/A
527
CLIP
528
SET SCREW M6-1 X 20
Price
N/A
529
Now: PN01M
HEX NUT M6-1
Price
N/A
530
CAP SCREW M6-1 X 35
Price
N/A
531
NOTCHED WAY WIPER
532
NOTHED WIPER CLAMP
533
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
534
STRAIGHT WAY WIPER
535
STRAIGHT WIPER CLAMP
536
BALL OILER 6MM PRESS-IN
Price
N/A
537
CAP SCREW M8-1.25 X 35
Price
N/A
538
CAP SCREW M6-1 X 35
Price
N/A
539
HANDLE BOLT
54
SPINDLE CLAMP
Price
N/A
55
CAP SCREW M6-1 X 20
Price
N/A

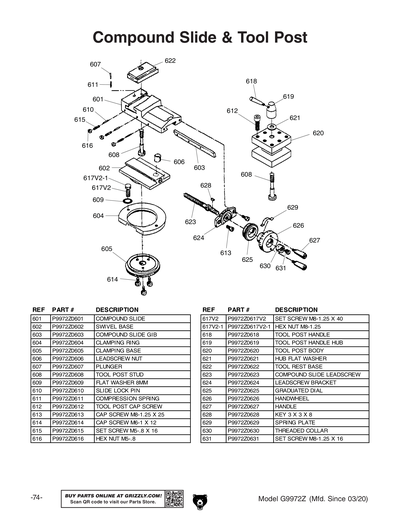

601
COMPOUND SLIDE
602
SWIVEL BASE
603
COMPOUND SLIDE GIB
604
CLAMPING RING
605
CLAMPING BASE
606
LEADSCREW NUT
607
PLUNGER
608
TOOL POST STUD
609
Now: PW01M
FLAT WASHER 8MM
Price
N/A
610
SLIDE LOCK PIN
611
COMPRESSION SPRING
612
TOOL POST CAP SCREW
613
CAP SCREW M8-1.25 X 25
Price
N/A
614
CAP SCREW M6-1 X 12
Price
N/A
615
SET SCREW M5-.8 X 16
Price
N/A
616
Now: PN06M
HEX NUT M5-.8
Price
N/A
617
T-SCREW M6-1.0 X 25 V1.01.04
617V2
SET SCREW M8-1.25 X 40
Price
N/A
617V2-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
618
TOOL POST HANDLE
619
TOOL POST HANDLE HUB
620
TOOL POST BODY
621
*DISCD*HUB FLAT WASHER
622
TOOL REST BASE
623
COMPOUND SLIDE LEADSCREW
624
LEADSCREW BRACKET
625
GRADUATED DIAL
626
HANDWHEEL
627
HANDLE
628
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
629
SPRING PLATE
630
THREADED COLLAR
631
SET SCREW M8-1.25 X 16
Price
N/A

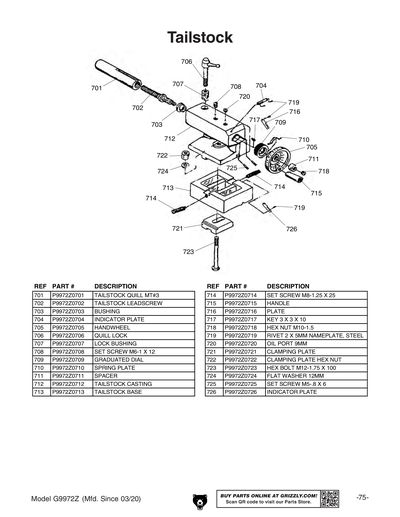

700
COMPLETE TAILSTOCK ASSY
701
TAILSTOCK QUILL MT#3
702
TAILSTOCK LEADSCREW
703
BUSHING
704
INDICATOR PLATE
705
HANDWHEEL
706
QUILL LOCK
707
Now: PW06M
FLAT WASHER 12MM
Price
N/A
708
SET SCREW M6-1 X 12
Price
N/A
709
GRADUATED DIAL
710
SPRING PLATE
711
SPACER
712
TAILSTOCK CASTING
713
TAILSTOCK BASE
714
SET SCREW M8-1.25 X 25
Price
N/A
715
HANDLE
716
PLATE
717
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
718
Now: PN02M
HEX NUT M10-1.5
Price
N/A
719
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
720
OIL PORT 9MM
721
CLAMPING PLATE
722
CLAMPING PLATE HEX NUT
723
HEX BOLT M12-1.75 X 100
Price
N/A
724
Now: PW06M
FLAT WASHER 12MM
Price
N/A
725
SET SCREW M5-.8 X 6
Price
N/A
726
INDICATOR PLATE

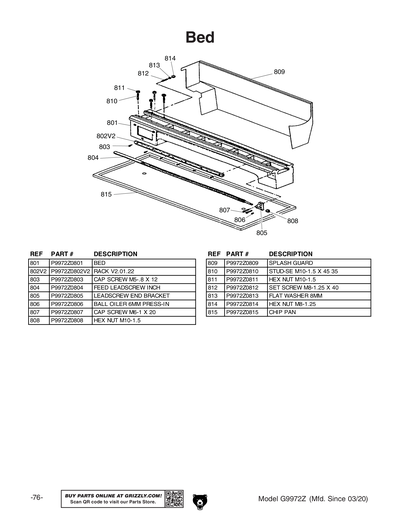

801
BED
802
RACK V2.01.22
Price
N/A
802V2
RACK V2.01.22
803
CAP SCREW M5-.8 X 12
Price
N/A
804
FEED LEADSCREW INCH
804A
FEED SCREW METRIC
805
LEADSCREW END BRACKET
806
BALL OILER 6MM PRESS-IN
Price
N/A
807
CAP SCREW M6-1 X 20
Price
N/A
808
Now: PN02M
HEX NUT M10-1.5
Price
N/A
809
SPLASH GUARD
810
STUD-SE M10-1.5 X 45 35
811
Now: PN02M
HEX NUT M10-1.5
Price
N/A
812
SET SCREW M8-1.25 X 40
Price
N/A
813
Now: PW01M
FLAT WASHER 8MM
Price
N/A
814
Now: PN03M
HEX NUT M8-1.25
Price
N/A
815
CHIP PAN

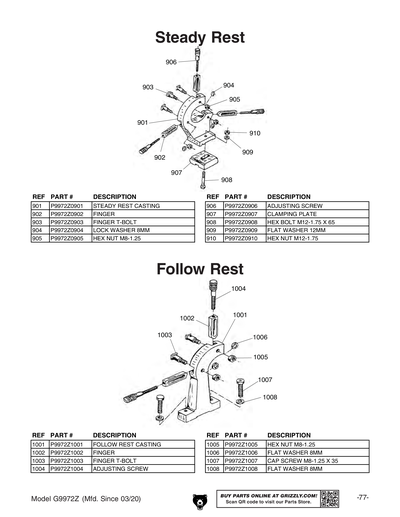

901
STEADY REST CASTING
901A
COMPLETE STEADY REST
902
FINGER
903
FINGER T-BOLT
904
LOCK WASHER 8MM
Price
N/A
905
Now: PN03M
HEX NUT M8-1.25
Price
N/A
906
ADJUSTING SCREW
907
CLAMPING PLATE
908
HEX BOLT M12-1.75 X 65
Price
N/A
909
Now: PW06M
FLAT WASHER 12MM
Price
N/A
910
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1001
FOLLOW REST CASTING
1002
FINGER
Price
N/A
1003
FINGER T-BOLT
Price
N/A
1004
ADJUSTING SCREW
Price
N/A
1005
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1006
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1007
CAP SCREW M8-1.25 X 35
Price
N/A
1008
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1101
ELECTRICAL CABINET
1102
CAP SCREW M6-1 X 25
Price
N/A
1103
LOCK WASHER 6MM
Price
N/A
1104
ELECTRICAL CABINET COVER
1105
*DISCD*CAPACITOR COVER W/CLIP
Item is no longer available
Price
N/A
1106
S CAPACITOR 150M 250V 1-5/8 X 3-1/4
Price
N/A
1106-1
R CAPACITOR 20M 450V 1-3/4 X 3-3/4
1107
STRAIN RELIEF NUT 1/2"
1108
STRAIN RELIEF 1/2"
1109
ON/OFF SWITCH W/COVER
Price
N/A
1109-1
FWD/REV SWITCH KEDU EN61058
Price
N/A
1110
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
1111
MOTOR 1HP 110V 1-PH
1111-1
MOTOR FAN
1111-2
MOTOR FAN COVER
1111-3
MOTOR WIRING JUNCTION BOX
1112
LOCK WASHER 5MM
Price
N/A
1113
Now: PN04M
HEX NUT M4-.7
Price
N/A
1114
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
1115
STRAIN RELIEF 3/4"
1116
STRAIN RELIEF NUT 3/4"

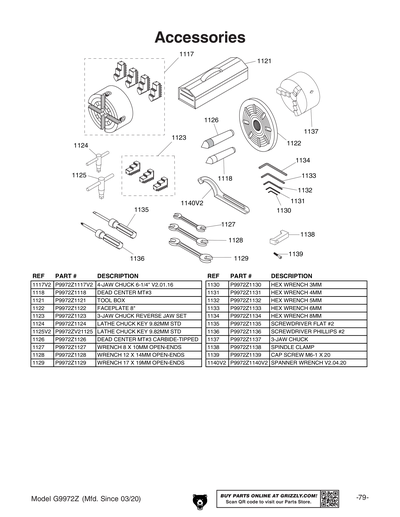

1117
4-JAW CHUCK 6-1/4" V1
1117-1
CHUCK BACKPLATE 6-1/2"
1117V2
4-JAW CHUCK 6-1/4" V2.01.16
1118
DEAD CENTER MT#3
1119
ON/OFF SWITCH W/COVER
1120
FWD/REV SWITCH KEDU EN61058
Price
N/A
1121
TOOL BOX
1122
FACEPLATE 8"
1123
3-JAW CHUCK REVERSE JAW SET
1124
LATHE CHUCK KEY 9.82MM STD
1125
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
1125V2
LATHE CHUCK KEY 9.82MM STD
Price
N/A
1126
DEAD CENTER MT#3 CARBIDE-TIPPED
1127
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
1128
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
1129
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1130
HEX WRENCH 3MM
Price
N/A
1131
HEX WRENCH 4MM
Price
N/A
1132
HEX WRENCH 5MM
Price
N/A
1133
HEX WRENCH 6MM
Price
N/A
1134
HEX WRENCH 8MM
Price
N/A
1135
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
1136
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
1137
3-JAW CHUCK 5"
Price
N/A
1137-1
CHUCK BACKPLATE 5"
1138
SPINDLE CLAMP
1139
CAP SCREW M6-1 X 20
Price
N/A
1140
***USE P0602952V2***
Price
N/A
1140V2
SPANNER WRENCH V2.03.20 (G0602)
Price
N/A

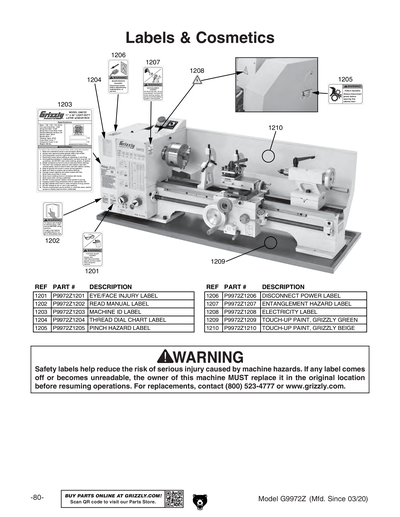

1201
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
1202
READ MANUAL 1.5W X 2.5H
Price
N/A
1203
MACHINE ID LABEL
1204
THREAD DIAL CHART LABEL
1205
PINCH HAZARD LABEL HORIZ
1206
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
1207
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
1208
ELECTRICITY 0.7W X 0.6H
Price
N/A
1209
N/S GRIZZLY GREEN G1023S
Price
N/A
1210
LIGHT BEIGE REF G4003G
Price
N/A
420
POWER FEED LEVER BRACKET
Price
N/A
519
CAP SCREW M6-1 X 12
Price
N/A
MANUAL
MANUAL G9972Z MFD-09.11-2.20 V2.07.14
Price
N/A
MANV2
MANUAL G9972Z MFD-09.11-2.20 V2.07.14
MANV3
MANUAL G9972Z MFD-03.20+ V3.04.20
P9976001A
*DISCD*CAPACITOR
Price
N/A
P
MANUAL G9983 MFD-08/09+ V2.06.13
P
KEY 3 X 3 X 8
