Parts for G9972Z 11" x 26" Benchtop Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HEADSTOCK NAMEPLATE
2
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
4
*DISCD*SCREW
Item is no longer available
Price
N/A
5
CAP SCREW M6-1 X 25
Price
N/A
6
***USE PW03M***
7
COMPRESSION SPRING .8 X 8 X 20
8
THREADED BLOCK
9
*DISCD*SCREW M6 X 12
Item is no longer available
Price
N/A
10
***USE PCAP06M***
11
SPINDLE
11-1
SPINDLE CLAMP
12
***USE PK123M***
13
SPACER
14
***USE P32009***
15
HEADSTOCK CASTING
15A
COMPLETE HEADSTOCK ASSY
16
CAP SCREW M8-1.25 X 20
Price
N/A
17
***USE P32009***
17-1
BEARING CAP
18
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
19
SPACER
20
GEAR 45T
21
Now: PVM29
V-BELT M29 3L290
Price
N/A
22
SPINDLE PULLEY
23
Now: PVM32
V-BELT M32 3L320
Price
N/A
24
SPANNER NUT M30-3.5
25
BRACKET PLATE
26
LOCK WASHER 10MM
Price
N/A
27
***USE PN02M***
28
***USE PW04M***
29
***USE PCAP50M***
30
***USE PW23M***
31
IDLER SHAFT
32
TIMING BELT
33
***USE P6001-2RS***
34
IDLER PULLEY
35
***USE PR49M***
36
FLAT WASHER 18MM
Price
N/A
37
MOTOR PULLEY
38
***USE PK11M***
39
Now: PR45M
INT RETAINING RING 10MM
Price
N/A
40
THREADED HANDLE ROD
41
PIVOT BRACKET
42
Now: PW04M
FLAT WASHER 10MM
Price
N/A
43
Now: PN02M
HEX NUT M10-1.5
Price
N/A
44
TENSIONING SHAFT
45
***USE P6001-2RS***
46
IDLER ROLLER
47
***USE PR20M***
48
***USE PR03M***
49
CHANGE GEAR COVER
51
***USE PN06M***
52
OUTBOUND SPINDLE COVER
53
***USE PS08M***
101
SET SCREW M6-1 X 10
Price
N/A
102
KEYED BUSHING
Price
N/A
103
GEAR 45T
104
GEAR 24T
106
GEAR SHAFT
Price
N/A
107
CLIPPED WASHER 8MM
108
***USE PLUBE001M***
1105
*DISCD*CAPACITOR COVER W/CLIP
Price
N/A
1106
***USE PC150F***
1107
STRAIN RELIEF NUT 1/2"
Price
N/A
1109
***USE P9972Z1119***
1110
FWD/REV SWITCH KEDU EN61058
Price
N/A
1115
STRAIN RELIEF 3/4"
Price
N/A
201
CHANGE GEAR BRACKET
202
PULLEY SHAFT SQUARE NUT
203
***USE PW03M***
204
SHAFT
205
KEYED BUSHING
Price
N/A
206
GEAR 127T
207
GEAR 120T
208
RETAINING CLIP
209
***USE PLUBE001M***
210
BUSHING
211
Now: PK97M
KEY 4 X 4 X 14
Price
N/A
212
SPACER
213
GEAR 84T
214
Now: PW03M
FLAT WASHER 6MM
Price
N/A
215
***USE PCAP04M***
216
***USE PLW04M***
217
CAP SCREW M8-1.25 X 40
Price
N/A
218
GEAR 28T
219
GEAR 35T
220
GEAR 63T
221
GEAR 69T
222
GEAR 70T
223
GEAR 77T
224
GEAR 78T
301
PLUG
302
*DISCD*O-RING 17 X 1.8
303
BUSHING
304
COMBO GEAR 30T/36T/33T
305
***USE PK155M***
306
SHAFT
307
BUSHING
308
COMBO GEAR 22T/44T/33T
309
PLUG
310
***USE PCAP50M***
311
BACK GEARBOX COVER
312
FILL PLUG
313

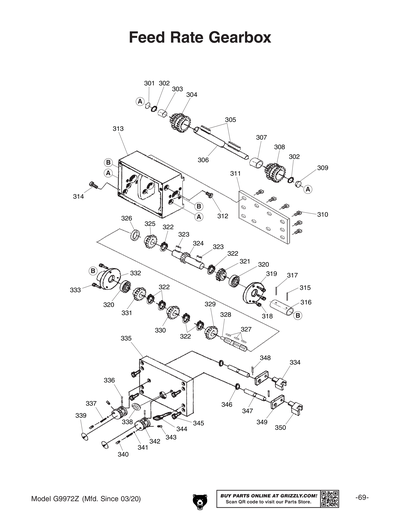

GEARBOX CASTING
314
DRAIN PLUG
315
DOWEL PIN 5 X 22
315-1
DOWEL PIN 5 X 22
Price
N/A
316
LEADSCREW COLLAR
317
BRASS PIN
318
CAP SCREW M6-1 X 12
Price
N/A
319
FLANGE
320
BEARING
321
GEAR 33T
322
***USE PR03M***
323
***USE PK65M***
324
GEAR SHAFT 22T
325
GEAR 44T
326
COLLAR
327
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
328
SHAFT
329
GEAR 33T
330
GEAR 30T
331
GEAR 35T
332
FLANGE
333
***USE PCAP01M***
334
SHIFTING FORK
335
FRONT GEARBOX COVER
336
ROLL PIN 5 X 30
Price
N/A
337
COMPRESSION SPRING .8 X 4.5 X 18
338

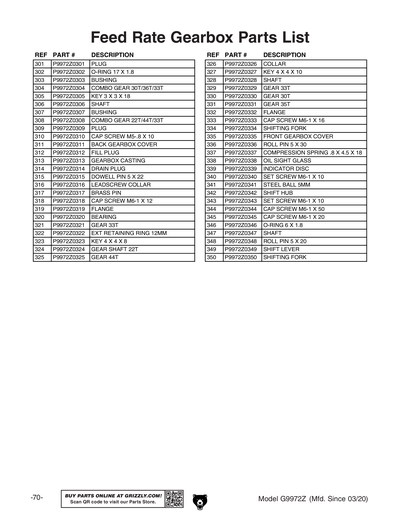

OIL SIGHT GLASS
339
INDICATOR DISC
340
***USE PSS01M***
341
***USE PSTB004M***
342
SHIFT HUB
343
***USE PSS01M***
344
CAP SCREW M6-1 X 50
Price
N/A
345
***USE PCAP37M***
346
***USE POR0061***
347
SHAFT
348
***USE PRP03M***
349
SHIFT LEVER
350
SHIFTING FORK
401
APRON CASTING
402
HANDLE SCREW
403
WORM GEAR
404
KEY 4 X 5 X 25
Price
N/A
405
HANDLE HUB
406
PIN 4 X 20
407
***USE PN06M***
408
***USE PSS34M***
409
***USE PSTB004M***
410
COMPRESSION SPRING
411
HANDLE
412
***USE PSS02M***
413
***USE PW04M***
414
***USE PFH29M***
415
GEAR SHAFT 12T
416
***USE PRP73M***
417
GEAR 43T
418
HANDLE
419
GEAR SHAFT 13T
420
POWER FEED LEVER BRACKET
421
COMPRESSION SPRING
422
***USE PSS23M***
423
CAP SCREW M6-1 X 30
Price
N/A
424
GEAR SHAFT 36T
425
SHAFT
426
***USE PK72M***
427
GEAR 60T
428
***USE PR02M***
429
BALL OILER 6MM PRESS-IN
Price
N/A
430
GEAR SHAFT 22T
431
HANDWHEEL
432
ROLL PIN 4 X 24
Price
N/A
433
HANDLE M8-1.25 X 83
437
GEAR SHAFT 18T
438
***USE PK69M***
439
GEAR 42T
440
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
442
HALF NUT INCH (2PC)
442-1
HALF NUT BRACKET
443
HALF NUT GIB
444
ROLL PIN 2 X 35
445
CAP SCREW M4-.7 X 16
Price
N/A
446
***USE PSS24M***
447
***USE PN06M***
448
CONTROL BLOCK
449
PIVOT BRACKET
450
***USE PCAP39M***
451
CAP SCREW M5-.8 X 16
Price
N/A
452
STUD-DE M5-.8 X 36 15 15
453
***USE P0602126***
454
PINION GEAR 32T
455
SHAFT
456
***USE PK39M***
457
***USE PLW04M***
458
***USE PN03M***
459
THREAD DIAL
460
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
461
POINTER
462
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
463
CAP SCREW M6-1 X 55
Price
N/A
464
REAR APRON COVER
465
Now: PW05M
FLAT WASHER 4MM
Price
N/A
466
***USE PS17M***
467
ROLL PIN 5 X 12
Price
N/A
501

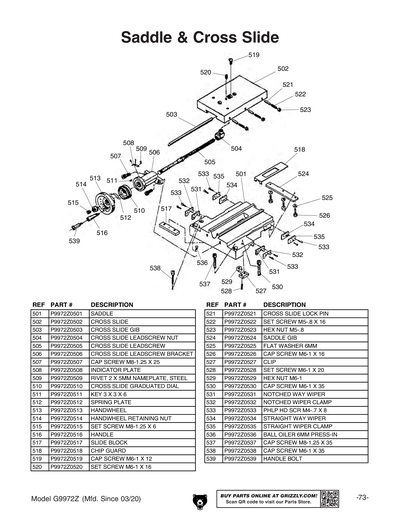

SADDLE
502
CROSS SLIDE
503
CROSS SLIDE GIB
504
CROSS SLIDE LEADSCREW NUT
505
CROSS SLIDE LEADSCREW
506
CROSS SLIDE LEADSCREW BRACKET
507
CAP SCREW M8-1.25 X 25
Price
N/A
508
INDICATOR PLATE
509
***USE PRIV001M***
510
CROSS SLIDE GRADUATED DIAL
511
***USE PK105M***
512
SPRING PLATE
513
HANDWHEEL
514
HANDWHEEL RETAINING NUT
515
***USE PSS17M***
516
HANDLE
517
SLIDE BLOCK
518
CHIP GUARD
519
***USE PCAP26M***
520
***USE PSS11M***
521
CROSS SLIDE LOCK PIN
522
***USE PSS34M***
523
***USE PN06M***
524
SADDLE GIB
525
Now: PW03M
FLAT WASHER 6MM
Price
N/A
526
***USE PCAP01M***
527
CLIP
528
SET SCREW M6-1 X 20
Price
N/A
529
***USE PN01M***
530
CAP SCREW M6-1 X 35
Price
N/A
531
NOTCHED WAY WIPER
532
NOTHED WIPER CLAMP
533
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
534
STRAIGHT WAY WIPER
535
STRAIGHT WIPER CLAMP
536
BALL OILER 6MM PRESS-IN
Price
N/A
537
***USE PCAP40M***
538
***USE PCAP48M***
539
HANDLE BOLT
54
***USE P9972Z1138***
55
CAP SCREW M6-1 X 20
Price
N/A
601
COMPOUND SLIDE
602
SWIVEL BASE
603
COMPOUND SLIDE GIB
604
CLAMPING RING
605
CLAMPING BASE
606
LEADSCREW NUT
607
PLUNGER
608
TOOL POST STUD
609
Now: PW01M
FLAT WASHER 8MM
Price
N/A
610
SLIDE LOCK PIN
611
COMPRESSION SPRING
612
TOOL POST CAP SCREW
613
***USE PCAP31M***
614
***USE PCAP26M***
615
***USE PSS34M***
616
***USE PN06M***
617
T-SCREW M6-1.0 X 25 V1.01.04
617V2
SET SCREW M8-1.25 X 40
Price
N/A
617V2-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
618
TOOL POST HANDLE
619
TOOL POST HANDLE HUB
620
TOOL POST BODY
621
*DISCD*HUB FLAT WASHER
Item is no longer available
Price
N/A
622
TOOL REST BASE
623
COMPOUND SLIDE LEADSCREW
624
LEADSCREW BRACKET
625
GRADUATED DIAL
626
HANDWHEEL
627
HANDLE
628
***USE PK03M***
629
SPRING PLATE
630
THREADED COLLAR
631
***USE PSS06M***
700
COMPLETE TAILSTOCK ASSY
701
TAILSTOCK QUILL MT#3
702
TAILSTOCK LEADSCREW
703
BUSHING
704
INDICATOR PLATE
705
HANDWHEEL
706
QUILL LOCK
707
Now: PW06M
FLAT WASHER 12MM
Price
N/A
708
***USE PSS04M***
709
GRADUATED DIAL
710
SPRING PLATE
711
SPACER
712
TAILSTOCK CASTING
713
TAILSTOCK BASE
714
SET SCREW M8-1.25 X 25
Price
N/A
715
HANDLE
716
PLATE
717
***USE PK39M***
718
***USE PN02M***
719
***USE PRIV001M***
720
OIL PORT 9MM
721
CLAMPING PLATE
722
CLAMPING PLATE HEX NUT
723
***USE PB121M***
724
Now: PW06M
FLAT WASHER 12MM
Price
N/A
725
***USE PSS26M***
726
INDICATOR PLATE
801
BED
802
***USE P9972Z0802V2***
802V2
RACK V2.01.22
803
***USE PCAP33M***
804
FEED LEADSCREW INCH
804A
FEED SCREW METRIC
805
LEADSCREW END BRACKET
806
***USE PLUBE001M***
807
***USE PCAP02M***
808
***USE PN02M***
809
SPLASH GUARD
810
STUD-SE M10-1.5 X 45 35
811
***USE PN02M***
812
***USE PSS44M***
813
***USE PW01M***
814
***USE PN03M***
815
CHIP PAN
901
STEADY REST CASTING
901A
COMPLETE STEADY REST
902
FINGER
903
FINGER T-BOLT
904
LOCK WASHER 8MM
Price
N/A
905
Now: PN03M
HEX NUT M8-1.25
Price
N/A
906
ADJUSTING SCREW
907
CLAMPING PLATE
908
***USE PB125M***
909
Now: PW06M
FLAT WASHER 12MM
Price
N/A
910
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1001
FOLLOW REST CASTING
1002
***USE P9972Z0902***
1003
***USE P9972Z0903***
1004
***USE P9972Z0906***
1005
Now: PN03M
HEX NUT M8-1.25
Price
N/A
1006
***USE PW01M***
1007
***USE PCAP40M***
1008
Now: PW01M
FLAT WASHER 8MM
Price
N/A
1101
ELECTRICAL CABINET
1102
CAP SCREW M6-1 X 25
Price
N/A
1103
***USE PLW03M***
1104
ELECTRICAL CABINET COVER
1105
*DISCD*CAPACITOR COVER W/CLIP
Item is no longer available
Price
N/A
1106
***USE PC150F***
1106-1
R CAPACITOR 20M 450V 1-3/4 X 3-3/4
1107
STRAIN RELIEF NUT 1/2"
1108
STRAIN RELIEF 1/2"
1109
ON/OFF SWITCH W/COVER
Price
N/A
1109-1
***USE P0704095***
1110
***USE PS09M***
1111
MOTOR 1HP 110V 1-PH
1111-1
MOTOR FAN
1111-2
MOTOR FAN COVER
1111-3
MOTOR WIRING JUNCTION BOX
1112
LOCK WASHER 5MM
Price
N/A
1113
***USE PN04M***
1114
***USE PS52M***
1115
STRAIN RELIEF 3/4"
1116
STRAIN RELIEF NUT 3/4"
1117
4-JAW CHUCK 6-1/4" V1
1117-1
CHUCK BACKPLATE 6-1/2"
1117V2
4-JAW CHUCK 6-1/4" V2.01.16
1118
DEAD CENTER MT#3
1119
ON/OFF SWITCH W/COVER
1120
FWD/REV SWITCH KEDU EN61058
Price
N/A
1121
TOOL BOX
1122
FACEPLATE 8"
1123
3-JAW CHUCK REVERSE JAW SET
1124
LATHE CHUCK KEY 9.82MM STD
1125V2
LATHE CHUCK KEY 9.82MM STD
Price
N/A
1126
DEAD CENTER MT#3 CARBIDE-TIPPED
1127
***USE PWR810***
1128
***USE PWR1214***
1129
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1130
HEX WRENCH 3MM
Price
N/A
1131
***USE PAW04M***
1132
HEX WRENCH 5MM
Price
N/A
1133
HEX WRENCH 6MM
Price
N/A
1134
HEX WRENCH 8MM
Price
N/A
1135
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
1136
***USE PSDP2***
1137
3-JAW CHUCK 5"
Price
N/A
1137-1
CHUCK BACKPLATE 5"
1138
SPINDLE CLAMP
1139
CAP SCREW M6-1 X 20
Price
N/A
1140
***USE P0602952V2***
Price
N/A
1140V2
SPANNER WRENCH V2.03.20 (G0602)
Price
N/A
1201
***USE PLABEL-88A***
1202
***USE PLABEL-12C***
1203
MACHINE ID LABEL
1204
THREAD DIAL CHART LABEL
1205
PINCH HAZARD LABEL HORIZ
1206
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
1207
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
1208
***USE PLABEL-14A***
1209
***USE PPAINT-1***
1210
LIGHT BEIGE REF G4003G
Price
N/A
420
***USE P9972Z0420***
519
CAP SCREW M6-1 X 12
Price
N/A
MANUAL
MANUAL G9972Z MFD-09.11-2.20 V2.07.14
Price
N/A
MANV2
MANUAL G9972Z MFD-09.11-2.20 V2.07.14
MANV3
MANUAL G9972Z MFD-03.20+ V3.04.20
P9976001A
*DISCD*CAPACITOR
Price
N/A
P
MANUAL G9983 MFD-08/09+ V2.06.13
P
KEY 3 X 3 X 8
