Parts for G9983 15" Wide-Belt Sander (Open End)

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

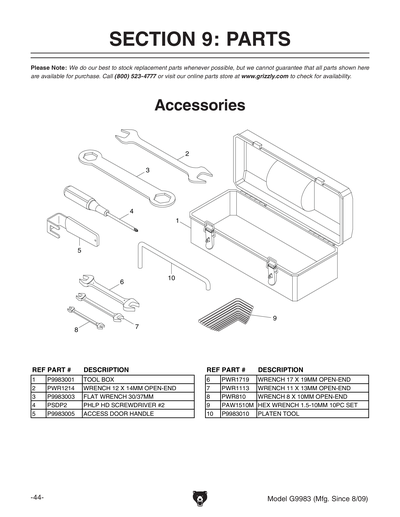

1
*DISCD*TOOL BOX
Item is no longer available
Price
N/A
12
*DISCD*HANDLE M10
Price
N/A
2
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
3
*DISCD*FLAT WRENCH 30/37MM
Item is no longer available
Price
N/A
4
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
5
*DISCD*ACCESS DOOR HANDLE
Item is no longer available
Price
N/A
6
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
7
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
8
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
9
HEX WRENCH 1.5-10MM 10PC SET
Price
N/A
10
*DISCD*PLATEN TOOL
Item is no longer available
Price
N/A
27
*DISCD*MACHINE BASE COVER
Item is no longer available
Price
N/A
61
Now: PVA71
V-BELT A71
Price
N/A
1001
*DISCD*PLASTIC COVER
Item is no longer available
Price
N/A
1002
*DISCD*NUT
Item is no longer available
Price
N/A
1003
*DISCD*SPRING WASHER
Item is no longer available
Price
N/A
1004
*DISCD*WASHER
Item is no longer available
Price
N/A
1007
*DISCD*SCREW
Item is no longer available
Price
N/A
1008
*DISCD*WASHER
Item is no longer available
Price
N/A
1009
*DISCD*NUT
Item is no longer available
Price
N/A

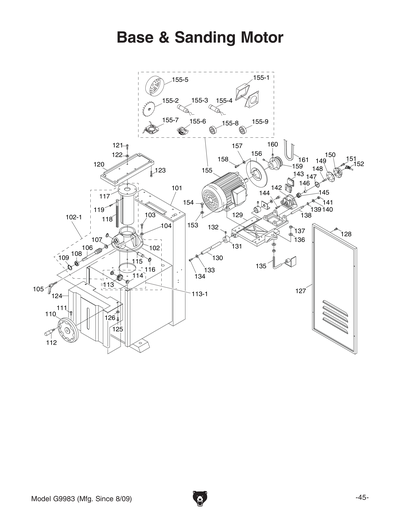

101
*DISCD*MACHINE BASE
Item is no longer available
Price
N/A
1011
*DISCD*SET SCREW
Item is no longer available
Price
N/A
1012
*DISCD*NUT
Item is no longer available
Price
N/A
102
*DISCD*QUILL ASSY
Price
N/A
102-1
*DISCD*QUILL ASSY
Item is no longer available
Price
N/A
103
CAP SCREW M10-1.5 X 25
Price
N/A
104
LOCK WASHER 10MM
Price
N/A
105
*DISCD*ADJUSTABLE HANDLE
Item is no longer available
Price
N/A
106
*DISCD*WORM GEAR SHAFT
Item is no longer available
Price
N/A
107
THRUST BEARING 51102
Price
N/A
108
BALL BEARING 6203ZZ
Price
N/A
109
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
110
*DISCD*HANDWHEEL
111
CAP SCREW M10-1.5 X 25
Price
N/A
112
*DISCD*HANDLE M10
113
*DISCD*WORM GEAR ASSEMBLY
Price
N/A
113-1
*DISCD*WORM GEAR ASSEMBLY
114
*DISCD*QUILL ASSY
Price
N/A
115
*DISCD*GEAR SHAFT
116
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
117
*DISCD*QUILL ASSY
Price
N/A
118
*DISCD*RACK
Item is no longer available
Price
N/A
119
CAP SCREW M6-1 X 12
Price
N/A
120
*DISCD*CONVEYOR SUPPORT
121
CAP SCREW M8-1.25 X 40
Price
N/A
122
LOCK WASHER 8MM
Price
N/A
123
CAP SCREW M8-1.25 X 40
Price
N/A
124
*DISCD*QUILL COVER
125
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
126
Now: PW03M
FLAT WASHER 6MM
Price
N/A
127
*DISCD*MACHINE REAR COVER
128
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
129
*DISCD*MOTOR BASE
Item is no longer available
Price
N/A
130
*DISCD*SETTING SHAFT
Item is no longer available
Price
N/A
131
*DISCD*LOCK BUSHING
Item is no longer available
Price
N/A
132
SET SCREW M8-1.25 X 20
Price
N/A
133
Now: PW04M
FLAT WASHER 10MM
Price
N/A
134
CAP SCREW M10-1.5 X 12
Price
N/A
135
*DISCD*MOTOR MOUNT L-BOLT
Item is no longer available
Price
N/A
136
Now: PW06M
FLAT WASHER 12MM
Price
N/A
137
Now: PN09M
HEX NUT M12-1.75
Price
N/A
138
*DISCD*BRAKE PIN
139
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
140
LOCK WASHER 10MM
Price
N/A
141
Now: PN02M
HEX NUT M10-1.5
Price
N/A
142
*DISCD*BRAKE CALIPER
143
*DISCD*BRAKE PAD 2-PC
Item is no longer available
Price
N/A
144
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
145
*DISCD*COMPRESSION SPRING D34 X 15
Item is no longer available
Price
N/A
146
*DISCD*BRAKE AXLE
Item is no longer available
Price
N/A
147
*DISCD*SPRING COVER
Item is no longer available
Price
N/A
148
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
149
DIAPHRAGM
Price
N/A
150
*DISCD*TOP COVER
Item is no longer available
Price
N/A
151
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
152
*DISCD*PLASTIC CONNECTOR L6-1/8"
Price
N/A
153
LOCK WASHER 10MM
Price
N/A
154
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
155
*DISCD*SPINDLE MOTOR 5HP 220V 1-PH
Item is no longer available
Price
N/A
155-1
*DISCD*TERMINAL BOX
Item is no longer available
Price
N/A
155-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
155-3
*DISCD*S CAPACITOR 800M 250V 1-3/4 X 3-1
Item is no longer available
Price
N/A
155-4
*DISCD*R CAPACITOR 80M 350V 1-5/23 X 3-1
Item is no longer available
Price
N/A
155-5
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
155-6
*DISCD*CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
155-7
*DISCD*CONTACT PLATE
Item is no longer available
Price
N/A
155-8
*DISCD*FRONT MOTOR BEARING
155-9
*DISCD*REAR MOTOR BEARING
156
*DISCD*BRAKE ROTOR
Item is no longer available
Price
N/A
157
LOCK WASHER 10MM
Price
N/A
158
CAP SCREW M10-1.5 X 18
Price
N/A
159
*DISCD*MOTOR PULLEY
160
SET SCREW M10-1.5 X 12
Price
N/A
161
Now: PVA71
V-BELT A71
Price
N/A

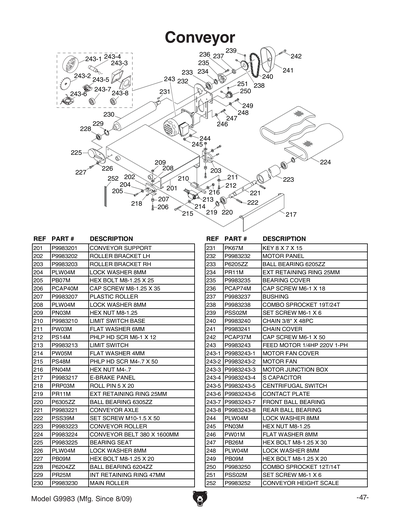

201
*DISCD*CONVEYOR SUPPORT
Item is no longer available
Price
N/A
202
*DISCD*ROLLER BRACKET LH
203
*DISCD*ROLLER BRACKET RH
204
LOCK WASHER 8MM
Price
N/A
205
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
206
CAP SCREW M8-1.25 X 35
Price
N/A
207
*DISCD*PLASTIC ROLLER
208
LOCK WASHER 8MM
Price
N/A
209
Now: PN03M
HEX NUT M8-1.25
Price
N/A
210
*DISCD*LIMIT SWITCH BASE
211
Now: PW03M
FLAT WASHER 6MM
Price
N/A
212
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
213
*DISCD*LIMIT SWITCH
Item is no longer available
Price
N/A
214
Now: PW05M
FLAT WASHER 4MM
Price
N/A
215
Now: PS48M
PHLP HD SCR M4-.7 X 50
Price
N/A
216
Now: PN04M
HEX NUT M4-.7
Price
N/A
217
*DISCD*E-BRAKE PANEL
Item is no longer available
Price
N/A
218
ROLL PIN 5 X 20
Price
N/A
219
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
220
BALL BEARING 6305ZZ
Price
N/A
221
*DISCD*CONVEYOR AXLE
Item is no longer available
Price
N/A
222
SET SCREW M10-1.5 X 50
Price
N/A
223
*DISCD*CONVEYOR ROLLER
Item is no longer available
Price
N/A
224
*DISCD*CONVEYOR BELT 380 X 1600MM
225
*DISCD*BEARING SEAT
Item is no longer available
Price
N/A
226
LOCK WASHER 8MM
Price
N/A
227
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
228
BALL BEARING 6204ZZ
Price
N/A
229
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
230
*DISCD*MAIN ROLLER
Item is no longer available
Price
N/A
231
Now: PK67M
KEY 8 X 7 X 15
Price
N/A
232
*DISCD*MOTOR PANEL
233
BALL BEARING 6205ZZ
Price
N/A
234
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
235
*DISCD*BEARING COVER
236
CAP SCREW M6-1 X 18
Price
N/A
237
*DISCD*BUSHING
238
*DISCD*COMBO SPROCKET 19T/24T
Item is no longer available
Price
N/A
239
SET SCREW M6-1 X 6
Price
N/A
240
*DISCD*CHAIN 3/8" X 48PC
241
*DISCD*CHAIN COVER
242
CAP SCREW M6-1 X 50
Price
N/A
243
*DISCD*FEED MOTOR 1/4HP 220V 1-PH
Item is no longer available
Price
N/A
243-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
243-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
243-3
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
243-4
*DISCD*S CAPACITOR 80M 350V 2-3/16 X 3-9
Item is no longer available
Price
N/A
243-7
*DISCD*FRONT BALL BEARING
Item is no longer available
Price
N/A
243-8
*DISCD*REAR BALL BEARING
Item is no longer available
Price
N/A
244
LOCK WASHER 8MM
Price
N/A
245
Now: PN03M
HEX NUT M8-1.25
Price
N/A
246
Now: PW01M
FLAT WASHER 8MM
Price
N/A
247
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
248
LOCK WASHER 8MM
Price
N/A
249
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
250
*DISCD*COMBO SPROCKET 12T/12T
251
SET SCREW M6-1 X 6
Price
N/A
252
*DISCD*CONVEYOR HEIGHT SCALE

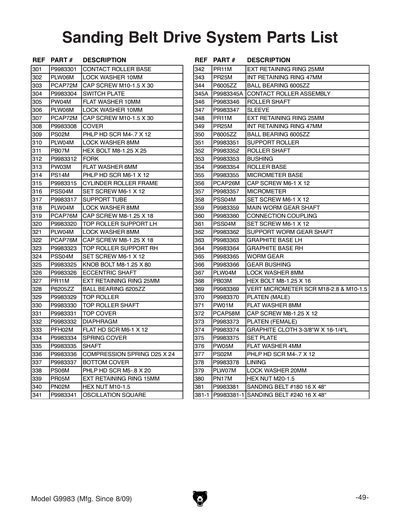

301
*DISCD*CONTACT ROLLER BASE
Item is no longer available
Price
N/A
302
LOCK WASHER 10MM
Price
N/A
303
CAP SCREW M10-1.5 X 30
Price
N/A
304
*DISCD*SWITCH PLATE
Item is no longer available
Price
N/A
305
Now: PW04M
FLAT WASHER 10MM
Price
N/A
306
LOCK WASHER 10MM
Price
N/A
307
CAP SCREW M10-1.5 X 30
Price
N/A
308
*DISCD*COVER
Item is no longer available
Price
N/A
309
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
310
LOCK WASHER 8MM
Price
N/A
311
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
312
*DISCD*FORK
Item is no longer available
Price
N/A
313
Now: PW03M
FLAT WASHER 6MM
Price
N/A
314
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
315
*DISCD*CYLINDER ROLLER FRAME
Item is no longer available
Price
N/A
316
SET SCREW M6-1 X 12
Price
N/A
317
*DISCD*SUPPORT TUBE
Item is no longer available
Price
N/A
318
LOCK WASHER 8MM
Price
N/A
319
CAP SCREW M8-1.25 X 18
Price
N/A
320
*DISCD*TOP ROLLER SUPPORT LH
Item is no longer available
Price
N/A
321
LOCK WASHER 8MM
Price
N/A
322
CAP SCREW M8-1.25 X 18
Price
N/A
323
*DISCD*TOP ROLLER SUPPORT RH
324
SET SCREW M6-1 X 12
Price
N/A
325
*DISCD*KNOB BOLT M8-1.25 X 80
326
*DISCD*ECCENTRIC SHAFT
327
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
328
BALL BEARING 6205ZZ
Price
N/A
329
*DISCD*TOP ROLLER
Item is no longer available
Price
N/A
330
*DISCD*TOP ROLLER SHAFT
331
*DISCD*TOP COVER
332
DIAPHRAGM
Price
N/A
333
FLAT HD SCR M6-1 X 12
Price
N/A
334
*DISCD*SPRING COVER
335
*DISCD*SHAFT
Item is no longer available
Price
N/A
336
*DISCD*COMPRESSION SPRING D25 X 24
Item is no longer available
Price
N/A
337
*DISCD*BOTTOM COVER
Item is no longer available
Price
N/A
338
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A

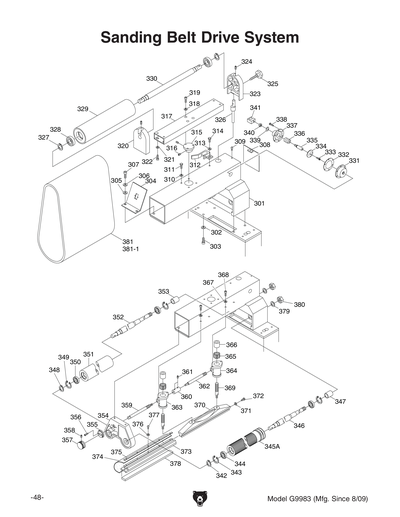

339
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
340
Now: PN02M
HEX NUT M10-1.5
Price
N/A
341
*DISCD*OSCILLATION SQUARE
342
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
343
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
344
BALL BEARING 6005ZZ
Price
N/A
345
*DISCD*CONTACT ROLLER ASSEMBLY
Price
N/A
345A
*DISCD*CONTACT ROLLER ASSEMBLY
Item is no longer available
Price
N/A
345A-1
*DISCD*CONTACT ROLLER ASSEMBLY
Price
N/A
346
*DISCD*ROLLER SHAFT
Item is no longer available
Price
N/A
347
*DISCD*SLEEVE
348
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
349
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
350
BALL BEARING 6005ZZ
Price
N/A
351
*DISCD*SUPPORT ROLLER
Item is no longer available
Price
N/A
352
*DISCD*ROLLER SHAFT
Item is no longer available
Price
N/A
353
*DISCD*BUSHING
Item is no longer available
Price
N/A
354
*DISCD*ROLLER BASE
355
*DISCD*MICROMETER BASE
Item is no longer available
Price
N/A
356
CAP SCREW M6-1 X 12
Price
N/A
357
*DISCD*MICROMETER
Item is no longer available
Price
N/A
358
SET SCREW M6-1 X 12
Price
N/A
359
*DISCD*MAIN WORM GEAR SHAFT
Item is no longer available
Price
N/A
360
*DISCD*CONNECTION COUPLING
Item is no longer available
Price
N/A
361
SET SCREW M6-1 X 12
Price
N/A
362
*DISCD*SUPPORT WORM GEAR SHAFT
Item is no longer available
Price
N/A
363
*DISCD*GRAPHITE BASE LH
Item is no longer available
Price
N/A
364
*DISCD*GRAPHITE BASE RH
Item is no longer available
Price
N/A
365
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
366
*DISCD*GEAR BUSHING
Item is no longer available
Price
N/A
367
LOCK WASHER 8MM
Price
N/A
368
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
369
*DISCD*VERT MICROMETER SCREW M18-2.8 & M
Item is no longer available
Price
N/A
370
*DISCD*PLATEN (MALE)
371
Now: PW01M
FLAT WASHER 8MM
Price
N/A
372
CAP SCREW M8-1.25 X 12
Price
N/A
373
*DISCD*PLATEN (FEMALE)
Item is no longer available
Price
N/A
374
*DISCD*GRAPHITE CLOTH 3-3/8"W X 16-1/4"L
Item is no longer available
Price
N/A
375
*DISCD*SET PLATE
Item is no longer available
Price
N/A
376
Now: PW05M
FLAT WASHER 4MM
Price
N/A
377
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
378
FELT 16-1/4 X 1-3/16 X 1/2
Item is no longer available
Price
N/A
379
LOCK WASHER 20MM
Price
N/A
380
Now: PN17M
HEX NUT M20-1.5
Price
N/A
381
*DISCD*SANDING BELT #180 16 X 48"
Item is no longer available
Price
N/A
381-1
*DISCD*SANDING BELT #240 16 X 48"
Item is no longer available
Price
N/A

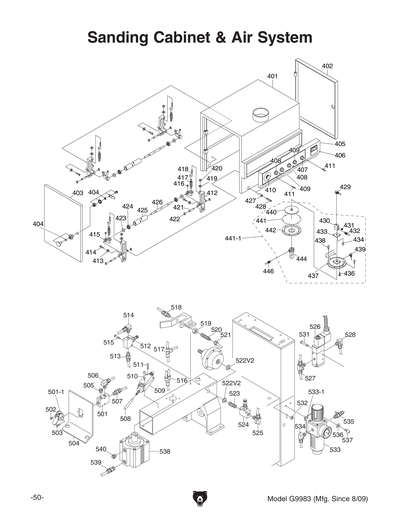

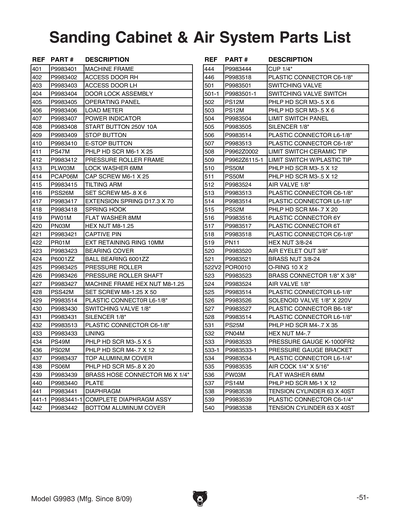

401
*DISCD*MACHINE FRAME
402
*DISCD*ACCESS DOOR RH
403
*DISCD*ACCESS DOOR LH
404
*DISCD*DOOR LOCK ASSEMBLY
Item is no longer available
Price
N/A
405
*DISCD*OPERATING PANEL
406
*DISCD*LOAD METER
Item is no longer available
Price
N/A
407
*DISCD*POWER INDICATOR
Item is no longer available
Price
N/A
408
*DISCD*START BUTTON
Item is no longer available
Price
N/A
409
*DISCD*E-STOP BUTTON 250V 10A
410
*DISCD*E-STOP BUTTON 250V 10A
Item is no longer available
Price
N/A
411
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
412
*DISCD*PRESSURE ROLLER FRAME
Item is no longer available
Price
N/A
413
LOCK WASHER 6MM
Price
N/A
414
CAP SCREW M6-1 X 25
Price
N/A
415
*DISCD*TILTING ARM
416
SET SCREW M5-.8 X 6
Price
N/A
417
*DISCD*EXTENSION SPRING D17.3 X 70
Item is no longer available
Price
N/A
418
*DISCD*SPRING HOOK
Item is no longer available
Price
N/A
419
Now: PW01M
FLAT WASHER 8MM
Price
N/A
420
Now: PN03M
HEX NUT M8-1.25
Price
N/A
421
*DISCD*CAPTIVE PIN
Item is no longer available
Price
N/A
422
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
423
*DISCD*BEARING COVER
Item is no longer available
Price
N/A
424
BALL BEARING 6001ZZ
Price
N/A
425
*DISCD*PRESSURE ROLLER
Item is no longer available
Price
N/A
426
*DISCD*PRESSURE ROLLER SHAFT
Item is no longer available
Price
N/A
427
*DISCD*MACHINE FRAME HEX NUT M8-1.25
Item is no longer available
Price
N/A
428
SET SCREW M8-1.25 X 50
Price
N/A
429
*DISCD*PLASTIC CONNECTOR L6-1/8"
Price
N/A
430
*DISCD*SWITCHING VALVE 1/8"
Item is no longer available
Price
N/A
431
*DISCD*SILENCER 1/8"
Item is no longer available
Price
N/A
432
*DISCD*PLASTIC CONNECTOR C6-1/8"
Price
N/A
433
*DISCD*LINING
Item is no longer available
Price
N/A
434
Now: PS49M
PHLP HD SCR M3-.5 X 5
Price
N/A
435
*DISCD*TOP ALUMINUM COVER
Price
N/A
436
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
437
*DISCD*TOP ALUMINUM COVER
438
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
439
*DISCD*BRASS HOSE CONNECTOR M6 X 1/4"
440
*DISCD*PLATE
441
*DISCD*DIAPHRAGM
Item is no longer available
Price
N/A
441-1
*DISCD*COMPLETE DIAPHRAM ASSY
Item is no longer available
Price
N/A
442
*DISCD*BOTTOM ALUMINUM COVER
Item is no longer available
Price
N/A
444
*DISCD*CUP 1/4"
Item is no longer available
Price
N/A
446
*DISCD*PLASTIC CONNECTOR C6-1/8"
Price
N/A
501
*DISCD*SWITCHING VALVE
501-1
*DISCD*SWITCHING VALVE SWITCH
502
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
503
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
504
*DISCD*LIMIT SWITCH PANEL
Item is no longer available
Price
N/A
505
*DISCD*SILENCER 1/8"
Item is no longer available
Price
N/A
506
*DISCD*PLASTIC CONNECTOR L6-1/8"
Price
N/A
507
*DISCD*PLASTIC CONNECTOR C6-1/8"
Price
N/A
508
LIMIT SWITCH CERAMIC TIP
Price
N/A
509
LIMIT SWITCH MOUJEN ME-8166
Price
N/A
510
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
511
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
512
*DISCD*AIR VALVE 1/8"
Price
N/A
513
*DISCD*PLASTIC CONNECTOR C6-1/8"
Item is no longer available
Price
N/A
514
*DISCD*PLASTIC CONNECTOR L6-1/8"
Item is no longer available
Price
N/A
515
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
516
*DISCD*PLASTIC CONNECTOR 6Y
Item is no longer available
Price
N/A
517
*DISCD*PLASTIC CONNECTOR 6T
Item is no longer available
Price
N/A
518
*DISCD*PLASTIC CONNECTOR C6-1/8"
Item is no longer available
Price
N/A
519
Now: PN11
HEX NUT 3/8-24
Price
N/A
520
*DISCD*AIR EYELET OUT 3/8"
521
*DISCD*BRASS NUT 3/8-24
Item is no longer available
Price
N/A
522
*DISCD*BUSHING 10MM V1
Item is no longer available
Price
N/A
522V2
O-RING 10 X 2
Price
N/A
523
*DISCD*BRASS CONNECTOR 1/8" X 3/8"
Item is no longer available
Price
N/A
524
*DISCD*AIR VALVE 1/8"
Item is no longer available
Price
N/A
525
*DISCD*PLASTIC CONNECTOR L6-1/8"
Price
N/A
526
*DISCD*SOLENOID VALVE 1/8" X 220V
Item is no longer available
Price
N/A
527
*DISCD*PLASTIC CONNECTOR B6-1/8"
Item is no longer available
Price
N/A
528
*DISCD*PLASTIC CONNECTOR L6-1/8"
Price
N/A
530
*DISCD*CONNECTOR
Item is no longer available
Price
N/A
531
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
532
Now: PN04M
HEX NUT M4-.7
Price
N/A
533
*DISCD*PRESSURE GAUGE K-1000FR2
Item is no longer available
Price
N/A
533-1
*DISCD*PRESSURE GAUGE BRACKET
Item is no longer available
Price
N/A
534
*DISCD*PLASTIC CONNECTOR L6-1/4"
Item is no longer available
Price
N/A
535
*DISCD*AIR COCK 1/4" X 5/16"
536
Now: PW03M
FLAT WASHER 6MM
Price
N/A
537
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
538
*DISCD*TENSION CYLINDER 63 X 40ST
Item is no longer available
Price
N/A
539
*DISCD*PLASTIC CONNECTOR C6-1/4"
540
*DISCD*TENSION CYLINDER 63 X 40ST
Price
N/A

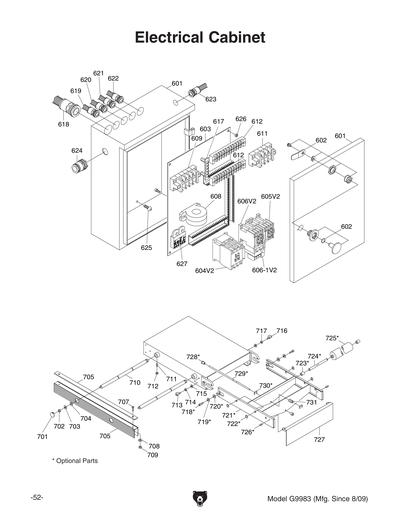

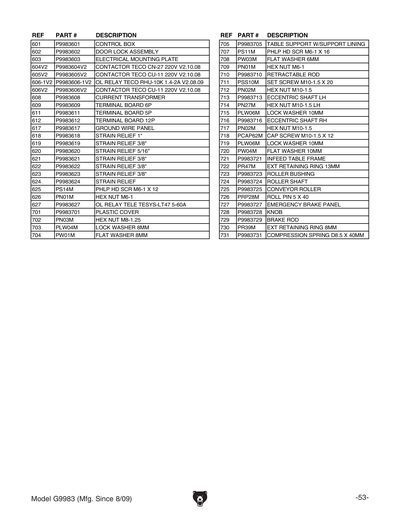

601
*DISCD*CONTROL BOX
Item is no longer available
Price
N/A
602
*DISCD*DOOR LOCK ASSEMBLY
603
*DISCD*ELECTRICAL MOUNTING PLATE
Item is no longer available
Price
N/A
604
*DISCD*CONTACTOR CN-25 SAND 220V TECO V1
Item is no longer available
Price
N/A
604-1
*DISCD*THERMAL RH 18/26
Item is no longer available
Price
N/A
604-1A
*DISCD*ELECTRONIC OVERLOAD RELAY
Item is no longer available
Price
N/A
604V2
*DISCD*CNTCTR CN-27 SAND 220V TECO V2.
Item is no longer available
Price
N/A
605
*DISCD*CONT CN-11 MAIN 220V 50/60HZ V1
Item is no longer available
Price
N/A
605V2
*DISCD*CONTACTOR CU-11 MAIN 220V 50/60HZ
Item is no longer available
Price
N/A
606
*DISCD*CONTACTOR CN-11 FEED 220V TECO V1
Item is no longer available
Price
N/A
606-1
*DISCD*THERMAL RH 10E/1.7C 1.3-2.1A TECO
Item is no longer available
Price
N/A
606-1V2
*DISCD*OL RLAY TEC RHU10K 1.4-2AV2.08.09
606V2
*DISCD*CONT CU-11 FED 220V TECO V2.10.08
608
*DISCD*CURRENT TRANSFORMER
609
*DISCD*TERMINAL BOARD 6P
Item is no longer available
Price
N/A
611
*DISCD*TERMINAL BOARD 5P
Item is no longer available
Price
N/A
612
*DISCD*TERMINAL BOARD 12P
Item is no longer available
Price
N/A
617
*DISCD*GROUND WIRE PANEL
Item is no longer available
Price
N/A
618
*DISCD*STRAIN RELIEF 1" TYPE-10 ST
Item is no longer available
Price
N/A
619
*DISCD*STRAIN RELIEF 3/8" TYPE-10 ST
Item is no longer available
Price
N/A
620
*DISCD*STRAIN RELIEF 5/16" TYPE-10 ST
Item is no longer available
Price
N/A
621
*DISCD*STRAIN RELIEF 3/8" TYPE-10 ST
Item is no longer available
Price
N/A
622
*DISCD*STRAIN RELIEF 3/8" TYPE-10 ST
Item is no longer available
Price
N/A
623
*DISCD*STRAIN RELIEF 3/8" TYPE-10 ST
Item is no longer available
Price
N/A
624
*DISCD*STRAIN RELIEF M25 TYPE-6 ST
625
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
626
Now: PN01M
HEX NUT M6-1
Price
N/A
627
*DISCD*OL RELAY SCHN LT47 5-60A
Item is no longer available
Price
N/A
701
*DISCD*PLASTIC COVER
702
Now: PN03M
HEX NUT M8-1.25
Price
N/A
703
LOCK WASHER 8MM
Price
N/A
704
Now: PW01M
FLAT WASHER 8MM
Price
N/A
705
*DISCD*TABLE SUPPORT W/SUPPORT LINING
Item is no longer available
Price
N/A
705-1
*DISCD*TABLE SUPPORT
705-2
*DISCD*SUPPORT LINING
706
*DISCD*SUPPORT LINING
Price
N/A
707
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
708
Now: PW03M
FLAT WASHER 6MM
Price
N/A
709
Now: PN01M
HEX NUT M6-1
Price
N/A
710
*DISCD*RETRACTABLE ROD
Item is no longer available
Price
N/A
711
SET SCREW M10-1.5 X 20
Price
N/A
712
Now: PN02M
HEX NUT M10-1.5
Price
N/A
713
*DISCD*ECCENTRIC SHAFT LH
Item is no longer available
Price
N/A
714
Now: PN27M
HEX NUT M10-1.5 LH
Price
N/A
715
LOCK WASHER 10MM
Price
N/A
716
*DISCD*ECCENTRIC SHAFT RH
Item is no longer available
Price
N/A
717
Now: PN02M
HEX NUT M10-1.5
Price
N/A
718
CAP SCREW M10-1.5 X 12
Price
N/A
719
LOCK WASHER 10MM
Price
N/A
720
Now: PW04M
FLAT WASHER 10MM
Price
N/A
721
*DISCD*INFEED TABLE FRAME
Item is no longer available
Price
N/A
722
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
723
*DISCD*ROLLER BUSHING
Item is no longer available
Price
N/A
724
*DISCD*ROLLER SHAFT
Item is no longer available
Price
N/A
725
CONVEYOR ROLLER
Item is no longer available
Price
N/A
726
ROLL PIN 5 X 40
Price
N/A
727
*DISCD*EMERGENCY BRAKE PANEL
Item is no longer available
Price
N/A
728
*DISCD*KNOB
Item is no longer available
Price
N/A
729
*DISCD*BRAKE ROD
Item is no longer available
Price
N/A
730
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
731
*DISCD*COMPRESSION SPRING D8.5 X 40MM
Item is no longer available
Price
N/A
732
*DISCD*AMP METER
Item is no longer available
Price
N/A

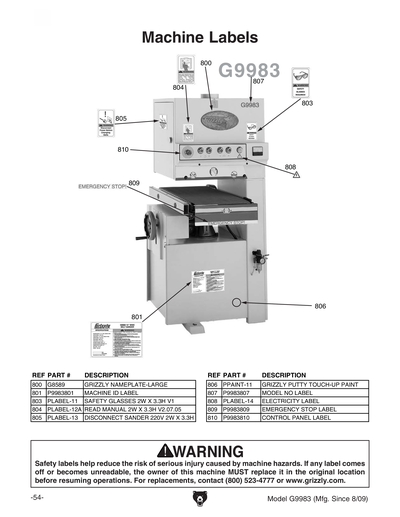

800
Now: G8589
Nameplate - Large
Price
N/A
801
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
802
*DISCD*DUST COLLECTION LABEL
803
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
804
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
805
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
806
GREY PUTTY REF G0504
Price
N/A
807
*DISCD*MODEL NO LABEL
Item is no longer available
Price
N/A
808
ELECTRICITY 1.4W X 1.2H
Price
N/A
809
*DISCD*EMERGENCY STOP LABEL
Item is no longer available
Price
N/A
MANUAL
MANUAL G9983 MFD-08/02-07/09 V1.07.09
MANV3
MANUAL G9983 MFD-08/09+ V2.06.13
Price
N/A
