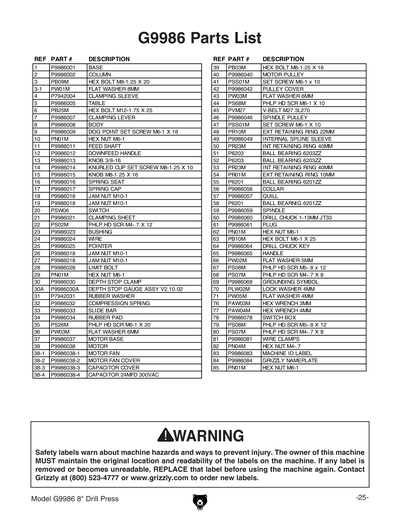

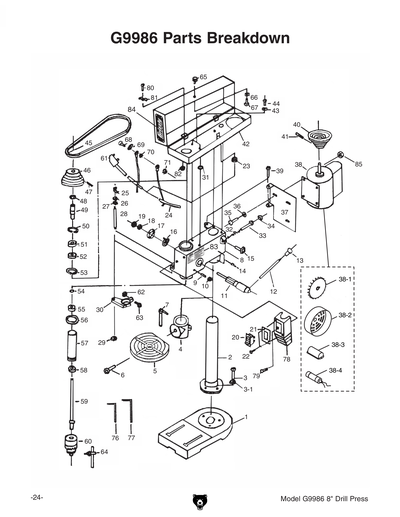

Parts for G9986 8" Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
Item is no longer available
Price
N/A
2
COLUMN
3
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
3-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
4
CLAMPING SLEEVE
Price
N/A
5
*DISCD*TABLE
Item is no longer available
Price
N/A
6
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
7
CLAMPING LEVER
8
BODY
Item is no longer available
Price
N/A
9
DOG PT SET SCR M6-1 X 18
Item is no longer available
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
FEED SHAFT
12
DOWNFEED HANDLE
13
KNOB 3/8-16
14
KNURLED CUP SET SCREW M8-1.25 X 10
Item is no longer available
Price
N/A
15
KNOB M8-1.25 X 16
Item is no longer available
Price
N/A
16
SPRING SEAT
17
SPRING CAP
18
JAM NUT M10-1
19
JAM NUT M10-1
Price
N/A
20
Now: G8988
Safety Paddle Switch
Price
N/A
21
CLAMPING SHEET
Item is no longer available
Price
N/A
22
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
23
BUSHING
Item is no longer available
Price
N/A
24
WIRE
Item is no longer available
Price
N/A
25
POINTER
26
JAM NUT M10-1
Price
N/A
27
JAM NUT M10-1
Price
N/A
28
LIMIT BOLT
Item is no longer available
Price
N/A
29
Now: PN01M
HEX NUT M6-1
Price
N/A
30
HEEL BLOCK
30A
DEPTH STOP GAUGE ASSY V2.10.02
31
THRUST WASHER 8MM RUBBER
Price
N/A
32
COMPRESSION SPRING
33
SLIDE BAR
Item is no longer available
Price
N/A
34
RUBBER PAD
Item is no longer available
Price
N/A
35
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
36
Now: PW03M
FLAT WASHER 6MM
Price
N/A
37
MOTOR BASE
38
MOTOR 1/2HP 110V 1-PH
Item is no longer available
Price
N/A
38-1
MOTOR FAN
38-2
MOTOR FAN COVER
38-3
CAPACITOR COVER
Item is no longer available
Price
N/A
38-4
R CAPACITOR 24M 300V
Item is no longer available
Price
N/A
39
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
40
MOTOR PULLEY
41
SET SCREW M6-1 X 10
Price
N/A
42
PULLEY COVER
43
Now: PW03M
FLAT WASHER 6MM
Price
N/A
44
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
45
Now: PVM27
V-BELT M27 3L270
Price
N/A
46
SPINDLE PULLEY
Item is no longer available
Price
N/A
47
SET SCREW M6-1 X 10
Price
N/A
48
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
49
INTERNAL SPLINE SLEEVE
Item is no longer available
Price
N/A
50
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
51
BALL BEARING 6203ZZ
Price
N/A
52
BALL BEARING 6203ZZ
Price
N/A
53
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
54
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
55
BALL BEARING 6201ZZ
Price
N/A
56
COLLAR
57
QUILL
58
BALL BEARING 6201ZZ
Price
N/A
59
*DISCD*SPINDLE
Item is no longer available
Price
N/A
60
DRILL CHUCK 1-13MM JT33
61
PLUG
Item is no longer available
Price
N/A
62
Now: PN02M
HEX NUT M10-1.5
Price
N/A
63
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
64
DRILL CHUCK KEY
65
HANDLE
Item is no longer available
Price
N/A
66
Now: PW02M
FLAT WASHER 5MM
Price
N/A
67
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
68
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
69
GROUNDING SYMBOL
Item is no longer available
Price
N/A
70
LOCK WASHER 4MM
Price
N/A
71
FLAT WASHER 24MM
Price
N/A
76
HEX WRENCH 3MM
Price
N/A
77
HEX WRENCH 4MM
Price
N/A
78
SWITCH BOX
79
Now: PS39
PHLP HD SCR 10-32 X 3/8
Price
N/A
80
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
81
WIRE CLAMPS
Item is no longer available
Price
N/A
82
Now: PN04M
HEX NUT M4-.7
Price
N/A
83
MACHINE ID LABEL
Item is no longer available
Price
N/A
84
GRIZZLY NAMEPLATE
Item is no longer available
Price
N/A
85
Now: PN01M
HEX NUT M6-1
Price
N/A
MANUAL
MANUAL FOR G9986 04/06
