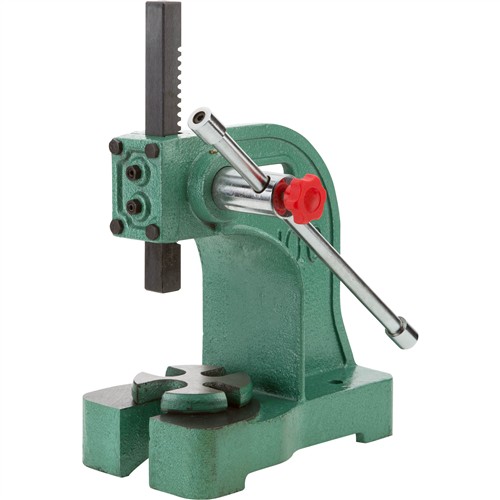

T27033 1/2-Ton Arbor Press

Heavy-duty cast-iron construction for any shop press need.

The T27033 1/2-Ton Arbor Press is designed to perform small press jobs, such as staking, riveting, and installing/removing bearings.

The reversible ram has a magnetic tool holder on one end for securing three included punch tips and accepts dies, inserts, and other tooling for custom work.

The rotating anvil can be removed for additional working height capacity, and the straight handle can be adjusted for different leverage control.

Includes bench mounting holes, three punch tips, and hex wrenches.

SPECIFICATIONS:

• Press capacity: 1/2 Ton
• Throat depth: 4-5/8"
• Anvil diameter: 3-3/8"
• Maximum working height: 4"
• Ram Size: 3/4" x 3/4"
• Base Size: 5-1/8" W x 9-3/8" D
• Overall Size 5-1/8" W x 9-3/8" D x 9-3/8" H
• Approximate shipping weight: 17-1/2 lbs.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T27033 comes with a 1-year warranty.
