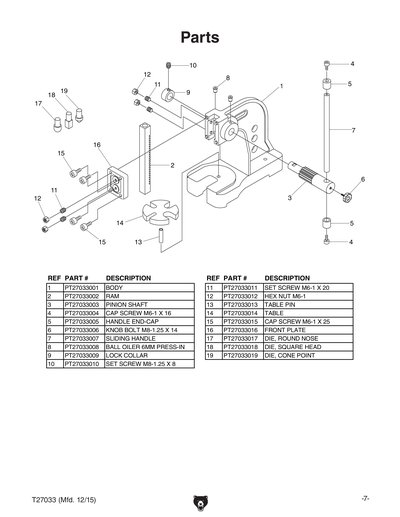

Parts for T27033 1/2 Ton Arbor Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BODY
2
RAM
3
PINION SHAFT
4
CAP SCREW M6-1 X 16
Price
N/A
5
HANDLE END-CAP
6
KNOB BOLT M8-1.25 X 14
7
SLIDING HANDLE
8
BALL OILER 6MM PRESS-IN
Price
N/A
9
LOCK COLLAR
10
SET SCREW M8-1.25 X 8
Price
N/A
11
SET SCREW M6-1 X 20
Price
N/A
12
Now: PN01M
HEX NUT M6-1
Price
N/A
13
TABLE PIN
14
TABLE
15
CAP SCREW M6-1 X 25
Price
N/A
16
FRONT PLATE
17
DIE, ROUND NOSE
18
DIE, SQUARE HEAD
19
DIE, CONE POINT
MAN
MANUAL T27033 MFD-12.15 V1.12.15
