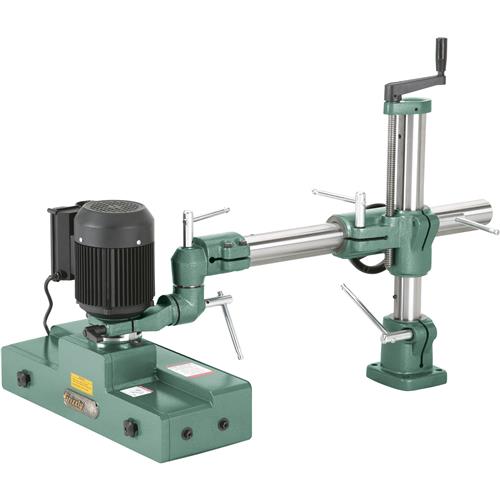

G1135 1 HP 4-Speed Track Power Feeder, Single-Phase

Reduce wobble when feeding lumber through your machines.

If you do any kind of production ripping or milling, you know what a big chore it can be feeding by hand, especially with longer and wider stock.

The G1135 allows you to smoothly and efficiently feed workpieces through your woodworking machines.

Power feeders reduce kickback hazards and improve cutting results by feeding in a consistent and stable manner.

This power feeder has the option to feed a workpiece at 14.5, 29, 39, and 78 feet per minute.

Most common machines these are paired with are shapers and router tables, yet can also be used with table saws and bandsaws.

SPECIFICATIONS:

• Motor: 1 HP, 220V, single-phase, 7.7A
• Feed speeds: (4) 14.5, 29, 39, 78 FPM
• Swing: 360°
• Vertical travel: 9-1/2"
• Horizontal travel: 24-1/4"
• Rotation: Forward and reverse
• Min. workpiece length: 8"
• Track: (3 pieces) synthetic rubber, 1/2" x 44"
• Number of rollers: 5
• Roller suspension: 3/4"
• Max. height of rollers: 8-1/2"
• Overall size: 43-1/4" W x 23-1/2" D x 29-1/2" H
• Approximate shipping weight: 150 lbs.

FEATURES:

• Track feed with four speeds and forward/reverse
• Rollers are spring tensioned with 3/4" of travel
• Heavy-duty gear reduction with hardened gears
• X-, Y-, Z-axis adjustment with handle locks

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G4181 comes with a 1-year warranty.

Made in an ISO 9001 factory
