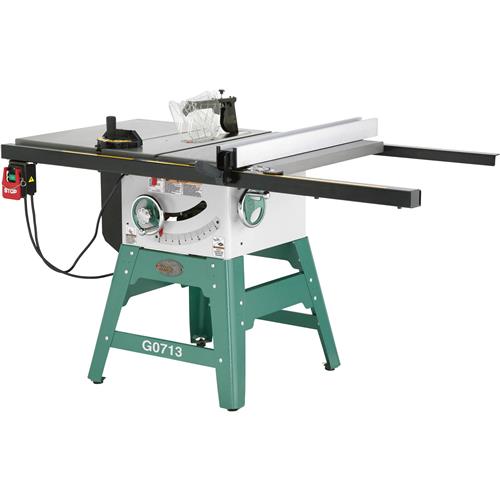

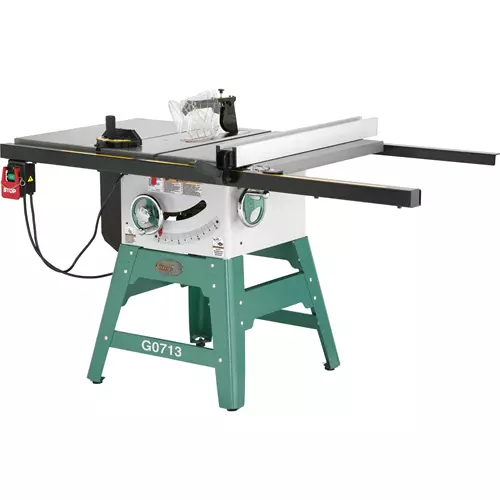

Grizzly G0713 - 10" 1-3/4 HP Left-Tilting Contractor Style Table Saw with Riving Knife

You may be wondering how we can offer a Contractor Style Table Saw with a riving knife that moves up & down with the blade? Well, we combined the lightweight open contractor style stand with a vertically aligned motor & blade raising & tilting mechanism that's supported by heavy cast iron table mounted trunnions. No more cantilevered motor mounts & stationary riving knives. You also get the benefit of very efficient dust collection since the hood moves with the blade mechanism. With all these great features, you'll love this table saw. CSA certified meeting CSA C22.2 #71.2-08 and UL 987 standards!

SPECIFICATIONS:

Motor: 1-3/4 HP, 110V/220V, single-phase, prewired for 110V

Amps: 14A/7A

Precision-ground cast iron table w/wings measures: 27"D x 44"W

Table height: 35-3/8"

Footprint: 26"W x 26-1/4"D

Arbor: 5/8"

Arbor speed: 4200 RPM

Capacity @ 90°: 3-1/8"

Capacity @ 45°: 2-1/4"

Rip capacity: 36" right, 12" left

Quick change between riving knife and blade guard

Overall Size: 66"W x 40"D x 40-1/2"H

Approximate shipping weight: 342 lbs.

FEATURES

2-1/2" dust port

Beveled table edge

Blade height adjustment travels on vertical posts

Fence easily lifts off rails

Precision-ground cast-iron wings

Cast-iron trunnions

Aluminum miter gauge with steel bar

H3308 push stick included
