Item: G1022SM | Model: G1022SM

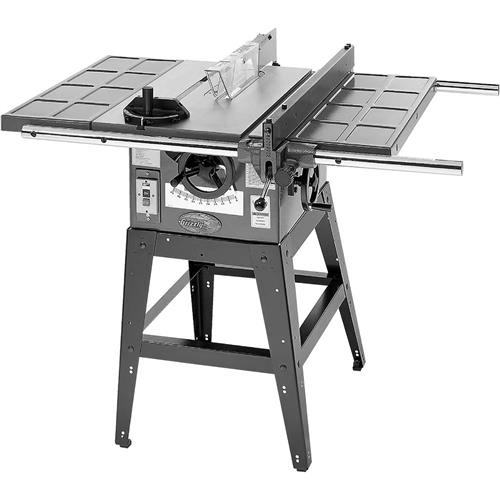

Grizzly G1022SM - 10" Table Saw
This proven performer is the backbone of our G1022 series table saws. With its full complement of features like precision ground cast iron table with T-slots, miter gauge, front and rear locking micro-adjustable fence, impressive cutting capacities, dado blade compatible and sturdy stand, you can't go wrong. Heavy-gauge steel wings also make this saw perfect for the contractor as well as the home craftsman. And it that's not enough, just look at the price and compare this saw to others in its class!
Features:
Specifications:
Features:
- Ball bearing arbor tilts on worm gear mechanism
- Front and rear quick-lock fence with micro-adjustment knob
- Precision ground cast iron table
- Sturdy stand puts the table at a comfortable 37" height
- Rails are 1-3/8" in diameter
- Standard and dado inserts included
Specifications:
- Rail dimensions: 44" x 1-3/8"
- Maximum ripping capacity: 24"
- Table size with extension wings: 27-1/8" x 40-5/8"
- Height of saw to table top: 37"
- Arbor: 5/8" x 1-1/4"
- Arbor accepts dado blades
- Cutting capacity at 90°: 3-1/8"
- Cutting capacity at 45°: 2-1/8"
- Motor: 1-1/2 H.P., Single Phase, 110/220V. Prewired to 110V
- Shipping weight approx. 220 lbs.
