Item# G0657 Model# G0657

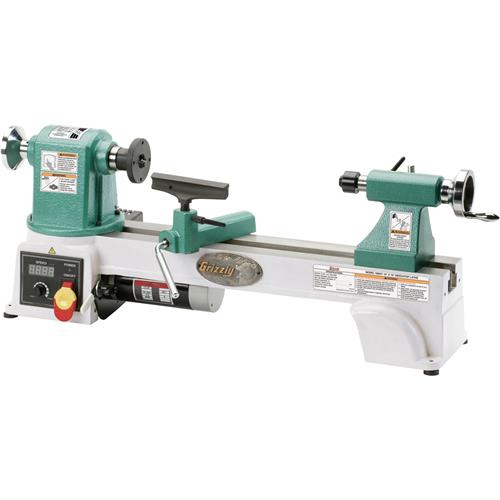

Grizzly G0657 - 10 x 16 Heavy-Duty Bench-Top Wood Lathe

For the benchtop lathe enthusiast, this Heavy-Duty Benchtop Wood Lathe features 3 ranges of variable-speeds from 300 to 3600 RPM. Just set the belt over the desired step pulleys and enjoy a wide range of variable-speeds for unlimited turning control. Solid cast iron construction dampens any stock vibration, resulting in greater precision.

CSA certified meeting CSA C22.2 #71.2-10 and UL 987-8 standards!

Features:

  • Motor: 1/2 HP, 110V, single-phase
  • Swing over bed: 10"
  • Distance between centers: 16"
  • Swing over tool rest: 7"
  • Heavy-duty, precision-ground cast iron bed
  • Three variable-speed ranges: Low: 300-900, Mid: 600-1800, High: 1200-3600 RPM
  • 1" x 8 TPI RH headstock spindle
  • MT #2 spindle and tailstock tapers
  • 2-1/4" tailstock barrel travel
  • Switch has removable safety key
  • Includes live center, spur center, 3" face plate and knockout bar
  • Approximate shipping weight: 90 lbs.
  • Made in an ISO 9001 factory
View More Details

Accessories

Recommended For You

Overview

For the benchtop lathe enthusiast, this Heavy-Duty Benchtop Wood Lathe features 3 ranges of variable-speeds from 300 to 3600 RPM. Just set the belt over the desired step pulleys and enjoy a wide range of variable-speeds for unlimited turning control. Solid cast iron construction dampens any stock vibration, resulting in greater precision.

CSA certified meeting CSA C22.2 #71.2-10 and UL 987-8 standards!

Features:

  • Motor: 1/2 HP, 110V, single-phase
  • Swing over bed: 10"
  • Distance between centers: 16"
  • Swing over tool rest: 7"
  • Heavy-duty, precision-ground cast iron bed
  • Three variable-speed ranges: Low: 300-900, Mid: 600-1800, High: 1200-3600 RPM
  • 1" x 8 TPI RH headstock spindle
  • MT #2 spindle and tailstock tapers
  • 2-1/4" tailstock barrel travel
  • Switch has removable safety key
  • Includes live center, spur center, 3" face plate and knockout bar
  • Approximate shipping weight: 90 lbs.
  • Made in an ISO 9001 factory
