Item: G9744Z | Model: G9744Z

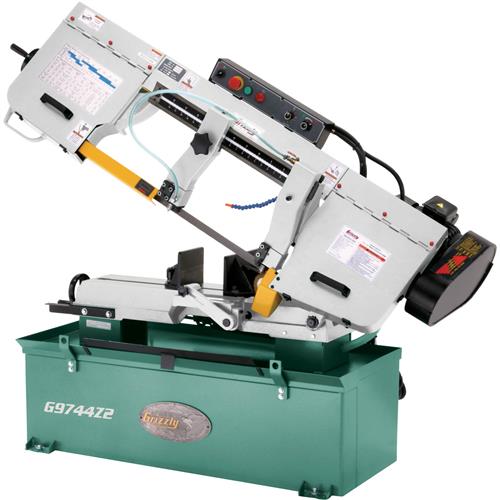

We’ve taken our already great G9744Z Metal-Cutting Bandsaw and added a few extra features to offer you a truly outstanding Bandsaw. We’ve added a one-piece saw bow, deluxe blade tension handwheel, deluxe Tru-lock vise system, and easy-access pulley cover for fast speed changes. You still get optimum control and accuracy with sliding ball-bearing blade guides, work stop, and hydraulic downfeed. Round it out with a 1-1/2 gallon coolant system and chip tray, and you’ve got a real metal-cutting workhorse.
Features:
Specifications:
Features:
- Centralized control panel on top of saw bow
- One-piece saw bow
- Deluxe blade tension handwheel
- Deluxe Tru-lock vise system with absolute clamping force
- Easy speed changes
- Heavy-duty all steel, one-piece base
- Adjustable hydraulic downfeed (just dial your feed rate on the control panel)
- Worm gearbox has hardened and ground gears
- Quick release vise for fast job changes
- Miter cutting ability
- Blade wheels have heavy-duty ball bearings
- Magnetic safety switch
- Automatic shut-off
- Adjustable blade guide system
Specifications:
- Motor: 1-1/2 HP, 220V, single-phase, 1725 RPM
- Blade size: 129-3/8" x 1"
- Blade speeds: 114, 196, 288, 377 FPM
- Cutting capacities:
- 90° round 10"
- 90° rectangular 10" x 18"
- ±45° round 6"
- ±45° rectangular 7" x 9-3/8"
- Overall size: 67-3/4" L x 24-1/2W x 41-1/2" H
- Table size: 30" L x 6-1/2" W
- Floor to vise height: 22-3/4"
- Coolant capacity: 2-1/2 gallons
- Approximate shipping weight: 760 lbs.
