Item# G0605X Model# G0605X

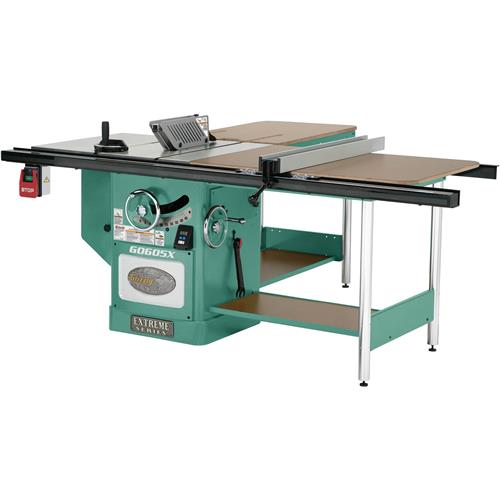

Grizzly G0605X - 12" Extreme Series Table Saw - Single-Phase

This Extreme Table Saw is ideally suited to handling large panels without blinking an eye. A right-hand & rear mounted extension table supports the widest panels before, during and after the cut and the large rail mounted switch control won’t get lost under the panel. Other features include ample storage shelves, a user friendly blade guard, a riving knife, a digital readout for blade angle & an efficient dust management system that includes an internal dust port & a sloped cabinet floor that directs saw dust into the 4" dust port. Enjoy all of the innovative features this big capacity saw has to offer

SPECIFICATIONS:

  • Motor: 5 HP, 220V, single-phase
  • Amps: 22.4
  • Blade tilt: Left
  • Table height from floor: 35-3/4"
  • Table size with extension: 30-11/16" x 78-13/16"
  • Arbor speed: 3600 RPM
  • Arbor size: 5/8" & 1"
  • Maximum dado width: 3/4"
  • Maximum depth of cut @ 90°: 4"
  • Maximum depth of cut @ 45°: 2-3/4"
  • Maximum rip capacity: 52"
  • Distance from front of table to blade at maximum cut: 13-1/2"
  • Distance from front of table to center of blade: 17-3/16"
  • Overall dimensions: 91"W x 80-1/2"D x 42-1/2"H
  • Approximate shipping weight: 966 lbs.

    FEATURES:

  • Precision ground cast iron table
  • Cast iron trunnions
  • 3/8" x 3/4" T-slots
  • 4" dust port
  • Power transfer: V-belt
  • Steel cabinet
  • Hinged motor cover
  • Right hand and rear extension tables
  • Magnetic switch with thermal overload protection
  • Quick release steel splitter
  • Digital read out bevel angle
  • Includes 12" blade

    PUSH STICK H3308 INCLUDED
