Item: G5959Z | Model: G5959Z

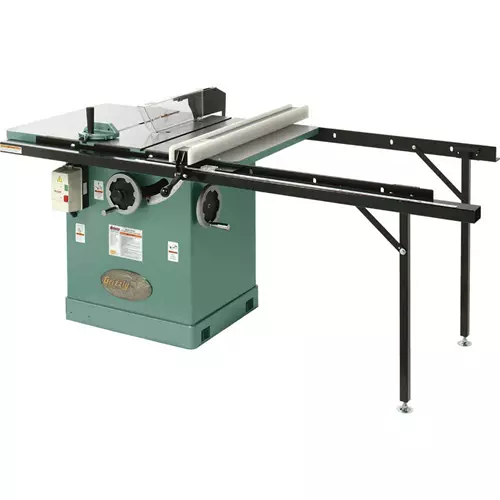

Image for Grizzly G5959Z - 12" Table Saw Pro-Cabinet-Style 5 HP Single-Phase 220V Left-Tilt
This industrial grade saw can handle the extra big jobs, all day, every day. And don't worry if you're stepping up to this beast from a 10" saw; it includes quick change 5/8" and 1" arbors, so you can keep your old blades. The G5959Z Left Tilting series has all the features you'd expect from a top quality cabinet saw, plus some you'll pay extra for elsewhere. But don't take our word for it - check it out yourself! Other features include: 34-1/2" table height from floor; rim speed of 13,000 SFPM; precision ground cast iron table; 13-1/4" distance from front of table to blade at maximum cut; 18-1/8" distance from front of table to center of blade; table size with wings of 30-1/4" deep x 48" wide; 3/8" x 3/4" T-slots; cast iron miter gauge; 4" dust port; triple v-belt power transfer; clear plastic guard with steel splitter; sloped cabinet floor assists dust collection; dual arbors measuring 5/8" and 1"; heavy-duty cam lever fence; magnetic switch with thermal overload protection; machined collar on arbor; outboard bearing; overall dimensions of 81-1/2" wide x 38-1/2" deep x 39-1/2" high; approximate shipping weight of 635 lbs.

  • Motor: 5 HP, 220V, single-phase, 27 Amps
  • Arbor speed: 4140 RPM
  • Maximum depth of cut and 90 degrees: 4"
  • Maximum depth of cut @ 45 degrees: 2 5/8"
  • Maximum rip capacity: 50"

Accessories

Overview Specifications & Comparisons
Specification Sheet Manual Parts List Buy Parts
Overview
This industrial grade saw can handle the extra big jobs, all day, every day. And don't worry if you're stepping up to this beast from a 10" saw; it includes quick change 5/8" and 1" arbors, so you can keep your old blades. The G5959Z Left Tilting series has all the features you'd expect from a top quality cabinet saw, plus some you'll pay extra for elsewhere. But don't take our word for it - check it out yourself! Other features include: 34-1/2" table height from floor; rim speed of 13,000 SFPM; precision ground cast iron table; 13-1/4" distance from front of table to blade at maximum cut; 18-1/8" distance from front of table to center of blade; table size with wings of 30-1/4" deep x 48" wide; 3/8" x 3/4" T-slots; cast iron miter gauge; 4" dust port; triple v-belt power transfer; clear plastic guard with steel splitter; sloped cabinet floor assists dust collection; dual arbors measuring 5/8" and 1"; heavy-duty cam lever fence; magnetic switch with thermal overload protection; machined collar on arbor; outboard bearing; overall dimensions of 81-1/2" wide x 38-1/2" deep x 39-1/2" high; approximate shipping weight of 635 lbs.

  • Motor: 5 HP, 220V, single-phase, 27 Amps
  • Arbor speed: 4140 RPM
  • Maximum depth of cut and 90 degrees: 4"
  • Maximum depth of cut @ 45 degrees: 2 5/8"
  • Maximum rip capacity: 50"
