Item# G9249 Model# G9249

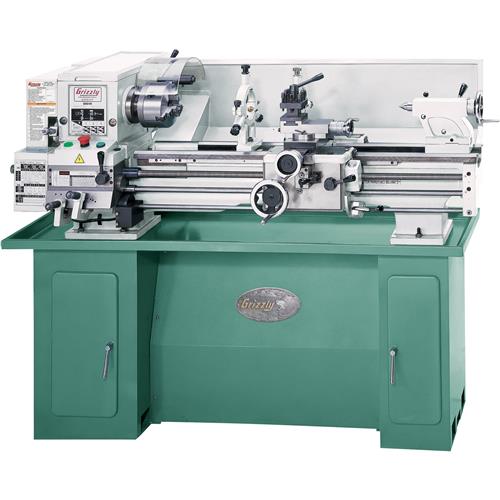

Grizzly G9249 - 12" x 37" Belt Drive Gap Bed Lathe

If metalworking is a serious hobby or you have a small shop, this is an excellent machine for you. It is a high quality back gear lathe that can do the job of lathes costing thousands more. Very nice machine!!

Features:

  • Precision hardened and ground V-bed
  • Uses tooth belt to reduce vibration and noise
  • Micro switches shut off machine when side door or top lid are opened
  • Helical back gears
  • On/off/reverse switch handle mounted on saddle for convenience

Specifications:

  • Swing over bed: 12"
  • Swing over gap: 18-7/8"
  • Swing over cross slide: 6-3/4"
  • Distance between centers: 37"
  • Spindle thread: 2-1/4" x 8 TPI
  • Spindle nose taper: MT # 5
  • Hole through spindle: 1-7/16"
  • Tailstock barrel taper: MT #3
  • Tailstock barrel travel: 3"
  • Cross slide travel: 6"
  • Top slide travel: 3-1/2"
  • Number of speeds: 12
  • Speed range: 50-1200 RPM
  • Range of threads (inches): 50 @ 4-112 TPI
  • Range of threads (metric): 24 @ 0.25-7.5 mm
  • Width of bed: 7-1/8"
  • Motor: 2 HP, 220V, single-phase
  • Approximate shipping weight: 1158 lbs.

Standard Equipment:

  • 6" 3-jaw chuck
  • 8" 4-jaw chuck
  • 10" face plate
  • Steady rest
  • Follow rest
  • Chip tray
  • Full length splash guard
  • Heavy duty stand
  • Dual inch/metric dials
  • 4-way tool post
  • Rocker style tool post
  • Metric threading change gears
  • Centers, center sleeve, service tools, manual and toolbox
View More Details

Accessories

Recommended For You

Overview
If metalworking is a serious hobby or you have a small shop, this is an excellent machine for you. It is a high quality back gear lathe that can do the job of lathes costing thousands more. Very nice machine!!

Features:

  • Precision hardened and ground V-bed
  • Uses tooth belt to reduce vibration and noise
  • Micro switches shut off machine when side door or top lid are opened
  • Helical back gears
  • On/off/reverse switch handle mounted on saddle for convenience

Specifications:

  • Swing over bed: 12"
  • Swing over gap: 18-7/8"
  • Swing over cross slide: 6-3/4"
  • Distance between centers: 37"
  • Spindle thread: 2-1/4" x 8 TPI
  • Spindle nose taper: MT # 5
  • Hole through spindle: 1-7/16"
  • Tailstock barrel taper: MT #3
  • Tailstock barrel travel: 3"
  • Cross slide travel: 6"
  • Top slide travel: 3-1/2"
  • Number of speeds: 12
  • Speed range: 50-1200 RPM
  • Range of threads (inches): 50 @ 4-112 TPI
  • Range of threads (metric): 24 @ 0.25-7.5 mm
  • Width of bed: 7-1/8"
  • Motor: 2 HP, 220V, single-phase
  • Approximate shipping weight: 1158 lbs.

Standard Equipment:

  • 6" 3-jaw chuck
  • 8" 4-jaw chuck
  • 10" face plate
  • Steady rest
  • Follow rest
  • Chip tray
  • Full length splash guard
  • Heavy duty stand
  • Dual inch/metric dials
  • 4-way tool post
  • Rocker style tool post
  • Metric threading change gears
  • Centers, center sleeve, service tools, manual and toolbox
