Item: G4178 | Model: G4178

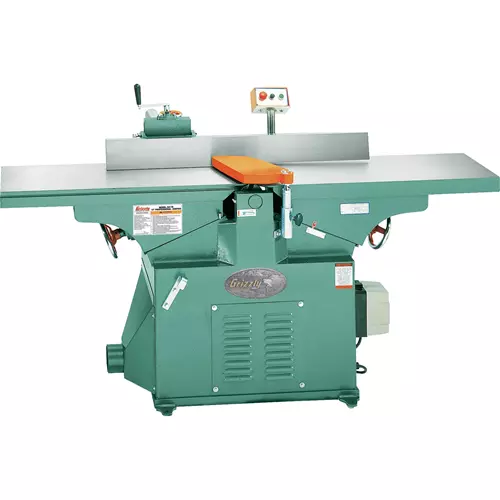

Image for Grizzly G4178 - 12" x 76" Professional Jointer
For demanding professionals who need absolute dependability in their milling process, Grizzly has produced this giant of the jointer world. Advanced features such as rack-and-pinion fence adjustment and conveniently located on/off switch sets this behemoth apart from others in its class. A real workhorse.

Specifications:
  • Table measures 12" x 75-3/8"
  • Cutterhead diameter: 4"
  • Cutterhead knives: 4
  • Rabbeting capacity: 3/4" deep
  • Motor: 3 H.P., 220V, single phase
  • Cutterhead R.P.M.: 5,200
  • Shipping weight approx.: 840 lbs.


Features:
  • Precision ground cast iron table surface is heat treated for hardness
  • Heavy cast iron body with dovetailed ways
  • Sturdy fabricated steel stand
  • Fence measures 4-1/4" x 41-5/8" and moves by rack and pinion gearing
  • Includes dust hood
  • Fence can be locked from 45 degrees to 90 degrees
  • Handwheels adjust infeed and outfeed tables
  • Magnetic controled switch with indicator light
  • Easy to read depth-of-cut indicator


Free Pair of Safety Push Blocks
