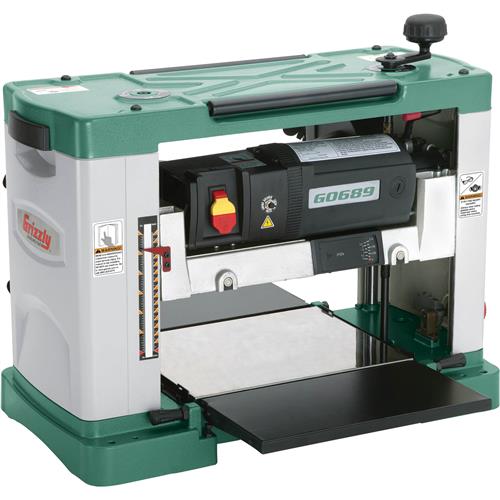

Item# G0689 Model# G0689
At home, at the job site, or in the workshop, this 13" Planer will go anywhere you need it. Features include four column support, easy-to-set double sided HSS blades, right and left handed height control knob option, material removal height gauge, stepped material thickness presets, cutterhead height lock lever, double return rollers, thermal overload protection and dust collection bag. Two built-in side handles and adjustable, flip up table wings make this planer a compact 26" wide x 20-1/2" high x 13-1/2" deep for easy portability.
View More Details
SPECIFICATIONS:
- Motor: 2 HP, 110V, single-phase
- Maximum cutting width: 13"
- Maximum cutting height: 6"
- Maximum cutting depth: 3/32"
- Minimum board thickness: 13/64"
- Feed rate: 19 FPM
- Number of knives: 2 double edged HSS
- Knife size: 13" x 15/32" x 1/16"
- Cutterhead speed: 8,000 RPM
- On/Off toggle switch with safety lock
- Thermal overload protection
- Two top mounted return rollers
- Four column cutterhead support
- Cutterhead lock lever
- Adjustable infeed and outfeed wings
- Inch/metric height scale
- Material removal gauge
- Dust port: 2-1/2"
- Stepped material thickness presets: 1/8, 1/4", 1/2", 3/4", 1", 1-1/4"
- Overall size with wings: 26"W x 20-1/2"H x 35-1/2"D
- Approximate shipping weight: 74 lbs.
Product Resources
Overview
At home, at the job site, or in the workshop, this 13" Planer will go anywhere you need it. Features include four column support, easy-to-set double sided HSS blades, right and left handed height control knob option, material removal height gauge, stepped material thickness presets, cutterhead height lock lever, double return rollers, thermal overload protection and dust collection bag. Two built-in side handles and adjustable, flip up table wings make this planer a compact 26" wide x 20-1/2" high x 13-1/2" deep for easy portability.
SPECIFICATIONS:
- Motor: 2 HP, 110V, single-phase
- Maximum cutting width: 13"
- Maximum cutting height: 6"
- Maximum cutting depth: 3/32"
- Minimum board thickness: 13/64"
- Feed rate: 19 FPM
- Number of knives: 2 double edged HSS
- Knife size: 13" x 15/32" x 1/16"
- Cutterhead speed: 8,000 RPM
- On/Off toggle switch with safety lock
- Thermal overload protection
- Two top mounted return rollers
- Four column cutterhead support
- Cutterhead lock lever
- Adjustable infeed and outfeed wings
- Inch/metric height scale
- Material removal gauge
- Dust port: 2-1/2"
- Stepped material thickness presets: 1/8, 1/4", 1/2", 3/4", 1", 1-1/4"
- Overall size with wings: 26"W x 20-1/2"H x 35-1/2"D
- Approximate shipping weight: 74 lbs.
