Item: G0742 | Model: G0742

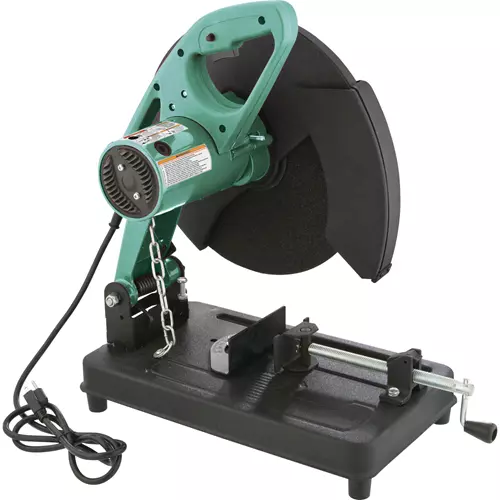

Image for Grizzly G0742 - 14" Abrasive Cut-Off Saw
Specifications:
  • Motor: 2.4 HP, 120V, single-phase
  • Amps: 15
  • No load blade speed: 3800 RPM
  • Wheel arbor: 1"
  • Wheel diameter: 14"
  • Angle cuts: 0°-45° L/R
  • Vise jaw depth: 6-3/4"
  • Vise jaw height: 2"
  • Max capacity round tube @ 90°: 4-5/16"
  • Max capacity round rod @ 90°: 1-15/16"
  • Max capacity square tube @ 90°: 4-5/16"
  • Max capacity channel steel @ 90°: 4-11/16" x 2-1/8"
  • Max capacity angle iron @ 90°: 3-5/16" x 3/8"
  • Approximate shipping weight: 35 lbs.
California Proposition 65 Warning
Overview
Specification Sheet Manual Parts List Buy Parts
Overview
Specifications:
  • Motor: 2.4 HP, 120V, single-phase
  • Amps: 15
  • No load blade speed: 3800 RPM
  • Wheel arbor: 1"
  • Wheel diameter: 14"
  • Angle cuts: 0°-45° L/R
  • Vise jaw depth: 6-3/4"
  • Vise jaw height: 2"
  • Max capacity round tube @ 90°: 4-5/16"
  • Max capacity round rod @ 90°: 1-15/16"
  • Max capacity square tube @ 90°: 4-5/16"
  • Max capacity channel steel @ 90°: 4-11/16" x 2-1/8"
  • Max capacity angle iron @ 90°: 3-5/16" x 3/8"
  • Approximate shipping weight: 35 lbs.
