Item: G0520 | Model: G0520
Image for G0520

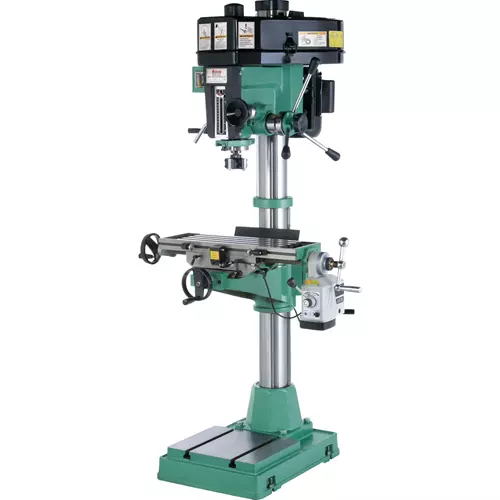

Grizzly G0520 - 16" Drill Press w/ Cross Sliding Table & Power Feed

This is an excellent buy in a heavy-duty Drill Press. Equipped with a cross sliding table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! This feature expands the capacity of this machine. You can also change speeds quickly and easily. Equipped with a drawbar for threaded end-mill tooling.

Specifications:

  • Motor size: 2 HP
  • Drilling capacity: 1-1/4"
  • End milling capacity: 7/8"
  • Face milling capacity: 3"
  • Spindle travel: 5-1/8"
  • Max. distance spindle to table: 31"
  • Max. distance spindle to base: 51-1/8"
  • Number of speeds: 12
  • Spindle taper: MT #3
  • Range of speeds: 140 - 2570 RPM
  • Swing: 16"
  • Cross table size: 23" x 7-1/2"
  • Longitudinal travel: 14-1/2"
  • Cross travel: 7"
  • Approximate shipping weight: 780 lbs.
View More Details

Accessories

Image for T28000 Bear Crawl Heavy-Duty Mobile Base Item# T28000 $139.95 Add Image for T28417 20 Amp 250V NEMA L6-20 Single-Phase Twist Lock Plug Item# T28417 $18.95 Add Image for G1075 58 Pc. Clamping Kit for 1/2" T-Slots Item# G1075 $93.95 Add Image for G7154 Premium Milling Vise - 5" Item# G7154 $149.95 Add Image for SB1380 Keyless Integral Chuck MT#3 1/32"-5/8" Item# SB1380 $134.95 Add
Shop All Accessories
Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
Overview
This is an excellent buy in a heavy-duty Drill Press. Equipped with a cross sliding table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! This feature expands the capacity of this machine. You can also change speeds quickly and easily. Equipped with a drawbar for threaded end-mill tooling.

Specifications:

  • Motor size: 2 HP
  • Drilling capacity: 1-1/4"
  • End milling capacity: 7/8"
  • Face milling capacity: 3"
  • Spindle travel: 5-1/8"
  • Max. distance spindle to table: 31"
  • Max. distance spindle to base: 51-1/8"
  • Number of speeds: 12
  • Spindle taper: MT #3
  • Range of speeds: 140 - 2570 RPM
  • Swing: 16"
  • Cross table size: 23" x 7-1/2"
  • Longitudinal travel: 14-1/2"
  • Cross travel: 7"
  • Approximate shipping weight: 780 lbs.
