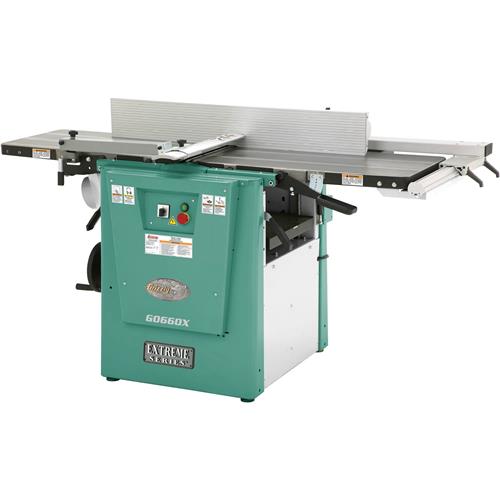

Flatten and thickness lumber with one machine! German engineering and craftsmanship go together to make the nicest combination Jointer/Planer you’ll find anywhere. With the ability to joint and plane up to 16" wide, you’ll also appreciate the simple blade changing mechanism with automatic blade setting, heavy-duty machined cast iron tables that are easily and accurately adjustable, rubber coated feed rollers for no indentation marks and a 5-1/2" dust port that’s integrated for both jointing and planing. Add a highly accurate planing depth scale and you’ve got the best Jointer/Planer money can buy!
Specifications:
- Motor: 3 HP, 220V, single-phase, 3450 RPM
- Amps: 14
- Jointer table size: 17-5/16"W x 65-15/16"L
- Cutterhead knives: 3 HSS, reversible
- Cutterhead speed: 5,400 RPM
- Maximum jointer depth of cut: 3/16"
- Maximum width of cut: 16-1/8"
- Cuts per minute: 16,200
- Bevel jointing: 0° - 45°
- Bearings: shielded and lubricated
- Floor to table height: 33-7/8"
- Planer feed rate: 18 FPM
- Maximum planer depth of cut: 3/16"
- Maximum planer cutting height: 9-1/16"
- 5-1/2" dust port
- Overall dimensions: 71-3/4"L x 30-5/16"W x 39-3/4"H
- Approximate shipping weight: 717 lbs.
