Item: G0521 | Model: G0521
Image for G0521

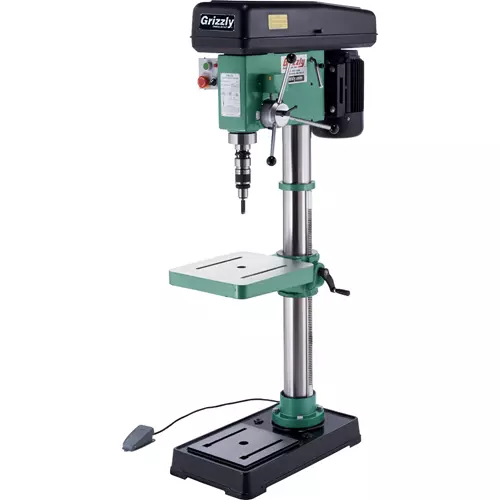

Grizzly G0521 - 18" Drilling/Tapping Machine

This is a sophisticated Tapping Machine with all the features you'd expect, like auto-reverse, precision collet set for taps, foot pedal control, massive construction and 2 HP of brute force! It also is a precision drill press, too! It has nine spindle speeds, a swing of 18" and 5-1/8" of spindle stroke. Without a doubt, this is a great buy all around.

Specifications:

  • Motor size: 2 HP, 3-phase
  • Voltage: 220V
  • Switch: Reversing
  • Overall height: 69-1/4"
  • Spindle travel: 5-1/8"
  • Number of speeds: 9
  • Spindle taper: MT#3
  • Range of speeds: 190 - 2250 RPM
  • Swing: 18"
  • Max. distance spindle to table: 30"
  • Max. distance spindle to base: 46"
  • Tapping capacity: 7/8"
  • Collet sizes for taps: 1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16" & 7/8"
  • Table size: 13-3/8" x 14-1/8"
  • Head swivel: 360º
  • Drilling capacity: 1" in Mild Steel
  • Approximate shipping weight: 656 lbs.
View More Details

Accessories

Image for T28000 Bear Crawl Heavy-Duty Mobile Base Item# T28000 $139.95 Add Image for G1075 58 Pc. Clamping Kit for 1/2" T-Slots Item# G1075 $93.95 Add Image for G7154 Premium Milling Vise - 5" Item# G7154 $149.95 Add Image for T10058 2" Two-Way Precision Angle Vise Item# T10058 $215.00 Add Image for H7576 Precision Self-Centering Vise Item# H7576 $245.00 Add
Overview Specifications & Comparisons Specification Sheet Buy Parts
Overview
This is a sophisticated Tapping Machine with all the features you'd expect, like auto-reverse, precision collet set for taps, foot pedal control, massive construction and 2 HP of brute force! It also is a precision drill press, too! It has nine spindle speeds, a swing of 18" and 5-1/8" of spindle stroke. Without a doubt, this is a great buy all around.

Specifications:

  • Motor size: 2 HP, 3-phase
  • Voltage: 220V
  • Switch: Reversing
  • Overall height: 69-1/4"
  • Spindle travel: 5-1/8"
  • Number of speeds: 9
  • Spindle taper: MT#3
  • Range of speeds: 190 - 2250 RPM
  • Swing: 18"
  • Max. distance spindle to table: 30"
  • Max. distance spindle to base: 46"
  • Tapping capacity: 7/8"
  • Collet sizes for taps: 1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16" & 7/8"
  • Table size: 13-3/8" x 14-1/8"
  • Head swivel: 360º
  • Drilling capacity: 1" in Mild Steel
  • Approximate shipping weight: 656 lbs.
