Item# G0698 Model# G0698

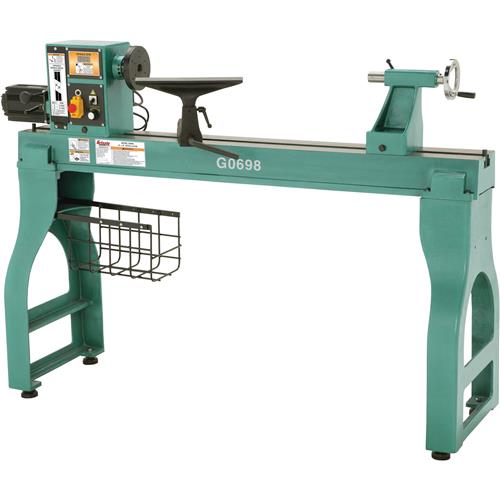

Grizzly G0698 - 18" X 47" Wood Lathe

Need a solid cast iron lathe with big capacity? Well, look no further because this 18" x 47" Wood Lathe has it all! You'll appreciate the cast-in shelf brackets for adding additional mass, variable-speed control in two torque ranges, digital speed indicator, forward & reverse switch and convenient utility basket. 3-phase frequency drive technology provides the electronic variable-speed control without the 3-phase power requirement. All you need is standard 220V, single-phase power to be up & running in no time. You'll be amazed by all the quality & innovative features this lathe has to offer!
  • Electronic variable-speed control
  • Digital spindle speed indicator
  • 30°; direct indexing using 1 indexing hole
  • 10°; indexing using all 3 indexing holes
  • Headstock can be positioned anywhere along the bed
  • Tailstock, headstock and tool rest support have lever action cam locks for quick positioning
  • Belt drive offers 2 speed ranges
  • Forward/reversing switch
  • Emergency stop switch
  • Motor: 2 HP, 220V, 3-phase with single-phase frequency drive
  • Power requirement: 220V, single-phase
  • Swing over bed: 18"
  • Distance between centers: 47"
  • Heavy-duty, precision machined cast iron bed & cast iron legs ensures stability & minimal vibration
  • 1-1/4" x 8 TPI RH headstock spindle
  • Spindle variable-speed control with digital readout
  • Speed range high: 330-3200 RPM low: 100-1200 RPM
  • MT#2 spindle & tailstock tapers
  • Spindle bore: 0.393"
  • Overall dimensions: 80-3/4"L x 19-1/16"W x 48-1/16"H
  • Approximate shipping weight: 547 lbs.
  • Spur center
  • Cup live center
  • Knock-out tool
  • Tool rest (1" O.D.)
  • 6" Faceplate
  • View More Details

    Accessories

    Recommended For You

    Overview
    Need a solid cast iron lathe with big capacity? Well, look no further because this 18" x 47" Wood Lathe has it all! You'll appreciate the cast-in shelf brackets for adding additional mass, variable-speed control in two torque ranges, digital speed indicator, forward & reverse switch and convenient utility basket. 3-phase frequency drive technology provides the electronic variable-speed control without the 3-phase power requirement. All you need is standard 220V, single-phase power to be up & running in no time. You'll be amazed by all the quality & innovative features this lathe has to offer!
  • Electronic variable-speed control
  • Digital spindle speed indicator
  • 30°; direct indexing using 1 indexing hole
  • 10°; indexing using all 3 indexing holes
  • Headstock can be positioned anywhere along the bed
  • Tailstock, headstock and tool rest support have lever action cam locks for quick positioning
  • Belt drive offers 2 speed ranges
  • Forward/reversing switch
  • Emergency stop switch
  • Motor: 2 HP, 220V, 3-phase with single-phase frequency drive
  • Power requirement: 220V, single-phase
  • Swing over bed: 18"
  • Distance between centers: 47"
  • Heavy-duty, precision machined cast iron bed & cast iron legs ensures stability & minimal vibration
  • 1-1/4" x 8 TPI RH headstock spindle
  • Spindle variable-speed control with digital readout
  • Speed range high: 330-3200 RPM low: 100-1200 RPM
  • MT#2 spindle & tailstock tapers
  • Spindle bore: 0.393"
  • Overall dimensions: 80-3/4"L x 19-1/16"W x 48-1/16"H
  • Approximate shipping weight: 547 lbs.
  • Spur center
  • Cup live center
  • Knock-out tool
  • Tool rest (1" O.D.)
  • 6" Faceplate
