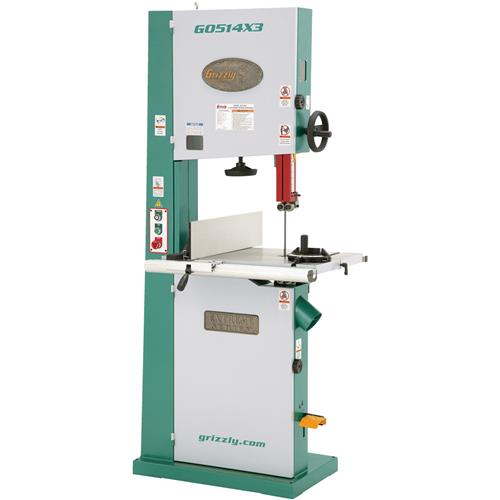

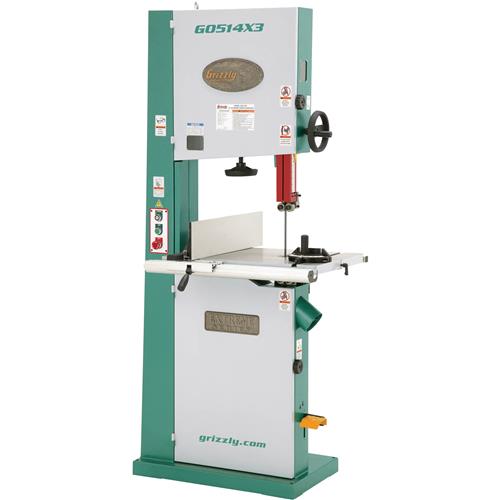

Item# G0514X3 Model# G0514X3
We've taken our ever popular and highly regarded G0514 and made another Extreme Machine. Cast iron wheels, double row ball bearing blade guides and a 3 HP motor help make this a wood devouring saw. The extra large tilting table and Grizzly patent pending Re-saw Fence make controlling the cut easy. You'll really appreciate the extra features like two 4" dust ports, a tracking window, quick release blade tension and tension scale. Both blade guide height and table tilt is handwheel controlled and the wheel covers are hinged for convenience. All this at a price nobody but Grizzly can offer! CSA certified meeting CSA C22.2 #71.2-08, CSA C22.2 #105-1953, and UL 987-7th standards!
View More Details
Specifications:
- Motor: 3 HP, 220V/440V*, 10A/5A, 3-phase, TEFC induction, 60 Hz, prewired 220V
- RPM: 1725
- Precision-ground cast iron table
- Table size: 26-3/4" x 19" x 1-1/2" thick
- Floor to table height: 37-1/2"
- Cutting capacity/throat: 18 1/4"
- Maximum cutting height: 12"
- Blade size: 143" long
- Blade sizes available: 1/8" - 1-1/4"
- 2 Blade speeds: 1700, 3500 FPM
- Wheels: fully balanced cast iron with polyurethane tires
- Wheel covers: pre-formed, hinged steel
- Blade guides: dual ball bearing with full enclosure protection
- Bearings: sealed and permanently lubricated
- Overall size: 76" H x 36" W x 32" D
- Approximate shipping weight: 456 lbs.
Features:
- Blade tension indicator
- Micro-adjusting gear table
- Height scale measurement
- Fence with scale and magnifying window
- Deluxe cast iron fence with extruded aluminum re-saw fence
- Miter gauge
- 4" dust port x 2
- Table tilt: 10° left, 45° Right
- Quick-change blade release/tensioning
- Rack and pinion upper guide adjustment
- Includes 3/4" 6-TPI blade
Made in an ISO 9001 factory
440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information.
*This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee of $325. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.
Product Resources
Accessories
Recommended For You
Overview
We've taken our ever popular and highly regarded G0514 and made another Extreme Machine. Cast iron wheels, double row ball bearing blade guides and a 3 HP motor help make this a wood devouring saw. The extra large tilting table and Grizzly patent pending Re-saw Fence make controlling the cut easy. You'll really appreciate the extra features like two 4" dust ports, a tracking window, quick release blade tension and tension scale. Both blade guide height and table tilt is handwheel controlled and the wheel covers are hinged for convenience. All this at a price nobody but Grizzly can offer! CSA certified meeting CSA C22.2 #71.2-08, CSA C22.2 #105-1953, and UL 987-7th standards!
Specifications:
- Motor: 3 HP, 220V/440V*, 10A/5A, 3-phase, TEFC induction, 60 Hz, prewired 220V
- RPM: 1725
- Precision-ground cast iron table
- Table size: 26-3/4" x 19" x 1-1/2" thick
- Floor to table height: 37-1/2"
- Cutting capacity/throat: 18 1/4"
- Maximum cutting height: 12"
- Blade size: 143" long
- Blade sizes available: 1/8" - 1-1/4"
- 2 Blade speeds: 1700, 3500 FPM
- Wheels: fully balanced cast iron with polyurethane tires
- Wheel covers: pre-formed, hinged steel
- Blade guides: dual ball bearing with full enclosure protection
- Bearings: sealed and permanently lubricated
- Overall size: 76" H x 36" W x 32" D
- Approximate shipping weight: 456 lbs.
Features:
- Blade tension indicator
- Micro-adjusting gear table
- Height scale measurement
- Fence with scale and magnifying window
- Deluxe cast iron fence with extruded aluminum re-saw fence
- Miter gauge
- 4" dust port x 2
- Table tilt: 10° left, 45° Right
- Quick-change blade release/tensioning
- Rack and pinion upper guide adjustment
- Includes 3/4" 6-TPI blade
Made in an ISO 9001 factory
440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information.
*This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee of $325. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.
