Item: G0511 | Model: G0511

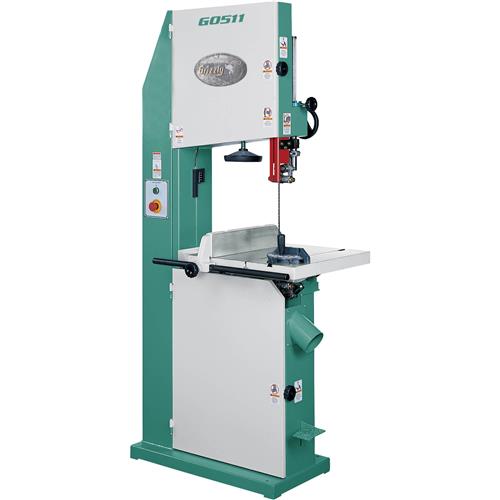

Grizzly G0511 - 20" Heavy-Duty Bandsaw - 5 HP
When we went looking for a 20" bandsaw, we decided to go big! And, here it is ... the Model G0511 20" Bandsaw. This monster offers a full 19" of clearance at the throat and a 11-1/2" vertical cutting capacity, making it perfect for those big, tough jobs that most bandsaws could only dream about and its 4510 FPM blade speed makes resawing a pleasure. Offers a high-capacity 5 HP, 220V motor and handles very large stock. Takes 160-13/16" - 162-3/8" blades from 3/8" to 1" wide.
Features:
Specifications:
Features:
- Heavy cast iron frame
- Foot pedal brake
- Blade tensioning scale
- Built-in 4" dust port
- Rack and pinion upper guide adjustment
- Hinged wheel covers
- Fully balanced cast iron wheels with polyurethane tires
- Includes miter gauge, 1/2" blade and cast iron fence
Specifications:
- 36-1/4" table height
- 27" x 20-1/2" table
- Table tilts to 45º right
- 76" overall height
- 5 HP, 220V, TEFC three phase
- 23 Amps
- 4510 FPM blade speed
- Cutting height: 11-1/2"
- Throat capacity is 19"
- Shielded and lubricated bearings
- Magnetic switch with thermal overload protection
- European style roller disc blade guides
- Blade length: 160-13/16" to 162-3/8"
- Blade width: 3/8" - 1"
- Approximate shipping weight: 750 lbs.
440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information.
