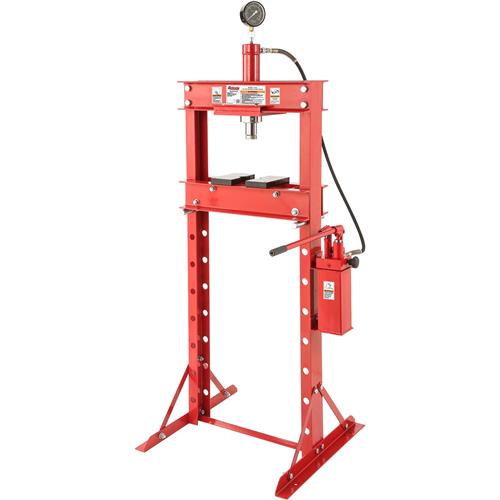

T1241 20-Ton Double-Pump Hydraulic Press
A perfectly sized hydraulic press for any shop or garage in need of a unit with power, efficiency, and capacity.
Hydraulic presses are known for their ability to generate tremendous force that is require heavy-duty pressing or forming.
The T1241 Hydraulic Press is equipped with a "double pump" feature that allows the ram to quickly approach the workpiece with one pump, and then effortlessly apply 40,000 pounds of force with another.
Used for a wide range of applications, including metalworking, forging, stamping, molding, and others, hydraulic presses can accommodate various materials and shapes.
The table on the T1241 is quick, easy-to-adjust, and allows for workpieces over 39" in length!
The pressure gauge allows the user to read in both metric tons and U.S. tons.
With the simple turn of a knob, the internal return spring automatically lifts the ram from the workpiece and the job is complete! How’s that for efficiency?
The T1241 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your shop press.
The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the shop press may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Ram maximum applied force: 20 Tons (40,000 lbs)
- Ram diameter: 2-3/8"
- Ram maximum stroke: 5-3/4"
- Maximum distance to table: 40-1/2"
- Minimum distance to table: 7-1/2"
- Bed support pin diameter: 1"
- Number of bed adjustment holes: 8
- Bed adjustment hole spacing: 4-3/4"
- Footprint: 28" W x 28" D
- Overall dimensions: 32-1/2" W x 33-1/2" D x 72" H
- Approximate shipping weight: 220 lbs.
FEATURES:
- Hand-pump hydraulic operation
- Built-in pressure gauge
- Steel frame for maximum rigidity
- Adjustable table height for wide array of operations
- Two steel arbor plates
