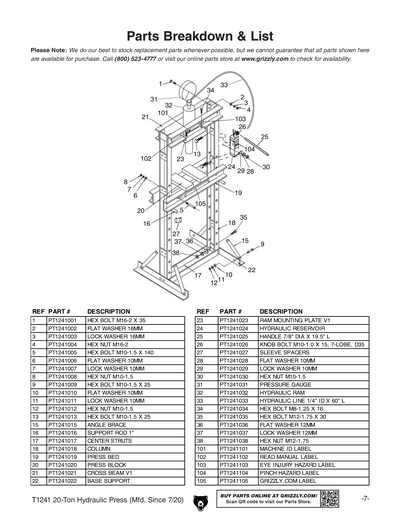

Parts for T1241 20-Ton Double-Pump Hydraulic Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HEX BOLT M16-2 X 40
Price
N/A
2
Now: PW08M
FLAT WASHER 16MM
Price
N/A
3
LOCK WASHER 16MM
Price
N/A
4
Now: PN13M
HEX NUT M16-2
Price
N/A
5
HEX BOLT M10-1.5 X 140
6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
7
LOCK WASHER 10MM
Price
N/A
8
Now: PN02M
HEX NUT M10-1.5
Price
N/A
9
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
10
Now: PW04M
FLAT WASHER 10MM
Price
N/A
11
LOCK WASHER 10MM
Price
N/A
12
Now: PN02M
HEX NUT M10-1.5
Price
N/A
13
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
14
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
15
ANGLE BRACE
16
SUPPORT ROD 1"
17
CENTER BRACE
18
COLUMN
19
PRESS BED
20
PRESS BLOCK
21
CROSS BEAM V1
21V2
CROSS BEAM V2.01.20
22
BASE SUPPORT
23
RAM MOUNTING PLATE V1
23V2
RAM MOUNTING PLATE V2.01.20
24
HYDRAULIC RESERVOIR
25
HANDLE 7/8" DIA X 19.5" L
26
KNOB BOLT M10-1.0 X 15, 7-LOBE, D35
27
SLEEVE SPACERS
28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
29
LOCK WASHER 10MM
Price
N/A
30
Now: PN02M
HEX NUT M10-1.5
Price
N/A
31
PRESSURE GAUGE
32
HYDRAULIC RAM
33
HYDRAULIC LINE 1/4" ID X 60" L
34
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
35
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
36
Now: PW06M
FLAT WASHER 12MM
Price
N/A
37
LOCK WASHER 12MM
Price
N/A
38
Now: PN09M
HEX NUT M12-1.75
Price
N/A
101
MACHINE ID LABEL
102
READ MANUAL 1.5W X 2.5H
Price
N/A
103
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
104
PINCH HAZARD LABEL
105
GRIZZLY.COM LABEL 13.25",BEIGE
Price
N/A
MAN
MANUAL T1241 MFD-10.17-12.19 V1.01.18
MANV2
MANUAL T1241 MFD-01.20-06.20 V2.05.20
MANV3
MANUAL T1241 MFD-07.20+ V3.07.20
