Item: G0482 | Model: G0482

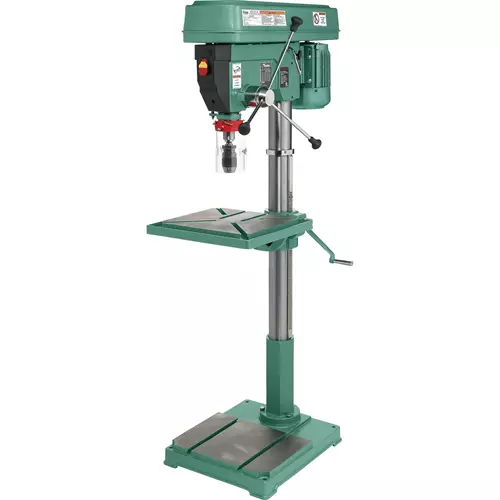

Grizzly G0482 - 22" Floor Model Heavy-Duty Drill Press
- Motor: 1 1/2 HP, 110V, single-phase
- Swing: 22"
- Keyless drill chuck: 5/8"
- Spindle travel: 4 5/8"
- Spindle taper: MT#4
- Number of speeds: 12 (180, 300, 330, 460, 530, 560, 1150, 1360, 1610, 1940, 2400, 3440 RPM)
- Collar size: 2.954"
- Precision ground cast iron table
- Max. distance spindle to table: 26 3/4"
- Max. distance spindle to base: 47 5/16"
- Table size: 13 1/2" x 16"
- Table swing: 360 deg.
- Table tilts: 90 deg. left & right
- Overall height: 69 5/8"
- Approximate shipping weight: 322 lbs.
- Top quality keyless chuck included
