Item: H8154 | Model: H8154
1 Product Photos
- Thermal overload protection
- Precise constant current output
- Tool-less twist-mate electrode cable connection
- Full range square wave AC/DC TIG
- Built-in high frequency stabilization for DC TIG starting & continuous AC TIG welding
- Stick welding current: 5-130 amps
- AC TIG welding current: 20-160 amps
- DC TIG welding current: 5-160 amps
- Duty cycle: 35% @ rated current (both)
- AC square wave frequency: 20-100 Hz
- DC TIG up slope: 0.2s (fixed)
- DC TIG down slope: 0-10s
- DC TIG pre-flow time: 0-10s
- DC TIG post-flow time: 1-25s
- Pulse frequency: 0.5-25 Hz
- Power consumption: 23.8 amps @ 230 VAC

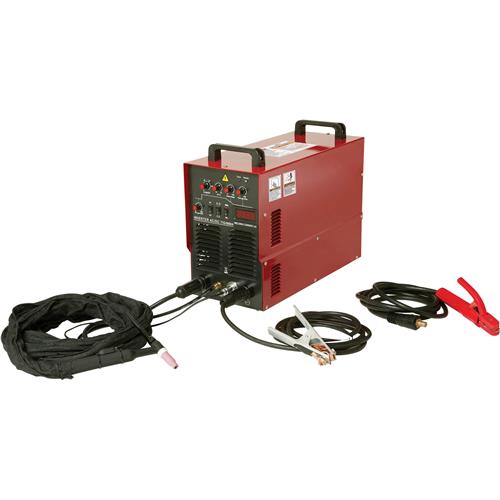

- Includes TIG torch, electrode holder, ground clamp and digital display
- Net weight: 55 lbs.
- Gross weight: 77 lbs.
Overview
- Thermal overload protection
- Precise constant current output
- Tool-less twist-mate electrode cable connection
- Full range square wave AC/DC TIG
- Built-in high frequency stabilization for DC TIG starting & continuous AC TIG welding
- Stick welding current: 5-130 amps
- AC TIG welding current: 20-160 amps
- DC TIG welding current: 5-160 amps
- Duty cycle: 35% @ rated current (both)
- AC square wave frequency: 20-100 Hz
- DC TIG up slope: 0.2s (fixed)
- DC TIG down slope: 0-10s
- DC TIG pre-flow time: 0-10s
- DC TIG post-flow time: 1-25s
- Pulse frequency: 0.5-25 Hz
- Power consumption: 23.8 amps @ 230 VAC
- Includes TIG torch, electrode holder, ground clamp and digital display
- Net weight: 55 lbs.
- Gross weight: 77 lbs.
