Grizzly H6363 - 3/8" Straight Air Drill 2,600 RPM

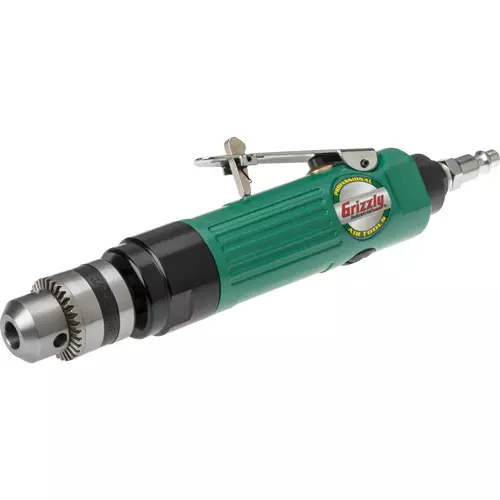

H6363 3/8" Straight Air Drill
The in-line design of the H6363 3/8" Straight Air Drill provides greater balance and control and is ideal for all production drilling applications.
The drill has a 2,600 RPM free speed and 3/8" drilling capacity.
It features a paddle switch with safety release, rear air exhaust, and rugged aluminum body.
Recommended air pressure is 90 PSI and average air consumption is 6 CFM.
Includes a 1/4" NPT quick connect fitting and chuck key.
Like all Grizzly air tools, the H6363 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The H6363 instruction sheet was written by our U.S. based Technical Documentation Department and is packed with useful information.
The complete and easy-to-read instructions makes it easier to assemble and maintain your air drill.
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts for the air drill are available online and shipped from the Grizzly parts warehouse in Springfield, MO.
- Maximum bit diameter: 3/8"
- Maximum free speed: 2,600
- Average air consumption: 6 CFM
- Air inlet size: 1/4" NPT
- Air hose size requirement: 3/8"
- Maximum air pressure: 90 PSI
- 3/8" Chuck
- Chuck key
- Thumb lock and trigger
- Quick-disconnect air inlet adapter
