Item# G1030Z2 Model# G1030Z2

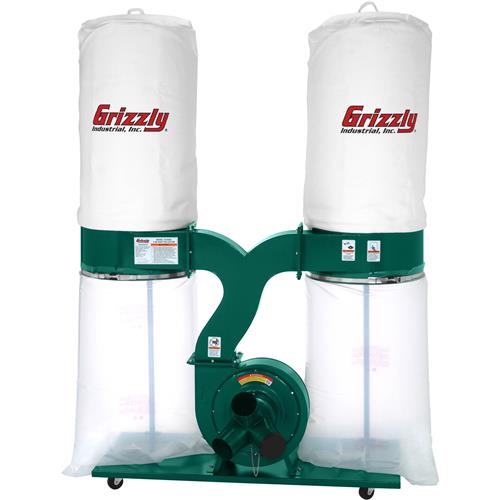

Grizzly G1030Z2 - 3 HP Dust Collector with New Impeller

This 3 HP Dust Collector is designed to capture dust and wood chips from multiple woodworking machines at the same time. CSA certified meeting CSA C22.2 #243-M91 and UL 1017-4 standards!

  • Motor: 3HP, 220V, single-phase, 3450 RPM
  • Motor amp draw: 15 Amps
  • Air suction capacity: 2300 CFM
  • Static pressure: 16.7"
  • 7" inlet has removable "Y" fitting with three 4" openings
  • Impeller: 12-3/4" balanced steel, radial fin
  • Bag capacity: 11.4 cubic feet
  • Standard bag filtration: 2.5 micron
  • Portable base size: 21-1/2" x 49-1/2"
  • Bag size (dia. x depth): 19-1/2" x 33"
  • Lower bags: Plastic
  • Powder coated paint
  • Height with bags inflated: 78"
  • Approximate shipping weight: 170 lbs.

    Optional Replacement Bags: G5556 Upper Bag; T20543 Lower Bag

  • View More Details

    Accessories

    Recommended For You

    Overview
    This 3 HP Dust Collector is designed to capture dust and wood chips from multiple woodworking machines at the same time. CSA certified meeting CSA C22.2 #243-M91 and UL 1017-4 standards!

  • Motor: 3HP, 220V, single-phase, 3450 RPM
  • Motor amp draw: 15 Amps
  • Air suction capacity: 2300 CFM
  • Static pressure: 16.7"
  • 7" inlet has removable "Y" fitting with three 4" openings
  • Impeller: 12-3/4" balanced steel, radial fin
  • Bag capacity: 11.4 cubic feet
  • Standard bag filtration: 2.5 micron
  • Portable base size: 21-1/2" x 49-1/2"
  • Bag size (dia. x depth): 19-1/2" x 33"
  • Lower bags: Plastic
  • Powder coated paint
  • Height with bags inflated: 78"
  • Approximate shipping weight: 170 lbs.

    Optional Replacement Bags: G5556 Upper Bag; T20543 Lower Bag
