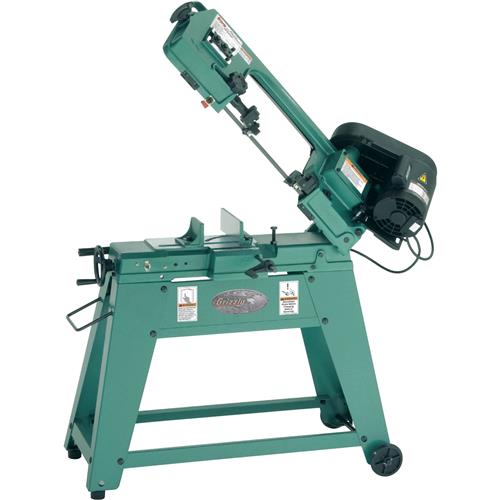

Item# G1010 Model# G1010
Cut angle-iron, pipe, rods, shafts, structural steel, etc. Completely portable and lightweight, this saw is bound to become an indispensable part of your workshop. Features handle, wheels and a removable table for vertical cuts.
View More Details
Specifications:
- Capacity: 4 1/2" round, 4 1/2" x 6" rectangular
- Blade speeds: 80, 120, 220 FPM
- Blade size: 64-1/2" x 1/2"
- Motor 1/2 H.P., 110/220V , 60Hz, 1720 RPM
- Amps: 9/4.5
- Drive: V-belt
- Transmission: sealed worm gear
- Overall height: horiz. 38"; vert. 55"
- Height floor-to-table: 32-1/2"
- Overall width: 15"
- Overall length: 38" Overall bed: 26" x 9-1/4" x 3-1/8"
- Floor space: 18-1/8" x 41-1/4"
- Angular cuts: 90 Degrees to 45 Degrees
- All ball bearing drive wheel and blade guides
- Shipping weight approx. 115 lbs.
Product Resources
Accessories
Recommended For You
Overview
Cut angle-iron, pipe, rods, shafts, structural steel, etc. Completely portable and lightweight, this saw is bound to become an indispensable part of your workshop. Features handle, wheels and a removable table for vertical cuts.
Specifications:
- Capacity: 4 1/2" round, 4 1/2" x 6" rectangular
- Blade speeds: 80, 120, 220 FPM
- Blade size: 64-1/2" x 1/2"
- Motor 1/2 H.P., 110/220V , 60Hz, 1720 RPM
- Amps: 9/4.5
- Drive: V-belt
- Transmission: sealed worm gear
- Overall height: horiz. 38"; vert. 55"
- Height floor-to-table: 32-1/2"
- Overall width: 15"
- Overall length: 38" Overall bed: 26" x 9-1/4" x 3-1/8"
- Floor space: 18-1/8" x 41-1/4"
- Angular cuts: 90 Degrees to 45 Degrees
- All ball bearing drive wheel and blade guides
- Shipping weight approx. 115 lbs.
