Grizzly T1191 - 4-3/8" Power Rotary Table with DRO Control

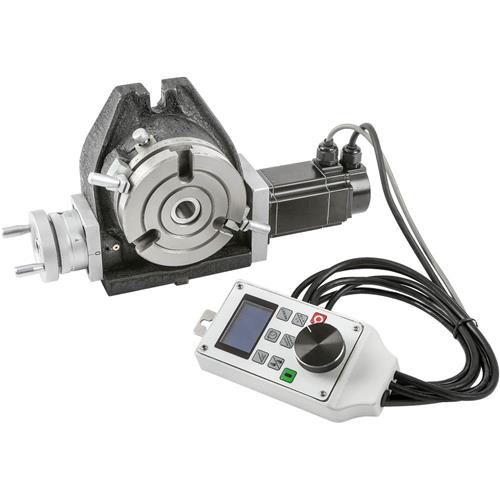

T1191 4-3/8" Power Rotary Table with DRO Control
A motorized rotary table with a digital readout.
A rotary table allows drilling or cutting at exact intervals around vertical and horizontal axes.
The T1191 4-3/8" Rotary Table can be used in either the horizontal or vertical position for a variety of milling applications.
These different operations include milling eccentric features, cutting arcs, create large diameter holes, and circular profiles.
Control is very accurate and precise thanks to the DRO control, 4° table movement per handle rotation, and 20 second vernier scale.
The digital readout screen shows operations and functions as they happen.
The control dial controls the speed, direction, and other variables when operating the DRO.
Like all Grizzly rotary tables, the T1191 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The T1191 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your rotary table.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the rotary table may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
- Worm gear ratio: 72:1
- Table diameter: 4.375"
- Table height: 3.82"
- Center sleeve: MT#2
- Weight: 24 lbs.
- Can be used in horizontal or vertical position
- 4° movement per handle rotation
- 5 second vernier scale
