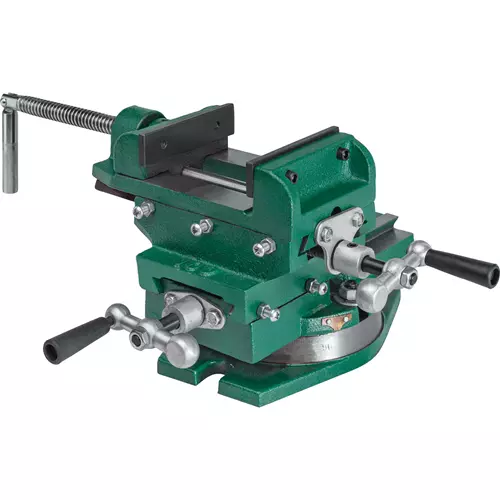

T33427 4" Cross Sliding Vise with Swivel Base
A precise and versatile swivel milling vise.
The T33427 4" Cross Sliding Vise has double direction movement to precisely secure workpieces laterally and longitudinally without having to reposition the vise.
The swiveling base can be rotated then locked into position. It features an easy-to-read 0°–360° scale.
A robust clamping screw allows easy securing of the workpiece while the movement handwheels ensures crisp micro adjustments.
An exclusive slide bar prevents the jaws from tilting up or sideways when tightening.
Adjustable gibs take up any slack on both top and bottom slides.
Use this vise on your mill or drill press for cutting keyways, concentric drilling, and other milling jobs.
Like all Grizzly vises, the T33427 comes with a one-year warranty which covers parts and assures the unit is free from factory defects.
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts for the vise may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Overall height: 5-1/4"
- Base measures: 5" x 10-1/2"
- Mounting slot size: 7/16", spaced 4-3/4"
- Jaw width: 4"
- Jaw depth: 1-3/8"
- Jaw opening: 3-1/2"
- Bottom slide travel: 4"
- Top slide travel: 4"
- Approximate shipping weight: 22 lbs.
