Item: G9958 | Model: G9958

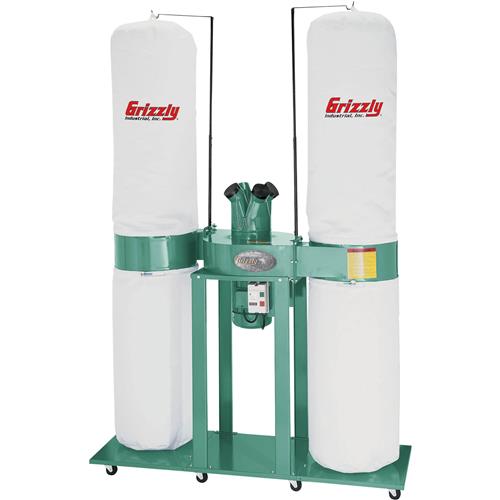

Grizzly G9958 - 4 HP Dust Collector
This is the perfect dust collector for shops that have long runs and multiple machines, yet don't have the height room to accommodate our 12 foot giant below. Large 13" fan can handle four machines simultaneously for a total suction capacity of 3,560 CFM. Convenient caster base allows you to move this unit easily.
Specifications:
Specifications:
- Air suction capacity: 3560 CFM
- Machine hook-up capacity: 4 or more
- Impeller size and type: 13" balanced steel
- Intake port without manifold: 9"
- Intake port with manifold: 4 x 4"
- Motor size: 4 H.P. Single Phase, 220V
- Switch type: Magnetic
- Base size: 24"W x 69"L
- Overall height: 102"
- Bag size top: 19-3/8" x 47"H
- Bag size bottom: 19-3/8" x 37-1/2"H
- Approximate shipping weight: 320 lbs.
Actions for Products including purchasing, availability and wishlist
Accessories and Related Products
Product detail tabs
Overview
This is the perfect dust collector for shops that have long runs and multiple machines, yet don't have the height room to accommodate our 12 foot giant below. Large 13" fan can handle four machines simultaneously for a total suction capacity of 3,560 CFM. Convenient caster base allows you to move this unit easily.
Specifications:
Specifications:
- Air suction capacity: 3560 CFM
- Machine hook-up capacity: 4 or more
- Impeller size and type: 13" balanced steel
- Intake port without manifold: 9"
- Intake port with manifold: 4 x 4"
- Motor size: 4 H.P. Single Phase, 220V
- Switch type: Magnetic
- Base size: 24"W x 69"L
- Overall height: 102"
- Bag size top: 19-3/8" x 47"H
- Bag size bottom: 19-3/8" x 37-1/2"H
- Approximate shipping weight: 320 lbs.
