Item# H7578 Model# H7578

Grizzly H7578 - 4" Rotary Table With Tilting Base

$275.00
+$0.00  Shipping
+$0.00  Oversize

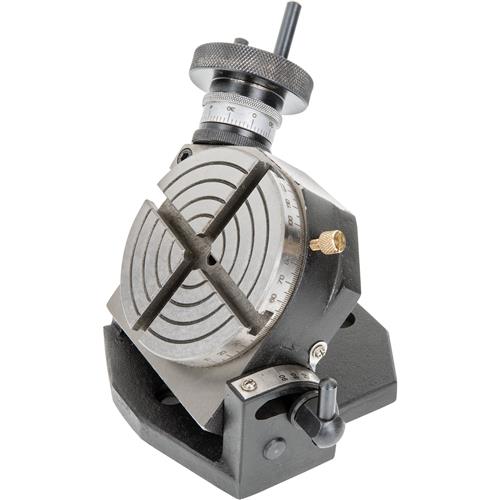

H7578 4" Rotary Table with Tilting Base

An affordably priced adjustable 4" rotary table.

A rotary table allows drilling or cutting at exact intervals around vertical and horizontal axes.

The H7578 4" Rotary Table has the flexibility of a 90 degree tilting base for a variety of milling applications.

Great for precision model making applications where table angle setting is important.

These different operations include milling eccentric features, cutting arcs, create large diameter holes, and circular profiles.

Control is very accurate and precise thanks to the 10° table movement per handle rotation and 5 minute vernier scale.

Like all Grizzly rotary tables, the H7578 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the rotary table may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Size: 4"
  • Total T-slots: 4
  • T-Slot size: 5/16"
  • Table height in horizontal position: 2-5/8"
  • Approximate weight: 12 lbs.

FEATURES:

  • Base can be tilted 90 degrees
  • 10° per Revolution
  • Vernier scale reads to 5 minutes
  • Brass lock knob
View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

H7578 4" Rotary Table with Tilting Base

An affordably priced adjustable 4" rotary table.

A rotary table allows drilling or cutting at exact intervals around vertical and horizontal axes.

The H7578 4" Rotary Table has the flexibility of a 90 degree tilting base for a variety of milling applications.

Great for precision model making applications where table angle setting is important.

These different operations include milling eccentric features, cutting arcs, create large diameter holes, and circular profiles.

Control is very accurate and precise thanks to the 10° table movement per handle rotation and 5 minute vernier scale.

Like all Grizzly rotary tables, the H7578 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the rotary table may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Size: 4"
  • Total T-slots: 4
  • T-Slot size: 5/16"
  • Table height in horizontal position: 2-5/8"
  • Approximate weight: 12 lbs.

FEATURES:

  • Base can be tilted 90 degrees
  • 10° per Revolution
  • Vernier scale reads to 5 minutes
  • Brass lock knob
